CN217209481U - Electric stove with heat dissipation sharing function - Google Patents

Abstract

The utility model relates to the technical field of cooking utensils, and discloses a heat dissipation shared electric stove, which comprises a shell and a panel arranged on the shell, wherein at least one electromagnetic stove core and at least one electric ceramic stove core are arranged in the shell, the electromagnetic stove core and the electric ceramic stove core are electrically connected through a main control unit, the electromagnetic stove core is internally provided with and only has a fan, the fan is used for dissipating heat of the electromagnetic stove core and/or the electric ceramic stove core during working, at least one heat insulation structure is arranged between the main control unit and the electromagnetic stove core/the electric ceramic stove core and is used for separating heat generated during the working of the electromagnetic stove core and/or the electric ceramic stove core for the main control unit, the utility model ensures the heat dissipation effect of the electric stove, reduces the working noise of the electric stove, can effectively reduce the production cost, saves the assembly time, and leads the assembly process to be more time-saving and labor-saving, ensuring the normal use of the electric cooker.

Description

Electric stove with heat dissipation sharing function

Technical Field

The utility model relates to a cooking utensil's technical field refers in particular to an electric cooker of heat dissipation sharing.

Background

An electric cooking stove (electric cooking stove) is a kitchen appliance which cooks food by using heat emitted by an electric heating element or heat generated by a pot based on an electromagnetic induction heating principle; with the development of technology, electric cookers range from single cookers to multiple cookers to meet the requirements of different users, however, in the multi-burner cookers in the current market, in order to dissipate heat of each built-in stove unit, generally, each stove unit needs to be configured with a fan correspondingly, so as to dissipate heat of each stove unit when the electric cooker works, and avoid damage of each stove unit due to too high working temperature, however, such a structure not only has long assembly time, but also has high production cost and assembly cost; moreover, at present, the main control circuit board, the lamp panel and the like of most multi-head stoves are generally arranged inside the shell of the same electric stove together with each stove unit, heat generated by each stove unit during working can directly affect the main control circuit board, the lamp panel and the like, and if the electric stove is not properly cooled, the main control circuit board, the lamp panel and the like are easily damaged, so that the electric stove cannot normally work; in addition, the bull kitchen generally punches in electric range casing bottom surface, and the screw that each kitchen range unit cooperation stretched into from the outside carries out the lock solid, and this kind of structure, assembly personnel often need erect the electric range casing when the assembly and hold the kitchen range unit and assemble, and the assembly is wasted time and energy, if the operation is careless, and the kitchen range unit drops the damage easily, causes the loss, is unfavorable for product production.

Disclosure of Invention

The utility model aims to overcome the weak point among the prior art and provide a heat dissipation shared electric stove, it has guaranteed the radiating effect of electric stove, has reduced the noise at work of electric stove, and effectively reduces manufacturing cost, saves assembly time for the assembly process labour saving and time saving more, can reduce the position that the heat that the kitchen range unit (promptly: electromagnetism kitchen core and/or electric ceramic kitchen core) during operation produced to give off the master control unit to great limit, thereby guaranteed the normal use of electric stove.

In order to achieve the above purpose, the utility model adopts the following technical scheme:

the utility model provides a shared electric cooker dispels heat, includes a casing and the panel of locating the casing, has put at least an electromagnetism stove core and an at least electric pottery stove core in this casing, electromagnetism stove core and electric pottery stove core are through a main control unit electric connection, and this electromagnetism stove core embeds has and only has a fan, and this fan is used for dispelling the heat to the electromagnetism stove core of during operation and/or electric pottery stove core, is equipped with an at least thermal-insulated structure between this main control unit and electromagnetism stove core electric pottery stove core, and this thermal-insulated structure is used for the heat that produces for main control unit separation electromagnetism stove core and/or electric pottery stove core during operation.

The electromagnetic stove core consists of a bottom shell, an electromagnetic control panel arranged on one side of the bottom shell and a coil panel arranged on the bottom shell, wherein a temperature sensor is arranged in the middle of the coil panel and is electrically connected with the electromagnetic control panel; wherein, the junction of this coil panel and drain pan is equipped with the spring, and this spring is used for coordinating the coil panel adjustment and sets up the height.

The electric ceramic stove core is arranged on the shell fixed through more than two connecting posts, a spring is arranged between the electric ceramic stove core and the connecting posts, and the spring is used for being matched with the electric ceramic stove core to adjust the setting height.

A plurality of studs are embedded in the inner side of the bottom surface of the shell, and each stud is used for facilitating the locking of the electromagnetic stove core from the inner side of the shell.

The shell is divided into a control installation area and a machine core installation area through a heat insulation structure, the main control unit is installed in the control installation area, and the electromagnetic stove machine core and the electric ceramic stove machine core are installed in the machine core installation area respectively.

The heat insulation structure is composed of at least one partition board and a heat insulation material layer arranged in the partition board.

The casing sets up the position bottom surface of electromagnetism kitchen core and electric ceramic kitchen core and has seted up an at least air intake respectively, and each air intake is used for providing the passageway for outside air gets into the casing, and this casing side is equipped with an at least air outlet, and this air outlet is used for providing the passageway for taking away thermal air.

The main control unit comprises a main control panel and a regulation and control lamp panel electrically connected with the main control panel, and the regulation and control lamp panel is used for matching the main control panel to regulate and control the electromagnetic stove core and/or the electric ceramic stove core and displaying the current working state of the electromagnetic stove core and/or the electric ceramic stove core.

The beneficial effects of the utility model reside in that: the electromagnetic stove core and/or the electric ceramic stove core are/is cooled by the fan started by the main control unit through the electromagnetic control panel when the electromagnetic stove core and/or the electric ceramic stove core work or the temperature in the stove is overhigh, so that the using number of the fans is reduced, the cooling effect of the electric stove is ensured, the working noise of the electric stove is reduced, the production cost can be effectively reduced, and the assembly time is saved; the stud is embedded in the bottom surface of the shell and matched with the screw, so that the flat installation of the stove unit (namely, the electromagnetic stove core and/or the electric ceramic stove core) is realized, the assembly process is more time-saving and labor-saving, and the condition that the stove unit is damaged due to the fact that the stove unit cannot be stably supported by the electromagnetic stove core and/or the electric ceramic stove core in the assembly process is effectively avoided; the heat insulation structure design in the shell can greatly reduce the heat generated by the working of the stove unit (namely, the electromagnetic stove core and/or the electric ceramic stove core) from being radiated to the position of the main control unit, thereby ensuring the normal use of the main control unit.

Drawings

Fig. 1 is a schematic perspective view of the present invention.

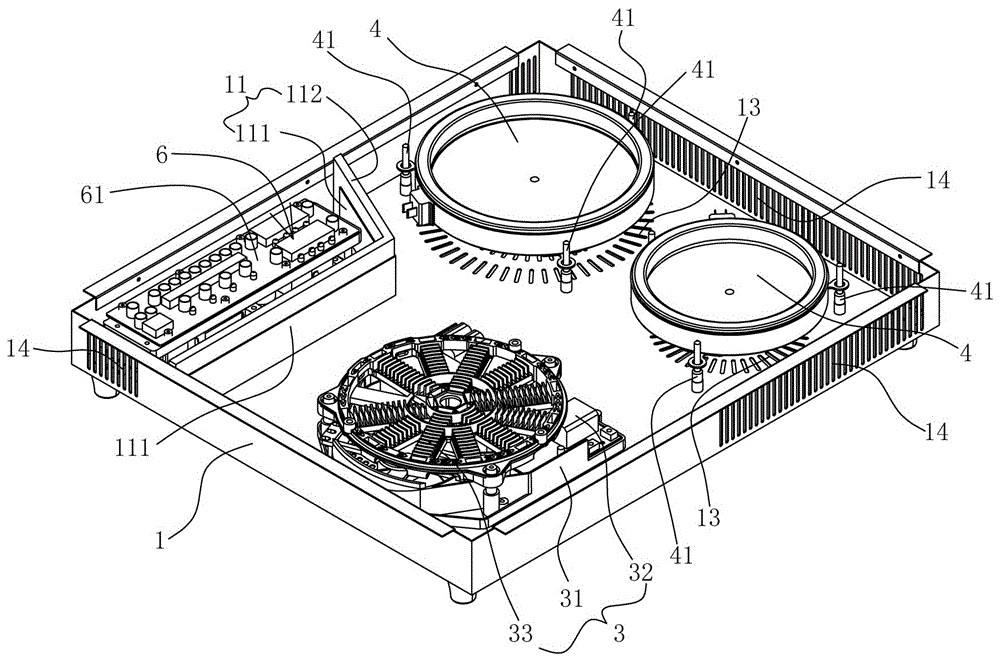

Fig. 2 is a schematic view of the three-dimensional structure of the present invention in the state without a panel.

Fig. 3 is a schematic perspective view of the housing of the present invention.

Fig. 4 is a schematic perspective view of the electromagnetic range core without coil panel according to the present invention.

Fig. 5 is a schematic perspective view of the electric ceramic cooker core of the present invention.

The reference numbers illustrate:

1-a shell; 11-a thermally insulating structure; 111-a separator; 112-a layer of insulating material; 12-a stud; 13-air inlet; 14-air outlet; 2-a panel; 3-electromagnetic oven movement; 31-a bottom shell; 311-connecting hole; 32-an electromagnetic control panel; 33-a coil disc; 4-electric ceramic stove movement; 41-connecting column; 5-a fan; 6-a main control unit; 61-regulating and controlling the lamp panel; 7-spring.

Detailed Description

The invention is further described below with reference to the drawings in the specification:

as shown in fig. 1-5, the utility model relates to a heat dissipation shared electric cooker, including a casing 1 and the panel 2 of locating casing 1, this panel 2 is used for placing kitchen utensils and appliances such as pan in the culinary art process, this casing 1 embeds there are at least one electromagnetism stove core 3 and at least one electric pottery stove core 4, electromagnetism stove core 3 and electric pottery stove core 4 are through a master control unit 6 electric connection, this electromagnetism stove core 3 embeds and has only a fan 5, this fan 5 is used for dispelling the heat to electromagnetism stove core 3 and/or electric pottery stove core 4 during operation, be equipped with at least one thermal-insulated structure 11 between this master control unit 6 and electromagnetism stove core 3/electric pottery stove core 4, this thermal-insulated structure 11 is used for the heat that produces during operation of main control unit 6 separation electromagnetism stove core 3 and/or electric pottery stove core 4; wherein, the electric ceramic stove movement 4 is fixed on the shell 1 through more than two connecting posts 41; a spring 7 is arranged between the electric ceramic stove movement 4 and the connecting column 41, and the spring 7 is used for adjusting the setting height in cooperation with the electric ceramic stove movement 4 so as to ensure that the electric ceramic stove movement 4 can be positioned at the better height for acting on a cooker; it should be noted that the specific components of the electric ceramic cooker core 4 are well known in the art, and are not described herein again.

As shown in fig. 2 and 4, the electromagnetic cooker core 3 comprises a bottom shell 31, an electromagnetic control board 32 disposed on one side of the bottom shell 31, and a coil panel 33 disposed on the bottom shell 31, wherein a temperature sensor (not shown) is disposed in the middle of the coil panel 33, the temperature sensor is electrically connected to the electromagnetic control board 32, the electromagnetic control board 32 is electrically connected to the main control unit 6, and the fan 5 is electrically connected to the electromagnetic control board 32; wherein, the connection between the coil panel 33 and the bottom case 31 is provided with a spring 7, the spring 7 is used to adjust the setting height in cooperation with the coil panel 33 to ensure that the coil panel 33 can be at the preferred height of the cooker, specifically, the bottom case 31 is provided with more than two mounting posts 312, and each spring 7 is sleeved on the mounting posts 312 respectively; the fan 5 is disposed on the other side of the bottom case 31, and preferably, the fan 5 is disposed below the coil panel 33 to dissipate heat of the coil panel 33 more directly.

As shown in fig. 3, a plurality of studs 12 are embedded in the inner side of the bottom surface of the casing 1, and each stud 12 is used for facilitating the locking of the electromagnetic stove core 3 from the inner side of the casing 1; it should be noted that each stud 12 is embedded from the outer side of the bottom surface of the casing 1 to the inside, an assembly connection structure is formed inside the casing 1, for example, the electromagnetic stove core 3, the bottom shell 31 may be provided with a connection hole 311 corresponding to each stud 12, so that the electromagnetic stove core 3 may be placed in the casing 1 in a flat state, and then the casing 1 is easily locked by a screw, so that the assembly of the product is simpler and more labor-saving, the assembly time is saved, and the cooking range unit (i.e., the electromagnetic stove core 3 and/or the electric ceramic stove core 4) can be effectively ensured to be intact in the assembly process.

As shown in fig. 2-3, the inside of the casing 1 is divided into a control installation area and a movement installation area by the casing 1 through a heat insulation structure 11, the main control unit 6 is installed in the control installation area, and the electromagnetic stove movement 3 and the electric ceramic stove movement 4 are respectively installed in the movement installation area; the main control unit 6 and the stove unit (namely, the electromagnetic stove core 3 and/or the electric ceramic stove core 4) are isolated by the heat insulation structure 11, so that the heat generated when the stove unit (namely, the electromagnetic stove core 3 and/or the electric ceramic stove core 4) works can be reduced to the position of the main control unit 6 to the maximum extent, and the normal use of the main control unit 6 is ensured.

As shown in fig. 2-3, the heat insulation structure 11 is composed of at least one partition plate 111 and a heat insulation material layer 112 disposed in the partition plate 111, wherein the partition plate 111 is in a U-shaped groove structure, the heat insulation material layer 112 is inserted into the groove of the partition plate 111, a plate hole (not shown) is opened at the bottom of the groove of the partition plate 111, and the plate hole is fixed in the housing 1 by a screw; or, at least two partition boards 111 are arranged in the casing 1, each partition board 111 is a sheet structure, two ends of each partition board 111 are respectively provided with slots (not shown) on the inner side of the casing 1, each partition board 111 is fixed through the corresponding slot to form a blocking structure, and the heat insulation material layer 112 is arranged between the partition boards 111; the specific arrangement of the partition 111 can be designed according to the actual production needs of the product, and is not limited herein; the heat insulation material is preferably heat insulation cotton, the heat insulation cotton has the characteristics of high temperature resistance, difficult combustion, low heat conductivity coefficient and the like, the material is convenient to obtain, the cost is low, the heat insulation effect inside the electric stove is ensured, the product cost can be effectively controlled, however, the specific material selection of the heat insulation material layer 112 can be configured according to the actual needs of the product, and the self-limitation is not performed.

As shown in fig. 2-3, at least one air inlet 13 is respectively formed on the bottom surface of the casing 1 at the position where the electromagnetic stove core 3 and the electric ceramic stove core 4 are arranged, each air inlet 13 is used for providing a channel for outside air to enter the casing 1, at least one air outlet 14 is formed on the side surface of the casing 1, and the air outlet 14 is used for providing a channel for air which takes away heat; the design of air intake 13 and air outlet 14 can ensure that the air current gets into from air intake 13, and air outlet 14 flows out, forms effectual gas circulation passageway for the heat that the electric cooker during operation produced can effectively be taken away to the air current that gets into, in addition, casing 1 below still is equipped with 3 at least footing (not shown), and each footing erects casing 1 bottom surface, so that gas gets into in casing 1 better.

As shown in fig. 2, the main control unit 6 includes a main control panel (not shown) and a regulation and control lamp panel 61 electrically connected to the main control panel, and the regulation and control lamp panel 61 is used for cooperating with the main control panel to regulate and control the electromagnetic stove core 3 and/or the electric ceramic stove core 4 and display the current working state of the electromagnetic stove core 3 and/or the electric ceramic stove core 4.

During assembly, the main control board and the regulating lamp panel 61 of the main control unit 6 are arranged in the control installation area from bottom to top, and then the electromagnetic stove core 3 and the electric ceramic stove core 4 are fixed in the core installation area in a matching manner, for example, under the state that the shell 1 is horizontally placed, each connecting hole 311 on the bottom shell 31 of the electromagnetic stove core 3 is aligned to the corresponding stud 12, the electromagnetic stove core 3 is placed into the shell 1, and then the locking is carried out through screws, so that the electromagnetic stove core 3 can be easily installed, and the electromagnetic stove is easy and convenient to use, time-saving and labor-saving; and then the circuit of the electromagnetic stove core 3 and the electric ceramic stove core 4 and the main control panel of the fan 5 and the main control unit 6 are connected, and finally the panel 2 is arranged above the shell 1 for installation and fixation, so that the installation of the electric stove is completed.

During the use, open the electric cooker, it is electromagnetic range core 3 or electric pottery kitchen core 4 exclusive use anyhow, or electromagnetic range core 3 and electric pottery kitchen core 4 use simultaneously, perhaps when the temperature is too high in the kitchen again, the main control unit passes through the electromagnetic control board of electromagnetic range core, start the fan, dispel the heat to electromagnetic range core 3 and/or electric pottery kitchen core 4 through fan 5, when furthest reduced fan 5's use number, the radiating effect of electric cooker has both been guaranteed, can effectively reduce manufacturing cost again, save the assemble duration, and, fan 5's reduction, can also effectively reduce the operating noise of electric cooker.

It should be noted that in the description of the present invention, the terms "upper", "lower", "inner", "outer", "front end", "rear end", "both ends", "one end", "the other end", etc. indicate the orientation or positional relationship based on the orientation or positional relationship shown in the drawings, which is only for the convenience of describing the present invention and simplifying the description, but does not indicate or imply that the device or element referred to must have a specific orientation, be constructed in a specific orientation, and be operated, and thus, should not be construed as limiting the present invention; furthermore, the terms "first" and "second" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance.

It is to be noted that, in the description of the present invention, unless otherwise explicitly specified or limited, the terms "mounted," "provided," "connected," and the like are to be construed broadly, and for example, "connected" may be a fixed connection, a detachable connection, or an integral connection; can be mechanically or electrically connected; the two elements can be directly connected or indirectly connected through an intermediate medium, and the two elements can be communicated with each other, so that the specific meaning of the terms in the invention can be understood by those skilled in the art.

In addition, still need to explain, the utility model discloses the standard parts that use all can purchase from the market, if relate to special-shaped, all can customize according to the description of the description with the drawing, and the concrete connected mode of each part all adopts conventional means such as ripe screw/bolt, rivet, welding among the prior art, and machinery, part and equipment all adopt among the prior art, and conventional model is no longer repeated here.

It is right only to go up the preferred embodiment of the utility model discloses a it is not right the utility model discloses a scope is injectd, the event is not deviating from the utility model relates to an under the prerequisite of spirit, ordinary engineering technical personnel in the field is right the equivalent change or the decoration that structure, characteristic and principle do, all should fall into the utility model discloses the protection within range of applying for a patent.

Claims (8)

1. The utility model provides an electric cooker of heat dissipation sharing, includes a casing and the panel of locating the casing, this casing is built-in to have at least an electromagnetism kitchen core and at least an electric pottery kitchen core, its characterized in that: electromagnetic range core and electric pottery kitchen core pass through a main control unit electric connection, and this electromagnetic range core embeds has and only a fan, and this fan is used for dispelling the heat to the electromagnetic range core and/or the electric pottery kitchen core of during operation, is equipped with an at least thermal-insulated structure between this main control unit and electromagnetic range core/the electric pottery kitchen core, and this thermal-insulated structure is used for the heat that produces for main control unit separation electromagnetic range core and/or electric pottery kitchen core during operation.

2. The heat dissipation shared electric cooker according to claim 1, wherein: the electromagnetic stove core consists of a bottom shell, an electromagnetic control panel arranged on one side of the bottom shell and a coil panel arranged on the bottom shell, wherein a temperature sensor is arranged in the middle of the coil panel and is electrically connected with the electromagnetic control panel; wherein, the junction of this coil panel and drain pan is equipped with the spring, and this spring is used for coordinating the coil panel adjustment and sets up the height.

3. The heat dissipation shared electric cooker according to claim 1, wherein: the electric ceramic stove core is arranged on the shell fixed through more than two connecting posts, a spring is arranged between the electric ceramic stove core and the connecting posts, and the spring is used for being matched with the electric ceramic stove core to adjust the setting height.

4. The heat-dissipating shared electric cooker according to claim 1, wherein: a plurality of studs are embedded in the inner side of the bottom surface of the shell, and each stud is used for facilitating the locking of the electromagnetic stove core from the inner side of the shell.

5. The heat dissipation shared electric cooker according to claim 1, wherein: the shell is divided into a control installation area and a machine core installation area through a heat insulation structure, the main control unit is installed in the control installation area, and the electromagnetic stove machine core and the electric ceramic stove machine core are installed in the machine core installation area respectively.

6. The heat dissipation shared electric cooker of claim 5, wherein: the heat insulation structure is composed of at least one partition board and a heat insulation material layer arranged in the partition board.

7. The heat-dissipating shared electric cooker according to claim 1, wherein: the casing sets up the position bottom surface of electromagnetism stove core and electric ceramic stove core and has seted up an at least air intake respectively, and each air intake is used for providing the passageway for outside air gets into the casing, and this casing side is equipped with an at least air outlet, and this air outlet is used for providing the passageway for taking away thermal air.

8. The heat dissipation shared electric cooker according to claim 1, wherein: the main control unit comprises a main control panel and a regulation and control lamp panel electrically connected with the main control panel, and the regulation and control lamp panel is used for matching the main control panel to regulate and control the electromagnetic stove core and/or the electric ceramic stove core and displaying the current working state of the electromagnetic stove core and/or the electric ceramic stove core.
