Abstract
本发明公开了一种带有弹性波箔支撑的静压气体径向轴承。该静压气体径向轴承包括轴承基座、弹性波箔、轴承内圈、内圈定位销和固定垫片。轴承基座上开设有固定槽，弹性波箔通过固定垫片焊接在固定槽内；轴承基座与轴承内圈沿圆周方向均匀设置有一定数量的节流孔，侧面均开有定位槽；内圈定位销位于定位槽内，可防止轴承内圈沿圆周方向转动。本发明加设了弹性波箔和轴承内圈，弹性波箔可以起到弹性支撑作用，允许轴具有更大的振动幅度，提高了轴承的稳定性和抗冲击性；轴承内圈方便更换，降低了成本；同时轴承基座和轴承内圈上开设的多排均布节流孔可以提高供气均匀性；双层节流孔结构可以减小打孔深度，降低加工难度。
The invention discloses a static pressure gas radial bearing with elastic wave foil support. The static pressure gas radial bearing includes a bearing base, an elastic wave foil, a bearing inner ring, an inner ring locating pin and a fixing gasket. There is a fixed groove on the bearing base, and the elastic wave foil is welded in the fixed groove through the fixed gasket; the bearing base and the inner ring of the bearing are evenly provided with a certain number of orifices along the circumferential direction, and there are positioning grooves on the sides; The ring locating pin is located in the locating groove, which prevents the bearing inner ring from rotating in the circumferential direction. The invention adds elastic wave foil and bearing inner ring, the elastic wave foil can play an elastic supporting role, allows the shaft to have a larger vibration amplitude, and improves the stability and impact resistance of the bearing; the inner ring of the bearing is easy to replace, reducing the At the same time, the multiple rows of uniformly distributed orifices on the bearing base and the bearing inner ring can improve the uniformity of air supply; the double-layer orifice structure can reduce the drilling depth and reduce the processing difficulty.
Description
Technical Field
The invention belongs to the field of gas bearings and high-speed rotating machinery, and particularly relates to a static pressure gas radial bearing with an elastic wave foil support.
Background
The static pressure gas radial bearing has the advantages of small vibration, high rotation precision, small friction loss, long service life, no pollution to the environment and the like, and is widely applied to the aerospace industry, the semiconductor industry, ultra-precision machining equipment and precision measurement equipment. The bearing rigidity is the main performance index of the static pressure gas radial bearing and is the key for ensuring the bearing precision. The load-bearing capacity and stiffness of a hydrostatic gas bearing are related to the form of throttling, the pressure of the supply gas and the form of the structure of the support. The throttling modes of the static pressure gas bearing mainly include small hole throttling, slit throttling, surface throttling, porous throttling and the like. At present, the throttling modes are researched and applied to different degrees in China, wherein the orifice with a smaller aperture and a smaller bearing gap are generally adopted for the small-hole gas supply static pressure gas bearing, so that the gas generates a stronger throttling effect in the process of passing through the orifice and the bearing gap, and the rigidity of the bearing is favorably improved. The small-hole throttling static pressure gas radial bearing which is widely applied has higher rigidity, but has lower bearing capacity and poorer stability. At present, the bearing capacity of the orifice throttling static pressure gas radial bearing is usually improved through high gas supply pressure, but the orifice throttling static pressure gas radial bearing is easy to generate air hammer vibration when the gas supply pressure is high, so that the bearing is failed, and the improvement of the bearing capacity is greatly restricted. Meanwhile, under the condition that the main shaft rotates at a high speed, if external impact and disturbance occur, when a rotor is unstable, sintering and adhesion can occur between the main shaft and the bearing, so that the main shaft and the bearing are seriously abraded and even destroyed, and the safety and stable operation of equipment are seriously influenced.
Based on some research difficulties in the prior art, the invention discloses a static pressure gas radial bearing with an elastic wave foil support. Compared with the traditional static pressure gas radial bearing, the static pressure gas radial bearing is additionally provided with the elastic wave foil and the bearing inner ring, the elastic wave foil can play an elastic supporting role, a shaft is allowed to have larger vibration amplitude, and the stability and the impact resistance of the bearing are improved; the bearing inner ring is convenient to replace, and the cost is reduced; meanwhile, the bearing base and the bearing inner ring are provided with a plurality of rows of orifices which are uniformly distributed, so that the uniformity of air supply can be improved; the double-layer throttling hole structure can reduce the punching depth and reduce the processing difficulty, so that the bearing has higher adaptability.
Disclosure of Invention
The static pressure gas radial bearing with the elastic wave foil support is provided, the structural form and the throttling form of the bearing support are improved, the elastic wave foil and the bearing inner ring are additionally arranged, the elastic wave foil can play an elastic supporting role, a shaft is allowed to have larger vibration amplitude, and the stability and the impact resistance of the bearing are improved; the bearing inner ring is convenient to replace, and the cost is reduced; meanwhile, multiple rows of uniformly distributed throttle holes are formed in the bearing base and the bearing inner ring, so that the uniformity of air supply can be improved; the double-layer throttling hole structure can reduce the punching depth and reduce the processing difficulty, so that the bearing has higher adaptability. The technical scheme of the invention is as follows.
The invention relates to a static pressure gas radial bearing with an elastic corrugated foil support. A fixing groove is formed in the bearing base, and the elastic wave foil is welded in the fixing groove through a fixing gasket; a certain number of throttling holes are uniformly formed in the bearing base and the bearing inner ring along the circumferential direction, and positioning grooves are formed in the side faces of the throttling holes; the inner ring positioning pin is positioned in the positioning groove, can position the bearing base and the throttling hole of the bearing inner ring, and simultaneously prevents the bearing inner ring from rotating along the circumferential direction; the diameter of the bearing inner ring is slightly larger than that of the main shaft, so that a bearing gap is formed; and the manufactured bearing base, the elastic wave foil and the bearing inner ring are sequentially superposed.
Bearing pedestal evenly be provided with the orifice that the several structure is the same along the circumferencial direction, macropore aperture is 2~4mm, aperture is 1~2mm, the hole number is 4~14, is equipped with 1~4 rows, but bearing pedestal orifice equidistance in axial direction arranges also can the displacement arrange.
Elastic wave foil be the metal wave foil type, wave foil evenly is provided with the through-hole that the several structure is the same along the circumferencial direction, the aperture is 1~2mm, the figure is 4~14, is equipped with 1~4 rows, but the foil through-hole equidistance is arranged at axial direction also can the displacement and arrange, the foil through-hole aligns with the bearing base orifice and arranges.
The width of the foil of the elastic wave foil is smaller than that of the bearing base, the difference is 2-4 mm, the height of the pressed foil is 0.2-0.7 mm, and the number of wave arches is 8-50.
The bearing inner ring is evenly provided with a plurality of orifices with the same structure along the circumferential direction, the aperture of a large hole is 1-2 mm, the aperture of a small hole is 0.2-1 mm, the number of the holes is 4-14, the bearing inner ring orifices are arranged in the axial direction at equal intervals or in variable intervals, and the bearing inner ring orifices and the bearing base orifices are arranged in an aligned mode.
The width of the bearing inner ring is slightly smaller than the width of the bearing base, the difference value is not more than 1mm, the inner diameter of the bearing inner ring is slightly larger than the diameter of the main shaft, and the difference value is 0.02 mm-0.2 mm.
Drawings

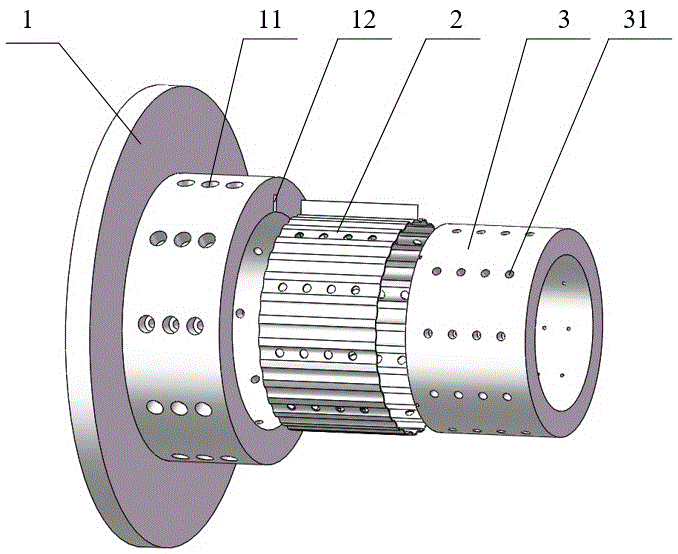

Fig. 1 is an exploded view of a hydrostatic gas radial bearing with an elastic wave foil support according to the present invention.
Fig. 2 is an assembly schematic of a hydrostatic gas radial bearing with an elastic wave foil support according to the present invention.
Fig. 3 is a schematic diagram of the installation and positioning of the bearing base, the elastic wave foil and the bearing inner ring adopted by the static pressure gas radial bearing with the elastic wave foil support provided by the invention.
FIG. 4 is a schematic diagram of the distribution of orifices and positioning grooves in the bearing pedestal of the hydrostatic gas radial bearing with elastic wave foil support according to the present invention.
FIG. 5 is a schematic diagram of the distribution of orifices and positioning grooves in the inner ring of the bearing used in the static pressure gas radial bearing with elastic wave foil support according to the present invention.
A hydrostatic gas radial bearing with elastic wave foil support according to an embodiment of the application, reference numbers indicate:
1. a bearing base; 11. a bearing pedestal orifice; 12. fixing grooves; 13. a bearing pedestal side; 14. a bearing base locating slot; 15. the other side surface of the bearing base; 2. an elastic wave foil; 21. An elastic wave foil side; 3. a bearing inner race; 31. a bearing inner race orifice; 32. a bearing inner race positioning groove; 33. the side surface of the bearing inner ring; 4. an inner ring positioning pin; 5. and fixing the gasket.
Detailed Description
For those skilled in the art to better understand the objects, technical solutions and advantages of the present invention, the technical solutions in the embodiments of the present invention will be described below with reference to the drawings in the embodiments of the present invention.
As shown in fig. 1, the present invention provides a hydrostatic gas radial bearing with an elastic wave foil support. The static pressure gas radial bearing comprises a bearing base 1, an elastic wave foil 2, a bearing inner ring 3, an inner ring positioning pin 4 and a fixing gasket 5. The elastic bump foil 2 is formed by punching a certain number of small holes on a metal sheet, wherein the hole diameter is 1-2 mm, the number is 4-14, 1-4 rows are arranged, and the foil through holes can be arranged at equal intervals or at variable intervals in the axial direction and then pressed on a die to form the bump foil type elastic supporting foil. The bump foil through hole is aligned with the bearing base orifice and then welded in the fixing groove 12 of the bearing base 1 by the fixing washer 5.
As shown in fig. 2, the elastic bump foil 2 is welded to the fixing groove 12 of the bearing base 1 via the fixing spacer 5, and the foil side surface 21 overlaps the bearing base side surface 13. The inner ring positioning pin 4 is positioned at the bearing base positioning groove 14 and the bearing inner ring positioning groove 32, can position the throttling holes of the bearing base and the bearing inner ring, and can prevent the bearing inner ring from rotating along the circumferential direction; the manufactured bearing base 1, the elastic wave foil 2 and the bearing inner ring 3 are sequentially superposed according to the arrangement mode shown in fig. 2.
As shown in fig. 3, the width of the elastic bump foil 2 is smaller than the width of the bearing base 1, the difference is 2-4 mm, the height of the pressed foil is 0.2-0.7 mm, and the number of bumps is 8-50; the width of the bearing inner ring 3 is slightly smaller than that of the bearing base 1, and the difference value is not more than 1 mm; the inner diameter of the bearing inner ring 3 is slightly larger than the diameter of the main shaft, and the difference values are 0.02 mm-0.2 mm. The elastic wave foil 2 is respectively contacted with the inner ring of the bearing base 1 and the outer ring of the bearing inner ring 3, and plays the roles of elastic support and vibration buffering.
As shown in FIG. 4, the bearing base 1 is uniformly provided with a plurality of orifices 11 with the same structure along the circumferential direction, the aperture of the large hole is 2-4 mm, the aperture of the small hole is 1-2 mm, the number of the holes is 4-14, 1-4 rows are provided, and the bearing base orifices 11 can be arranged at equal intervals or at variable intervals in the axial direction. The side surface 15 of the bearing base 1 is provided with a bearing base positioning groove 14.
As shown in FIG. 5, a plurality of orifices 31 with the same structure are uniformly arranged on the bearing inner ring 3 along the circumferential direction, the aperture of the large hole is 1-2 mm, the aperture of the small hole is 0.2-1 mm, the number of the holes is 4-14, 1-4 rows are arranged, the orifices 31 of the bearing inner ring can be arranged at equal intervals or at variable intervals in the axial direction, and the orifices of the bearing inner ring and the orifices of the bearing base are arranged in an alignment way. The side 33 of the bearing inner ring 3 is provided with a bearing inner ring positioning groove 32.
Claims (6)
1. The static pressure gas radial bearing with the elastic wave foil support is characterized by comprising a bearing base, an elastic wave foil, a bearing inner ring, an inner ring positioning pin and a fixing gasket; a fixing groove is formed in the bearing base, and the elastic wave foil is welded in the fixing groove through a fixing gasket; a certain number of throttling holes are uniformly formed in the bearing base and the bearing inner ring along the circumferential direction, and positioning grooves are formed in the side faces of the throttling holes; the inner ring positioning pin is positioned in the positioning groove, can position the bearing base and the throttling hole of the bearing inner ring, and simultaneously prevents the bearing inner ring from rotating along the circumferential direction; the diameter of the bearing inner ring is slightly larger than that of the main shaft, so that a bearing gap is formed; and the manufactured bearing base, the elastic wave foil and the bearing inner ring are sequentially superposed.
2. The static pressure gas radial bearing with the elastic wave foil support as claimed in claim 1, wherein the bearing base is uniformly provided with a plurality of orifices with the same structure along the circumferential direction, the diameter of the big hole is 2-4 mm, the diameter of the small hole is 1-2 mm, the number of the holes is 4-14, 1-4 rows are provided, and the orifices of the bearing base can be arranged at equal intervals or at variable intervals in the axial direction.
3. The static pressure gas radial bearing with elastic wave foil support according to claim 1, characterized in that the elastic wave foil is of a metal wave foil type, a plurality of through holes with the same structure are uniformly arranged on the wave foil along the circumferential direction, the hole diameter is 1-2 mm, the number is 4-14, 1-4 rows are arranged, the foil through holes can be arranged at equal intervals or variable intervals in the axial direction, and the foil through holes are arranged in alignment with the bearing base throttling holes.
4. The hydrostatic gas radial bearing with elastic wave foil support of claim 1, wherein the foil width of the elastic wave foil is smaller than the bearing pedestal width by 2 to 4mm, the pressed foil height is 0.2 to 0.7mm, and the number of wave arches is 8 to 50.
5. The static pressure gas radial bearing with the elastic wave foil support as claimed in claim 1, wherein the bearing inner ring is uniformly provided with a plurality of orifices with the same structure along the circumferential direction, the diameter of the large hole is 1-2 mm, the diameter of the small hole is 0.2-1 mm, the number of the holes is 4-14, 1-4 rows are provided, the orifices of the bearing inner ring can be arranged at equal intervals or at variable intervals in the axial direction, and the orifices of the bearing inner ring and the orifices of the bearing base are arranged in alignment.
6. The hydrostatic gas radial bearing with elastic wave foil support according to claim 1, wherein the width of the bearing inner ring is slightly smaller than the width of the bearing base, the difference is not more than 1mm, the inner diameter of the bearing inner ring is slightly larger than the diameter of the main shaft, and the difference is 0.02 mm-0.2 mm.
