Gantry mill for sander

Technical Field

The utility model relates to a longmen for the grinder mills technical field, specifically is a longmen for grinder mills.

Background

A sander is a machining abrasive tool that has applications in a variety of industries. For example, in the machining process, the cutter is worn and dulled or damaged and loses cutting ability, the cutter needs to be sharpened on a grinding wheel to recover the cutting ability, the existing sander needs to mill parts, and the existing sander cannot mill oversized parts due to too small milling.

SUMMERY OF THE UTILITY MODEL

The utility model provides a not enough to prior art, the utility model provides a longmen is milled for grinder has solved current grinder and is making, need mill its part, and the current undersize that mills can't mill the problem that too big part goes on milling.

In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: a gantry mill for a sander comprises an operating platform and a portal frame, wherein the portal frame is installed on the operating platform, and a milling structure is arranged on the portal frame;

the milling structure comprises: the device comprises a pair of first lead screw modules, a pair of moving blocks, a moving plate, a second lead screw module, an operation box, a motor, a rotating shaft, a milling cutter and an adjusting assembly;

the pair of first lead screw modules is arranged on the front wall surface of the portal frame, the pair of moving blocks is arranged on the moving ends of the pair of first lead screw modules, the moving plate is arranged on the front wall surface of the pair of moving blocks, the second lead screw module is arranged in front of the moving plate, the operating box is arranged on the moving end of the second lead screw module, the motor is arranged on the inner rear wall surface of the operating box, a through hole is formed in the lower wall surface of the operating box, the rotating shaft penetrates through the through hole formed in the lower wall surface of the operating box and is arranged on the motor driving end, the milling cutter is arranged on the rotating shaft and is positioned below the operating box, and an adjusting component is arranged on the operating platform.

Preferably, the adjusting assembly comprises: the fixing plate, a pair of T-shaped grooves, a pair of T-shaped blocks, a pair of screws, a pair of limiting plates and a pair of nuts;

the fixing plate is installed on the upper wall surface of the operating platform, the pair of T-shaped grooves are formed in the operating platform, the pair of T-shaped blocks are placed in the pair of T-shaped grooves, the pair of screws are installed on the upper wall surface of the pair of T-shaped blocks, the pair of limiting plates are provided with through holes in the upper wall surface and the lower wall surface, the pair of limiting plates are installed on the pair of screws, the pair of nuts are installed on the pair of screws, and the pair of nuts are located above the pair of limiting plates.

Preferably, a motor frame for supporting is arranged on the motor.

Preferably, the operation box is provided with an access cover for maintenance.

Preferably, the operation box is provided with an illuminating lamp for illumination.

Preferably, the operation box is provided with a heat dissipation cover for dissipating heat.

The utility model provides a longmen is milled for grinder. The method has the following beneficial effects: the present case mainly adopts and mills the structure, simple structure, and the simple operation can mill the grinder part to can mill too big part, when milling, can fix according to the size of part, solve current grinder and make, need mill its part, the current problem that can't mill too big part of milling of undersize.

Drawings

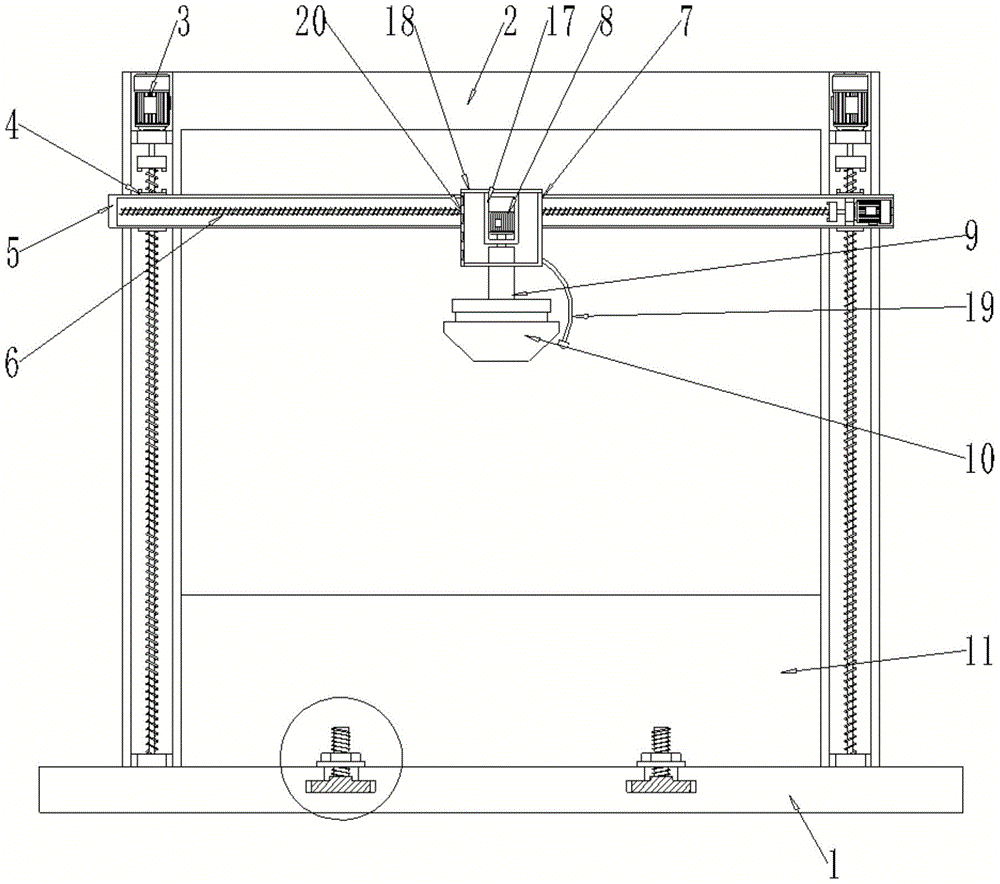

Fig. 1 is a schematic view of a main view structure of a gantry mill for a sander.

Fig. 2 is a schematic view of a main view local amplification structure of a gantry mill for a sander.

In the figure: 1-an operation table; 2-a gantry; 3-a first lead screw module; 4-moving blocks; 5, moving the board; 6-a second lead screw module; 7-operating box; 8, a motor; 9-a rotating shaft; 10-milling cutter; 11-a fixed plate; 12-T-shaped slots; 13-a T-block; 14-a screw; 15-limiting plate; 16-a nut; 17-a motor frame; 18-access cover; 19-a lighting lamp; 20-heat dissipation cover.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative efforts all belong to the protection scope of the present invention.

All the electrical components in the present application are connected with the power supply adapted to the electrical components through a wire, and an appropriate controller and an appropriate encoder should be selected according to actual conditions to meet control requirements, and specific connection and control sequences should be obtained. (the details of the working principle, the detailed connecting means, and the working principle and procedures are generally described below in the following) for the connection of the parts in this case in turn, and the specific connection and operation sequence by those skilled in the art

As shown in fig. 1-2, the main components of the present application are: the device comprises an operating platform 1 and a door-shaped frame 2, wherein the door-shaped frame 2 is installed on the operating platform 1, and a milling structure is arranged on the door-shaped frame 2;

it should be noted that when the sanding machine is manufactured, a part on the sanding machine needs to be milled, and in this case, the milling structure on the gantry 2 on the operation table 1 can be used for milling.

In the specific implementation process, the milling structure comprises: the device comprises a pair of first lead screw modules 3, a pair of moving blocks 4, a moving plate 5, a second lead screw module 6, an operation box 7, a motor 8, a rotating shaft 9, a milling cutter 10 and an adjusting component;

the pair of first lead screw modules 3 are installed on the front wall surface of the portal frame 2, the pair of moving blocks 4 are installed on the moving ends of the pair of first lead screw modules 3, the moving plate 5 is installed on the front wall surface of the pair of moving blocks 4, the second lead screw module 6 is installed in front of the moving plate 5, the operating box 7 is installed on the moving end of the second lead screw module 6, the motor 8 is installed on the inner rear wall surface of the operating box 7, a through hole is formed in the lower wall surface of the operating box 7, the rotating shaft 9 penetrates through the through hole formed in the lower wall surface of the operating box 7 and is installed on the driving end of the motor 8, the milling cutter 10 is installed on the rotating shaft 9, the milling cutter 10 is located below the operating box 7, and the operating platform 1 is provided with an adjusting component.

It should be noted that a part to be milled is placed on the operating platform 1, at this time, the part is adjusted and fixed according to the size of the part through the adjusting structure, after the part is fixed, the pair of first lead screw modules 3 installed on the gantry frame 2 are electrified, the moving ends of the pair of first lead screw modules 3 start to move, so that the pair of moving blocks 4 are driven to move, so that the moving plate 5 is driven to move, the milling cutter 10 is moved to the upper side of the part, the motor 8 installed in the operating box 7 is electrified, after the motor 8 receives an electric signal, the driving end of the motor 8 starts to rotate, the milling cutter 10 on the driving end of the motor 8 is driven to rotate, at this time, the second lead screw module 6 installed on the moving plate 5 is electrified, the milling cutter 10 moves left and right while rotating, and the upper surface of the part is milled.

Preferably, the adjusting assembly further comprises: the fixing plate comprises a fixing plate 11, a pair of T-shaped grooves 12, a pair of T-shaped blocks 13, a pair of screws 14, a pair of limiting plates 15 and a pair of nuts 16;

the fixing plate 11 is installed on the upper wall surface of the operating platform 1, the pair of T-shaped grooves 12 are located on the operating platform 1, the pair of T-shaped blocks 13 are placed in the pair of T-shaped grooves 12, the pair of screw rods 14 are installed on the upper wall surfaces of the pair of T-shaped blocks 13, through holes are formed in the upper wall surface and the lower wall surface of the pair of limiting plates 15, the through holes formed in the upper wall surface and the lower wall surface of the pair of limiting plates 15 are installed on the pair of screw rods 14, the pair of nuts 16 are installed on the pair of screw rods 14, and the pair of nuts 16 are located above the pair of limiting plates 15.

When a component is placed on the table 1, the rear wall surface of the component is placed on the front wall surface of the fixing plate 11, a pair of T-shaped blocks 13 are placed in a pair of T-shaped grooves 12, the pair of T-shaped blocks 13 are rotated at appropriate positions to clamp the pair of T-shaped blocks 13 in the pair of T-shaped grooves 12, a pair of stopper plates 15 are attached to the pair of T-shaped blocks 13 and the pair of screws 14, and a pair of nuts 16 are screwed to the pair of screws 14, the pair of stopper plates 15 are fixed to the movable table 1, and the component is fixed to the table 1.

Preferably, the motor 8 is further provided with a motor frame 17 for supporting.

Preferably, the operation box 7 is further provided with an access cover 18 for maintenance.

Preferably, the operation box 7 is further provided with an illumination lamp 19 for illumination.

Preferably, a heat dissipation cover 20 for dissipating heat is further disposed on the operation box 7.

It should be noted that, in this document, relational terms such as first and second, and the like are used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation. The use of the phrase "comprising one of the elements does not exclude the presence of other like elements in the process, method, article, or apparatus that comprises the element.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. a kind of gantry milling for sanding machine, comprising operating table and portal frame, it is characterized in that, described portal frame is installed on described operating table, and described portal frame is provided with milling structure;

The milling structure includes: a pair of first screw modules, a pair of moving blocks, a moving plate, a second screw module, an operation box, a motor, a rotating shaft, a milling cutter and an adjustment component;

A pair of the first lead screw modules are mounted on the front wall of the portal frame, a pair of the moving blocks are mounted on the moving ends of the pair of the first lead screw modules, and the moving plates are mounted on a On the front wall of the moving block, the second screw module is installed in front of the moving plate, the operation box is installed on the moving end of the second screw module, and the motor is installed on the On the inner rear wall of the operation box, a through hole is opened on the lower wall of the operation box, the rotating shaft is installed on the motor driving end through the through hole opened on the lower wall of the operation box, and the milling cutter is installed on the On the rotating shaft, the milling cutter is located under the operation box, and an adjustment component is arranged on the operation table.

2 . The gantry milling machine for sanding machine according to claim 1 , wherein the adjustment component comprises: a fixed plate, a pair of T-shaped grooves, a pair of T-shaped blocks, a pair of screws, a pair of Limiting plate and a pair of nuts;

The fixing plate is installed on the upper wall surface of the operating table, a pair of the T-shaped grooves are located on the operating table, a pair of the T-shaped blocks are placed in the pair of the T-shaped grooves, and a pair of the screw rods are installed On the upper wall surfaces of the pair of T-shaped blocks, the upper and lower walls of the pair of limit plates are provided with through holes, the through holes formed on the upper and lower walls of the pair of limit plates are mounted on the pair of screws, The pair of nuts are mounted on a pair of the screw rods, and the pair of the nuts are located above the pair of the limiting plates.

3 . The gantry milling machine for sanding machine according to claim 1 , wherein the motor is provided with a motor frame for supporting. 4 .

4 . The gantry milling machine for sanding machine according to claim 1 , wherein the operation box is provided with an inspection cover for inspection. 5 .

5 . The gantry milling machine for sanding machine according to claim 1 , wherein the operation box is provided with a lighting lamp for lighting. 6 .

6 . The gantry milling machine for sanding machine according to claim 1 , wherein the operation box is provided with a heat dissipation cover for heat dissipation. 7 .
