CN217168203U - Pressing plate device for building steel structure manufacturing - Google Patents

Abstract

The utility model discloses a pressing plate device for building steel structure manufacturing, which relates to the technical field of steel structure manufacturing. There are two pressure block mechanisms, one side of the pressure block mechanism is provided with a cleaning mechanism, the pressure block mechanism includes a first threaded rod, a movable block and a pressure plate, and the first threaded rod is movably installed on the On the inner wall of the workbench, the outer wall of the first threaded rod is movably connected with the inner wall of the support plate, and the movable block is movably mounted on the outer wall of the first threaded rod. The utility model enables the hinge rod to drive the hinge rod through the interaction of the turning handle, the first threaded rod, the movable block, the limit rod, the rectangular plate, the door block, the sliding rod, the extrusion block, the hinge rod, the pressure plate and the first spring. The pressure plate is close to the steel structure and fixes the steel structure, which has the advantage of being convenient for fixing the steel structure.

Description

A pressure plate device for building steel structure manufacturing

technical field

The utility model relates to the technical field of steel structure manufacturing, in particular to a pressing plate device used for building steel structure manufacturing.

Background technique

Steel structure is a structure mainly made of steel, and it is one of the main types of building structures. It is an ideal elastic body, which is in line with the basic assumptions of general engineering mechanics. The material has good plasticity and toughness, can have large deformation, and can withstand dynamic loads well. The construction period is short, the degree of industrialization is high, and specialized production with a high degree of mechanization can be carried out.

The following problems exist for the prior art:

1. When the steel structure is processed, the existing steel structure processing device lacks a briquetting device, and the steel structure is easy to shake during the processing, resulting in poor processing effect;

2. The existing pressing plate device for building steel structure lacks a cleaning device. After the steel structure is processed, there are often many debris left on the processing table, which is difficult to clean.

Utility model content

The utility model provides a pressing plate device used for the manufacture of building steel structures, one of the purposes is to have the advantages of convenient fixing of the steel structures, and to solve the problem that the steel structures are easy to shake during the processing, resulting in poor processing effects; wherein Another purpose is to solve the problem that many debris are often left on the processing table after the processing of the steel structure is completed, which is difficult to clean, so as to achieve the effect of convenient cleaning.

In order to solve the above-mentioned technical problems, the technical scheme adopted by the present utility model is:

A pressing plate device for the manufacture of architectural steel structures, comprising a workbench, a support plate is fixedly installed on the top of the workbench, a pressing block mechanism is arranged above the worktable, and there are two pressing block mechanisms, so the One side of the pressing block mechanism is provided with a cleaning mechanism, the pressing block mechanism includes a first threaded rod, a movable block and a pressing plate, the first threaded rod is movably installed on the inner wall of the workbench, and the first threaded rod The outer wall is movably connected with the inner wall of the support plate, the movable block is movably installed on the outer wall of the first threaded rod, the pressing plate is arranged on one side of the movable block, and the cleaning mechanism includes a motor, a sliding block and a cleaning brush, The motor is arranged on one side of the support plate, the sliding block is arranged on one side of the motor, the cleaning brush is arranged below the sliding block, and the outer surface of the cleaning brush is in contact with the top of the workbench.

A further improvement of the technical solution of the present invention is that a turning handle is fixedly installed at the bottom end of the first threaded rod, a limit rod is fixedly installed on the top of the worktable, and the outer wall of the limit rod and the inner wall of the movable block are movable. connect.

A further improvement of the technical solution of the present invention is that a rectangular plate is fixedly installed on one outer wall of the movable block, a door block is fixedly installed at the bottom of the rectangular plate, and a sliding block is fixedly installed on the inner wall of the door block. rod.

A further improvement of the technical solution of the utility model is that: the outer wall of the sliding rod is movably installed with extruding blocks, there are two extruding blocks, the outer wall of the sliding rod is movably sleeved with a first spring, the One end of the first spring is fixedly connected with one side outer wall of the extrusion block, a hinge rod is movably installed at the bottom of the extrusion block, and one end of the hinge rod is movably connected with the top of the pressing plate.

A further improvement of the technical solution of the present invention is that: a stabilization plate is fixedly installed on one side outer wall of the support plate, the top of the stabilization plate is fixedly connected with the bottom of the motor, and the output shaft of the motor is fixedly installed with a second A threaded rod, the outer wall of the second threaded rod is movably connected with the inner wall of the sliding block, the top of the sliding block is fixedly installed with a limit block, and the outer wall of the limit block is movably connected with the inner wall of the support plate.

A further improvement of the technical solution of the present invention is that a swing rod is fixedly installed on the outer wall of the sliding block, the outer wall of the swing rod is movably connected with the inner wall of the cleaning brush, and the outer walls on both sides of the cleaning brush are fixedly installed with L-block.

A further improvement of the technical solution of the present invention is that a connecting block is fixedly installed on one side outer wall of the sliding block, a second spring is fixedly installed on one side outer wall of the L-shaped block, and one end of the second spring is connected to One side outer wall of the connecting block is fixedly connected.

Due to the adoption of the above-mentioned technical solutions, the technical progress achieved by the present utility model relative to the prior art is:

1. The present utility model provides a pressing plate device for the manufacture of architectural steel structures, through the turning handle, the first threaded rod, the movable block, the limit rod, the rectangular plate, the door block, the sliding rod, the extrusion block, the hinge rod , under the interaction of the pressure plate and the first spring, the hinge rod drives the pressure plate to be close to the steel structure, and the steel structure is fixed, which has the advantage of being convenient for fixing the steel structure.

2. The present utility model provides a pressing plate device used for the manufacture of architectural steel structures. Under the interaction, the swing rod drives the cleaning brush to move to clean the surface of the worktable, which has the advantage of convenient cleaning.

Description of drawings

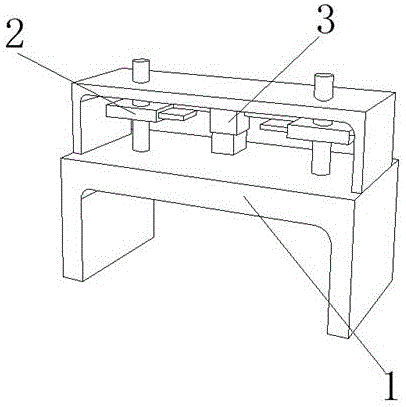

Fig. 1 is the structural representation of the utility model;

Fig. 2 is the sectional schematic diagram of the structural pressing block mechanism of the present invention;

Fig. 3 is the enlarged structural representation of part A in Fig. 2;

4 is a schematic cross-sectional view of the structural cleaning mechanism of the present invention.

In the figure: 1. Workbench; 11. Supporting plate; 2. Pressing block mechanism; 21. First threaded rod; 22. Active block; 23. Pressing plate; 24. Limiting rod; 25. Rectangular plate; block; 27, sliding rod; 28, squeeze block; 29, first spring; 3, cleaning mechanism; 31, motor; 32, sliding block; 33, cleaning brush; 34, second threaded rod; 35, pendulum rod; 36, L-shaped block; 37, connecting block; 38, second spring.

Detailed ways

Below in conjunction with embodiment, the utility model is described in further detail:

Example 1

As shown in Figures 1-4, the present invention provides a pressing plate device for building steel structure manufacturing, including a workbench 1, a support plate 11 is fixedly installed on the top of the workbench 1, and a pressure plate is arranged above the workbench 1 Block mechanism 2, there are two pressure block mechanisms 2, one side of the pressure block mechanism 2 is provided with a cleaning mechanism 3, the pressure block mechanism 2 includes a first threaded rod 21, a movable block 22 and a pressure plate 23, the first threaded rod 21 is movable Installed on the inner wall of the workbench 1, the outer wall of the first threaded rod 21 is movably connected to the inner wall of the support plate 11, the movable block 22 is movably installed on the outer wall of the first threaded rod 21, and the pressing plate 23 is arranged on one side of the movable block 22 , the cleaning mechanism 3 includes a motor 31, a sliding block 32 and a cleaning brush 33, the motor 31 is arranged on one side of the support plate 11, the sliding block 32 is arranged on one side of the motor 31, and the cleaning brush 33 is arranged below the sliding block 32, The outer surface of the cleaning brush 33 is in contact with the top of the workbench 1, the bottom end of the first threaded rod 21 is fixedly installed with a turning handle, the top of the workbench 1 is fixedly installed with a limit rod 24, and the outer wall of the limit rod 24 is connected to the movable block The inner wall of 22 is movably connected, a rectangular plate 25 is fixedly installed on one outer wall of the movable block 22 , the bottom of the rectangular plate 25 is fixedly installed with a door block 26 , and the inner wall of the door block 26 is fixedly installed with a sliding rod 27 .

In this embodiment, the first threaded rod 21 is driven to rotate by rotating the handle, the first threaded rod 21 drives the movable block 22 to move downward, the movable block 22 drives the rectangular plate 25 to move downward, and the rectangular plate 25 drives the door block 26 Move, the door block 26 drives the sliding rod 27 to move, the sliding rod 27 drives the extrusion block 28 to move down, the extrusion block 28 drives the hinge rod to move down, and the hinge rod drives the pressure plate 23 to be close to the steel structure to fix the steel structure.

Example 2

As shown in Figures 1-4, on the basis of Embodiment 1, the present invention provides a technical solution: preferably, an extrusion block 28 is movably installed on the outer wall of the sliding rod 27, and there are two extrusion blocks 28, A first spring 29 is movably sleeved on the outer wall of the sliding rod 27. One end of the first spring 29 is fixedly connected to one side of the outer wall of the extrusion block 28. The bottom of the extrusion block 28 is movably installed with a hinge rod. The top of the pressing plate 23 is flexibly connected.

In this embodiment, when the pressing plate 23 encounters the uneven steel structure, the steel structure drives the pressing plate 23, the pressing plate 23 drives the two hinge rods to move, and the two hinge rods drive the extrusion block 28 to squeeze the first spring 29, so that the The pressing plate 23 is adapted to the steel structure.

Example 3

As shown in Figures 1-4, on the basis of Embodiment 1, the present invention provides a technical solution: preferably, a stabilization plate is fixedly installed on one side of the outer wall of the support plate 11, and the top of the stabilization plate is connected to the motor 31 at the top. The bottom is fixedly connected, a second threaded rod 34 is fixedly installed on the output shaft of the motor 31, the outer wall of the second threaded rod 34 is movably connected with the inner wall of the sliding block 32, and the top of the sliding block 32 is fixedly installed with a limit block. The outer wall is movably connected with the inner wall of the support plate 11 , a swing rod 35 is fixedly installed on the outer wall of the sliding block 32 , the outer wall of the swing rod 35 is movably connected with the inner wall of the cleaning brush 33 , and L is fixedly installed on both outer walls of the cleaning brush 33 . Block 36, a connecting block 37 is fixedly installed on one side of the outer wall of the sliding block 32, and a second spring 38 is fixedly installed on one side of the outer wall of the L-shaped block 36, and one end of the second spring 38 is connected to one side of the outer wall of the connecting block 37. Fixed connection.

In this embodiment, the motor 31 is activated to drive the second threaded rod 34 to rotate, the second threaded rod 34 drives the sliding block 32 to move, the sliding block 32 drives the pendulum rod 35 to move, and the pendulum rod 35 drives the cleaning brush 33 to move. 1 to clean the surface of 1, when the cleaning brush 33 encounters lumps of steel chips, the cleaning brush 33 swings to drive the L-shaped block 36 to squeeze the second spring 38, and the second spring 38 facilitates the recovery of the cleaning brush 33, so that the cleaning brush 33 Fit the workbench 1.

The working principle of the pressing plate device for building steel structure manufacturing will be described in detail below.

As shown in Figure 1-4, the steel structure is placed on the workbench 1 for processing. When the steel structure needs to be fixed, the turning handle drives the first threaded rod 21 to rotate, and the first threaded rod 21 drives the movable block 22 to rotate. Moving down, the movable block 22 drives the rectangular plate 25 to move downward, the rectangular plate 25 drives the door block 26 to move, the door block 26 drives the sliding rod 27 to move, the sliding rod 27 drives the extrusion block 28 to move down, and the extrusion block 28 Drive the hinge rod to move down, the hinge rod drives the pressure plate 23 to be close to the steel structure, when the pressure plate 23 touches the uneven steel structure, the steel structure drives the pressure plate 23, the pressure plate 23 drives the two hinge rods to move, and the two hinge rods drive the extrusion The block 28 squeezes the first spring 29 to make the pressing plate 23 adapt to the steel structure, which has the advantage of being convenient to fix the steel structure. The threaded rod 34 drives the sliding block 32 to move, the sliding block 32 drives the swing rod 35 to move, and the swing rod 35 drives the cleaning brush 33 to move to clean the surface of the worktable 1 . The swing of the cleaning brush 33 drives the L-shaped block 36 to squeeze the second spring 38. The second spring 38 facilitates the recovery of the cleaning brush 33 and makes the cleaning brush 33 fit the workbench 1, which has the advantage of convenient cleaning.

The present invention has been generally described in detail above, but on the basis of the present invention, some modifications or improvements can be made, which is obvious to those skilled in the art. Therefore, any modification or improvement without departing from the spirit of the present invention is within the protection scope of the present invention.

Claims (7)

1. A pressing plate device for the manufacture of architectural steel structures, comprising a workbench (1), and a support plate (11) is fixedly installed on the top of the workbench (1), characterized in that: the workbench (1) The upper part of the machine is provided with a pressure block mechanism (2), there are two pressure block mechanisms (2), one side of the pressure block mechanism (2) is provided with a cleaning mechanism (3), and the pressure block mechanism (2) It includes a first threaded rod (21), a movable block (22) and a pressing plate (23). The first threaded rod (21) is movably installed on the inner wall of the workbench (1). The first threaded rod (21) ) is movably connected with the inner wall of the support plate (11), the movable block (22) is movably mounted on the outer wall of the first threaded rod (21), and the pressing plate (23) is arranged on a side of the movable block (22). side, the cleaning mechanism (3) includes a motor (31), a sliding block (32) and a cleaning brush (33), the motor (31) is arranged on one side of the support plate (11), the sliding block ( 32) is arranged on one side of the motor (31), the cleaning brush (33) is arranged below the sliding block (32), and the outer surface of the cleaning brush (33) is in contact with the top of the workbench (1). 2. A pressing plate device for building steel structure manufacturing according to claim 1, characterized in that: the bottom end of the first threaded rod (21) is fixedly installed with a turning handle, and the workbench (1) A limit rod (24) is fixedly installed on the top of the limit rod, and the outer wall of the limit rod (24) is movably connected with the inner wall of the movable block (22). 3. A pressing plate device for building steel structure manufacturing according to claim 1, characterized in that: a rectangular plate (25) is fixedly installed on one side outer wall of the movable block (22), and the rectangular plate A door block (26) is fixedly installed at the bottom of (25), and a sliding rod (27) is fixedly installed on the inner wall of the door block (26). 4. A pressing plate device for building steel structure manufacturing according to claim 3, characterized in that: an extrusion block (28) is movably installed on the outer wall of the sliding rod (27), and the extrusion block There are two (28), a first spring (29) is movably sleeved on the outer wall of the sliding rod (27), and one end of the first spring (29) is fixed to the outer wall of one side of the extrusion block (28). The bottom of the pressing block (28) is movably installed with a hinge rod, and one end of the hinge rod is movably connected with the top of the pressing plate (23). 5. A pressing plate device for building steel structure manufacturing according to claim 1, characterized in that: a stabilizing plate is fixedly installed on one side outer wall of the supporting plate (11), and the top of the stabilizing plate is connected to the The bottom of the motor (31) is fixedly connected, a second threaded rod (34) is fixedly mounted on the output shaft of the motor (31), and the outer wall of the second threaded rod (34) is movable with the inner wall of the sliding block (32) connection, a limit block is fixedly installed on the top of the sliding block (32), and the outer wall of the limit block is movably connected with the inner wall of the support plate (11). 6. A pressing plate device for building steel structure manufacturing according to claim 1, characterized in that: a swing rod (35) is fixedly installed on the outer wall of the sliding block (32), and the swing rod (35) ) is movably connected with the inner wall of the cleaning brush (33), and L-shaped blocks (36) are fixedly installed on both outer walls of the cleaning brush (33). 7. A pressing plate device for building steel structure manufacturing according to claim 6, characterized in that: a connecting block (37) is fixedly installed on one side outer wall of the sliding block (32), and the L-shaped A second spring (38) is fixedly installed on one side outer wall of the block (36), and one end of the second spring (38) is fixedly connected with one side outer wall of the connecting block (37).
