Abstract

The utility model discloses an air pollution treatment equipment, which comprises a fixed base, a filter box and a purification box. One side of the top of the fixed base is provided with a filter box, and the other side of the top of the fixed base is provided with a purification box. The top of the filter box is provided with an air inlet pipe, and one side of the air inlet pipe is provided with an air inlet, through which the dirty gas is inhaled and introduced into the filter box by the air inlet pipe, and a rotating bucket is arranged inside the filter box. , an exhaust fan is arranged between the filter box and the purification box, and communication pipes are respectively provided on both sides of the exhaust fan, and the communication pipes on both sides are respectively connected with the filter box and the purification box. The bottom is provided with an air inlet box; the utility model absorbs and filters the external foul gas through the air inlet, the rotating barrel, the exhaust fan, the communication pipe, the air inlet box, the rotating column and the air outlet, and after the filtration is completed, the purification treatment is performed, and the final change is made. Exhaust for useful gas.

Description

A kind of air pollution treatment equipment

technical field

The utility model relates to the technical field of pollution gas purification equipment, in particular to an air pollution treatment equipment.

Background technique

Air pollution refers to the phenomenon that the content of some substances in the atmosphere is harmful to the extent that it destroys the ecological system and the conditions for normal human survival and development, and causes harm to people or things. Air pollutants enter the atmosphere from human or natural sources and participate in the atmosphere. After a certain retention time, it is removed from the atmosphere through chemical reactions, biological activities and physical deposition in the atmosphere. However, when there are many pollutant emissions, it is difficult to purify the natural environment quickly, which will cause some kind of pollution in the atmosphere. The concentration of the substance increases.

On the market, the existing air pollution treatment devices usually use a filter to filter out the solid soot particles in the air. Long-term use will cause the filter to be blocked by soot particles, which will affect the flow of gas and prevent the polluted air from entering the next process. Therefore, the present invention proposes an air pollution treatment equipment to solve the problems existing in the prior art.

Utility model content

In view of the above problems, the purpose of this utility model is to provide an air pollution treatment equipment. The air pollution treatment equipment absorbs and filters the external foul gas through the air inlet, rotating barrel, exhaust fan, connecting pipe, air inlet box, rotating column and air outlet, and purifies it after the filtration is completed, and finally becomes a useful gas. Exhaust to purify the air.

The utility model is achieved through the following technical solutions:

An air pollution treatment equipment includes a fixed base, a filter box and a purification box, one side of the top of the fixed base is provided with a filter box, the other side of the top of the fixed base is provided with a purification box, and the top of the filter box is provided An air inlet pipe is provided, and an air inlet is arranged on one side of the air inlet pipe, and the dirty gas is sucked in through the air inlet and introduced into the filter box by the air inlet pipe. An exhaust fan is arranged between the box and the purification box. The two sides of the exhaust fan are respectively provided with communication pipes, and the communication pipes on both sides are respectively connected with the filter box and the purification box. The bottom of the filter box is provided with an inlet. The air box is connected to one side of the communication pipe, and the exhaust fan is driven to drive the communication pipe, and the communication pipe drives the air inlet box, and the dirty gas is introduced into the purification box for purification treatment. The top of the purification box is provided with a rotating column. , the two sides of the rotating column are provided with air outlets, and finally the purified dirty gas is discharged through the air outlets.

A further improvement is that: the surface of the rotating barrel is provided with a filter screen, and a plurality of groups of brushes are arranged on the outside of the filter screen, and the inhaled dirt and impurities are filtered through the filter screen. The impurities on the Internet have been cleaned up.

A further improvement is that: the bottom of the rotating barrel is provided with a rotating rod, one side of the fixed base is provided with a motor, the output end of the motor and the surface of the rotating rod are provided with rotating wheels, and the two groups of the rotating wheels are provided with rotating wheels. The surface is provided with a belt, and the rotating rod is connected with the motor through the belt. The belt belt is driven by the motor to drive the rotating wheel, the rotating wheel drives the rotating rod, and the rotating rod drives the rotating barrel to rotate. clean up.

A further improvement is that: an activated carbon adsorption layer is arranged inside the purification box.

A further improvement is that: a drying layer is provided directly below the activated carbon adsorption layer, the rising sewage is dried through the drying layer, and the dried sewage is deodorized through the activated carbon adsorption layer.

A further improvement is that: a water inlet is arranged on one side of the purification box, and a water outlet is arranged at the bottom of the purification box, and the water is introduced into the purification box through the water inlet, and the impurities are dropped into the water when purifying the dirty gas, and the water is discharged through the outlet. The water outlet discharges the sewage.

A further improvement is that: the top of the rotating bucket is provided with a through hole, and the through hole is communicated with the air inlet pipe. Through the cooperation between the through hole and the air inlet pipe, it is more convenient to absorb and purify the dirty gas.

The beneficial effects of the utility model are as follows: the utility model absorbs and filters the external foul gas through the air inlet, the rotating barrel, the exhaust fan, the communication pipe, the air inlet box, the rotating column and the air outlet, and performs purification treatment after the filtration is completed. Finally, it becomes useful gas for discharge, which purifies the air. It is used in cooperation with the filter screen, brush, rotating rod, motor, rotating wheel and belt. The filter is cleaned by brush to prevent the outer surface of the filter from being blocked by soot particles, which affects the treatment of air pollution. The filtered air enters the interior of the purification box through the suction fan for further purification, and passes through the activated carbon adsorption layer and drying. The layers are used in cooperation with each other, the rising air is dried through the drying layer, the dried air is deodorized through the activated carbon adsorption layer, and the purified air is discharged into the purification box through the air outlet.

Description of drawings

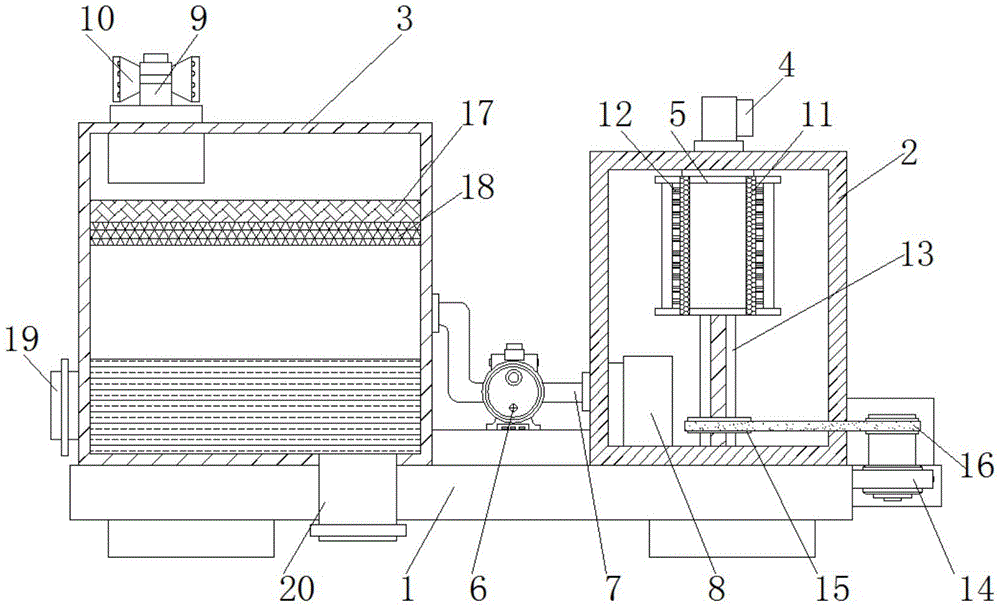

Fig. 1 is the sectional view of the utility model;

FIG. 2 is a schematic diagram of the rotary bucket of the present invention.

Among them: 1. Fixed base; 2. Filter box; 3. Purification box; 4. Air inlet; 5. Rotary barrel; 6. Exhaust fan; 7. Connecting pipe; 8. Air inlet box; 9. Rotating column; 10. Outlet Air outlet; 11, filter screen; 12, brush; 13, rotary rod; 14, motor; 15, rotating wheel; 16, belt; 17, activated carbon adsorption layer; 18, drying layer; 19, water inlet; 20, water outlet ; 21. Through hole.

Detailed ways

In order to deepen the understanding of the present utility model, the present utility model will be described in further detail below with reference to the embodiments. The present embodiment is only used to explain the present utility model and does not constitute a limitation on the protection scope of the present utility model.

Example 1

As shown in FIGS. 1 and 2 , the present embodiment provides an air pollution treatment equipment, including a fixed base 1 , a filter box 2 and a purification box 3 , a filter box 2 is provided on one side of the top of the fixed base 1 , and the The other side of the top of the fixed base 1 is provided with a purification box 3, the top of the filter box 2 is provided with an air inlet pipe, and one side of the air inlet pipe is provided with an air inlet 4, through which the dirty gas is inhaled, The filter box 2 is introduced into the filter box 2 by the air inlet pipe. The inside of the filter box 2 is provided with a rotating barrel 5. An exhaust fan 6 is arranged between the filter box 2 and the purification box 3. The two sides of the exhaust fan 6 are respectively provided There is a communication pipe 7, and the communication pipes 7 on both sides are respectively connected with the filter box 2 and the purification box 3. The bottom of the filter box 2 is provided with an air inlet box 8, and the air inlet box 8 is in contact with one side of the communication pipe 7. Connect, drive the communication pipe 7 by driving the exhaust fan 6, the communication pipe 7 drives the air inlet box 8, and the dirty gas is introduced into the purification box 3 for purification treatment. The top of the purification box 3 is provided with a rotating column 9. The rotating column Two sides of the 9 are provided with air outlets 10, and finally the purified foul gas is discharged through the air outlets 10.

The surface of the rotating barrel 5 is provided with a filter screen 11 , and a plurality of groups of brushes 12 are arranged on the outside of the filter screen 11 . The impurities on the filter screen 11 have been cleaned.

The bottom of the rotating barrel 5 is provided with a rotating rod 13, one side of the fixed base 1 is provided with a motor 14, the motor model is Y90S-2, the output end of the motor 14 and the surface of the rotating rod 13 are provided with rotating Wheel 15, the surface of the two sets of rotating wheels 15 is provided with a belt 16, and the rotating rod 13 is connected with the motor 14 through the belt 16, the belt 16 is driven by the motor 14 and the belt 16 drives the rotating wheel 15, and the rotating wheel 15 drives the rotating rod 13 , the rotating rod 13 drives the rotating barrel 5 to rotate, and the brush 12 is used to clean the impurities on the filter screen 11 through the rotation of the rotating barrel 5 .

The inside of the purification box 3 is provided with an activated carbon adsorption layer 17 , and a drying layer 18 is provided directly below the activated carbon adsorption layer 17 . Deodorization of dry foul air.

One side of the purification box 3 is provided with a water inlet 19, and the bottom of the purification box 3 is provided with a water outlet 20. The water is introduced into the purification box 3 through the water inlet 19, and impurities are dropped into the water when purifying the dirty gas. The sewage is discharged through the water outlet 20 .

Example 2

The top of the rotating bucket 5 is provided with a through hole 21, the through hole 21 is connected with the air inlet pipe 3, and the through hole 21 and the air inlet pipe 3 are used in cooperation with each other, which is more convenient for the sewage to be carried out. Absorb purification. The rest of the structure is the same as in Example 1.

When the air pollution treatment equipment is in use, the dirty gas is sucked in through the air inlet 4 and introduced into the filter box 2 by the air inlet pipe, and the communication pipe 7 is driven by the driving exhaust fan 6, and the communication pipe 7 drives the air inlet box 8, and the dirty gas is introduced into the filter box 2. Purification treatment is carried out in the purification box 3, and finally the purified sewage is discharged through the air outlet 10, the inhaled sewage impurities are filtered through the filter screen 11, and the impurities adsorbed on the filter screen 11 are filtered through the set brush 12. After cleaning, the motor 14 drives the belt 16 and the belt 16 drives the rotating wheel 15, the rotating wheel 15 drives the rotating rod 13, and the rotating rod 13 drives the rotating barrel 5 to rotate. The impurities are cleaned, the rising sewage is dried through the drying layer 18, the dried sewage is deodorized through the activated carbon adsorption layer 17, and the water is introduced into the purification box 3 through the water inlet 19. When purifying the sewage The impurities are dropped into the water, and the sewage is discharged through the water outlet 20 .

Claims (7)

1. An air pollution treatment equipment, comprising a fixed base (1), a filter box (2) and a purification box (3), characterized in that: a filter box (2) is provided on one side of the top of the fixed base (1) , the other side of the top of the fixed base (1) is provided with a purification box (3), the top of the filter box (2) is provided with an air inlet pipe, and one side of the air inlet pipe is provided with an air inlet (4). ), a rotating barrel (5) is arranged inside the filter box (2), and a suction fan (6) is arranged between the filter box (2) and the purification box (3). Connecting pipes (7) are respectively provided on both sides, and the connecting pipes (7) on both sides are respectively connected with the filter box (2) and the purification box (3), and an air inlet box is arranged at the bottom of the inside of the filter box (2). (8), and the air inlet box (8) is connected with one side of the communication pipe (7), and the communication pipe (7) is driven by driving the exhaust fan (6), and the communication pipe (7) drives the air inlet box (8) to remove the pollutants. The air is introduced into the purification box (3) for purification treatment. The top of the purification box (3) is provided with a rotating column (9), and the two sides of the rotating column (9) are provided with air outlets (10). The tuyere (10) discharges the purified waste gas. 2 . The air pollution treatment equipment according to claim 1 , wherein a filter screen ( 11 ) is provided on the surface of the rotating barrel ( 5 ), and a plurality of groups of brushes are provided on the outside of the filter screen ( 11 ). 3 . (12), filtering and processing the inhaled dirt and impurities through the filter screen (11), and cleaning the impurities adsorbed on the filter screen (11) through the provided brush (12). 3. The air pollution treatment equipment according to claim 1, characterized in that: the bottom of the rotating barrel (5) is provided with a rotating rod (13), and one side of the fixed base (1) is provided with a motor (14). ), the output end of the motor (14) and the surface of the rotating rod (13) are provided with rotating wheels (15), the surfaces of the two sets of rotating wheels (15) are provided with belts (16), and the rotating rods ( 13) is connected with the motor (14) through the belt (16), the belt (16) is driven by the motor (14), the belt (16) drives the rotating wheel (15), the rotating wheel (15) drives the rotating rod (13), and the rotating The rod (13) drives the rotating bucket (5) to rotate, and the brush (12) is used to clean the impurities on the filter screen (11) by rotating the rotating bucket (5). 4 . The air pollution treatment equipment according to claim 1 , wherein an activated carbon adsorption layer ( 17 ) is arranged inside the purification box ( 3 ). 5 . 5 . The air pollution treatment equipment according to claim 4 , wherein a drying layer ( 18 ) is arranged directly below the activated carbon adsorption layer ( 17 ), and the rising sewage is treated by the drying layer ( 18 ). 6 . In the drying process, the dried foul gas is deodorized through the activated carbon adsorption layer (17). 6. The air pollution treatment equipment according to claim 1, characterized in that: a water inlet (19) is provided on one side of the purification box (3), and a water outlet (19) is provided at the bottom of the purification box (3). 20), the water is introduced into the purification box (3) through the water inlet (19), the impurities are dropped into the water when the sewage is purified, and the sewage is discharged through the water outlet (20). 7 . The air pollution treatment equipment according to claim 1 , wherein a through hole ( 21 ) is opened on the top of the rotating barrel ( 5 ), and the through hole ( 21 ) is connected to an air inlet ( 4 ). 8 . connected.
