Abstract

The utility model relates to a raw material pulverizer for processing blister products, which comprises a box body, an inclined plate is fixedly connected to the inside of the box body, a feeding funnel is fixedly connected to the top of the box body, and a feeding funnel is fixedly connected to the top of the box body. There is an anti-splash assembly, the box body is provided with a crushing mechanism, and the crushing mechanism includes a support plate fixedly installed on the left side of the box body, the top of the support plate is fixedly connected with a fixing plate, and the left side of the fixing plate is A first motor is fixedly installed, the output shaft of the first motor is fixedly connected with a threaded rod, and a movable block is slidably connected to the top of the support plate. The raw material pulverizer for processing blister products can adjust the distance between two pulverizing rollers by setting a pulverizing mechanism, thereby adjusting the size of the blister products to be pulverized, and can pulverize the blister products into pieces of different sizes, so that the It meets the needs of various situations, facilitates the use of the user, and increases the practicability of the device.

Description

A raw material pulverizer for processing plastic products

technical field

The utility model relates to the technical field of blister, in particular to a raw material pulverizer for processing blister products.

Background technique

The main advantages of blister packaging are that it saves raw and auxiliary materials, light weight, convenient transportation and good sealing performance. Beautiful appearance, easy to sell, suitable for mechanized and automated packaging, convenient for modern management, saving manpower and improving efficiency.

The raw materials need to be pulverized during the processing of blister products. The existing pulverizers are inconvenient to adjust the size of the pulverized blister products, and it is inconvenient to adjust according to the usage. A raw material pulverizer for blister product processing solves the above-mentioned problems.

Utility model content

In view of the deficiencies of the prior art, the utility model provides a raw material pulverizer for processing blister products, which has the advantages of adjusting the size of pulverization, and solves the problem that the existing pulverizers are inconvenient to adjust the size of pulverized blister products.

In order to achieve the above purpose, the utility model provides the following technical solutions: a raw material pulverizer for processing plastic products, including a box body, the inside of the box body is fixedly connected with a sloping plate, and the top of the box body is fixedly connected with an inlet. a material hopper, the box body is provided with a splash-proof component, and the box body is provided with a crushing mechanism;

The crushing mechanism includes a support plate fixedly installed on the left side of the box body, a fixed plate is fixedly connected to the top of the support plate, a first motor is fixedly installed on the left side of the fixed plate, and the output shaft of the first motor is A threaded rod is fixedly connected, a movable block is slidably connected to the top of the support plate, two connecting rods are fixedly connected to the right side of the movable block, and a crushing assembly is arranged on the box body.

Further, the pulverizing assembly includes a second motor slidably connected to the inner wall of the back of the box, a third motor is fixedly installed on the inner wall of the back of the box, and the output shaft of the second motor and the third motor are both fixedly connected to rotate. The outer side of the rotating rod is fixedly connected with a pulverizing roller.

Further, the splash-proof assembly includes two U-shaped frames that are fixedly connected to the inner walls of the left and right sides of the feeding funnel, the interior of the U-shaped frame is hinged with a baffle plate, and the inner top wall of the box body is fixedly installed There is a slide rail, the inside of the slide rail is slidably connected with a first material guide plate, the inner top wall of the box body is fixedly connected with a second material guide plate, and the bottom of the baffle is fixedly connected with a spring.

Further, four supporting legs are fixedly connected to the bottom of the box body, one end of the threaded rod is rotatably connected to the left side of the box body, and a discharge pipe is fixedly connected to the right side of the box body.

Further, the top of the support plate is provided with a first chute, the bottom of the movable block is fixedly connected with two rollers, and the interior of the movable block is provided with a threaded through hole that is threadedly connected to the threaded rod.

Further, one end of the two connecting rods is respectively fixedly connected with the left side of the first material guide plate and the left side of the second motor, and the left side of the box body is provided with a number of two and the size of the connecting rods is suitable. Equipped with active holes.

Further, the back of the box body is provided with a second chute, and the back of the second motor is fixedly connected with a slider that is slidably connected to the second chute.

Further, a fixing block is fixedly connected to the inner walls of the left and right sides of the feeding funnel, and one end of the spring is fixedly connected to the top of the fixing block.

Compared with the prior art, the technical solution of the present application has the following beneficial effects:

1. The raw material pulverizer for processing blister products can adjust the distance between two pulverizing rollers by setting a pulverizing mechanism, thereby adjusting the size of the blister products to be pulverized, and can pulverize the blister products into pieces of different sizes. , to meet the needs of various situations, facilitate the use of the user, and increase the practicability of the device.

2. The raw material pulverizer for the processing of blister products, by setting the anti-splash component, can effectively resist the fragments that splash out during the pulverization process, and avoid the pulverized raw materials from splashing around, resulting in a lot of waste in the material, preventing in the later stage. At times, it takes a lot of time for employees to collect and recycle the splashed raw materials.

Description of drawings

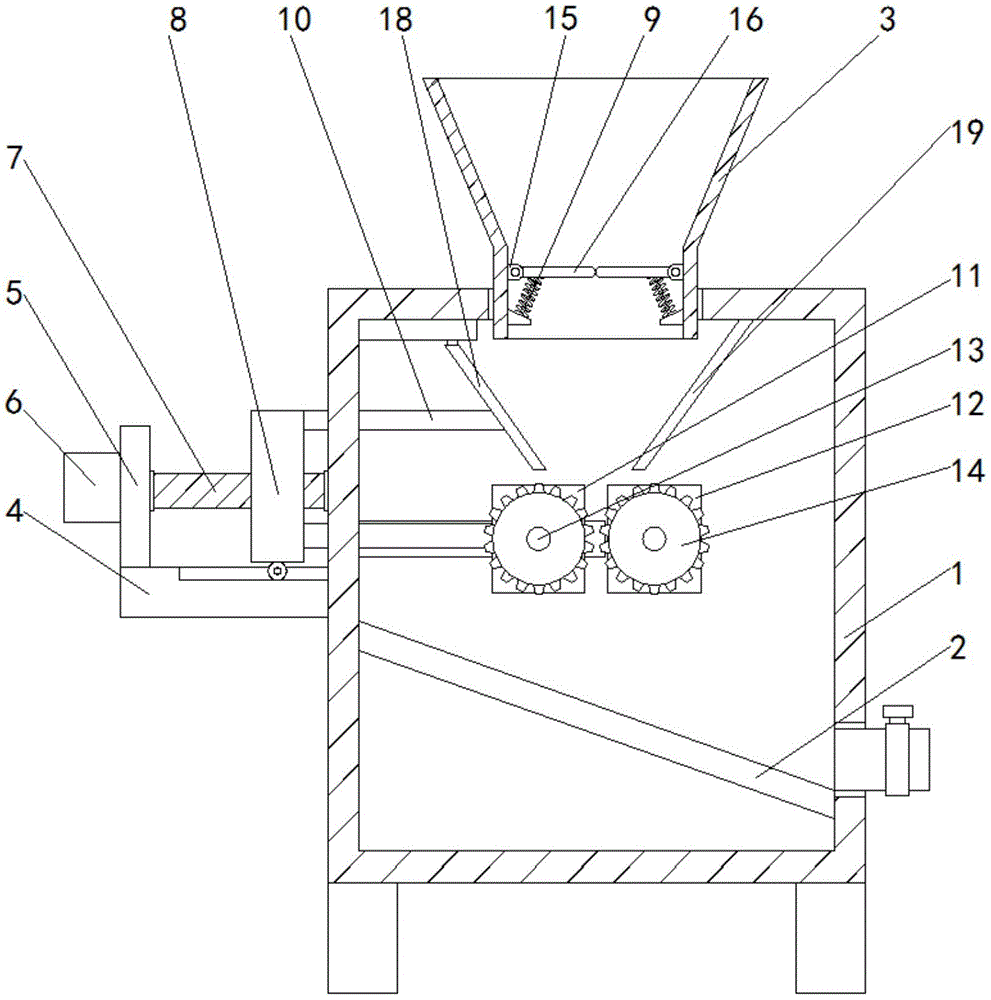

Fig. 1 is the structural representation of the utility model;

Figure 2 is a front view of the structure of the utility model.

In the picture: 1 box, 2 inclined plate, 3 feed funnel, 4 support plate, 5 fixed plate, 6 first motor, 7 threaded rod, 8 movable block, 9 spring, 10 connecting rod, 11 second motor, 12 The third motor, 13 rotating rod, 14 crushing roller, 15 U-shaped frame, 16 baffle plate, 17 sliding rail, 18 first guide plate, 19 second guide plate.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to Fig. 1-2. In this embodiment, a raw material pulverizer for processing blister products includes a box body 1. The bottom of the box body 1 is fixedly connected with four supporting legs. A discharge pipe is fixedly connected, a sloping plate 2 is fixedly connected to the inside of the box 1, a feeding funnel 3 is fixedly connected to the top of the box 1, a splash-proof component is arranged on the box 1, and a crushing mechanism is arranged on the box 1 .

The crushing mechanism includes a support plate 4 fixedly installed on the left side of the box body 1, the top of the support plate 4 is fixedly connected with a fixed plate 5, the left side of the fixed plate 5 is fixedly installed with a first motor 6, and the output shaft of the first motor 6 is fixed A threaded rod 7 is connected, one end of the threaded rod 7 is rotatably connected to the left side of the box body 1, the top of the support plate 4 is slidably connected with a movable block 8, the top of the support plate 4 is provided with a first chute, and the bottom of the movable block 8 is fixed There are two rollers connected, the inside of the movable block 8 is provided with a threaded through hole that is threadedly connected with the threaded rod 7, the right side of the movable block 8 is fixedly connected with two connecting rods 10, and the left side of the box 1 is connected. The side opening is provided with two movable holes which are matched with the size of the connecting rod 10 , and the box body 1 is provided with a crushing component.

In this embodiment, the pulverizing assembly includes a second motor 11 slidably connected to the inner wall of the back of the box body 1 , the back of the box body 1 is provided with a second chute, and the back of the second motor 11 is fixedly connected to the second chute sliding connection A third motor 12 is fixedly installed on the inner wall of the back of the box body 1. The output shafts of the second motor 11 and the third motor 12 are fixedly connected with a rotating rod 13, and the outer side of the rotating rod 13 is fixedly connected with a pulverizing roller 14.

In this embodiment, the splash-proof assembly includes two U-shaped frames 15 fixedly connected to the inner walls of the left and right sides of the feeding funnel 3 . The interior of the U-shaped frame 15 is hinged with a baffle plate 16 , and the inner top wall of the box body 1 A slide rail 17 is fixedly installed, and the inside of the slide rail 17 is slidably connected with a first material guide plate 18 , and one end of the two connecting rods 10 is fixedly connected to the left side of the first material guide plate 18 and the left side of the second motor 11 respectively. , the inner top wall of the box body 1 is fixedly connected with a second material guide plate 19, the bottom of the baffle 16 is fixedly connected with a spring 9, the inner walls of the left and right sides of the feeding funnel 3 are fixedly connected with a fixed block, one end of the spring 9 is connected to the The top of the fixed block is fixedly connected.

The working principle of the above embodiment is:

(1) The raw material pulverizer for processing blister products, by setting the pulverizing mechanism, starts the first motor 6, the output shaft of the first motor 6 drives the threaded rod 7 to rotate, and the movable block 8 moves in the first chute through the roller, The top connecting rod 10 drives the first guide plate 18 to move on the slide rail 17, and the bottom connecting rod 10 drives the second motor 11 to move on the second chute, so as to adjust the distance between the two crushing rollers 14 and remove the raw material from the The feeding funnel 3 is put into the box 1, and the raw material is sent between the two crushing rollers 14 through the first feeding plate 18 and the second feeding plate 19, and the second motor 11 and the third motor 12 are activated. The rotating rod 13 drives the pulverizing roller 14 to start to rotate, pulverizes the raw materials, and then discharges the pulverized raw materials from the discharge pipe.

(2) The raw material pulverizer for processing plastic products is provided with a splash-proof component, and the spring 9 supports the baffle 16. When the raw materials are poured into the box 1, the baffle 16 is squeezed, and the baffle 16 is wound around a U-shape. The frame 15 rotates to compress the spring 9. After the feeding is completed, the baffle 16 is reset by the tension of the spring 9, so as to block and prevent the raw material from splashing out of the box 1 during the crushing process.

It should be noted that, in this document, relational terms such as first and second are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply any relationship between these entities or operations. any such actual relationship or sequence exists. Moreover, the terms "comprising", "comprising" or any other variation thereof are intended to encompass a non-exclusive inclusion such that a process, method, article or device that includes a list of elements includes not only those elements, but also includes not explicitly listed or other elements inherent to such a process, method, article or apparatus. Without further limitation, an element qualified by the phrase "comprising a..." does not preclude the presence of additional identical elements in a process, method, article or apparatus that includes the element.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (8)

1. A raw material pulverizer for processing blister products, comprising a box body (1), characterized in that: the inside of the box body (1) is fixedly connected with a swash plate (2), and the box body (1) is A feeding funnel (3) is fixedly connected to the top, a splash-proof assembly is arranged on the box body (1), and a crushing mechanism is arranged on the box body (1); The crushing mechanism comprises a support plate (4) fixedly installed on the left side of the box body (1), the top of the support plate (4) is fixedly connected with a fixed plate (5), and the left side of the fixed plate (5) A first motor (6) is fixedly installed, a threaded rod (7) is fixedly connected to the output shaft of the first motor (6), and a movable block (8) is slidably connected to the top of the support plate (4). The right side of the movable block (8) is fixedly connected with two connecting rods (10), and the box body (1) is provided with a crushing assembly. 2. A raw material pulverizer for processing blister products according to claim 1, wherein the pulverizing component comprises a second motor (11) slidably connected to the inner wall of the back of the box body (1), the box A third motor (12) is fixedly installed on the back inner wall of the body (1), and a rotating rod (13) is fixedly connected to the output shafts of the second motor (11) and the third motor (12). The outer side of 13) is fixedly connected with a pulverizing roller (14). 3. A raw material pulverizer for blister product processing according to claim 2, characterized in that: the splash-proof component comprises two U components that are fixedly connected to the inner walls of the left and right sides of the feeding funnel (3). A frame (15), a baffle plate (16) is hinged on the inside of the U-shaped frame (15), a slide rail (17) is fixedly installed on the inner top wall of the box body (1), and the slide rail (17) ) is slidably connected with a first material guide plate (18), the inner top wall of the box body (1) is fixedly connected with a second material guide plate (19), and the bottom of the baffle plate (16) is fixedly connected with a Spring (9). 4. A raw material pulverizer for processing blister products according to claim 1, characterized in that: the bottom of the box (1) is fixedly connected with four supporting legs, and the threaded rod (7) ) is rotatably connected to the left side of the box body (1), and a discharge pipe is fixedly connected to the right side of the box body (1). 5. A raw material pulverizer for processing blister products according to claim 1, characterized in that: the top of the support plate (4) is provided with a first chute, and the bottom of the movable block (8) is fixed A number of two rollers are connected, and a threaded through hole for threaded connection with the threaded rod (7) is opened inside the movable block (8). 6. A raw material pulverizer for processing blister products according to claim 3, characterized in that: one end of the two connecting rods (10) is respectively connected to the left side of the first guide plate (18) and the first The left sides of the two motors (11) are fixedly connected, and the left side of the box body (1) is provided with two movable holes which are adapted to the size of the connecting rod (10). 7. A raw material pulverizer for processing blister products according to claim 2, characterized in that: the back of the box (1) is provided with a second chute, and the back of the second motor (11) A slider that is slidably connected with the second chute is fixedly connected. 8. A raw material pulverizer for processing blister products according to claim 3, characterized in that: the inner walls of the left and right sides of the feeding funnel (3) are fixedly connected with fixed blocks, and the spring (9) One end is fixedly connected to the top of the fixing block.
