Abstract
本实用新型公开了一种具有内部清理功能的混合搅拌装置，包括本体，所述本体安装在地面上；收集机构，所述收集机构安装在过滤机构的下方；搅拌机构，所述搅拌机构与旋转轴进行连接，且旋转轴与电机进行连接，并且旋转轴的端部安装有伸缩杆；入料器，所述入料器安装在本体的上方两侧，且入料器中安装有清理机构。该具有内部清理功能的混合搅拌装置在使用的过程中，受到清理机构的作用不仅仅可以对入料口处进行清理，同时还可以有效的避免入料的过程中出现堵塞现象，并且在进行搅拌的过程中搅拌机构可以上下移动，从而增加其搅拌的均匀性，并且受到过滤机构的作用还可以进行过滤，收集机构便于其进行收集。
The utility model discloses a mixing and stirring device with an internal cleaning function, which comprises a main body, which is installed on the ground; a collecting mechanism, which is installed under a filtering mechanism; and a stirring mechanism, which is connected to a rotary The shaft is connected, the rotating shaft is connected with the motor, and a telescopic rod is installed at the end of the rotating shaft; the feeder is installed on both sides of the upper part of the body, and a cleaning mechanism is installed in the feeder. In the process of using the mixing and stirring device with internal cleaning function, the cleaning mechanism can not only clean the feeding port, but also can effectively avoid clogging during the feeding process. During the process, the stirring mechanism can move up and down, so as to increase the uniformity of the stirring, and it can also be filtered under the action of the filtering mechanism, and the collecting mechanism is convenient for its collection.
Description
Technical Field
The utility model relates to an and agitating unit technical field specifically is a mix agitating unit with inside clearance function.
Background
A mixing and stirring device can be used in the process of processing raw materials, for example, a reaction kettle stirrer with multilayer stirring blades is provided with a stirring box, the right side above the stirring box is provided with a power box, the inside of the power box is provided with a power mechanism, the left side above the stirring box is provided with a feeding box, the upper side of the feeding box is provided with a feeding hole, the inside of the stirring box is provided with a stirring shaft, the stirring shaft penetrates through the upper side shell wall of the stirring box and the lower side of the shell wall of the power box, a plurality of first stirring rods are equidistantly arranged on the stirring shaft, the inside of each first stirring rod is in a hollow state, when the device runs, the telescopic pipe slides into the first stirring rod by utilizing a spring and a limiting rod, the substances on the first stirring rod are cleaned, the subsequent cleaning range is reduced, and the substances in the stirring box are stirred in a layered manner by utilizing the telescopic pipe and the first stirring rod, because the diameter of the first stirring rod is larger than that of the telescopic pipe, the layered treatment is carried out at the joint of the first stirring rod and the telescopic pipe, and the telescopic pipe is suitable for being popularized in a large scale.
Although above-mentioned device can utilize flexible pipe and first puddler to carry out the layering stirring to the material in the agitator tank at the in-process that uses, above-mentioned device is inconvenient in the in-process that uses and is carrying out the interpolation of raw materials, is stirring the in-process of mixing simultaneously and need clearing up the device is inside to different raw materials, but above-mentioned device is inconvenient clears up, and inconvenient raw materials after mixing are filtered simultaneously and are collected.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a mix agitating unit with inside clearance function to solve the problem that current mix agitating unit does not have inside clearance function among the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: a mixing and stirring device with an internal cleaning function comprises;
the device comprises a body, a water tank, a water inlet pipe, a water outlet pipe, a water inlet pipe, a water outlet pipe and a water outlet pipe, wherein the body is arranged on the ground, a driving mechanism is arranged above the body and adopts triple driving, and a spray head is arranged in the body;
the collecting mechanism is arranged below the filtering mechanism, the filtering mechanism is arranged below the body, and the size of the filtering mechanism is larger than that of the collecting mechanism;
the stirring mechanism is connected with the rotating shaft, the rotating shaft is connected with the motor, the end part of the rotating shaft is provided with a telescopic rod, and the telescopic rod is connected with the stirring mechanism;
and the feeding device is arranged on two sides of the upper part of the body, a cleaning mechanism is arranged in the feeding device, and the cleaning mechanism is connected with the driving mechanism.
Adopt above-mentioned technical scheme for the in-process that the device was using, the effect that receives clearance mechanism not only can clear up pan feeding mouth department, and the jam phenomenon appears in the in-process that can also effectually avoid the pan feeding simultaneously, and can reciprocate at the in-process rabbling mechanism that stirs, thereby increases the homogeneity of its stirring, and the effect that receives filter mechanism can also filter, collects the mechanism and is convenient for it and collect.
Further, guide plate and body fixed connection, and guide plate quantity is 2 to the guide plate is the bevel angle design, and the guide plate end opening is the opening form simultaneously.
By adopting the technical scheme, the raw materials after the stirring is finished can be conveniently discharged, and the blockage is prevented.
Furthermore, the stirring mechanism is connected with the stirring shaft through the connecting frame, the stirring mechanism is movably connected with the connecting frame, the end part of the stirring mechanism is uneven, and the connecting frame is in a double-line structural design.
Adopt above-mentioned technical scheme, make under rabbling mechanism's effect, not only can stir the mixture to the inside raw materials of device, when needs are cleared up the device inside simultaneously, rabbling mechanism can clear up the inner wall.
Furthermore, the end part of the connecting frame is vertically provided with guide blocks, the number of the guide blocks is the same as that of the connecting frame, the central lines of the guide blocks and the central lines of the guide grooves are overlapped, meanwhile, the guide grooves are vertically arranged on the rotating shaft, and the guide grooves are not through grooves.
By adopting the technical scheme, the stirring mechanism can move up and down under the action of the telescopic rod, so that the stirring is more sufficient.
Further, clearance mechanism shape is the same with pan feeder shape, and clearance mechanism tip is unsmooth form to clearance mechanism is bilateral symmetry form, and clearance mechanism fixed mounting has the connecting block simultaneously, and the connecting block uses with the cooperation piece cooperation moreover.
By adopting the technical scheme, the inner wall of the feeding device is convenient to clean under the action of the cleaning mechanism.
Further, the installation piece is installed to filter mechanism both ends symmetry, and the installation piece uses with the mounting groove cooperation to the central line of installation piece and the central line of mounting groove coincide each other, and the external diameter of installation piece is less than the internal diameter of mounting groove simultaneously.
By adopting the technical scheme, under the matching action of the installation block and the installation groove, the device can enable the filtering mechanism to be detached in the using process, so that the filtering mechanism is convenient to clean.
Compared with the prior art, the utility model has the advantages that in the using process of the device, the feeding port can be cleaned under the action of the cleaning mechanism, simultaneously, the blocking phenomenon in the feeding process can be effectively avoided, the stirring mechanism can move up and down in the stirring process, so that the stirring uniformity is improved, the filtering can be carried out under the action of the filtering mechanism, and the collecting mechanism is convenient for collecting the materials;
1. the stirring mechanism is provided with the guide block and the guide groove, and under the matching action of the guide block and the guide groove, the stirring mechanism can move up and down under the action of the telescopic rod in the using process, so that the stirring of the stirring mechanism is more uniform, and the practicability of the device is improved;
2. be provided with installation piece and mounting groove, under the effect of installation piece and mounting groove for filtering mechanism can dismantle filtering mechanism when using the back of accomplishing, thereby is convenient for clear up filtering mechanism, guarantees filtering mechanism's filter effect, has increased the stability of device.
Drawings

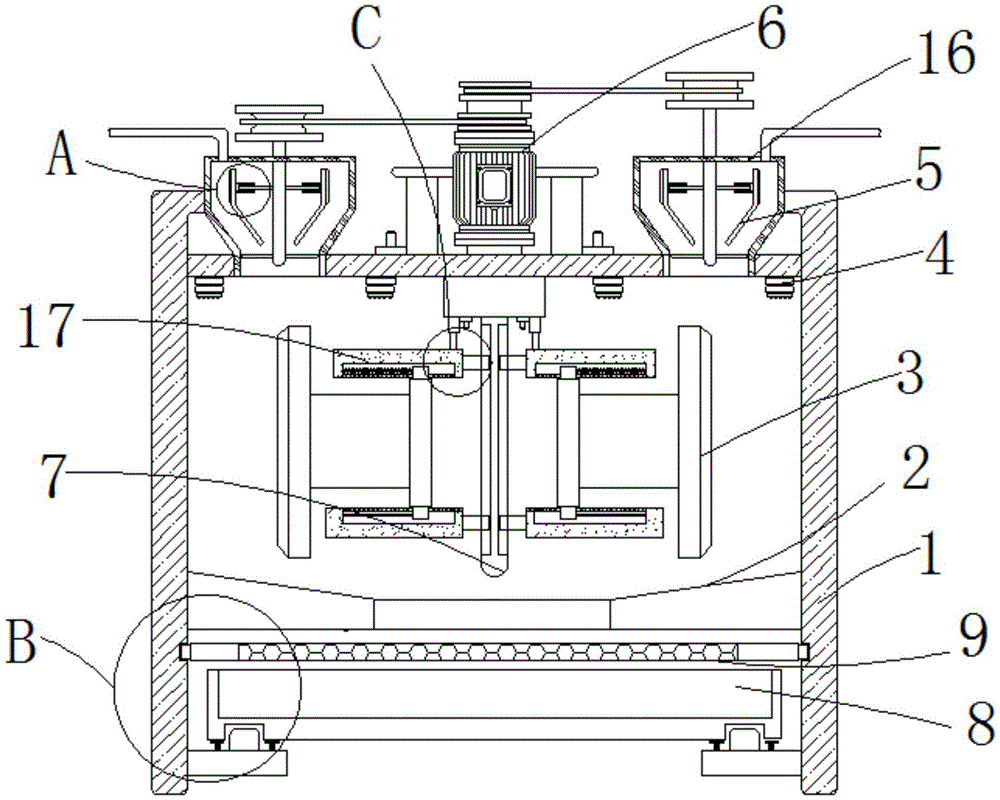

FIG. 1 is a schematic sectional view of the present invention;
fig. 2 is an enlarged schematic structural view of a point a in fig. 1 according to the present invention;
fig. 3 is an enlarged schematic structural view of the utility model at the position B in fig. 1;
fig. 4 is an enlarged schematic structural diagram of the present invention at C in fig. 1.
In the figure: 1. a body; 2. a baffle; 3. a stirring mechanism; 4. a spray head; 5. a cleaning mechanism; 6. A drive mechanism; 7. a stirring shaft; 8. a collection mechanism; 9. a filtering mechanism; 10. connecting blocks; 11. a matching block; 12. mounting grooves; 13. mounting blocks; 14. a guide groove; 15. a guide block; 16. feeding a material device; 17. a connecting frame.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
Referring to fig. 1-4, the present invention provides an embodiment: a mixing and stirring device with an internal cleaning function comprises a body 1, wherein the body 1 is arranged on the ground, a driving mechanism 6 is arranged above the body 1, the driving mechanism 6 adopts triple driving, and a spray head 4 is arranged in the body 1, so that the device is convenient to mix in the using process, and the stirring uniformity can be ensured under the action of a stirring mechanism 3 in the mixing process;
specifically, as shown in fig. 1 and 4, since the stirring mechanism 3 is connected to the rotating shaft, the rotating shaft is connected to the motor, the end of the rotating shaft is provided with the telescopic rod, the telescopic rod is connected to the stirring mechanism 3, the stirring mechanism 3 is connected to the stirring shaft 7 through the connecting frame 17, the stirring mechanism 3 is movably connected to the connecting frame 17, the end of the stirring mechanism 3 is uneven, the connecting frame 17 is in a double-line structure design, the end of the connecting frame 17 is vertically provided with the guide blocks 15, the number of the guide blocks 15 is the same as that of the connecting frame 17, the center line of the guide blocks 15 is coincident with the center line of the guide grooves 14, the guide grooves 14 are vertically arranged on the rotating shaft, the guide grooves 14 are not through grooves, the device can better stir under the action of the stirring mechanism 3, and the stirring mechanism 3 can move up and down under the action of the telescopic rod, therefore, the stirring uniformity of the material feeding device is improved, the material feeding device 16 is arranged on two sides above the body 1, the cleaning mechanism 5 is arranged in the material feeding device 16, the cleaning mechanism 5 is connected with the driving mechanism 6, the shape of the cleaning mechanism 5 is the same as that of the material feeding device 16, the end part of the cleaning mechanism 5 is uneven, the cleaning mechanism 5 is in a bilateral symmetry shape, the cleaning mechanism 5 is fixedly provided with the connecting block 10, and the connecting block 10 is matched with the matching block 11 for use, so that the phenomenon of material feeding blockage is effectively avoided, and meanwhile, the raw materials can be filtered under the action of the filtering mechanism 9 in the using process;
as shown in fig. 2-3, because guide plate 2 and body 1 fixed connection, and guide plate 2 quantity is 2, and guide plate 2 is the design of oblique angle, simultaneously guide plate 2 end opening is the opening form, installation piece 13 is installed to filter mechanism 9 both ends symmetry, and installation piece 13 and mounting groove 12 cooperation are used, and the central line of installation piece 13 and the central line of mounting groove 12 coincide each other, the external diameter of installation piece 13 is less than the internal diameter of mounting groove 12 simultaneously, at filter mechanism 9's effect, can clear up the raw materials, simultaneously can dismantle because the effect of mounting groove 12 and installation piece 13, because collection mechanism 8 installs the below at filter mechanism 9, and filter mechanism 9 installs the below at body 1, and filter mechanism 9's size is greater than collection mechanism 8, can collect filterable raw materials.
The working principle is as follows: when the device is used, firstly, raw materials to be mixed are respectively placed in the material feeding device 16, then the device is started, the raw materials gradually enter the body 1, the raw materials are slowly added into the material feeding device 16 in the process of entering the raw materials, the driving mechanism 6 is started in the adding process, the cleaning mechanism 5 works under the action of the driving mechanism 6, the phenomenon of raw material blockage can be effectively prevented along with the work of the cleaning mechanism 5, meanwhile, the connecting frame 17 can move up and down under the action of the telescopic rod in the using process, and the stirring mechanism 3 can move up and down along with the up and down movement of the telescopic rod, so that the stirring uniformity of the device is effectively increased, the raw materials after stirring are collected by the collecting mechanism 8 through the filtering mechanism 9, after the mixing and stirring are completed, the spray head 4 is started, the interior of the body 1 is cleaned under the action of the spray head 4, the stirring mechanism 3 can clean the inner wall of the device under the action of centrifugal force in the cleaning process, so that the cleaning capacity of the device is improved.
It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
Claims (6)
1. A mixing and stirring device with an internal cleaning function is characterized by comprising;
the device comprises a body, a water tank, a water inlet pipe, a water outlet pipe, a water inlet pipe, a water outlet pipe and a water outlet pipe, wherein the body is arranged on the ground, a driving mechanism is arranged above the body and adopts triple driving, and a spray head is arranged in the body;
the collecting mechanism is arranged below the filtering mechanism, the filtering mechanism is arranged below the body, and the size of the filtering mechanism is larger than that of the collecting mechanism;
the stirring mechanism is connected with the rotating shaft, the rotating shaft is connected with the motor, the end part of the rotating shaft is provided with a telescopic rod, and the telescopic rod is connected with the stirring mechanism;
and the feeding device is arranged on two sides of the upper part of the body, a cleaning mechanism is arranged in the feeding device, and the cleaning mechanism is connected with the driving mechanism.
2. A mixing and stirring device with internal cleaning function as claimed in claim 1, wherein: the guide plate and the body fixed connection, and guide plate quantity is 2 to the guide plate is the bevel angle design, and the guide plate end opening is the opening form simultaneously.
3. A mixing and stirring device with internal cleaning function as claimed in claim 1, wherein: the stirring mechanism is connected with the stirring shaft through the connecting frame, the stirring mechanism is movably connected with the connecting frame, the end part of the stirring mechanism is in a rugged shape, and the connecting frame is in a double-line structural design.
4. A mixing and stirring device with internal cleaning function as claimed in claim 3, wherein: the end part of the connecting frame is vertically provided with guide blocks, the number of the guide blocks is the same as that of the connecting frame, the center lines of the guide blocks and the center lines of the guide grooves are overlapped, meanwhile, the guide grooves are vertically arranged on the rotating shaft, and the guide grooves are not through grooves.
5. A mixing and stirring device with internal cleaning function as claimed in claim 1, wherein: the shape of the cleaning mechanism is the same as that of the material feeder, the end part of the cleaning mechanism is uneven, the cleaning mechanism is in bilateral symmetry, the cleaning mechanism is fixedly provided with a connecting block, and the connecting block is matched with the matching block for use.
6. A mixing and stirring device with internal cleaning function as claimed in claim 1, wherein: the filter device is characterized in that the two ends of the filter mechanism are symmetrically provided with mounting blocks, the mounting blocks are matched with the mounting grooves for use, the central lines of the mounting blocks and the central lines of the mounting grooves coincide with each other, and the outer diameters of the mounting blocks are smaller than the inner diameters of the mounting grooves.
