CN217136018U

CN217136018U - Biogas slurry spraying device

Info

Publication number: CN217136018U
Application number: CN202220700663.4U
Authority: CN
Inventors: 曹文东; 谭论
Original assignee: HT Bauer Water Related Agriculture Machinery & Engineering Co ltd
Current assignee: HT Bauer Water Related Agriculture Machinery & Engineering Co ltd
Priority date: 2022-03-29
Filing date: 2022-03-29
Publication date: 2022-08-09
Anticipated expiration: 2032-03-29

Abstract

The utility model relates to a natural pond liquid sprinkler. The structure of the utility model comprises a traveling crane bracket connected with a water delivery pipe and a central cantilever; two ends of the central cantilever are respectively provided with a group of cantilevers A through the quick connection device and the hook head fixing device; two ends of the cantilever A are respectively provided with a group of cantilevers B through the quick connection device and the hook head fixing device, two ends of the cantilever B are respectively provided with a group of cantilevers C through the quick connection device and the hook head fixing device, and biogas slurry spraying tail end pipeline devices are respectively arranged below the cantilever A, the cantilever B and the cantilevers C; the structure of the biogas slurry spraying tail end pipeline device is that a tail end biogas slurry distributor, a water delivery rubber pipe, a ball valve and a joint are connected in sequence. Compared with the prior art, the biogas liquid spraying device of the utility model has the advantages of smooth and easy spraying of biogas liquid, high uniformity, little pollution to the environment, simple structure, convenient maintenance and low cost of installation and disassembly.

Description

Biogas slurry spraying device

Technical Field

The utility model relates to a sprinkling irrigation equipment, especially natural pond liquid sprinkler.

Background

At present, the common mode of returning natural pond liquid to field has the sprinkling irrigation machine to spray, and the device that uses is to place the fertilization tank car on the ground, does not get into within the landmass, sprays through pipe connection sprinkling irrigation machine, and current sprinkling irrigation machine all utilizes special spray gun of sprinkling irrigation or shower nozzle, and liftoff is higher, and such structure exists: the biogas slurry is easy to be blocked when sprayed, and the biogas slurry is easy to be sprayed on the surfaces of crops, so that the spraying is uneven; the dirt is scattered along with the wind during scattering spraying, and the biogas liquid spraying can seriously pollute the surrounding environment when meeting strong wind, and the like.

Disclosure of Invention

The technical task of the utility model is to the weak point of above current situation, provide natural pond liquid sprinkler that natural pond liquid sprays smoothly, difficult polluted environment.

The utility model provides an adopted technical scheme of its technical problem is: the biogas slurry spraying device comprises two travelling crane tires arranged on a travelling crane support, the travelling crane support is connected with a water pipe through a bolt, and the upper end of the water pipe is connected with a central cantilever through a flange; two ends of the central cantilever are respectively provided with a group of cantilevers A through the quick connection device and the hook head fixing device; two ends of the cantilever A are respectively provided with a group of cantilevers B through the quick connection device and the hook head fixing device, two ends of the cantilever B are respectively provided with a group of cantilevers C through the quick connection device and the hook head fixing device, and biogas slurry spraying tail end pipeline devices are respectively arranged below the cantilever A, the cantilever B and the cantilevers C; the biogas slurry spraying tail end pipeline device is structurally characterized in that a tail end biogas slurry distributor, a water delivery rubber pipe, a ball valve and a connector are sequentially connected, and the connector is arranged on a cantilever A, a cantilever B and a group cantilever C through R3/4' -taper threads; the tail end biogas slurry distributor is structurally characterized in that a reflecting plate, a sliding plate and a guide pipe are sequentially connected, one end of an inlet of the guide pipe is connected with a water delivery rubber pipe, and one end of an outlet of the guide pipe is towards the reflecting plate.

The quick-connection device is characterized in that a quick-connection female head is connected with a quick-connection male head, an O-shaped ring is arranged in the quick-connection female head, and a quick handle is arranged on the quick-connection male head.

The hook head fixing device is structurally characterized in that a hook head bolt is connected with a hook head.

The water delivery pipe of the biogas slurry spraying device is connected with the electric reel type sprinkling machine through a PE pipe.

Compared with the prior art, the biogas liquid spraying device of the utility model has the following characteristics: the utility model, by combining the electric reel type sprinkler with the biogas slurry spraying device, saves the water turbine in the prior art, reduces the risk of blocking the water turbine and the pipeline by the biogas slurry, and the biogas slurry is smoothly sprayed; the quick-connecting device and the hook head fixing device are arranged, so that the mounting and dismounting work is very convenient; through setting up natural pond liquid and spraying terminal piping installation, can all obtain control to natural pond liquid flow, degree of consistency, to the pollution of environment etc. solved in the past when natural pond liquid sprays that long distance is still field, soil salinization, soil harden, equipment cost is high, spray inhomogeneous, environmental pollution's the problem that exists.

Drawings

The present invention will be further explained with reference to the accompanying drawings.

FIG. 1 is a schematic structural diagram of a biogas slurry spraying device connected with an electric reel type sprinkler.

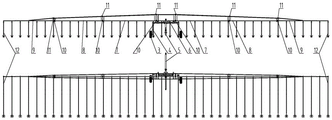

Fig. 2 is a schematic structural diagram of a biogas slurry spraying device in a front view and a top view.

Fig. 3 is a schematic three-dimensional structure of the biogas slurry spraying device.

Fig. 4 is a schematic structural diagram of the connection closed state of the quick connection device of the biogas slurry spraying device.

Fig. 5 is a schematic structural diagram of the connection opening state of the quick connection device of the biogas slurry spraying device.

Fig. 6 is a schematic structural view of a hook head fixing device of the biogas slurry spraying device.

FIG. 7 is a schematic structural diagram of a biogas slurry spraying end pipeline device of the biogas slurry spraying device.

Fig. 8 is a structural schematic diagram of a terminal biogas slurry distributor of a biogas slurry spraying device.

In the figure: 1. an electric reel type sprinkler 2, a biogas slurry spraying device 3, a travelling tire 4, a travelling support 5, a water pipe 6, a central cantilever 7, cantilevers A and 8, cantilevers B and 9, cantilevers C and 10, a quick connection device 11 and a hook head are fixedly arranged

12, a biogas slurry spraying tail end pipeline device, 13, a quick-connection female head, 14, a quick-connection male head, 15, a hook head bolt, 16, a hook head, 17, a tail end biogas slurry distributor, 18, a water delivery rubber pipe, 19, a ball valve, 20, a connector, 21, a reflecting plate, 22, a sliding plate, 23 and a guide pipe.

Detailed Description

The biogas slurry spraying device is described in detail below with reference to the attached drawings of the specification.

The biogas slurry spraying device comprises 2 travelling vehicle tires 3 arranged on a travelling vehicle bracket 4, the travelling vehicle bracket 4 is connected with a water delivery pipe 5 through a bolt, and the upper end of the water delivery pipe 5 is connected with a central cantilever 6 through a flange; two ends of the central cantilever 6 are respectively provided with a group of cantilevers A7 through the quick-connection device 10 and the hook head fixing device 11, and the quick-connection device 10 and the hook head fixing device 11 enable the installation and the disassembly to be very convenient.

The quick-connection device 10 comprises a quick-connection female head 13 and a quick-connection male head 14, wherein an O-shaped ring is arranged in the quick-connection female head 13, a quick handle is arranged on the quick-connection male head 14, when the quick-connection female head 13 and the quick-connection male head 14 are closed, the quick handle of the quick-connection male head 14 hooks the quick-connection female head 13 tightly, and the O-shaped ring of the quick-connection female head 13 is in close contact with the surface of a ball head of the quick-connection male head 14 to play a role in sealing.

The hook head fixing device 11 comprises a hook head bolt 15 and a hook head 16, the hook head 16 is inserted into a connecting hole in the cantilever A7, and the hook head bolt 15 is fixed with the cantilever A7 through a nut.

Two ends of the cantilever A7 are respectively provided with a group of cantilevers B8 through the quick connection device 10 and the hook head fixing device 11; two ends of the cantilever B8 are respectively provided with a group of cantilevers C9 through the quick-connecting device 10 and the hook head fixing device 11. Biogas slurry spraying tail end pipeline devices 12 are respectively arranged below the cantilever A7, the cantilever B8 and the cantilever C9. The biogas slurry spraying tail end pipeline device 12 is structurally characterized in that a tail end biogas slurry distributor 17, a water delivery rubber pipe 18, a ball valve 19 and a connector 20 are sequentially connected. The connector 20 is arranged on the cantilever A7, the cantilever B8 and the group cantilever C9 through R3/4' -cone threads, the ball valves 19 are arranged on the lower portion of the connector 20, and the biogas slurry spraying uniformity is achieved by adjusting the opening degree of each ball valve 19. The water delivery hose 18 is arranged below the ball valve 19, and due to flexible connection, the hose can easily pass through the ground when encountering the rugged ground. The rear end of the water delivery rubber pipe 18 is provided with a tail end biogas slurry distributor 17, the tail end biogas slurry distributor 17 can prevent the water delivery rubber pipe 18 from swinging by means of the self weight, and the tail end biogas slurry distributor 17 mainly comprises a reflecting plate 21, a sliding plate 22 and a guide pipe 23. The reflecting plate 21 can locally scatter the biogas slurry, so that the spraying range is enlarged, and the biogas slurry is sprayed more uniformly; the sliding plate 22 plays a role in sliding support and guiding, one end of the inlet of the guide pipe 23 is connected with the water delivery rubber pipe 18, and one end of the outlet of the guide pipe 23 is towards the reflecting plate 21, so that the biogas slurry can be emitted to the reflecting plate 21.

The biogas slurry spraying end pipeline device 12 can be arranged in parallel according to the working requirement.

The utility model discloses at the during operation, natural pond liquid sprinkler 2 links to each other with electronic reel formula sprinkling irrigation machine 1 through the PE pipe. Compared with the traditional water turbine driven reel type sprinkler, the electric reel type sprinkler 1 has the advantages that the water turbine is omitted, the risk that the water turbine and the pipeline are blocked by biogas slurry is reduced, and the biogas slurry is smoothly sprayed. The other end of the electric reel type sprinkler 1 is connected to a biogas slurry tank truck at the ground head; fix electronic reel formula sprinkling irrigation machine 1 at the ground, the tractor pulls the another end on ground of natural pond liquid sprinkler 2, and the circular telegram back, electronic reel formula sprinkling irrigation machine 1 drives natural pond liquid sprinkler 2 and retrieves the limit and carries out natural pond liquid and spray. The biogas slurry enters the cantilever A7, the cantilever B8 and the cantilever C9 from the PE pipe of the electric reel type sprinkler 1 through the water conveying pipe 5, and then is conveyed into the field through a plurality of biogas slurry spraying tail end pipeline devices 12.

The utility model discloses carry out the natural pond liquid with the sprinkling irrigation machine and spray, the sprinkling irrigation machine adopts electronic reel formula sprinkling irrigation machine, and natural pond liquid sprinkler adopts cantilever hookup mode and natural pond liquid sprinkler. Can control the flow rate and the uniformity of the biogas slurry, the pollution to the environment and the like, and solves the problems existing in the prior biogas slurry spraying process: long-distance returning, soil salinization, soil hardening, high equipment cost, uneven spraying, environmental pollution and the like. The device has the characteristics of simple structure, convenience in maintenance, low cost, easiness in operation and the like.

Claims

1. The biogas slurry spraying device (2) comprises two travelling vehicle tires (3) arranged on a travelling vehicle bracket (4), the travelling vehicle bracket (4) is connected with a water pipe (5) through a bolt, and the biogas slurry spraying device is characterized in that the upper end of the water pipe (5) is connected with a central cantilever (6) through a flange; two ends of the central cantilever (6) are respectively provided with a group of cantilevers A (7) through a quick connection device (10) and a hook head fixing device (11); two ends of the cantilever A (7) are respectively provided with a group of cantilevers B (8) through a quick connection device (10) and a hook head fixing device (11), two ends of the cantilever B (8) are respectively provided with a group of cantilevers C (9) through the quick connection device (10) and the hook head fixing device (11), and biogas slurry spraying tail end pipeline devices (12) are respectively arranged below the cantilever A (7), the cantilever B (8) and the cantilever C (9); the biogas slurry spraying tail end pipeline device (12) is structurally characterized in that a tail end biogas slurry distributor (17), a water delivery rubber pipe (18), a ball valve (19) and a connector (20) are sequentially connected, and the connector (20) is arranged on a cantilever A (7), a cantilever B (8) and a group cantilever C (9) through R3/4' -taper threads; the tail end biogas slurry distributor (17) is structurally characterized in that a reflecting plate (21), a sliding plate (22) and a guide pipe (23) are sequentially connected, one end of an inlet of the guide pipe (23) is connected with a water delivery rubber pipe (18), and one end of an outlet of the guide pipe is towards the reflecting plate (21).

2. Biogas slurry spraying device (2) according to claim 1, characterized in that: the quick-connection device (10) is structurally characterized in that a quick-connection female head (13) is connected with a quick-connection male head (14), an O-shaped ring is arranged in the quick-connection female head (13), and a quick handle is arranged on the quick-connection male head (14).

3. Biogas slurry spraying device (2) according to claim 1, characterized in that: the hook head fixing device (11) is structurally characterized in that a hook head bolt (15) is connected with a hook head (16).

4. Biogas slurry spraying device (2) according to claim 1, characterized in that: the water delivery pipe (5) of the biogas slurry spraying device (2) is connected with the electric reel type sprinkling machine (1) through a PE pipe.
