CN217121948U - Cutting device suitable for air conditioner spare part production usefulness - Google Patents

Abstract

The utility model discloses a cutting device suitable for the production of air-conditioning parts, and relates to the technical field of air-conditioning. A cutting device suitable for the production of air-conditioning parts comprises an operation table, the upper side of which is fixedly connected with a Cutting mechanism, the upper side of the operating table is fixedly connected with a bracket, the shape of the bracket is Y-shaped, the upper side of the operating table is fixedly connected with a rectangular plate, the left side of the rectangular plate is fixedly connected with a hydraulic telescopic rod, the cutting mechanism, the bracket and the hydraulic The telescopic rods are arranged from left to right on the upper side of the operating table. This cutting device is suitable for the production of air-conditioning parts, which ensures the convenience of rapid collection of waste materials and reduces the waste splashing work during traditional copper tube burr cutting. It improves the tediousness of the workbench needing to be cleaned in time, and also improves the flexibility of collecting and cleaning wastes, ensuring a good operating space and anti-splashing of wastes during copper tube processing.

Description

Cutting device suitable for air conditioner spare part production usefulness

Technical Field

The utility model relates to an air conditioner technical field, in particular to cutting device suitable for air conditioner spare part production usefulness.

Background

An air conditioner compressor is a fluid machine for lifting low-pressure gas into high-pressure gas, and is a heart of a refrigeration system.

Learn a cutting device suitable for air conditioner spare part production usefulness through looking up the literature, copper pipe that has the deviation the same and the internal diameter of present major part external diameter carries out deckle edge when cutting, cutting mechanism can be very accurate cuts deckle edge, but when cutting the copper pipe to present most cutting mechanism, directly process the cutting at the operation panel usually, and then cause splashing of crushed aggregates, and the waste material drops at the operation panel with subaerial, relative complicacy when such mode just causes the later stage to clear up the waste material, and the splashing of waste material also can cause the risk of hitting to the operator during copper pipe processing, and then cause not have a clean environment and relatively safe operating space scheduling problem during copper pipe processing.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to solve one of the technical problem that exists among the prior art at least, provide a cutting device suitable for air conditioner spare part production usefulness, can solve copper pipe processing back and clear up the waste material when relative complicacy, the copper pipe adds the risk that spatters of waste material also can cause the beating to the operator in addition man-hour, and then causes the copper pipe to add the problem of not having clean environment and safe operation space relatively man-hour.

In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a cutting device suitable for air conditioner spare part production usefulness, includes the operation panel, the upside fixedly connected with cutting mechanism of operation panel, the upside fixedly connected with support of operation panel, the shape of support are Y word form, the upside fixedly connected with rectangular plate of operation panel, the left side fixedly connected with hydraulic telescoping rod of rectangular plate, cutting mechanism, support and hydraulic telescoping rod from left to right arrange in proper order at the upside of operation panel, the upside of operation panel is provided with collection device.

Preferably, the left end of the hydraulic telescopic rod is fixedly connected with a fixing head, and the fixing head is in a circular truncated cone shape.

Preferably, collection device includes the guard box, and the downside fixed connection of guard box is at the upside of operation panel, and the butt joint groove has been seted up on the right side of guard box, and the upside of guard box is seted up with the butt joint groove each other communicate cut groove, the downside of guard box set up with the butt joint groove with cut the blown down tank that the groove communicates each other, the blown down tank runs through the downside of guard box and the inside of operation panel and extends to the downside of operation panel, the inner wall sliding connection of blown down tank has the collecting vat.

Preferably, the inner wall of the butt joint groove is fixedly connected with a sliding head, and the sliding head is also in a circular truncated cone shape.

Preferably, the inner side of the collecting tank is inclined, a lower tank is arranged on the lower side of the operating platform, and a lower rod is connected to the inner wall of the lower tank in a sliding manner.

Preferably, the shape of lower groove and lower beam is the T shape, and the downside fixed connection of lower beam is at the upside of collecting vat, and two flitchs of taking off of upside fixedly connected with of operation panel use hydraulic telescoping rod to distribute in hydraulic telescoping rod's both sides for the axis for two flitchs of taking off.

Compared with the prior art, the beneficial effects of the utility model are that:

(1) the cutting device suitable for the production of air conditioner parts comprises a fixed head, a sliding head, a discharging groove, a collecting groove, a protective box, a sliding plate, a discharging groove, a collecting groove, a discharging groove, a protective box, a discharging plate and a sliding head, wherein the copper pipe is separated from the fixed head through the discharging plate, the surface of the fixed head is dropped, meanwhile, the cut and dropped waste does not have large extrusion force with the sliding head, the waste is dropped on the surface of the sliding head through self gravity and enters the inner wall of the discharging groove, the waste is accurately collected by the inner wall of the collecting groove in a butt joint mode with the discharging groove, the collecting groove full of the waste can be quickly separated from the operating platform through the T-shaped shapes of the discharging groove and the discharging rod, the protective box has a good effect of preventing scraps from splashing and can be quickly collected conveniently after the copper pipe is processed and cut, the waste material workstation that splashes when having reduced traditional copper pipe deckle edge cutting has improved the loaded down with trivial details nature that the workstation need in time clear up, has also improved the flexibility of collecting and clearing up the waste material, has ensured that copper pipe adds man-hour good operating space and waste material and prevents splashing.

(2) This cutting device suitable for air conditioner spare part production usefulness drives the copper pipe through hydraulic telescoping rod under the surface left motion of support, and the copper pipe gets into the inner wall of butt joint groove, and then possesses the sliding head of same round platform form and docks with the other end of copper pipe through butt joint inslot wall, because sliding head and fixed head are in same horizontal plane, and then the horizontal effect that the guarantee copper pipe carries out the centre gripping location to and copper pipe shift positioning and fixed convenience.

(3) This cutting device suitable for air conditioner spare part production usefulness, through the fixed head of a round platform form of installation at hydraulic telescoping rod's left end, be for before the copper pipe of different radiuses processes, can form simple and easy fixed between fixed head and the copper pipe through the surface butt joint of copper pipe and fixed head, and then realize that the copper pipe can normal motion through hydraulic telescoping rod during operation, ensured the copper pipe and carried out the fixed simplicity of location before the cutting.

(4) This cutting device suitable for air conditioner spare part production usefulness sets up the support of a Y shape through the upside at the operation panel, has ensured that the air conditioner spare part copper pipe is fixed the stable location effect of placing of previous, and then can carry out parallel sliding on the Y word form of support after guarantee fixed establishment docks with the copper pipe, guarantee the accurate nature of copper pipe motion.

Drawings

The invention will be further described with reference to the following figures and examples:

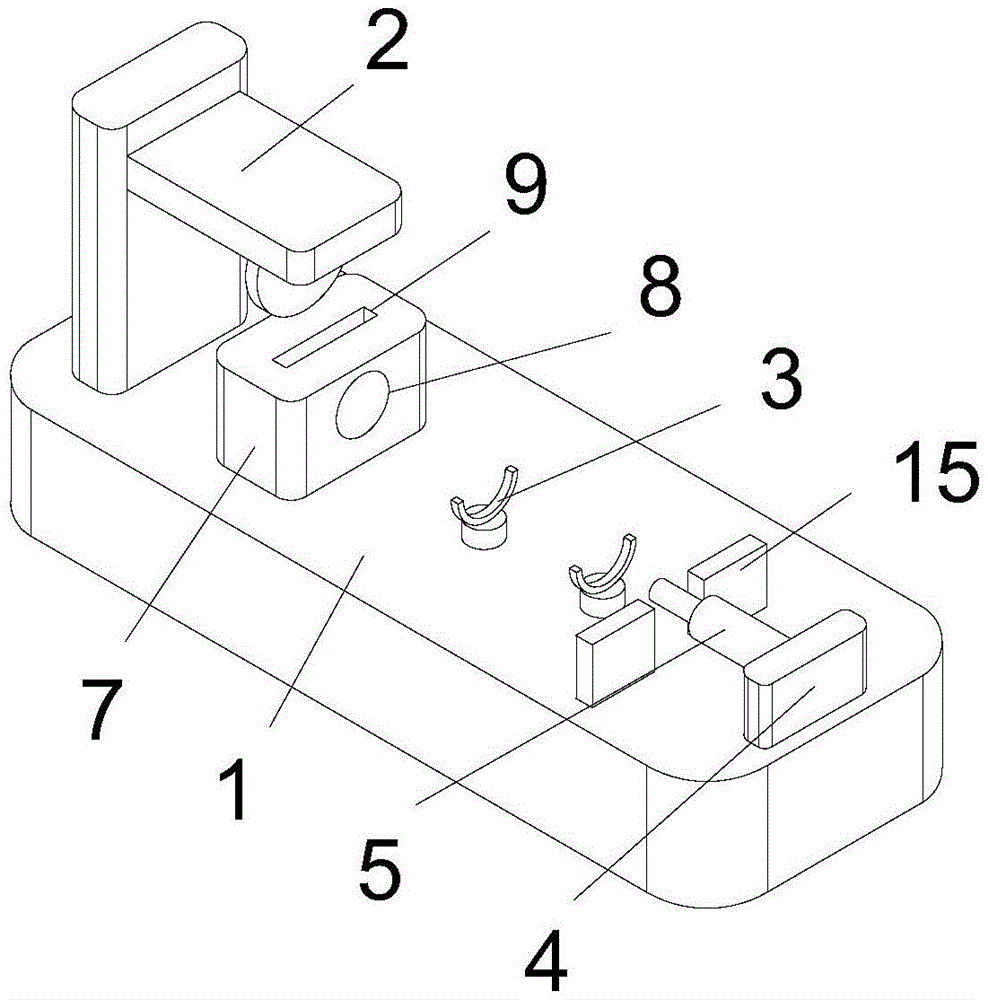

fig. 1 is a schematic structural view of a cutting device suitable for producing air conditioner components and parts of the present invention;

FIG. 2 is a schematic view of a fixing head structure of the present invention;

FIG. 3 is a schematic view of the protective box of the present invention;

FIG. 4 is a schematic view of the protective box of the present invention;

fig. 5 is the schematic view of the plane structure of the collecting box of the present invention.

Reference numerals: the device comprises an operation table 1, a cutting mechanism 2, a support 3, a rectangular plate 4, a hydraulic telescopic rod 5, a fixing head 6, a protective box 7, a butt joint groove 8, a cutting groove 9, a sliding head 10, a discharge groove 11, a collecting box 12, a lower groove 13, a lower rod 14 and a stripper plate 15.

Detailed Description

Referring to fig. 1-5, the present invention provides a technical solution: a cutting device suitable for production of air conditioner parts comprises an operating table 1, a cutting mechanism 2 is fixedly connected to the upper side of the operating table 1, a support 3 is fixedly connected to the upper side of the operating table 1, the support 3 is Y-shaped, a rectangular plate 4 is fixedly connected to the upper side of the operating table 1, a hydraulic telescopic rod 5 is fixedly connected to the left side of the rectangular plate 4, the cutting mechanism 2, the support 3 and the hydraulic telescopic rod 5 are sequentially arranged on the upper side of the operating table 1 from left to right, a fixing head 6 is fixedly connected to the left side of the hydraulic telescopic rod 5, the fixing head 6 is round-table-shaped, a collecting device is arranged on the upper side of the operating table 1 and comprises a protective box 7, the lower side of the protective box 7 is fixedly connected to the upper side of the operating table 1, a butt joint groove 8 is formed in the right side of the protective box 7, and a cutting groove 9 communicated with the butt joint groove 8 is formed in the upper side of the protective box 7, butt joint groove 8's inner wall fixedly connected with slip head 10, the shape of slip head 10 is the round platform form equally, the blown down tank 11 that communicates each other with butt joint groove 8 and cutting groove 9 is seted up to the downside of protecting box 7, blown down tank 11 runs through the downside of protecting box 7 and the inside of operation panel 1 and extends to the downside of operation panel 1, the inner wall sliding connection of blown down tank 11 has collecting vat 12, the inboard shape of collecting vat 12 is the slope form, lower groove 13 has been seted up to the downside of operation panel 1, the inner wall sliding connection of lower groove 13 has lower beam 14, the shape of lower groove 13 and lower beam 14 is the T shape, the downside fixed connection of lower beam 14 is at the upside of collecting vat 12, two flitch 15 that take off of the upside fixedly connected with of operation panel 1, two flitch 15 use hydraulic telescoping rod 5 to distribute in the both sides of hydraulic telescoping rod 5 as the axis.

Further, through setting up the support 3 of a Y shape at the upside of operation panel 1, ensured that the air conditioner spare part copper pipe is fixed the stable location effect of placing of previous, and then can carry out parallel slip on the Y word form of support 3 after ensuring fixed establishment and copper pipe butt joint, the accurate nature of guarantee copper pipe motion.

Furthermore, a truncated cone-shaped fixing head 6 is arranged at the left end of the hydraulic telescopic rod 5, so that before copper pipes with different radiuses are machined, the copper pipes can be butted with the surface of the fixing head 6 through the copper pipes to form simple fixing between the fixing head 6 and the copper pipes, the copper pipes can normally move when the hydraulic telescopic rod 5 works, and the simplicity of positioning and fixing before the copper pipes are cut is guaranteed.

Further, under the surface of support 3 was moved left through hydraulic telescoping rod 5 drive copper pipe, the copper pipe got into the inner wall of butt joint groove 8, and then possesses the same round platform form through butt joint groove 8 inner wall and slide head 10 and the other end of copper pipe docks, because slide head 10 and fixed head 6 are in same horizontal plane, and then the guarantee copper pipe carries out the horizontal effect that the centre gripping was fixed to and the convenience that the copper pipe moved the location and fix.

Furthermore, when the copper pipe is clamped between the fixed head 6 and the butt joint groove 8, the hydraulic telescopic rod 5 is stopped moving through external numerical control and induction output at the moment, and then the cutting mechanism 2 works, the cutting knife on the cutting mechanism 2 cuts and polishes rough edges of the copper pipe, when the cutting knife slides out of the inner wall of the cutting groove 9, the hydraulic telescopic rod 5 drives the copper pipe to slide out of the inner wall of the butt joint groove 8, when the right end of the copper pipe on the hydraulic telescopic rod 5 reaches the left side of the stripper plate 15, the copper pipe is separated from the surface of the fixed head 6 through the stripper plate 15, meanwhile, the cut and dropped waste materials do not have large extrusion force with the sliding head 10, the waste materials drop into the inner wall of the discharge groove 11 on the surface of the sliding head 10 through self gravity, and then the waste materials are butted with the discharge groove 11 through the inner side inclined shape of the collecting groove 12, accurate the inner wall that gets into collecting vat 12 of waste material is collected, and the collecting vat 12 that will collect full waste material that then can be quick separates the clearance with operation panel 1 through lower groove 13 and lower beam 14's T shape, such mode has not only ensured the convenience that breaks away from after the copper pipe processing, when also having ensured the copper pipe and processing the cutting, protective housing 7 possesses good scrap piece and prevents the effect that splashes, the convenience of collecting that the waste material can be quick has also been ensured, the workstation that splashes of waste material when having reduced traditional copper pipe deckle edge cutting, the loaded down with trivial details nature that the workstation need in time clear up has been improved, the flexibility of collecting and clearing up the waste material has also been improved, good operating space and waste material of copper pipe man-hour splash have been ensured.

The working principle is as follows: a cutting device suitable for production of air conditioner parts is characterized in that a copper pipe is driven by a hydraulic telescopic rod 5 to move leftwards on the surface of a support 3 and enters the inner wall of a butt joint groove 8, and then the copper pipe is in butt joint with the other end of the copper pipe through a sliding head 10 with the same circular truncated cone shape on the inner wall of the butt joint groove 8, the sliding head 10 and a fixed head 6 are positioned on the same horizontal plane, so that the horizontal effect of clamping and positioning the copper pipe is guaranteed, when the copper pipe is clamped between the fixed head 6 and the butt joint groove 8, the hydraulic telescopic rod 5 stops moving through external numerical control and induction output, a cutting mechanism 2 works, a cutting knife on the cutting mechanism 2 cuts and polishes burrs of the copper pipe, when the cutting knife slides out of the inner wall of a cutting groove 9, the hydraulic telescopic rod 5 drives the copper pipe to slide out of the inner wall of the butt joint groove 8, when the right end of the copper pipe on the hydraulic telescopic rod 5 reaches the left side of a stripper plate 15, through taking off the separation of flitch 15 to the copper pipe, the copper pipe drops on fixed head 6's surface, meanwhile, the waste material that is cut and drops owing to with do not have great extrusion force between the sliding head 10, the waste material drops on the surface of sliding head 10 through the gravity of self and gets into the inner wall of blown down tank 11, and then under the butt joint of the inboard slope form of collecting vat 12 and blown down tank 11 of waste material passing through, the accurate inner wall that gets into collecting vat 12 of waste material is collected.

The embodiments of the present invention have been described in detail with reference to the accompanying drawings, but the present invention is not limited to the above embodiments, and various changes can be made without departing from the spirit of the present invention within the knowledge of those skilled in the art.

Claims (6)

1. A cutting device suitable for the production of air-conditioning parts, comprising an operating table (1), characterized in that: a cutting mechanism (2) is fixedly connected to the upper side of the operating table (1), and the operating table (1) The upper side of the console (1) is fixedly connected with a bracket (3), the shape of the bracket (3) is Y-shaped, the upper side of the console (1) is fixedly connected with a rectangular plate (4), and the left side of the rectangular plate (4) is fixedly connected with a The hydraulic telescopic rod (5), the cutting mechanism (2), the bracket (3) and the hydraulic telescopic rod (5) are arranged in sequence from left to right on the upper side of the operating table (1), and the upper side of the operating table (1) is provided with collection device. 2. A cutting device suitable for the production of air-conditioning parts according to claim 1, characterized in that: the left end of the hydraulic telescopic rod (5) is fixedly connected with a fixed head (6), and the fixed head (6) The shape is truncated. 3. A cutting device suitable for the production of air-conditioning parts according to claim 1, characterized in that: the collecting device comprises a protective box (7), and the lower side of the protective box (7) is fixedly connected to the operating table On the upper side of (1), the right side of the protective box (7) is provided with a docking groove (8), and the upper side of the protective box (7) is provided with a cutting groove (9) that communicates with the docking groove (8). The lower side of (7) is provided with a discharge groove (11) that communicates with the docking groove (8) and the cutting groove (9), and the discharge groove (11) runs through the lower side of the protective box (7) and the operating table (1 ) and extend to the lower side of the operating table (1), and the inner wall of the discharge chute (11) is slidably connected with a collection chute (12). 4. A cutting device suitable for the production of air-conditioning parts according to claim 3, characterized in that: a sliding head (10) is fixedly connected to the inner wall of the butting groove (8), and the sliding head (10) has the same shape For the cone shape. 5. A cutting device suitable for the production of air-conditioning parts according to claim 3, characterized in that: the shape of the inner side of the collecting groove (12) is inclined, and the lower side of the operating table (1) is provided with The lower groove (13) is slidably connected with a lower rod (14) on the inner wall of the lower groove (13). 6. A cutting device suitable for the production of air-conditioning parts according to claim 5, characterized in that: the shape of the lower groove (13) and the lower rod (14) are both T-shaped, and the lower rod (14) ) is fixedly connected to the upper side of the collecting tank (12), and the upper side of the operating table (1) is fixedly connected with two stripping plates (15), the two stripping plates (15) are connected by hydraulic telescopic rods (5). ) is the axis distributed on both sides of the hydraulic telescopic rod (5).
