A combined wooden cabinet with a foldable vanity mirror

technical field

The present application relates to the technical field of combined wooden cabinets, in particular to a combined wooden cabinet with a foldable cosmetic mirror.

Background technique

Combination furniture is an important part of modern furniture. It is loved by people because of its easy disassembly and assembly and convenient transportation. Combination furniture is commonly found in various home decorations. Wooden cabinets are commonly used tools for storage. Real life , due to the small indoor area, after placing the necessary furniture for life, people's activity space becomes relatively small, resulting in inconvenience in daily life. It is urgent to design a combined wooden cabinet with a foldable makeup mirror to improve the indoor space utilization.

Utility model content

The embodiment of the present application provides a combined wooden cabinet with a foldable cosmetic mirror, including a wooden cabinet, a folding part and a lifting part, a cabinet door is hinged on one side of the wooden cabinet, and a sliding plate is slidably arranged on the top of the wooden cabinet , a accommodating cavity is formed between the sliding plate and the wooden cabinet, the folding part and the lifting part are arranged in the accommodating cavity at intervals, and the output end of the lifting part extends into the wooden cabinet through the top of the wooden cabinet. The other side is hinged with a support rod matched with the folding part.

Further, the folding component includes a first mirror surface, a second mirror surface, a handle and two hinge blocks. The first mirror surface and the second mirror surface are arranged in a horizontal manner and stacked upward in the accommodating cavity in sequence, and one end of the first mirror surface is arranged in the accommodating cavity. It is rotatably connected with the wooden cabinet, the handle is installed on one end of the second mirror surface, the two hinge blocks are symmetrically arranged on both sides of the other end of the first mirror surface and the second mirror surface, and the two hinge blocks are connected with the first mirror surface and the second mirror surface. The other end of the second mirror surface is rotatably connected, and the top of the second mirror surface is provided with an insertion slot matched with the support rod.

Further, the lifting component includes a knob, a screw, a partition plate and a clamping block, the screw is vertically rotated and arranged in the wooden cabinet, and the top of the screw passes through the wooden cabinet and extends into the accommodating cavity, The knob is installed on the top of the screw, the partition plate is slidably arranged in the wooden cabinet, and the partition plate is threadedly connected with the screw, and the engaging block is inserted into one side of the wooden cabinet and is engaged with One end of the block extends through the wooden cabinet into the accommodating cavity, and the engaging block and the knob are engaged with each other.

Further, a plurality of supporting feet are installed at intervals on the bottom of the wooden cabinet.

The embodiment of the present application adopts the following technical solutions:

When the vanity mirror needs to be used, first pull out the sliding plate, then pull up the handle, so that the first mirror surface and the second mirror surface are connected by two hinge blocks to form the entire mirror surface, and then turn the bottom end of the support rod into the groove to give The first mirror surface and the second mirror surface are a supporting point to prevent the first mirror surface and the second mirror surface from being erected, so that the device not only has the storage function of the wooden cabinet, but also has the function of the dressing table, thus eliminating the need for the dressing table. position, which improves the indoor space utilization rate. When it is necessary to place items in the wooden cabinet, rotate the knob to adjust the position of the partition board up and down according to the size of the items to be placed, thereby improving the space utilization rate inside the wooden cabinet. Finally, through the card The block snaps the knob together to prevent the partition board from shaking up and down.

The above-mentioned at least one technical solution adopted in the embodiments of the present application can achieve the following beneficial effects:

First, by stacking the first mirror surface and the second mirror surface in the accommodating cavity, the device not only has the storage function of a wooden cabinet, but also has the function of a dressing table, thereby eliminating the need for the position of the dressing table and improving the performance of the dressing table. indoor space utilization.

Second, when it is necessary to place items in the wooden cabinet, rotate the knob to adjust the position of the partition board up and down according to the size of the item to be placed, thereby improving the space utilization rate inside the wooden cabinet. Prevent the divider from shaking up and down.

Third, several supporting feet are installed at intervals at the bottom of the wooden cabinet to prevent the wooden cabinet from directly contacting the ground, which may cause the wooden cabinet to be damp and rotten, thereby improving the service life of the wooden cabinet.

Description of drawings

The drawings described herein are used to provide further understanding of the present application and constitute a part of the present application. The schematic embodiments and descriptions of the present application are used to explain the present application and do not constitute an improper limitation of the present application. In the attached image:

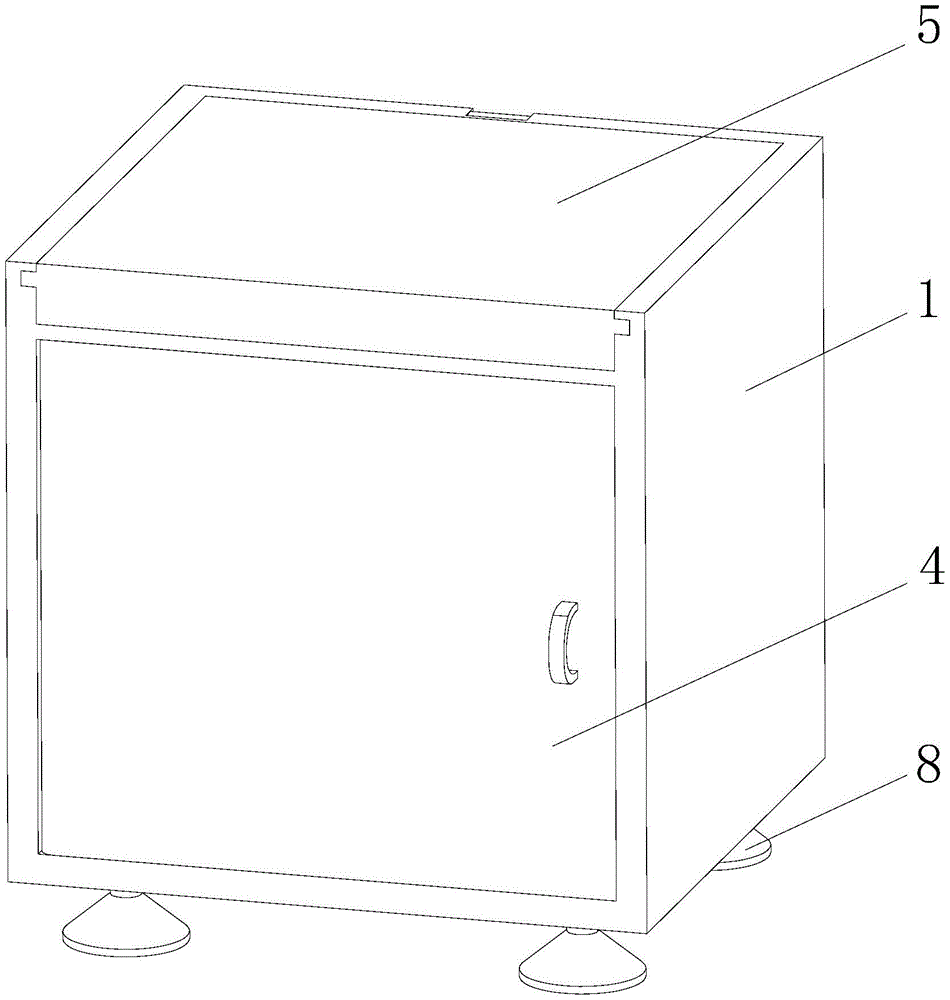

Fig. 1 is the three-dimensional structure schematic diagram of the first angle of the present utility model;

Fig. 2 is the partial three-dimensional structure sectional schematic diagram of the second angle of the present utility model;

Fig. 3 is the three-dimensional structure schematic diagram of the folding part of the present invention;

FIG. 4 is a schematic three-dimensional structure diagram of the lifting component of the present invention.

In the figure: wooden cabinet 1, folding part 2, first mirror surface 21, second mirror surface 22, handle 23, hinge block 24, insertion slot 25, lifting part 3, knob 31, screw 32, partition plate 33, snap Block 34 , cabinet door 4 , sliding plate 5 , accommodating cavity 6 , support rod 7 , support foot 8 .

Detailed ways

In order to make the objectives, technical solutions and advantages of the present application clearer, the technical solutions of the present application will be clearly and completely described below with reference to the specific embodiments of the present application and the corresponding drawings. Obviously, the described embodiments are only a part of the embodiments of the present application, but not all of the embodiments. Based on the embodiments in the present application, all other embodiments obtained by those of ordinary skill in the art without creative efforts shall fall within the protection scope of the present application.

The technical solutions provided by the embodiments of the present application will be described in detail below with reference to the accompanying drawings.

In this embodiment, as shown in Figures 1 to 4, a combined wooden cabinet with a foldable vanity mirror includes a wooden cabinet 1, a folding part 2 and a lifting part 3, and a cabinet door is hinged on one side of the wooden cabinet 1 4. The top of the wooden cabinet 1 is slidably provided with a sliding plate 5, a accommodating cavity 6 is formed between the sliding plate 5 and the wooden cabinet 1, the folding part 2 and the lifting part 3 are arranged in the accommodating cavity 6 at intervals, and The output end of the lifting member 3 extends through the top of the wooden cabinet 1 into the wooden cabinet 1 , and the other side of the wooden cabinet 1 is hinged with a support rod 7 matched with the folding member 2 .

Specifically, the folding part 2 includes a first mirror surface 21 , a second mirror surface 22 , a handle 23 and two hinge blocks 24 , and the first mirror surface 21 and the second mirror surface 22 are horizontally stacked and arranged in the accommodating cavity 6 upward in sequence. and one end of the first mirror surface 21 is rotatably connected to the wooden cabinet 1, the handle 23 is installed on one end of the second mirror surface 22, and the two hinge blocks 24 are symmetrically arranged on the other ends of the first mirror surface 21 and the second mirror surface 22 Both sides of the two hinge blocks 24 are rotatably connected with the other ends of the first mirror surface 21 and the second mirror surface 22, and the top of the second mirror surface 22 is provided with a plug slot 25 that matches the support rod 7. The first mirror surface 21 and the second mirror surface 22 are stacked in the accommodating cavity 6, so that the device not only has the accommodating function of the wooden cabinet 1, but also has the function of a dressing table, thereby eliminating the need for the position of the dressing table and improving the indoor space utilization.

Specifically, the lifting member 3 includes a knob 31, a screw 32, a partition plate 33 and a clamping block 34. The screw 32 is vertically rotated and arranged in the wooden cabinet 1, and the top of the screw 32 passes through the wooden cabinet 1. The cabinet 1 extends into the accommodating cavity 6, the knob 31 is installed on the top of the screw 32, the partition plate 33 is horizontally slid in the wooden cabinet 1, and the partition plate 33 is screwed with the screw 32, so The engaging block 34 is inserted into one side of the wooden cabinet 1, and one end of the engaging block 34 extends through the wooden cabinet 1 to the accommodating cavity 6. The engaging block 34 and the knob 31 are engaged with each other. When placing items in the wooden cabinet 1, the knob 31 is rotated to adjust the position of the partition plate 33 up and down according to the size of the item to be placed, thereby improving the space utilization rate inside the wooden cabinet 1. Finally, the knob 31 is engaged by the engaging block 34, The partition plate 33 is prevented from shaking up and down.

Specifically, a number of supporting feet 8 are installed at the bottom of the wooden cabinet 1 at intervals to prevent the wooden cabinet 1 from directly contacting the ground and cause the wooden cabinet 1 to be damp and rotten, thereby improving the service life of the wooden cabinet 1 .

The working principle of the embodiment of the present application: when the vanity mirror needs to be used, the sliding plate 5 is first pulled out, and then the handle 23 is pulled upward, so that the first mirror surface 21 and the second mirror surface 22 are connected by two hinge blocks 24 to form the entire mirror surface, Then, the bottom end of the support rod 7 is turned into the groove to give the first mirror surface 21 and the second mirror surface 22 a support point to prevent the first mirror surface 21 and the second mirror surface 22 from being erected, so that the device can be stored in the storage with the wooden cabinet 1 . In addition to the function, it also has the function of a dressing table, which saves the position of the dressing table and improves the indoor space utilization. When it is necessary to place items in the wooden cabinet 1, rotate the knob 31 up and down according to the size of the items to be placed. The position of the partition plate 33 is adjusted, thereby improving the space utilization rate inside the wooden cabinet 1 , and finally the knob 31 is engaged by the engaging block 34 to prevent the partition plate 33 from shaking up and down.

The above descriptions are merely examples of the present application, and are not intended to limit the present application. Various modifications and variations of this application are possible for those skilled in the art. Any modification, equivalent replacement, improvement, etc. made within the spirit and principle of this application shall be included within the scope of the claims of this application.

Claims (4)

1. A combined wooden cabinet with a foldable vanity mirror, characterized in that: it comprises a wooden cabinet (1), a folding part (2) and a lifting part (3), and one side of the wooden cabinet (1) is hinged with a cabinet A door (4), a sliding plate (5) is slidably arranged on the top of the wooden cabinet (1), a accommodating cavity (6) is formed between the sliding plate (5) and the wooden cabinet (1), and the folding part ( 2) and the lifting member (3) are arranged in the accommodating cavity (6) at intervals, and the output end of the lifting member (3) extends through the top of the wooden cabinet (1) into the wooden cabinet (1), the wooden cabinet (1) ) is hinged with a support rod (7) matched with the folding part (2). 2. A combined wooden cabinet with a foldable vanity mirror according to claim 1, wherein the folding part (2) comprises a first mirror surface (21), a second mirror surface (22), a handle (23) ) and two hinge blocks (24), the first mirror surface (21) and the second mirror surface (22) are horizontally stacked in the accommodating cavity (6), and one end of the first mirror surface (21) is connected to The wooden cabinet (1) is rotatably connected, the handle (23) is installed on one end of the second mirror surface (22), and the two hinge blocks (24) are symmetrically arranged on the first mirror surface (21) and the second mirror surface (22) Both sides of the other end, and the two hinge blocks (24) are rotatably connected with the other ends of the first mirror surface (21) and the second mirror surface (22), and the top of the second mirror surface (22) is provided with a support rod. (7) Matching sockets (25). 3. A combined wooden cabinet with a foldable vanity mirror according to claim 2, wherein the lifting component (3) comprises a knob (31), a screw (32), a partition plate (33) and An engaging block (34), the screw rod (32) is vertically rotated and arranged in the wooden cabinet (1), and the top of the screw rod (32) passes through the wooden cabinet (1) and extends to the accommodating cavity (6) Inside, the knob (31) is installed on the top of the screw (32), the partition plate (33) is slidably arranged in the wooden cabinet (1) horizontally, and the partition plate (33) is connected to the screw (32) threaded connection, the engaging block (34) is inserted on one side of the wooden cabinet (1), and one end of the engaging block (34) extends through the wooden cabinet (1) into the accommodating cavity (6), the The engaging block (34) and the knob (31) are engaged with each other. 4 . The combined wooden cabinet with a foldable vanity mirror according to claim 3 , wherein a plurality of supporting feet ( 8 ) are installed on the bottom of the wooden cabinet ( 1 ) at intervals. 5 .
