Abstract
本实用新型公开了一种电缆铺设用自动排线装置，属于排线装置技术领域，包括底板，所述底板的上方安装有本体，所述底板的内部开设有容纳槽，所述容纳槽的内部滑动连接有限位连接条，所述限位连接条的一侧对称连接有两个支撑块，两个所述支撑块之间连接有支撑转杆，所述支撑转杆的外侧对称连接有平衡内杆，所述平衡内杆的外侧套接有平衡外杆，所述平衡外杆贯穿底板的侧壁延伸至底板的外侧，本实用新型通过设置平衡外杆、平衡内杆、限位滑槽、限位滑块、衔接块、支撑螺筒、支撑螺杆、连接座和连接柱，在这些结构的相互配合下，实现了可对推把的高度进行调节的功能，进而便于不同身高的人员推动该装置，适用范围更加广泛。
The utility model discloses an automatic arranging device for cable laying, belonging to the technical field of arranging devices. A limit connecting bar is slidably connected, one side of the limit connecting bar is symmetrically connected with two supporting blocks, a supporting rotating rod is connected between the two supporting blocks, and the outer side of the supporting rotating rod is symmetrically connected with a balance inner The outer side of the balance inner rod is sleeved with a balance outer rod, and the balance outer rod penetrates the side wall of the bottom plate and extends to the outer side of the bottom plate. The limit slider, the connecting block, the supporting screw barrel, the supporting screw, the connecting seat and the connecting column, under the mutual cooperation of these structures, the function of adjusting the height of the push handle is realized, which is convenient for people of different heights to push the handle. device, the scope of application is wider.
Description
Technical Field
The utility model belongs to the technical field of the winding displacement device, concretely relates to cable laying uses automatic winding displacement device.
Background
With the increasing of electricity consumption in China, the transformation of urban and rural power grids is accelerated day by day, the construction of power cables cannot be separated from the construction of the power grids, and an automatic wire arranging device is required to be used in the cable laying process.
When current cable winding displacement device carries out the winding displacement to many cables simultaneously, appear cable intertwine extrusion easily, cause the phenomenon of damage to the machine, cable itself also causes extrusion tensile deformation moreover, shortens life, consequently the utility model provides a cable laying winding displacement device for power engineering.
Chinese patent application No. CN202021095975.4 discloses a cable laying and arranging device for power engineering, which comprises a motor, the cable body, the drive wheel, the setting of spiral post and gear, staff is with motor external power supply when using, make the motor begin to work, and then make the transfer line drive gear revolve, the drive wheel begins to drive spiral post rotation under the drive of gear, then make the cable body on the spiral post do the slack motion, thereby the effect that the cable body was laid has been reached, through the universal wheel with push away the setting of handle, made things convenient for the staff to remove the device.
The above patent has the following problems: the height of the push handle is not convenient to adjust, the push handle is not convenient for workers with different heights to use, and the push structure is not convenient to store.
SUMMERY OF THE UTILITY MODEL
To solve the problems set forth in the background art described above. The utility model provides a cable laying uses automatic winding displacement device has the highly be convenient for of pushing away the handle and adjusts, and push pedal structure is convenient for accomodate's characteristics.
In order to achieve the above object, the utility model provides a following technical scheme: an automatic wire arranging device for cable laying comprises a bottom plate, wherein a body is installed above the bottom plate, a holding tank is arranged in the bottom plate, a limiting connecting strip is slidably connected in the holding tank, two supporting blocks are symmetrically connected to one side of the limiting connecting strip, a supporting rotating rod is connected between the two supporting blocks, a balancing inner rod is symmetrically connected to the outer side of the supporting rotating rod, a balancing outer rod is sleeved on the outer side of the balancing inner rod, the balancing outer rod penetrates through the side wall of the bottom plate and extends to the outer side of the bottom plate, a connecting block is connected to one side of the balancing outer rod, which is far away from the limiting connecting strip, pushing handles are connected to the sides, which are close to each other, of the two pushing handles, a supporting screw cylinder is connected to one side, which is close to the limiting connecting strip, of the supporting screw cylinder is meshed with a supporting screw rod, one side of the supporting screw rod is connected with a connecting seat, and the connecting seat is rotatably connected to the outer side of the supporting rotating rod.
Preferably, the two sides of the balance inner rod are symmetrically connected with limiting sliding blocks, limiting sliding grooves are formed in the positions, corresponding to the limiting sliding blocks, inside the side walls of the balance outer rod, and the limiting sliding grooves are connected to the outer sides of the limiting sliding blocks in a sliding mode.
Preferably, the connecting block is fixedly connected with the bottom plate through a fixing screw.
Preferably, the outer side of the push handle is sleeved with a soft sleeve.
Preferably, one side of the support screw rod, which is close to the connecting seat, is connected with a connecting column, and the connecting column is rotatably connected inside the connecting seat through a bearing.
Preferably, the balance inner rod is fixedly connected with the bottom plate through a fixing screw, and a reserved screw hole is formed in the balance inner rod and in the position corresponding to the fixing screw.
Preferably, the fixed screw comprises a screw body and a rotating square rod, and the rotating square rod is connected to one side of the screw body.
Compared with the prior art, the beneficial effects of the utility model are that:
1. the utility model discloses a set up balanced outer pole, balanced interior pole, spacing spout, spacing slider, link up the piece, support barrel, supporting screw, connecting seat and spliced pole, under mutually supporting of these structures, realized can highly adjusting the function of pushing away the handle, and then the personnel of the different heights of being convenient for promote the device, application scope is more extensive.
2. The utility model discloses a set up spacing connecting strip, supporting shoe, holding tank, fixed spiral shell spare and support the bull stick, under the mutually supporting of these structures, realized can carry out the function of accomodating to balanced outer pole, balanced interior pole, support spiral shell section of thick bamboo and supporting screw, avoided causing the unnecessary space waste when the device does not use, and under the effect of fixed spiral shell spare, can effectively guarantee the stability when accomodating.
3. The utility model discloses a screw is reserved in the setting, under the user state, can realize the fixed between pole and the bottom plate in the balance under the cooperation of reserving the screw to promotion the device that can be better.
Drawings

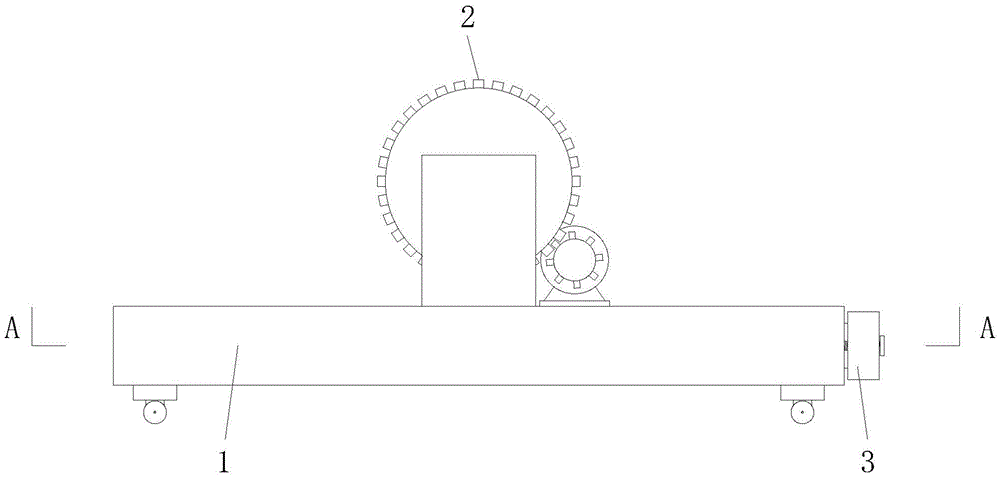

Fig. 1 is a front view of the present invention;
fig. 2 is a schematic structural view of another state of fig. 1 according to the present invention;
fig. 3 is a schematic structural view of the section a-a in fig. 1 according to the present invention;
fig. 4 is a schematic structural view of the cross section B in fig. 2 according to the present invention;
fig. 5 is an enlarged schematic structural view of the utility model at C in fig. 3;
in the figure: 1. a base plate; 2. a body; 3. connecting blocks; 4. a balance outer rod; 5. an inner balance rod; 6. limiting connecting strips; 7. a support block; 8. accommodating grooves; 9. a limiting chute; 10. a limiting slide block; 11. fixing the screw; 12. a push handle; 13. a joining block; 14. a soft sleeve; 15. a support screw cylinder; 16. a support screw; 17. reserving a screw hole; 18. supporting the rotating rod; 19. a connecting seat; 20. connecting columns.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-5, the present invention provides the following technical solutions: an automatic wire arranging device for cable laying comprises a bottom plate 1, a body 2 is installed above the bottom plate 1, an accommodating groove 8 is formed in the bottom plate 1, a limiting connecting strip 6 is connected in the accommodating groove 8 in a sliding mode, two supporting blocks 7 are symmetrically connected to one side of the limiting connecting strip 6, a supporting rotating rod 18 is connected between the two supporting blocks 7, a balance inner rod 5 is symmetrically connected to the outer side of the supporting rotating rod 18, a balance outer rod 4 is sleeved on the outer side of the balance inner rod 5, the balance outer rod 4 penetrates through the side wall of the bottom plate 1 and extends to the outer side of the bottom plate 1, a connecting block 3 is connected to one side, far away from the limiting connecting strip 6, of the balance outer rod 4, push handles 12 are connected to one sides, close to each other, of the two push handles 12 are connected through a connecting block 13, a supporting screw barrel 15 is connected to one side, the supporting screw barrel 15 is meshed with a supporting screw rod 16, a connecting seat 19 is connected to one side of the supporting screw rod 16, and the connecting seat 19 is rotatably connected to the outer side of the supporting rotary rod 18.
Specifically, the both sides symmetry of pole 5 has a spacing slider 10 in the balance, and inside and the position department that corresponds spacing slider 10 of the lateral wall of balanced outer pole 4 has seted up spacing spout 9, and spacing spout 9 sliding connection is in the outside of spacing slider 10.
Through adopting above-mentioned technical scheme, be convenient for carry on spacingly to support screw 16, avoid support screw 16 to break away from the condition appearance that supports spiral shell section of thick bamboo 15.
Specifically, the connecting block 3 and the bottom plate 1 are fixedly connected through a fixing screw 11.
Through adopting above-mentioned technical scheme, guarantee that balanced outer pole 4, balanced interior pole 5, support barrel 15 and support screw 16 can be stable accomodate in the inside of holding tank 8.
Specifically, a soft sleeve 14 is sleeved on the outer side of the push handle 12.
Through adopting above-mentioned technical scheme, make the user use when using experience better.
Specifically, a connecting column 20 is connected to one side of the supporting screw 16 close to the connecting seat 19, and the connecting column 20 is rotatably connected to the inside of the connecting seat 19 through a bearing.
By adopting the technical scheme, the stable connection between the support screw 16 and the connecting seat 19 can be realized while the stable rotation of the support screw 16 is ensured.
Specifically, the balance inner rod 5 is fixedly connected with the bottom plate 1 through a fixing screw 11, and a reserved screw hole 17 is formed in the balance inner rod 5 and in a position corresponding to the fixing screw 11.
Through adopting above-mentioned technical scheme, be convenient for realize the fixed between balanced interior pole 5 and the bottom plate 1 through fixed screw 11.
Specifically, the fixed screw 11 includes a screw body and a rotating square bar, and one side of the screw body is connected with the rotating square bar.
Through adopting above-mentioned technical scheme, the staff of being convenient for operates fixed spiral shell piece 11, has brought very big facility for operating personnel.
The structure and principle of the middle body and how to perform the wire arranging operation of the utility model are shown in the cable laying and arranging device for the power engineering disclosed in the Chinese patent application No. CN 202021095975.4.
The utility model discloses a theory of operation and use flow: when the utility model is used, firstly, when the device needs to be pushed, the fixing screw piece 11 can be separated from the bottom plate 1 under the meshing action, (at this time, the fixing screw piece 11 is still meshed and connected with the inside of the connecting block 3), then the connecting block 13 is pulled, under the connecting action of the supporting block 7 and the supporting rotating rod 18, the limiting connecting strip 6 moves along the accommodating groove 8 until the balance inner rod 5 is completely pulled out of the accommodating groove 8 (the accommodating groove 8 has an effective limiting effect on the limiting connecting strip 6), then the connecting block 3 is rotated, under the connecting action of the push handle 12, the connecting block 13 and the supporting screw cylinder 15, the two balance inner rods 5 and the connecting seat 19 rotate 90 degrees along the two supporting blocks 7 under the action of the supporting rotating rod 18, then the fixing screw 11 is completely taken down along the connecting block 3, and then the balance inner rods 5 and the bottom plate 1 are fixed under the action of the reserved screw holes 17;
so far, the worker can hold the soft sleeve 14 by hand to push the device to move, if the worker needs to adjust the height of the push handle 12 according to the height of the worker, the worker only needs to manually rotate the connecting column 20 (the connecting column 20 rotates inside the connecting seat 19 through a bearing, so that the stable connection between the supporting screw 16 and the connecting seat 19 is realized), and under the meshing action, the supporting screw cylinder 15 drives the connecting block 13 to realize the height adjustment;
in the process of height adjustment, the balance outer rod 4 moves along the balance inner rod 5, and the limiting sliding groove 9 slides along the limiting sliding block 10 to achieve an effective limiting effect.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (7)
1. The utility model provides a cable laying uses automatic winding displacement device, includes bottom plate (1), its characterized in that: the body (2) is installed above the bottom plate (1), the accommodating groove (8) is formed in the bottom plate (1), the limiting connecting strip (6) is connected to the inside of the accommodating groove (8) in a sliding mode, two supporting blocks (7) are symmetrically connected to one side of the limiting connecting strip (6), a supporting rotating rod (18) is connected between the two supporting blocks (7), an inner balancing rod (5) is symmetrically connected to the outer side of the supporting rotating rod (18), an outer balancing rod (4) is sleeved on the outer side of the inner balancing rod (5), the outer balancing rod (4) penetrates through the side wall of the bottom plate (1) and extends to the outer side of the bottom plate (1), one side, far away from the limiting connecting strip (6), of the outer balancing rod (4) is connected with a connecting block (3), one side, close to each other, of the two connecting blocks (3) is connected with a pushing handle (12), and the two pushing handles (12) are connected through a connecting block (13), one side that links up piece (13) and be close to spacing connecting strip (6) is connected with support barrel (15), the inside meshing that supports barrel (15) is connected with supporting screw (16), one side of supporting screw (16) is connected with connecting seat (19), connecting seat (19) rotate to be connected in the outside of supporting bull stick (18).
2. The automatic cable arranging device for cable laying according to claim 1, wherein: the two sides of the balance inner rod (5) are symmetrically connected with limiting sliding blocks (10), limiting sliding grooves (9) are formed in the inner portion of the side wall of the balance outer rod (4) and correspond to the positions of the limiting sliding blocks (10), and the limiting sliding grooves (9) are connected to the outer sides of the limiting sliding blocks (10) in a sliding mode.
3. The automatic cable arranging device for cable laying according to claim 1, wherein: the connecting block (3) is fixedly connected with the bottom plate (1) through a fixing screw (11).
4. The automatic cable arranging device for cable laying according to claim 1, wherein: the outer side of the push handle (12) is sleeved with a soft sleeve (14).
5. The automatic cable arranging device for cable laying according to claim 1, wherein: one side of the support screw rod (16) close to the connecting seat (19) is connected with a connecting column (20), and the connecting column (20) is rotatably connected to the inside of the connecting seat (19) through a bearing.
6. The automatic cable arranging device for cable laying according to claim 1, wherein: the balance inner rod (5) is fixedly connected with the bottom plate (1) through a fixing screw piece (11), and a reserved screw hole (17) is formed in the balance inner rod (5) and in the position corresponding to the fixing screw piece (11).
7. The automatic cable arranging device for cable laying according to claim 3, wherein: the fixed screw piece (11) comprises a screw body and a rotating square rod, and the rotating square rod is connected to one side of the screw body.
