CN217085850U - Hydroelectric remote recharging card device - Google Patents

Abstract

The utility model provides a water and electricity remote recharge card device, comprising: a card-type casing, a circuit board is arranged inside the card-type casing; The power supply module that supplies power to the components; the card main control circuit reads the user's IC card or directly reads the usage information of the water and electricity meter, and uploads the information to the server through the communication circuit; the user uses the mobile phone to obtain the information of the user's water and electricity meter; the server and the user's mobile phone can Obtain user information available power information or available water amount information and send it to the user's mobile phone. The device enables users to know the remaining information, so as to avoid power outages and water outages affecting normal production and life when there is no remaining available electricity information or available water information. It solves the problem that users do not have time to go to the business hall of the water company or the power grid company to recharge the water and electricity card during weekdays due to their own work and other reasons.

Description

A water and electricity remote recharge card device

technical field

The utility model relates to the technical field of water and electricity charging, in particular to a water and electricity remote charging card device.

Background technique

Hydropower has been laid in thousands of households for people's daily use. There are also factories, office buildings, and commercial buildings that have been laid in thousands of households for people to use. It is convenient for people to use in office and business. In addition, agricultural planting has also laid hydropower in the planting area to meet the needs of planting. The above-mentioned water and electricity are all charged for use, usually by paying first and then using them.

At present, when users pay to recharge, they need to go to the business hall of the power grid company or the water company to recharge. If they do not recharge in time, the user will lose water and power. The time basically overlaps, which often leads to missing the business hours of the business hall and cannot be recharged normally, resulting in water and power outages due to insufficient expenses, affecting normal production and life.

Utility model content

The utility model provides a water and electricity remote recharge card device, which can be convenient for users to recharge, and can realize recharge without going to a business hall.

The water and electricity remote recharge card device includes: a card-type shell, and a circuit board is arranged inside the card-type shell;

The circuit board is provided with a main control circuit, a storage, a communication circuit and a power supply module for power supply;

There is a USB interface on the card shell;

The main control circuit reads the user IC card information or directly reads the water and electricity meter information, and uploads the read information to the server through the communication circuit;

After the user recharges with the mobile phone, the main control circuit obtains the recharge data of the server through the communication circuit, writes it into the user's IC card, or directly writes it into the user's water and electricity meter.

It should be further noted that the user uses the mobile phone to connect with the main control circuit, and recharges the user's IC card or directly into the water and electricity meter, and the main control circuit uploads the recharge information to the server through the communication circuit.

It should be further noted that a power supply module is also provided inside the card-type housing;

The power supply module is a battery, a wired power supply, or an inductive power supply to supply power to the internal electrical components of the device.

It should be further noted that the communication circuit communicates with the server and the user's mobile phone through Bluetooth, or WiFi, or GPRS, or NBIOT, or wired, respectively.

It should be further noted that the main control circuit is provided with a USB communication module and a single-chip microcomputer with a serial communication function.

It should be further noted that the cassette case is made of plastic material;

The cross section of the cassette case is rectangular, and the size of the cassette case is 85.5mm*54mm.

As can be seen from the above technical solutions, the utility model has the following advantages:

In the utility model, in order to facilitate the user to recharge the water and electricity meter, after the user pays the bill by using the mobile phone, the communication circuit in the device obtains the recharge information of the server and updates the storage information, thereby completing the recharge of the IC card or the water and electricity meter. At the same time, the server is responsible for recording the water and electricity consumption information, consumption information and recharge information of all water and electricity remote recharge card devices in the system. It avoids the problem that because the working hours of the business hall of the power grid company or the water company basically overlap with the working hours of the user, it often misses the business hours of the business hall and cannot be recharged normally, resulting in water and power outages due to insufficient expenses, affecting normal production and life.

The water and electricity remote recharge card device can enable users to know the remaining information of the water and electricity meter, and avoid power outages and water outages that affect normal production and life when there is no remaining available electricity information or available water information.

Description of drawings

In order to illustrate the technical solutions of the present invention more clearly, the accompanying drawings required in the description will be briefly introduced below. Obviously, the accompanying drawings in the following description are only some embodiments of the present invention, which are very important in the art. For those of ordinary skill, other drawings can also be obtained from these drawings without any creative effort.

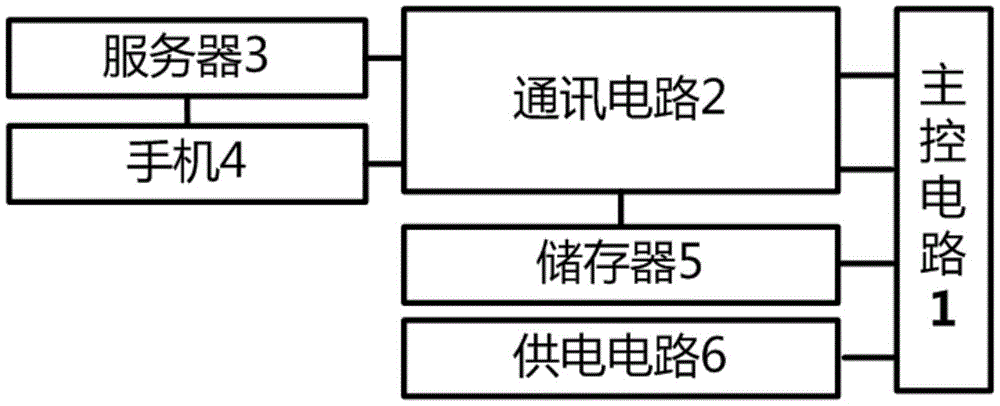

Figure 1 is a schematic diagram of a water and electricity remote recharge card device.

Detailed ways

In order to make the purpose, features and advantages of the present utility model more obvious and understandable, the technical solutions in the present utility model will be described clearly and completely below in conjunction with the accompanying drawings in the specific embodiments. Obviously, the following description The embodiments described above are only a part of the embodiments of the present invention, but not all of the embodiments. Based on the embodiments in this patent, all other embodiments obtained by persons of ordinary skill in the art without creative efforts shall fall within the scope of protection of this patent.

The utility model provides a water and electricity remote recharge card device, as shown in FIG. 1 , comprising: a card-type casing, and a circuit board is arranged inside the card-type casing;

The circuit board is provided with a main control circuit 1, a storage 5, a communication circuit 2 and a power supply module for power supply; a USB interface is provided on the card shell; the main control circuit reads the user IC card information or directly reads the water and electricity meter information, and upload the read information to the server 3 through the communication circuit 2; after the user recharges the mobile phone 4, the main control circuit obtains the recharge data of the server 3 through the communication circuit 2, writes the user IC card, or directly writes the user Water meter.

After the user pays through the mobile phone 4, after the communication circuit 2 interacts with the server 3 to obtain the recharge information, the recharge information is updated to the storage 5, and the purchase status of the user of the server 3 is updated at the same time; One is to use an IC card, the communication circuit 2 directly writes the information in the storage 5 into the IC card, and the user uses the IC card to recharge the water and electricity meter, and the other is to directly use the device to brush the meter to recharge the storage 5. The information is directly written into the table; another user can also recharge the device by going to the water and electricity service window, so that the water and electricity can be used normally.

Exemplarily, the card-type casing is made of plastic material; the cross-section of the card-type casing is a rectangle, and the size of the card-type casing is 85.5mm*54mm.

The circuit board is provided with a main control circuit 1, a storage 5, a communication circuit 2 and a power supply module 6;

The main control circuit 1 uploads the water and electricity meter information in the storage 5 of the communication circuit 2 to the server 3 through the communication circuit 2; the water and electricity monitoring personnel can monitor the operation information of each water and electricity remote recharge card device through the server 3, And monitor the information of each water user and electricity user. If an exception occurs, it can be handled in time.

The communication circuit 2 is connected to the server 3 in real time, so that the user can call and view the previous recharge information and consumption information at any time.

The user uses the mobile phone 4 to connect with the main control circuit 1 through the communication circuit 2 to obtain the device information in the storage 5; the main control circuit 1 converts the balance information of the storage 5 into available electricity information or available water information, The available power information or the available water amount information is sent to the user's mobile phone 4 . The communication circuit 2 communicates with the server 3 and the user's mobile phone 4 through Bluetooth, WiFi, or GPRS.

The calculation method here is to multiply the price per ton of water and the price per kilowatt-hour of electricity by the balance information of the stored value card to obtain the available electricity information or available water information, so that the user can know the remaining information and avoid when there is no remaining available electricity information or When the available water quantity information is not available, power outages and water outages will affect normal production and life.

In the present invention, in order to facilitate the user to recharge, the user uses the mobile phone 4 to connect with the main control circuit 1 to recharge the IC card or the water and electricity meter, and simultaneously upload the recharge information to the server 3 through the communication circuit 2 . The server 3 is responsible for recording the water and electricity consumption information of all the water and electricity remote recharge card devices in the system, the consumption information and the recharge information in the storage 5 .

The utility model provides a water and electricity remote recharge card device that is convenient for users to recharge, and does not need to go to an on-site business hall to recharge, and directly communicates with the water and electricity remote recharge card device through the mobile phone 4 to recharge the IC card or the water and electricity meter. It solves the problem that users do not have time to go to the business hall of the water company or the power grid company to recharge the water and electricity card during weekdays due to their own work and other reasons.

The main control circuit 1 can be implemented in hardware, software, firmware or any combination thereof. The various features described are modules, units or components that can be implemented together in an integrated logic device or separately as discrete but interoperable logic devices or other hardware devices. In some cases, various features of an electronic circuit may be implemented as one or more integrated circuit devices, such as integrated circuit chips or chipsets.

If implemented in hardware, the present invention relates to a device, which may for example be a processor or an integrated circuit device, such as an integrated circuit chip or chip set. Alternatively or additionally, if implemented in software or firmware, the techniques may implement a data storage medium readable, at least in part, by a computer, including instructions that, when executed, cause a processor to perform one or more of the above-described methods. For example, a computer-readable data storage medium may store instructions, such as for execution by a processor.

The memory may include computer storage media such as random access memory (RAM), read only memory (ROM), nonvolatile random access memory (NVRAM), electrically erasable programmable read only memory (EEPROM) ), flash memory, magnetic or optical data storage media, and the like. In some embodiments, an article of manufacture may include one or more computer-readable storage media.

The main control circuit 1 includes one or more processors executing, such as one or more digital signal processors (DSPs), general-purpose microprocessors, application-specific integrated circuits (ASICs), field programmable gate arrays (FPGAs), or other Equivalents are integrated circuits or discrete logic circuits. Accordingly, the term "processor," as used herein, may refer to any of the foregoing structures or any other structure more suitable for implementing the techniques described herein. Additionally, in some aspects, the functions described in this disclosure may be provided in software modules and hardware modules.

Exemplarily speaking, the main control circuit 1 is provided with an STM32F103VCT6 microcontroller, or a PIC16F946 microcontroller. There is also a PCF8563 clock module on the circuit board; the PCF8563 clock module is connected to the STM32F103VCT6 single-chip microcomputer through the I2C bus. The PCF8563 clock module can record the time information, configure the recharge time information for the recharge information, and can also regularly send the storage 5 information and the water and electricity consumption information to the user's mobile phone 4 according to the time point set by the user.

The above description of the disclosed embodiments enables those skilled in the art to implement or use the present invention. Various modifications to these embodiments will be readily apparent to those skilled in the art, and the generic principles defined herein may be implemented in other embodiments without departing from the spirit or scope of the present invention. Thus, the present invention is not intended to be limited to the embodiments shown herein, but is to be accorded the widest scope consistent with the principles and novel features disclosed herein.

Claims (6)

1. A hydropower remote recharge card device, characterized in that, comprising: a card-type casing, and a circuit board is provided inside the card-type casing; The circuit board is provided with a main control circuit, a storage, a communication circuit and a power supply module for power supply; There is a USB interface on the card shell; The main control circuit reads the user IC card information or directly reads the water and electricity meter information, and uploads the read information to the server through the communication circuit; After the user recharges with the mobile phone, the main control circuit obtains the recharge data of the server through the communication circuit, writes it into the user's IC card, or directly writes it into the user's water and electricity meter. 2. The water and electricity remote recharge card device according to claim 1, characterized in that, The user uses the mobile phone to connect with the main control circuit, and recharges the user's IC card or directly into the water and electricity meter. At the same time, the main control circuit uploads the recharge information to the server through the communication circuit. 3. The water and electricity remote recharge card device according to claim 1, characterized in that, The power supply module is a battery, a wired power supply, or an inductive power supply to supply power to the internal electrical components of the device. 4. The water and electricity remote recharge card device according to claim 1, characterized in that, The communication circuit communicates with the server and the user's mobile phone through bluetooth, or WiFi, or GPRS, or NBIOT, or wired respectively. 5. The water and electricity remote recharge card device according to claim 1, characterized in that, The main control circuit is provided with a USB communication module and a single-chip microcomputer with serial communication function. 6. The water and electricity remote recharge card device according to claim 1, characterized in that, The cassette shell is made of plastic material; The cross section of the cassette case is rectangular, and the size of the cassette case is 85.5mm*54mm.
