Abstract
本实用新型公开了一种RPS线束总成生产用外观检测装置，包括底板和移动组件，通过将线束的两端分别放置在两组匚型固定架上弧形卡槽内，通过第二电动液压杆活塞杆伸缩带动弧形卡块下降与弧形卡槽配合，对线束进行固定，通过旋转手柄驱动螺纹杆转动，带动滑动块上匚型固定架与另一组匚型固定架远离运动，根据线束的长度对两组匚型固定架之间的距离进行调整，实现线束的夹紧拉直，便于后续检测作业，通过电动滑台的滑动平台移动带动检测组件对夹紧拉直的线束外观进行检测，通过第一电动液压杆活塞杆伸缩带动检测相机下降，调整检测相机与待检线束之间的距离，使其保持合适高度，提高检测过程中的清晰度，避免出现误检现。
The utility model discloses an appearance detection device for the production of RPS wire harness assembly, which comprises a base plate and a moving component. By placing the two ends of the wire harness in the arc-shaped clamping grooves on two sets of recessed fixing frames, the second electro-hydraulic The rod and piston rod extend and retract to drive the arc-shaped clamping block to lower and cooperate with the arc-shaped clamping groove to fix the wire harness. The threaded rod is rotated by the rotating handle, which drives the upper-shaped fixing frame of the sliding block and the other set of sliding-shaped fixing frames to move away from each other. The length of the wire harness adjusts the distance between the two sets of recessed fixing frames to realize the clamping and straightening of the wire harness, which is convenient for subsequent inspection operations. In the inspection, the first electro-hydraulic rod and piston rod are retracted to drive the inspection camera to descend, and the distance between the inspection camera and the wire harness to be inspected is adjusted to maintain a suitable height, so as to improve the clarity during the inspection process and avoid false inspections.
Description
Technical Field
The utility model relates to a pencil production technical field specifically is an outward appearance detection device is used in production of RPS pencil assembly.
Background
The wire harness is an important basic concept in the telephone traffic theory, so that the wire harness is convenient to install and maintain, the electric equipment can work under the worst condition, wires with different specifications and colors used by all the electric equipment are combined into a whole through reasonable arrangement, and the wires are bundled into a bundle by using insulating materials, so that the telephone traffic theory is complete and reliable.
The pencil need carry out the detection of outward appearance roughness, integrality to its surface after production, and current detection mode mainly relies on the manpower to detect manually, and detection efficiency is lower and have phenomena such as lou examining, therefore we need provide an appearance detection device is used in production of RPS pencil assembly.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide an appearance detection device is used in production of RPS pencil assembly, to the manual detection of current detection mode mainly relying on the manpower, detection efficiency is lower and there is phenomenons such as lou examining to improve to solve the problem that proposes in the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme:
an appearance detection device for RPS wire harness assembly production comprises a bottom plate and a moving component, wherein an inverted L-shaped fixing frame is fixedly installed at the upper end of the bottom plate, a detection component is arranged at the inner top of the inverted L-shaped fixing frame in a sliding mode, two groups of Contraband-shaped fixing frames are symmetrically arranged at the upper end of the bottom plate, one group of the Contraband-shaped fixing frames is fixedly connected with the surface of the bottom plate, the other group of the Contraband-shaped fixing frames is connected with the bottom plate in a sliding mode through the moving component, and fixing components are arranged on the Contraband-shaped fixing frames;
the fixed subassembly includes the electronic hydraulic stem of second, the electronic hydraulic stem fixed mounting of second is in the top of Contraband type mount, Contraband type mount fixedly connected with arc fixture block is run through to the one end of the electronic hydraulic stem piston rod of second, the arc draw-in groove with arc fixture block looks adaptation is seted up to the interior bottom of Contraband type mount.
Preferably, one side of the top of the bottom plate is provided with a groove, and the moving assembly is arranged on the inner side of the groove.
Preferably, the movable assembly comprises a threaded rod, the threaded rod is rotatably installed on the inner side of the groove through a bearing, a rotating handle is fixedly connected to one end of the threaded rod, a sliding block is connected to the outer wall of the threaded rod through threads, and the Contraband-type fixing frame is fixedly installed at the top of the sliding block.
Preferably, the both sides of sliding block equal fixedly connected with stopper, two sets of spacing grooves have been seted up to the symmetry on the inner wall of recess, and are two sets of stopper slidable mounting is respectively in the inside of two sets of spacing grooves.
Preferably, the embedded groove is formed in the inner top of the inverted-L-shaped fixing frame, the electric sliding table is fixedly mounted inside the embedded groove, and the detection assembly is fixedly mounted on the sliding platform of the electric sliding table.
Preferably, the detection subassembly includes first electronic hydraulic stem, first electronic hydraulic stem fixed mounting is on the slide bracket of electronic slip table, the one end fixedly connected with mounting panel of first electronic hydraulic stem piston rod, the bottom fixed mounting of mounting panel has the detection camera.
Compared with the prior art, the beneficial effects of the utility model are that:
1. the utility model discloses a place the both ends of pencil respectively in the arc draw-in groove on two sets of Contraband type mounts, through the flexible arc fixture block that drives of second electronic hydraulic stem piston rod descend and cooperate with the arc draw-in groove, fix the pencil, through rotatory handle drive threaded rod rotation, drive Contraband type mount and another group Contraband type mount on the sliding block and keep away from the motion, adjust the distance between two sets of Contraband type mounts according to the length of pencil, realize the clamp of pencil and flare-out, be convenient for follow-up detection operation;
2. through setting up determine module on the slide bracket of electronic slip table, the slide bracket removal through electronic slip table of being convenient for drives determine module and detects the pencil outward appearance that presss from both sides tight flare-out, through setting up first electronic hydraulic stem in the determine module, be convenient for drive the detection camera through the first electronic hydraulic stem piston rod is flexible to descend, adjust the detection camera and wait to examine the distance between the pencil, make it keep suitable height, improve the definition in the testing process, avoid appearing the false retrieval phenomenon.
Drawings

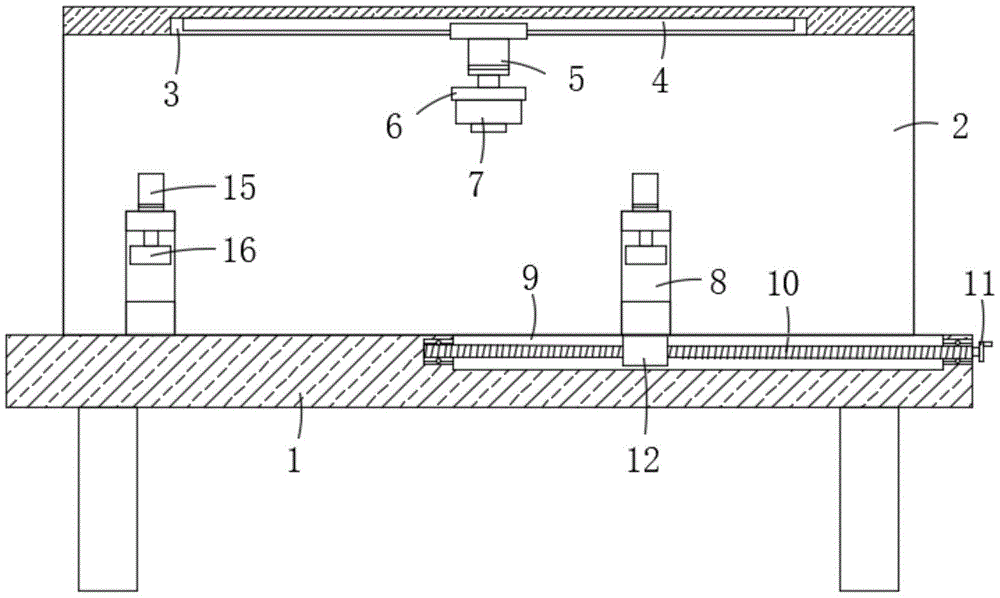

FIG. 1 is a schematic sectional view of the present invention;
fig. 2 is a schematic side view of the moving assembly of the present invention;
fig. 3 is a schematic structural view of the fixing assembly of the present invention.
In the figure: 1. a base plate; 2. an inverted L-shaped fixing frame; 3. embedding a groove; 4. an electric sliding table; 5. a first electro-hydraulic lever; 6. mounting a plate; 7. detecting a camera; 8. contraband type fixing rack; 9. a groove; 10. a threaded rod; 11. rotating the handle; 12. a slider; 13. a limiting groove; 14. a limiting block; 15. a second electro-hydraulic ram; 16. an arc-shaped fixture block; 17. an arc-shaped clamping groove.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-3, the present invention provides a technical solution:
an appearance detection device for RPS wire harness assembly production comprises a bottom plate 1 and a moving component, wherein an inverted L-shaped fixing frame 2 is fixedly installed at the upper end of the bottom plate 1, a detection component is slidably arranged at the inner top of the inverted L-shaped fixing frame 2, an embedded groove 3 is formed in the inner top of the inverted L-shaped fixing frame 2, an electric sliding table 4 is fixedly installed inside the embedded groove 3, the detection component is fixedly installed on a sliding platform of the electric sliding table 4, and the detection component is conveniently driven to detect the appearance of a clamped and straightened wire harness through the movement of the sliding platform of the electric sliding table 4;
the detection assembly comprises a first electric hydraulic rod 5, the first electric hydraulic rod 5 is fixedly arranged on a sliding platform of the electric sliding table 4, one end of a piston rod of the first electric hydraulic rod 5 is fixedly connected with a mounting plate 6, and a detection camera 7 is fixedly arranged at the bottom of the mounting plate 6, so that the detection camera 7 is driven to descend by the expansion and contraction of the piston rod of the first electric hydraulic rod 5, the distance between the detection camera 7 and a wire harness to be detected is adjusted, the proper height of the wire harness to be detected is kept, the definition in the detection process is improved, and the occurrence of false detection is avoided;
two groups of Contraband-type fixing frames 8 are symmetrically arranged at the upper end of the bottom plate 1, wherein one group of Contraband-type fixing frames 8 is fixedly connected with the surface of the bottom plate 1, the other group of Contraband-type fixing frames 8 is connected with the bottom plate 1 in a sliding manner through a moving assembly, and fixing assemblies are arranged on the Contraband-type fixing frames 8;
one side of the top of the bottom plate 1 is provided with a groove 9, the moving component is arranged on the inner side of the groove 9, the moving component comprises a threaded rod 10, the threaded rod 10 is rotatably arranged on the inner side of the groove 9 through a bearing, one end of the threaded rod 10 is fixedly connected with a rotating handle 11, the outer wall of the threaded rod 10 is in threaded connection with a sliding block 12, one group of Contraband type fixing frames 8 is fixedly arranged on the top of the sliding block 12, two sides of the sliding block 12 are fixedly connected with limit blocks 14, two groups of limit grooves 13 are symmetrically arranged on the inner wall of the groove 9, the two groups of limit blocks 14 are respectively and slidably arranged in the two groups of limit grooves 13, the threaded rod 10 is conveniently driven to rotate through the rotating handle 11, the Contraband type fixing frames 8 on the sliding block 12 and the other group of Contraband type fixing frames 8 are driven to move away from each other, the distance between the two groups of Contraband type fixing frames 8 is adjusted according to realize the clamping and straightening of the wire harness, the subsequent detection operation is convenient;
fixed subassembly includes second electronic hydraulic stem 15, 15 fixed mounting of second electronic hydraulic stem in the top of Contraband type mount 8, Contraband type mount 8 fixedly connected with arc fixture block 16 is run through to the one end of 15 piston rods of second electronic hydraulic stem, arc draw-in groove 17 with 16 looks adaptations of arc fixture block is seted up to the interior bottom of Contraband type mount 8, be convenient for drive arc fixture block 16 through the second electronic hydraulic stem 15 piston rods is flexible descend and cooperate with arc draw-in groove 17, fix the pencil.
The utility model discloses place the both ends of pencil in arc draw-in groove 17 on two sets of Contraband type mounts 8 respectively during the use, through the flexible arc fixture block 16 decline of second electro-hydraulic stem 15 piston rod cooperation with arc draw-in groove 17, fix the pencil, drive threaded rod 10 through twist grip 11 and rotate, drive Contraband type mount 8 and another set of Contraband type mounts 8 on the sliding block 12 and keep away from the motion, adjust the distance between two sets of Contraband type mounts 8 according to the length of pencil, realize the clamp of pencil and flare-out, be convenient for follow-up detection operation;
through setting up the determine module on the slide bracket of electronic slip table 4, be convenient for remove through the slide bracket of electronic slip table 4 and drive determine module and detect the pencil outward appearance that presss from both sides tight flare-out, set up first electronic hydraulic stem 5 in the determine module, be convenient for drive detect camera 7 through the first electronic hydraulic stem 5 piston rod is flexible descends, adjust detect camera 7 and wait to examine the distance between the pencil, make it keep suitable height, improve the definition in the testing process, the phenomenon is examined to the mistake of avoiding appearing.
The same reference numbers in different drawings identify the same or similar elements; it should be further understood that terms such as "first," "second," "third," "upper," "lower," "front," "rear," "inner," "outer," "end," "portion," "section," "width," "thickness," "zone," and the like, may be used solely for convenience in reference to the figures and to aid in describing the invention, and are not intended to limit the invention.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides an appearance detection device is used in production of RPS pencil assembly, includes bottom plate (1) and removal subassembly, its characterized in that: an inverted L-shaped fixing frame (2) is fixedly installed at the upper end of the bottom plate (1), a detection assembly is arranged at the top of the inverted L-shaped fixing frame (2) in a sliding mode, two groups of Contraband-shaped fixing frames (8) are symmetrically arranged at the upper end of the bottom plate (1), one group of the Contraband-shaped fixing frames (8) is fixedly connected with the surface of the bottom plate (1), the other group of the Contraband-shaped fixing frames (8) is connected with the bottom plate (1) in a sliding mode through a moving assembly, and fixing assemblies are arranged on the Contraband-shaped fixing frames (8);
the fixed subassembly includes second electronic hydraulic stem (15), second electronic hydraulic stem (15) fixed mounting is in the top of Contraband type mount (8), Contraband type mount (8) fixedly connected with arc fixture block (16) are run through to the one end of second electronic hydraulic stem (15) piston rod, arc draw-in groove (17) with arc fixture block (16) looks adaptation are seted up to the interior bottom of Contraband type mount (8).
2. The appearance inspection device for production of an RPS harness assembly according to claim 1, wherein: one side of the top of the bottom plate (1) is provided with a groove (9), and the moving assembly is installed on the inner side of the groove (9).
3. The appearance inspection device for production of an RPS harness assembly according to claim 2, wherein: the movable assembly comprises a threaded rod (10), the threaded rod (10) is rotatably installed on the inner side of the groove (9) through a bearing, a rotating handle (11) is fixedly connected with one end of the threaded rod (10), a sliding block (12) is connected to the outer wall of the threaded rod (10) through threads, and the Contraband-type fixing frame (8) is fixedly installed on the top of the sliding block (12).
4. The appearance inspection device for production of an RPS harness assembly as claimed in claim 3, wherein: the equal fixedly connected with stopper (14) in both sides of sliding block (12), two sets of spacing grooves (13) have been seted up to the symmetry on the inner wall of recess (9), and are two sets of stopper (14) slidable mounting is in the inside of two sets of spacing grooves (13) respectively.
5. The appearance inspection device for production of an RPS harness assembly according to claim 1, wherein: the interior top of falling L type mount (2) has seted up inlay groove (3), the inside fixed mounting of inlay groove (3) has electronic slip table (4), determine module fixed mounting is on the sliding platform of electronic slip table (4).
6. The appearance inspection device for production of an RPS harness assembly as claimed in claim 5, wherein: the detection assembly comprises a first electric hydraulic rod (5), the first electric hydraulic rod (5) is fixedly installed on a sliding platform of the electric sliding table (4), one end of a piston rod of the first electric hydraulic rod (5) is fixedly connected with a mounting plate (6), and a detection camera (7) is fixedly installed at the bottom of the mounting plate (6).
