Abstract

The utility model discloses a stirring and mixing device for pressure gel equipment, which comprises a mixing box, a rotating rod is rotatably installed in the top of the mixing box, and one end of the rotating rod located inside the mixing box is fixedly connected with a mixing box. The mixing assembly includes a first connecting ring, one side of the first connecting ring is fixedly connected with four groups of connecting rods, and the outer walls of the four groups of the connecting rods are fixedly connected with multiple groups of stirring rods, four One end of the connecting rod is fixedly connected with a second connecting ring, and the inner bottom of the mixing box is rotatably connected with a screw conveying piece. When the utility model is in use, the pressure gel raw material inside the mixing box can be turned from bottom to top by being provided with a screw conveying piece, and at the same time of turning the material, the stirring rod can also be used to turn the pressure gel raw material Stirring and mixing makes the mixing effect better, shortens the production time of the pressure gel to a certain extent, improves the production efficiency, and is easy to use.

Description

A stirring and mixing device for pressure gel equipment

technical field

The utility model relates to the technical field of pressure gel production equipment, in particular to a stirring and mixing device for pressure gel equipment.

Background technique

Gel is a solid, jelly-like material. It is a special dispersion system. It has no fluidity and often contains a large amount of liquid inside. Gel can be divided into elastic gel and brittle gel. Elastic gel loses dispersion. After the medium, the volume shrinks significantly, and when the dispersion medium is reabsorbed, the volume expands again, such as gelatin, etc.; when the brittle gel loses or reabsorbs the dispersion medium, the shape and volume do not change, such as silica gel, etc.

In the production process of traditional pressure gel, stirring equipment is generally used to stir the raw materials of pressure gel, but the effect of the existing stirring equipment is relatively poor, and it may take a long time to mix the raw materials fully. To a certain extent, the production time of pressure gel is prolonged, the production efficiency is reduced, and it is not convenient to use. Therefore, we need to propose a stirring and mixing device for pressure gel equipment.

Utility model content

The purpose of the present utility model is to provide a stirring and mixing device for pressure gel equipment, which can turn the pressure gel raw material inside the mixing box from bottom to top by being provided with a screw conveyor, and at the same time of turning the material , the raw materials of the pressure gel can also be stirred and mixed by a stirring rod, so that the mixing effect is better, the production time of the pressure gel is shortened to a certain extent, and the production efficiency is improved, so as to solve the problems raised in the above background technology.

In order to achieve the above purpose, the utility model provides the following technical solutions: a stirring and mixing device for pressure gel equipment, comprising a mixing box, one side of the mixing box is connected with a feeding pipe, and the mixing box is A rotating rod is rotatably installed on the top, and one end of the rotating rod located inside the mixing box is fixedly connected with a mixing component. The mixing component includes a first connecting ring, and one side of the first connecting ring is fixedly connected with four sets of connecting rods, the outer walls of the four groups of the connecting rods are fixedly connected with multiple groups of stirring rods, and the multiple groups of stirring rods are arranged at equal distances, and one end of the four groups of the connecting rods is fixedly connected with a second connecting ring;

The inner bottom of the mixing box is rotatably connected with a screw conveying piece, and the screw conveying piece is located inside the second connecting ring, and an electric heating plate is fixedly installed inside the side wall of the mixing box.

Preferably, a first drive motor is fixedly installed on the top of the mixing box, a bearing is embedded and fixed on the inner top of the mixing box, one end of the rotating rod is fixedly inserted into the inner ring of the bearing, and the rotating rod One end of the first drive motor output shaft extends to the outside of the mixing box, and one end of the output shaft of the first drive motor is fixedly connected to the end of the rotating rod outside the mixing box through a coupling.

Preferably, a fixing rod is fixedly connected to the inner wall of the first connecting ring, a connecting block is fixedly connected to one end of the fixing rod, and four sets of fixing rods are arranged between the first connecting ring and the connecting block. One end of the rotating rod located inside the mixing box is fixedly connected to one side of the connecting block.

Preferably, a second drive motor is fixedly installed at the bottom of the mixing box, the rotating shaft of the screw conveyor is fixedly installed on the inner bottom of the mixing box through a bearing, and the rotating shaft of the screw conveying piece penetrates the bearing and extends to the mixing area. Outside the box, one end of the output shaft of the second drive motor is fixedly connected to the end of the rotating shaft of the screw conveying sheet outside the mixing box through a coupling.

Preferably, a discharge pipe is communicated with the bottom of the mixing box, and a valve is fixedly installed on the outer wall of the discharge pipe.

Preferably, a PLC controller is fixedly installed on the outer wall of the mixing box, and the PLC controller is electrically connected to the first drive motor, the second drive motor and the electric heating plate.

Compared with the prior art, the beneficial effects of the present utility model are:

The utility model adopts the structure design of the first driving motor, the first connecting ring, the connecting rod, the stirring rod, the second driving motor and the screw conveying sheet, and the second driving motor drives the screw conveying sheet to rotate, so that the inside of the mixing box can be made to rotate. The injected pressure gel raw material is turned from bottom to top. While turning the material, the first connecting ring, the connecting rod and the stirring rod are driven to rotate inside the mixing box by the first drive motor, which is used for the inside of the mixing box. The injected pressure gel raw materials are fully stirred and mixed, so that the mixing effect is better, the production time of the pressure gel is shortened to a certain extent, the production efficiency is improved, and the use is convenient.

Description of drawings

Fig. 1 is the structural representation of the utility model;

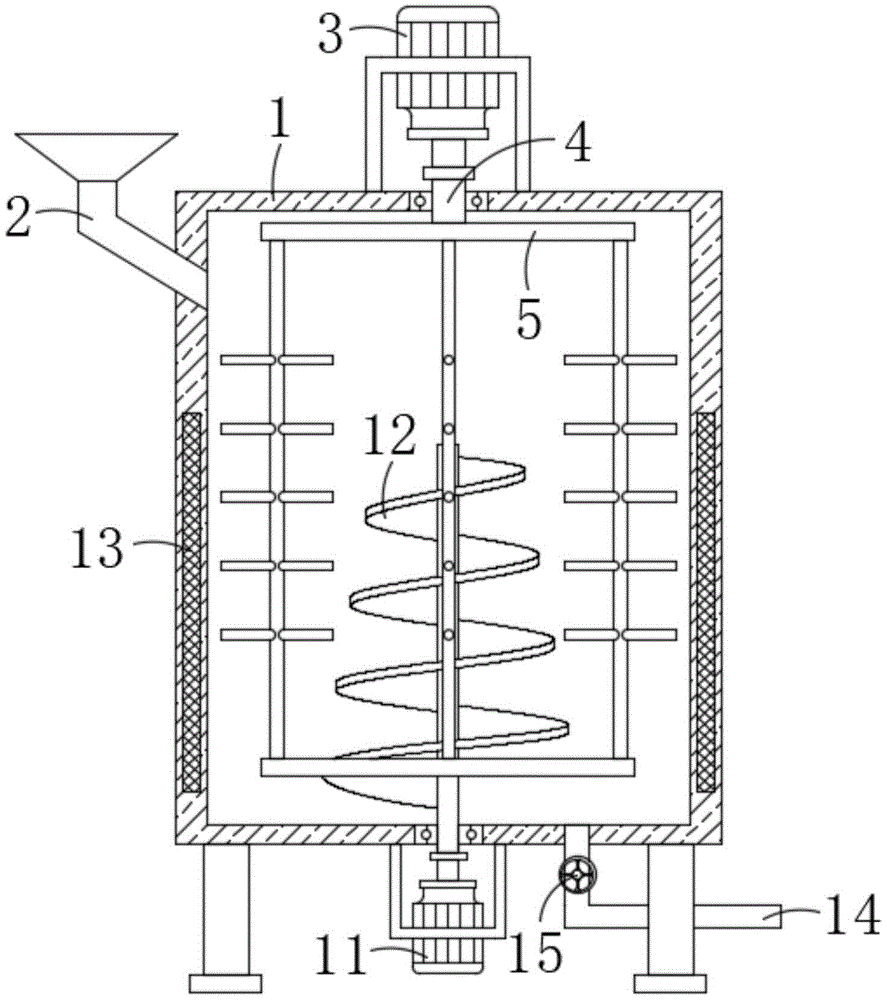

Fig. 2 is the sectional structure schematic diagram of the present utility model;

FIG. 3 is a schematic diagram of the axonometric structure of the mixing assembly of the present invention.

In the figure: 1. Mixing box; 2. Feeding pipe; 3. First drive motor; 4. Rotating rod; 5. First connecting ring; 6. Fixed rod; 7. Connecting block; 8. Connecting rod; 9 10, the second connecting ring; 11, the second drive motor; 12, the screw conveyor; 13, the electric heating plate; 14, the discharge pipe; 15, the valve; 16, the PLC controller.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to Figures 1-3, the utility model provides a technical solution:

A stirring and mixing device for pressure gel equipment, comprising a mixing box 1, one side of the mixing box 1 is connected with a feeding pipe 2, a rotating rod 4 is rotatably installed in the top of the mixing box 1, and the rotating rod 4 is located in the mixing box 1. One end of the inside of the material box 1 is fixedly connected with a mixing component, and the mixing component includes a first connecting ring 5, one side of the first connecting ring 5 is fixedly connected with four groups of connecting rods 8, and the outer walls of the four groups of connecting rods 8 are all fixed on There are multiple groups of stirring rods 9 connected, and the multiple groups of stirring rods 9 are arranged at equal distances. One end of the four groups of connecting rods 8 is fixedly connected with a second connecting ring 10, and the first driving motor 3 is used to drive the rotating rod 4 to rotate, thereby driving the The first connecting ring 5, the connecting rod 8 and the stirring rod 9 rotate inside the mixing box 1 to fully stir and mix the pressure gel raw materials injected into the mixing box 1;

The top of the mixing box 1 is fixedly installed with the first drive motor 3, the inner top of the mixing box 1 is embedded and fixed with a bearing, one end of the rotating rod 4 is fixedly inserted into the inner ring of the bearing, and one end of the rotating rod 4 extends to Outside the mixing box 1, one end of the output shaft of the first drive motor 3 is fixedly connected to the end of the rotating rod 4 outside the mixing box 1 through a coupling, so that the first driving motor 3 drives the rotation of the rotating rod 4;

A fixing rod 6 is fixedly connected to the inner wall of the first connecting ring 5, one end of the fixing rod 6 is fixedly connected with a connecting block 7, and four sets of fixing rods 6 are arranged between the first connecting ring 5 and the connecting block 7, and the rotating rod 4 is located at the One end inside the mixing box 1 is fixedly connected to one side of the connecting block 7, and when the first driving motor 3 drives the rotating rod 4 to rotate, the rotating rod 4 drives the first connecting ring 5 to rotate;

The inner bottom of the mixing box 1 is rotatably connected with a screw conveying piece 12, and the screw conveying piece 12 is located inside the second connecting ring 10. The bottom of the mixing box 1 is fixedly installed with a second driving motor 11, and the rotating shaft of the screw conveying piece 12 passes through The bearing is fixedly installed on the inner bottom of the mixing box 1, and the rotating shaft of the screw conveyor 12 runs through the bearing and extends to the outside of the mixing box 1. One end of the output shaft of the second drive motor 11 is fixedly connected to the screw conveyor through a coupling. 12. The rotating shaft is located at one end outside the mixing box 1, and the second drive motor 11 is used to drive the screw conveyor 12 to rotate, so that the pressure gel material injected inside the mixing box 1 can be turned from bottom to top;

The inside of the side wall of the mixing box 1 is fixedly installed with an electric heating plate 13, and the electric heating plate 13 is used to heat the raw materials of the pressure gel inside the mixing box 1, which is beneficial to the mixing of the raw materials of the pressure gel;

A PLC controller 16 is fixedly installed on the outer wall of the mixing box 1. The PLC controller 16 is electrically connected with the first drive motor 3, the second drive motor 11 and the electric heating plate 13, and the PLC controller 16 is used to control the first drive motor 3. A drive motor 3, the second drive motor 11 and the electric heating plate 13 are turned on or off;

The bottom of the mixing box 1 is communicated with a discharge pipe 14, and a valve 15 is fixedly installed on the outer wall of the discharge pipe 14. When the raw materials of the pressure gel are fully mixed, the valve 15 on the discharge pipe 14 is opened, and a discharge pipe 15 is used The material pipe 14 discharges the pressure gel inside the mixing box 1 .

In the specific use of the present invention, the raw materials for producing pressure gel are first injected into the mixing box 1 from the feeding pipe 2, and then the first driving motor 3 and the second driving motor 11 are controlled by the PLC controller to be turned on, and the second driving motor 11 is turned on by using the second The drive motor 11 drives the screw conveyor 12 to rotate, so that the pressure gel raw material injected into the mixing box 1 can be turned from bottom to top. The rod 8 and the stirring rod 9 rotate inside the mixing box 1 to fully stir and mix the pressure gel raw material injected into the mixing box 1;

While mixing the pressure gel, use the PLC controller to turn on the electric heating plate 13, and use the heating state of the electric heating plate 13 to heat the raw material of the pressure gel inside the mixing box 1, which is beneficial to the pressure gel The mixing of the raw materials makes the mixing effect better, shortens the production time of the pressure gel to a certain extent, improves the production efficiency, and is easy to use.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (6)

1. A stirring mixing device for pressure gel equipment, comprising a mixing box (1), characterized in that: one side of the mixing box (1) is communicated with a feeding pipe (2), and the mixing A rotating rod (4) is rotatably installed on the top of the box (1), and a mixing assembly is fixedly connected to one end of the rotating rod (4) inside the mixing box (1), and the mixing assembly includes a first connecting ring ( 5), one side of the first connecting ring (5) is fixedly connected with four groups of connecting rods (8), and the outer walls of the four groups of the connecting rods (8) are fixedly connected with multiple groups of stirring rods (9), and multiple groups of stirring rods (9) are arranged at equal distances, and one end of the four groups of said connecting rods (8) is fixedly connected with a second connecting ring (10); The inner bottom of the mixing box (1) is rotatably connected with a screw conveying piece (12), the screw conveying piece (12) is located inside the second connecting ring (10), and the side wall of the mixing box (1) An electric heating plate (13) is fixedly installed inside. 2. The agitating and mixing device for pressure gel equipment according to claim 1, characterized in that: a first driving motor (3) is fixedly installed on the top of the mixing box (1), and the mixing A bearing is embedded and fixed on the inner top of the box (1), one end of the rotating rod (4) is fixedly inserted into the inner ring of the bearing, and one end of the rotating rod (4) extends to the outside of the mixing box (1), One end of the output shaft of the first drive motor (3) is fixedly connected to the end of the rotating rod (4) located outside the mixing box (1) through a coupling. 3. A stirring and mixing device for pressure gel equipment according to claim 1, characterized in that: a fixing rod (6) is fixedly connected to the inner wall of the first connecting ring (5), and the fixing rod is One end of (6) is fixedly connected with a connecting block (7), four sets of fixed rods (6) are arranged between the first connecting ring (5) and the connecting block (7), and the rotating rod (4) is located in the mixing One end inside the material box (1) is fixedly connected to one side of the connecting block (7). 4. The agitating mixing device for pressure gel equipment according to claim 2, characterized in that: the bottom of the mixing box (1) is fixedly installed with a second driving motor (11), and the screw conveying The rotating shaft of the sheet (12) is fixedly mounted on the inner bottom of the mixing box (1) through a bearing, and the rotating shaft of the screw conveying sheet (12) penetrates the bearing and extends to the outside of the mixing box (1), and the second driving motor (11) One end of the output shaft is fixedly connected to the end of the screw conveying sheet (12) outside the mixing box (1) through a coupling. 5. The agitating mixing device for pressure gel equipment according to claim 1, wherein the bottom of the mixing box (1) is communicated with a discharge pipe (14), and the discharge pipe ( A valve (15) is fixedly installed on the outer wall of 14). 6. A kind of stirring mixing device for pressure gel equipment according to claim 4, is characterized in that: PLC controller (16) is fixedly installed on the outer wall of described mixing box (1), and described PLC controls The device (16) is electrically connected with the first driving motor (3), the second driving motor (11) and the electric heating plate (13).
