CN217067078U - Portable quantitative water drinking device for patient - Google Patents

Abstract

The utility model provides a portable quantitative drinking water device for patients, which comprises a bag body, a water filling device that can be opened and closed in a transverse direction in the middle of the bag body, and the water filling device divides the bag body into an upper bag and a lower bag, and the top of the upper bag is provided with a cover As well as the lid, the bottom of the lower bag leads out the drinking water pipe, and the upper bag and the lower bag are separately set with scale lines on the outside. Within the range, ensure that the patient has a reasonable drinking rhythm to help the patient recover.

Description

A portable quantitative drinking device for patients

technical field

The utility model relates to the field of medical drinking vessels, in particular to a portable quantitative drinking device for patients.

Background technique

After intestinal surgery, it is generally not possible to drink water on the day of surgery, because the anesthesia effect has not been completely eliminated, and the analgesic treatment is given on the day after surgery, and the gastric tube is not removed. On the second day after the operation, the gastric tube is removed, and after fully awake, you can drink a small amount of water. Generally, if there is no adverse reaction, you can drink a small amount of water. Limit the amount of water you drink at a time, and then you can drink water normally according to the bowel sounds and after the anus is exhausted.

However, in the existing medical equipment, there is no device that allows patients to drink water quantitatively, so that patients can only visually measure the amount of water they drink, or drink too much water, or even dare not drink water, which delays the recovery of patients and brings problems to both medical staff and patients. troubled.

Utility model content

The purpose of the utility model is to solve the shortcomings existing in the prior art, and proposes a portable quantitative drinking device for patients.

To achieve the above object, the utility model adopts the following technical solutions:

A portable quantitative water drinking device for patients, comprising a bag body, a water filling device that can be opened and closed in a transverse direction in the middle of the bag body, the water filling device divides the bag body into an upper bag and a lower bag, and the top of the upper bag is provided with The lid and the lid, the bottom end of the lower bag leads out the drinking water pipe, the upper bag and the lower bag are separately set with scale lines on the outside, the patient uses the drinking water pipe to drink water, which is convenient for the patient to absorb, and the water volume is directly set in the lower bag to ensure The single water intake is within a reasonable range to ensure that the patient has a reasonable drinking rhythm to help the patient recover.

Further, the water adding device includes an elastic outer ring arranged between the upper bag and the lower bag and arranged on the outside of the bag body, and two clip flaps between the elastic outer rings and arranged on the outside of the bag body, so The elastic outer ring is in the shape of a rugby ball, and the clip flaps are two rigid plates with elasticity that are spliced and connected, and the two clip flaps meet on the line connecting the midpoints of the two long sides of the elastic outer ring. On a straight plane, and protruding upward in the shape of a fish mouth, perpendicular to the intersection of the two clip flaps, each clip flap is provided with a fold line, when the two long sides of the elastic outer ring are not stressed, the two clip flaps When the two long sides of the elastic outer ring are squeezed inwardly, the two pieces of the clamping flaps respectively bulge upward along the fold line and separate from each other. When the elastic outer ring is pressed, the water in the upper bag flows into the lower bag, using the elasticity of the elastic outer ring, loosening the elastic outer ring, the clip flaps meet and seal.

Further, a soft arc-shaped undercut is vertically arranged at the edge of the clip flaps, and the occlusal direction is toward the intersection of the two clip flaps for further sealing.

Further, the drinking pipe is provided with a duckbill-shaped mouthpiece at the end, and an on-off valve is set at the forbidden mouth, so as to facilitate water absorption and prevent water from flowing out of the drinking pipe.

Further, a clip is attached to the drinking water pipe, so that it can be easily clipped on the patient's clothes or a hospital bed.

Further, a small display screen is provided on the outer surface of the bag, the small display screen is connected to a temperature sensor and penetrates into the bag body, the interface is sealed, and a temperature display is set to facilitate the medical staff to monitor the water temperature and change the water in time.

Further, the bag body is provided with a lanyard, which is convenient for the patient to carry and also for hanging the device on the hospital bed.

Further, the bag body and the clip flap are made of medical-grade environmentally friendly materials.

Compared with the prior art, the beneficial effects of the present utility model are: (1) the patient uses a drinking tube to drink water, which is convenient for the patient to absorb, and the water volume is directly set in the lower bag to ensure that the single drinking water volume is within a reasonable range, and that the patient can be Reasonable drinking water rhythm helps patients recover; (2) Set the temperature display, which is convenient for medical staff to monitor the water temperature and change the water in time.

Description of drawings

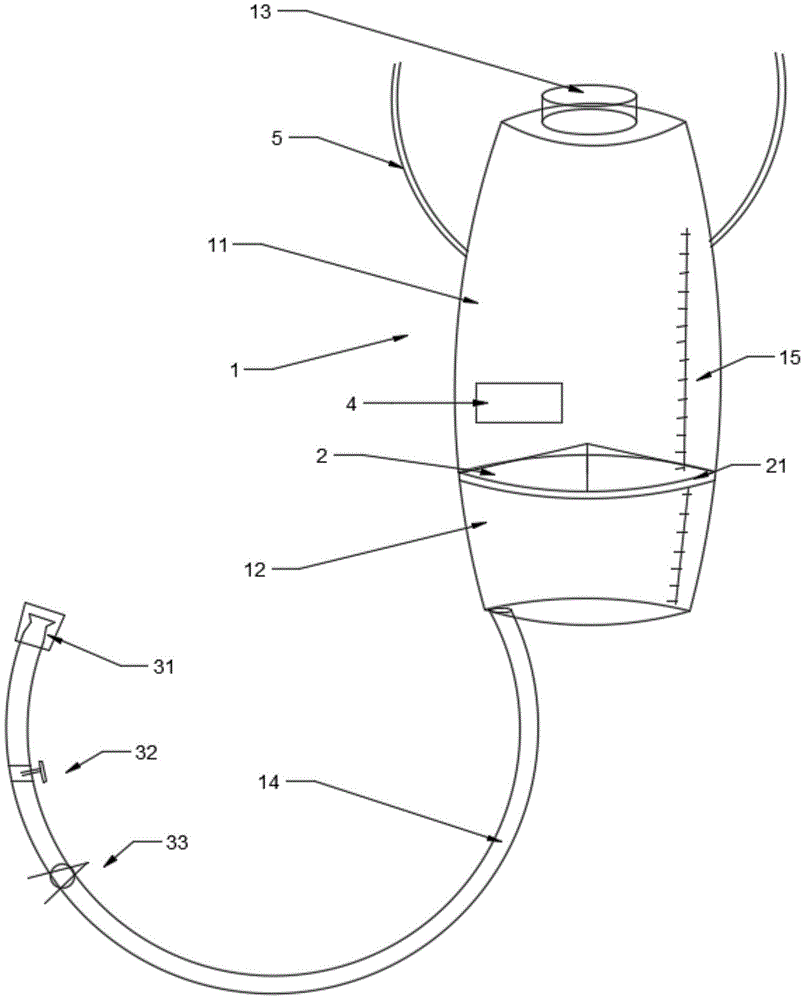

Fig. 1 is the overall schematic diagram of the utility model embodiment 1;

2 is a schematic diagram of the occlusion of the water adding device according to Embodiment 1 of the present utility model;

Fig. 3 is the separation schematic diagram of the water adding device of the utility model embodiment 1;

Fig. 4 is the undercut schematic diagram of the utility model embodiment 1;

Label description: 1 bag body, 11 upper bag, 12 lower bag, 13 cover, 14 drinking pipe, 15 scale line, 2 water filling device, 21 elastic outer ring, 22 clip flap, 23 folding line, 24 undercut, 31 mouthpiece , 32 switch valves, 33 clips, 4 small display screens, 5 lanyards.

Detailed ways

In order to make those skilled in the art better understand the solutions of the present application, the technical solutions in the embodiments of the present application will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present application. Obviously, the described embodiments are only The embodiments are part of the present application, but not all of the embodiments. Based on the embodiments in the present application, all other embodiments obtained by those of ordinary skill in the art without creative work shall fall within the scope of protection of the present application.

It should be noted that the terms "first", "second", etc. in the description and claims of the present application and the above drawings are used to distinguish similar objects, and are not necessarily used to describe a specific sequence or sequence. It is to be understood that the data so used are interchangeable under appropriate circumstances for the embodiments of the application described herein. Furthermore, the terms "comprising" and "having" and any variations thereof, are intended to cover non-exclusive inclusion, for example, a process, method, system, product or device comprising a series of steps or units is not necessarily limited to those expressly listed Rather, those steps or units may include other steps or units not expressly listed or inherent to these processes, methods, products or devices.

In this application, the terms "upper", "lower", "left", "right", "front", "rear", "top", "bottom", "inner", "outer", "middle", The orientation or positional relationship indicated by "vertical", "horizontal", "horizontal", "longitudinal", etc. is based on the orientation or positional relationship shown in the drawings. These terms are primarily used to better describe the present application and its embodiments, and are not intended to limit the fact that the indicated device, element, or component must have a particular orientation, or be constructed and operated in a particular orientation.

In addition, some of the above-mentioned terms may be used to express other meanings besides orientation or positional relationship. For example, the term "on" may also be used to express a certain attachment or connection relationship in some cases. For those of ordinary skill in the art, the specific meanings of these terms in the present application can be understood according to specific situations.

Furthermore, the terms "installed", "set up", "provided with", "connected", "connected", "socketed" should be construed broadly. For example, it may be a fixed connection, a detachable connection, or a unitary structure; it may be a mechanical connection, or an electrical connection; it may be directly connected, or indirectly connected through an intermediary, or between two devices, elements, or components. internal communication. For those of ordinary skill in the art, the specific meanings of the above terms in this application can be understood according to specific situations.

It should be noted that the embodiments in the present application and the features of the embodiments may be combined with each other in the case of no conflict. The present application will be described in detail below with reference to the accompanying drawings and in conjunction with the embodiments.

Embodiment 1, as shown in FIG. 1, a portable quantitative drinking device for patients, including a bag body 1, a water filling device 2 that can be opened and closed in a laterally sealed middle of the bag body 1, and the water filling device 2 divides the bag body 1 into upper parts. The bag 11 and the lower bag 12, the top of the upper bag 11 is provided with a cover 13 and a cover, water is added to the bag body 1 from the cover 13, the bottom end of the lower bag 12 leads out the drinking water pipe 14, and the upper bag 11 and the lower bag 12 are separately outside. The scale line 15 is set, and the patient uses the drinking pipe 14 to drink water, which is convenient for the patient to absorb, and the water volume is directly set in the lower bag 12 to ensure that the single drinking water volume is within a reasonable range, and the patient can be ensured by a reasonable drinking rhythm to help the patient recover.

During specific implementation, the bag body 1 is generally made of transparent material, and TPU material can be used.

The total capacity of the bag body 1 is generally set to 1L or 1.5L, and the capacity of the lower bag 12 is generally set to 50ML.

As shown in FIGS. 2 and 3 , during the specific implementation of this embodiment, the water adding device 2 includes an elastic outer ring 21 which is arranged between the upper bag 11 and the lower bag 12 and is arranged on the outside of the bag body 1 , and an elastic outer ring 21 . Between the two clip flaps 22 arranged on the outside of the bag body 1, the elastic outer ring 21 is in the shape of a rugby ball, the clip flap 22 is an elastic material, and the clip flap 22 is two pieces of spliced and connected, with elasticity. The two clip flaps 22 meet on the vertical plane connecting the midpoints of the two long sides of the elastic outer ring 21, and are raised upward in the shape of a fish mouth, perpendicular to the intersection of the two clip flaps 22, and each clip flap 22 is When the fold line 23 is set, when the two long sides of the elastic outer ring 21 are not stressed, the two clip flaps 22 are engaged, and when the two long sides of the elastic outer ring 21 are squeezed inwardly, the two clip flaps 22 respectively protrude upward along the fold line 23, and Separate from each other, cleverly use the fish mouth-shaped clip flap 22 and the rugby-shaped elastic outer ring 21, when the elastic outer ring 21 is squeezed, the water in the upper bag 11 flows into the lower bag 12, and the elastic outer ring 21 is used to loosen the elastic outer ring. 21 is, the clamping flaps 22 meet and seal.

The middle fold line 23 of the clip flap 22 can be connected by a silicone material, which can be repeatedly bent without damage.

When it is necessary to add water into the lower bag 12, pinch the long side of the elastic outer ring 21, the clip flaps 22 protrude upward along the fold line 23, the water in the upper bag 11 falls into the lower bag 12, wait until the appropriate water level is measured, loosen the elastic On the long side of the outer ring 21, the two clamping flaps 22 resume the occlusion.

As shown in FIG. 4 , during the specific implementation of this embodiment, a soft arc-shaped undercut 24 is vertically arranged at the edge of the clamping flap 22 , and the occlusal direction is toward the intersection of the two clamping flaps 22 for further sealing.

Specifically, a soft arc-shaped undercut 24 is vertically arranged at the edge of the clamping flap 22. When the two clamping flaps 22 are engaged, the two undercutting edges 24 are squeezed and adsorbed to each other. Secondly, because the clamping flap 22 has an upwardly convex fish mouth Under the influence of gravity, the clip flaps 22 will also squeeze each other to reduce leakage or be in a completely sealed state, and the undercut 24 can be made of silicone material.

The specific elastic outer ring 21 can be made of metal material, and can also be made of plastic material with better elasticity.

In the specific implementation of this embodiment, the drinking pipe 14 is provided with a duckbill mouthpiece 31 at the end, and an on-off valve 32 is provided at the mouthpiece 31 to facilitate water absorption and prevent water from flowing out of the drinking pipe 14 .

In the specific implementation of this embodiment, the clip 33 is sleeved on the drinking water pipe 14, so that it can be easily clipped on the patient's clothes or a hospital bed.

In the specific implementation of this embodiment, a small display screen 4 is provided on the outer surface of the bag body 1. The small display screen 4 is connected to a temperature sensor and penetrates into the bag body 1. The interface is sealed and a temperature display is set to facilitate medical staff to monitor the water temperature and change the water in time. .

Specifically, the small display screen 4 and the temperature sensor may be arranged in the upper pocket 11 or in the lower pocket 12, or both.

In the specific implementation of this embodiment, the bag body 1 is provided with a lanyard 5, which is convenient for the patient to carry, and it is also convenient for the device to be hung on the hospital bed.

During the specific implementation of this embodiment, the bag body 1 and the clip flap 22 are made of medical-grade environmentally friendly materials.

The above descriptions are only preferred embodiments of the present application, and are not intended to limit the present application. For those skilled in the art, the present application may have various modifications and changes. Any modification, equivalent replacement, improvement, etc. made within the spirit and principle of this application shall be included within the protection scope of this application.

Claims (8)

1. The utility model provides a patient is with portable ration watering device which characterized in that: the water adding device capable of controlling opening and closing is transversely sealed in the middle of the bag body, the bag body is divided into an upper bag and a lower bag by the water adding device, a cover opening and a cover are arranged at the top of the upper bag, a drinking water pipe is led out of the bottom end of the lower bag, and the upper bag and the lower bag are respectively provided with scale marks on the outer sides independently.

2. The portable patient-sized drinking device as set forth in claim 1, wherein: the watering device establishes between last bag and lower bag, sets up the elasticity outer lane in the external side of bag including the circle to and between the elasticity outer lane, set up two clamping flap in the external side of bag, the elasticity outer lane is rugby shape, clamping flap be two concatenation connection, have elastic stereoplasm platelike thing, two clamping flap intersects on the vertical plane of two long limit mid point lines in elasticity outer lane to upwards protruding fish mouth form, two of perpendicular to clamping flap intersection, every clamping flap set up the broken line, when two long limits in elasticity outer lane do not atress, two clamping flap interlock, when two long limits in elasticity outer lane extrude to the inboard, two clamping flap upwards protruding along the broken line respectively to alternate segregation.

3. The portable patient-sized drinking device as set forth in claim 2, wherein: the edge of each clamping flap is vertically provided with a soft arc undercut, and the occlusion direction faces to the junction of the two clamping flaps.

4. The portable patient-sized drinking device as set forth in claim 1, wherein: the tail end of the drinking pipe is provided with a duckbilled mouthpiece, and a switch valve is arranged at the position where the mouthpiece is forbidden.

5. The portable patient-sized drinking device as set forth in claim 1, wherein: the drinking water pipe is sleeved with a clamp.

6. The portable patient-sized drinking device as set forth in claim 1, wherein: the external surface of the bag body is provided with a small display screen, the small display screen is connected with a temperature sensor and extends into the bag body, and the joint is sealed.

7. The portable patient-sized drinking device as set forth in claim 1, wherein: the bag body is provided with a hanging rope.

8. The portable patient-sized drinking device as set forth in claim 1 or 2, wherein: the bag body and the clamping flap are made of medical-grade environment-friendly materials.
