Abstract

The utility model proposes a moisture collecting device for water leakage in a pump room, comprising a pump room and a filter box, the filter box is located on one side of the pump room, and the pump room and the filter box are both fixedly installed on the ground, A suction pump is arranged between the pump house and the filter box, the water inlet of the suction pump is connected with a water inlet pipe, and the end of the water inlet pipe away from the suction pump is communicated with the drainage groove of the pump house, and the suction pump The water outlet of the filter box is connected with a water outlet pipe, and the end of the water outlet pipe away from the pump runs through the filter box and communicates with its interior; both sides of the filter box inner cavity are provided with installation grooves, and the quadrilateral frame slides with the installation grooves on both sides connected, and a filter screen is fixedly connected to the inner wall of the quadrilateral frame. When the utility model is in use, the large-particle impurities accumulated on the filter screen can be cleaned, so as to prevent the impurities from adhering to the filter screen, thereby effectively improving the moisture collection rate and the filtering effect.

Description

A moisture collection device for leaking water in a pump room

technical field

The utility model belongs to the technical field of water leakage treatment equipment, in particular to a water collecting device used for water leakage in a pump room.

Background technique

The pump room refers to the factory building where the water pump, power machine and auxiliary equipment are installed. It is the main project of the pump station building. After the pump room runs for a long time, problems such as pipe burst and valve leakage will inevitably occur. If the water is not drained out of the equipment workshop in time, the motors, power distribution cabinets, air-conditioning units and other equipment in the pump room will be damp, resulting in serious damage. range of equipment damage. In the existing pump house, when there is water leakage in the pipeline and valve, the water cannot be collected well, and when there are too many impurities in the water, the filter screen will be blocked, which greatly reduces the water collection rate and filtration effect. In view of the above problems, we propose a moisture collection device for pump room leakage.

Utility model content

In order to solve the above deficiencies of the prior art, the utility model proposes a water collecting device for leaking water in a pump room.

The technical scheme of the present utility model is achieved as follows: a moisture collection device for water leakage in a pump room, comprising a pump room and a filter box, the filter box is located on one side of the pump room, and the pump room and the filter box are They are all fixedly installed on the ground, a suction pump is arranged between the pump house and the filter box, the water inlet of the suction pump is connected with a water inlet pipe, and the end of the water inlet pipe away from the suction pump and the drainage groove of the pump house The water outlet of the water pump is connected with a water outlet pipe, and the end of the water outlet pipe away from the water pump runs through the filter box and communicates with its interior;

Both sides of the inner cavity of the filter box are provided with installation grooves, and a quadrilateral frame is arranged between the installation grooves. A filter screen is fixedly connected to the inner wall of the quadrilateral frame, a brush plate is arranged above the filter screen, a motor box is fixedly connected to the top of the filter box, and a drive motor is arranged inside the motor box, and the drive motor The output end of the filter is connected with a transmission shaft, and one end of the transmission shaft away from the motor box penetrates the filter box and is fixedly connected with the brush plate, and the brush plate is perpendicular to the transmission shaft;

A liquid level sensor is fixedly connected to the inner wall of the filter box, the liquid level sensor is located above the quadrilateral frame, and a PLC controller is fixedly connected to one side of the filter box, and the terminal of the PLC controller and the liquid level sensor are Connected through data lines, the output end of the liquid level sensor is connected with the drive motor.

Preferably, an alarm light is fixedly installed on one side of the filter box, and the alarm light and the output end of the PLC controller are connected through a data line.

Preferably, a drainage pipe is provided at the bottom of one side of the filter box, one end of the drainage pipe penetrates the filter box and communicates with the inside thereof, and a check valve is arranged in the drainage pipe.

Preferably, an observation window is provided on one side of the filter box.

Preferably, a fixed seat is coaxially rotatably connected to the transmission shaft, a connecting curved rod is fixedly connected to one side of the fixed seat, and an end of the connecting curved rod away from the fixed seat is fixedly connected to the filter box body.

Preferably, a strip-shaped plate is fixedly connected to the outside of the quadrilateral frame, a handle is fixedly connected to one side of the strip-shaped plate away from the quadrilateral frame, and the other side of the strip-shaped plate is provided with a gasket corresponding to the quadrilateral frame, The sealing gasket is sleeved on the quadrilateral frame, the two ends of the strip plate are fixedly connected with an annular seat, the inner thread of the annular seat is connected with fastening bolts, and the filter box is provided with corresponding fastening bolts. screw holes.

Compared with the prior art, by setting the liquid level sensor in the present invention, when the filter screen is blocked by large particles of impurities, the water level inside the filter box gradually rises, and the buoyancy of the floating ball of the liquid level sensor increases continuously. When the preset value is set, the PLC controller automatically controls the operation of the drive motor inside the motor box, and uses the brush plate to clean the large particles of impurities accumulated on the filter screen, thereby effectively improving the moisture collection rate and filtration effect.

Description of drawings

The accompanying drawings are used to provide a further understanding of the present invention, and constitute a part of the specification, and are used to explain the present invention together with the embodiments of the present invention, and do not constitute a limitation to the present invention. In the attached image:

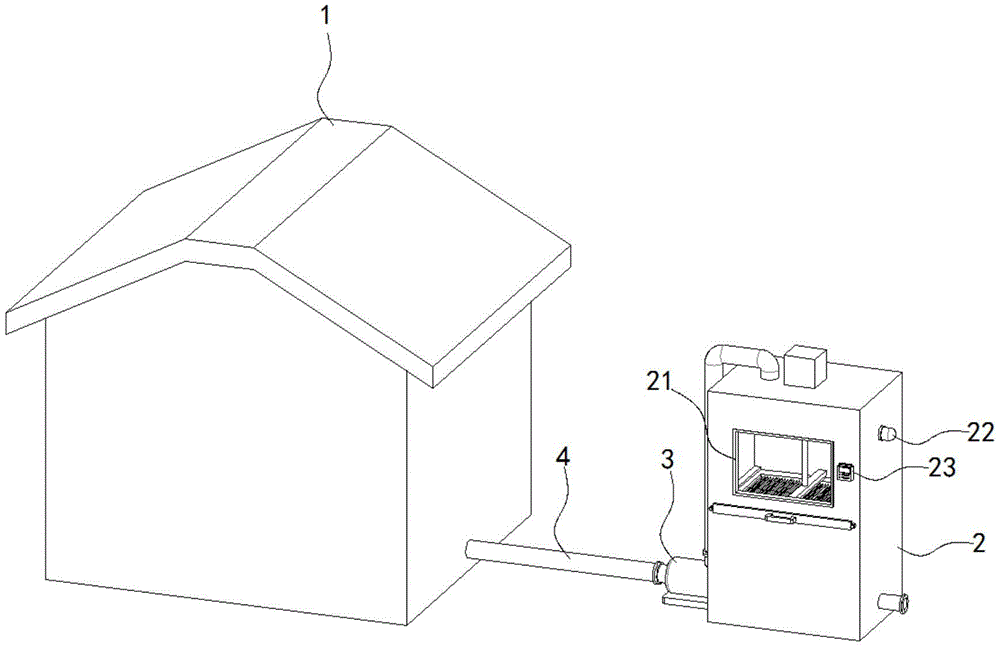

FIG. 1 is a schematic structural diagram of a moisture collecting device for water leakage in a pump room proposed by the utility model.

FIG. 2 is a schematic diagram of the internal structure of the filter box of a water collecting device for leaking water in a pump room proposed by the utility model.

In the figure: pump house 1, filter box 2, water pump 3, water inlet pipe 4, water outlet pipe 5, motor box 6, drive shaft 7, brush plate 8, fixing seat 9, connecting bending rod 10, quadrangular frame 11 , filter screen 12, strip plate 13, gasket 14, annular seat 15, fastening bolt 16, handle 17, installation groove 18, liquid level sensor 19, drain pipe 20, observation window 21, alarm light 22, PLC controller twenty three.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to Figures 1-2, the present utility model provides a technical solution: a water collection device for water leakage in a pump room, comprising a pump room 1 and a filter box 2, the filter box 2 is located on one side of the pump room 1, and the pump The room 1 and the filter box 2 are fixedly installed on the ground. A suction pump 3 is arranged between the pump room 1 and the filter box 2. The water inlet of the suction pump 3 is connected with a water inlet pipe 4, and the water inlet pipe 4 is far away from the suction pump. One end of 3 is connected with the drainage tank of pump room 1, and the water outlet of suction pump 3 is connected with a water outlet pipe 5. The end of the water outlet pipe 5 away from the suction pump 3 penetrates through the filter box 2 and communicates with its interior. When water leakage occurs in the pump room , use the pump 3 to pump the water in the drainage tank of the pump room 1 into the filter box 2 through the water inlet pipe 4 and the water outlet pipe 5, so as to prevent the accumulation of water;

Both sides of the inner cavity of the filter box 2 are provided with installation grooves 18 , and a quadrilateral frame 11 is arranged between the installation grooves 18 . The quadrilateral frame 11 is slidably connected with the installation grooves 18 on both sides. , a filter screen 12 is fixedly connected to the inner wall of the quadrilateral frame 11, a brush plate 8 is arranged above the filter screen 12, a motor box 6 is fixedly connected to the top of the filter box 2, and a drive motor is arranged inside the motor box 6, and the output of the drive motor The end is connected with a transmission shaft 7, and the end of the transmission shaft 7 away from the motor box 6 penetrates the filter box 2 and is fixedly connected to the brush plate 8, the brush plate 8 is perpendicular to the transmission shaft 7, and the filter screen 12 is used to filter the water. The reuse of accumulated water saves water resources;

A liquid level sensor 19 is fixedly connected to the inner wall of the filter box 2. The liquid level sensor 19 is located above the quadrilateral frame 11. A PLC controller 23 is fixedly connected to one side of the filter box 2. The terminal of the PLC controller 23 and the liquid level sensor 19 The output end of the liquid level sensor 19 is connected to the drive motor through the data line. When the filter screen 12 is blocked, the water level inside the filter box 2 gradually rises, and the buoyancy of the float of the liquid level sensor 19 increases continuously. When the preset value is exceeded, the PLC controller 23 automatically controls the operation of the drive motor inside the motor box 6, and uses the brush plate 8 to clean the large particles of impurities accumulated on the filter screen 12, thereby effectively improving the moisture collection rate and filtering effect.

Specifically, when there is water leakage in the pump room 1, start the water pump 3 to pump the water in the drainage tank of the pump room 1 into the filter box 2 through the water inlet pipe 4 and the water outlet pipe 5, so as to prevent the accumulation of water. The collection of accumulated water is realized. When the filter screen 12 is blocked by large particles of impurities, the water level inside the filter box 2 gradually rises, the buoyancy of the float of the liquid level sensor 19 exceeds the preset value, and the motor box is automatically controlled by the PLC controller 23. The drive motor inside the body 6 operates, and the brush plate 8 is used to clean the large particles of impurities accumulated on the filter screen 12, thereby effectively improving the moisture collection rate and the filtering effect.

Further, an alarm light 22 is fixedly installed on one side of the filter box 2, and the alarm light 22 is connected with the output end of the PLC controller 23 through a data line. When the buoyancy of the float of the liquid level sensor 19 exceeds the preset value, the PLC The controller 23 controls the alarm light 22 to flash and alarm, reminding the technician to check in time.

Further, the bottom of one side of the filter box 2 is provided with a drainage pipe 20, one end of the drainage pipe 20 penetrates the filter box 2 and communicates with the inside thereof, and a one-way valve is arranged in the drainage pipe 20. The filtered water in the filter box 2 is transported to other containers, so that the accumulated water can be reused.

Further, an observation window 21 is provided on one side of the filter box 2. By setting the observation window 21, it is convenient for technicians to observe the water level inside the filter box 2 and make adjustments in time.

Further, a fixed seat 9 is coaxially connected to the transmission shaft 7, one side of the fixed seat 9 is fixedly connected with a connecting curved rod 10, and one end of the connecting curved rod 10 away from the fixed seat 9 is fixedly connected with the filter box 2. The fixed seat 9 is connected with the bending rod 10, so that the rotation of the transmission shaft 7 is smoother and more stable, and the stability of the structure is improved.

Further, a strip plate 13 is fixedly connected to the outside of the quadrilateral frame 11 , a handle 17 is fixedly connected to the side of the strip plate 13 away from the quadrilateral frame 11 , and the other side of the strip plate 13 is provided with a gasket corresponding to the quadrilateral frame 11 . 14. The gasket 14 is sleeved on the quadrilateral frame 11, the two ends of the strip plate 13 are fixedly connected with an annular seat 15, the inner thread of the annular seat 15 is connected with fastening bolts 16, and the filter box 2 is provided with fastening bolts 16 Corresponding screw holes, turn the tightening bolts 16 to separate them from the screw holes, and pull the handle 17 to pull out the quadrilateral frame 11 from the inside of the filter box 2, which is convenient for cleaning and replacing the filter screen 12. Water overflows from the junction of the quadrilateral frame 11 and the filter box 2 .

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (6)

1. A moisture collection device for leaking water in a pump room, comprising a pump room (1) and a filter box (2), wherein the filter box (2) is located on one side of the pump room (1), so Both the pump house (1) and the filter box (2) are fixedly installed on the ground, and a suction pump (3) is arranged between the pump house (1) and the filter box (2). ) is connected with a water inlet pipe (4), one end of the water inlet pipe (4) away from the suction pump (3) is communicated with the drainage groove of the pump house (1), and the water outlet of the suction pump (3) A water outlet pipe (5) is communicated with, and the end of the water outlet pipe (5) away from the suction pump (3) penetrates through the filter box (2) and communicates with its interior; Installation grooves (18) are provided on both sides of the inner cavity of the filter box (2), a quadrilateral frame (11) is arranged between the installation grooves (18), and the quadrilateral frame (11) is connected with the installation grooves on both sides. (18) Sliding connection, the outer side of the quadrilateral frame (11) extends through and extends to the outside of the filter box (2), the inner wall of the quadrilateral frame (11) is fixedly connected with a filter screen (12), the filter screen (12) A brush plate (8) is arranged above, a motor box (6) is fixedly connected to the top of the filter box (2), a drive motor is arranged inside the motor box (6), and the output end of the drive motor is connected to There is a transmission shaft (7), and one end of the transmission shaft (7) away from the motor box (6) penetrates the filter box (2) and is fixedly connected with the brush plate (8), the brush plate (8) and the transmission shaft ( 7) Vertical; A liquid level sensor (19) is fixedly connected to the inner wall of the filter box (2), the liquid level sensor (19) is located above the quadrangular frame (11), and a PLC is fixedly connected to one side of the filter box (2). A controller (23), the terminal of the PLC controller (23) is connected with the liquid level sensor (19) through a data line, and the output end of the liquid level sensor (19) is connected with the drive motor. 2. The moisture collection device for water leakage in a pump room according to claim 1, wherein an alarm light (22) is fixedly installed on one side of the filter box (2), and the alarm light (22) and The output end of the PLC controller (23) is connected through a data line. 3. The moisture collection device for water leakage in a pump room according to claim 1, characterized in that, a drainage pipe (20) is provided at the bottom of one side of the filter box (2), and the drainage pipe (20) One end penetrates through the filter box (2) and communicates with the inside thereof, and a one-way valve is arranged in the drainage pipe (20). 4. The moisture collecting device for leaking water in a pump room according to claim 1, characterized in that, an observation window (21) is provided on one side of the filter box (2). 5. The moisture collecting device for water leakage in a pump room according to claim 1, characterized in that, a fixed seat (9) is coaxially rotatably connected to the transmission shaft (7), and the fixed seat (9) is a The side is fixedly connected with a connecting curved rod (10), and one end of the connecting curved rod (10) away from the fixing seat (9) is fixedly connected with the filter box body (2). 6 . The moisture collection device for water leakage in a pump room according to claim 1 , wherein a strip plate ( 13 ) is fixedly connected to the outside of the quadrangular frame ( 11 ), and the strip plate ( 13 ) is far away from the water. 7 . A handle (17) is fixedly connected to one side of the quadrilateral frame (11), and a gasket (14) corresponding to the quadrilateral frame (11) is provided on the other side of the strip plate (13). The gasket (14) It is sleeved on the quadrilateral frame (11), the two ends of the strip plate (13) are fixedly connected with annular seats (15), and the annular seats (15) are internally threaded with fastening bolts (16). The filter box body (2) is provided with screw holes corresponding to the fastening bolts (16).
