Paperboard slitting device for carton processing

Technical Field

The utility model relates to a carton processing technology field specifically is a device is cut to cardboard for carton processing.

Background

The carton is usually used as a wrapping material of goods or an outer layer material for protecting the goods, the volume of the carton is changed according to the size of the goods, the carton is usually provided with various patterns or character prompts such as careful light placement, wet resistance, upward direction, stacking limit, sun-proof, moisture-proof, quality safety, rolling prohibition, non-trampling, fire prevention, fragile goods, greening environment, heat resistance, food, peculiar smell prevention and the like, the user is reminded to pay attention to protect the goods in the carton from being damaged, and the packaging carton is used as an indispensable part of modern logistics and bears important responsibility of containing, protecting the products and beautifying.

The cardboard preparation adopts the cardboard to splice more, and the cardboard needs measure the cutting according to the carton specification in advance, and current carton cutting device does not possess the cardboard and carries the effect, needs the manual work to carry out the cardboard, and comparatively takes trouble to have certain danger, factor of safety is lower, and during the cardboard cutting, the condition that the cardboard slided appears easily simultaneously, influences the quality of cardboard cutting.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a device is cut to cardboard for carton processing to solve the problem that proposes in the above-mentioned background art.

In order to achieve the above purpose, the utility model provides a following technical scheme:

the utility model provides a device is cut to cardboard for carton processing, includes the bedplate to and the fixed riser of establishing at the bedplate avris, the fixed roof that is equipped with in one side that is equipped with of bedplate was kept away from to the riser, device is cut to cardboard for carton processing still includes:

the plate conveying mechanism is arranged on one side, close to the seat plate, of the top plate and used for carrying carton plates in a friction mode, the plate conveying mechanism comprises a rotating roller rotatably arranged on the top plate and a conveying seat movably arranged between the top plate and the seat plate, the conveying seat is arranged on one side, far away from the top plate, of the rotating roller, a plurality of second telescopic pieces are arranged on one side, far away from the rotating roller, of the conveying seat, and the second telescopic pieces are fixedly arranged on the seat plate and used for adjusting gaps between the conveying seat and the rotating roller; and

the slitting mechanism is arranged at one end, far away from the vertical plate, of the top plate and is used for slitting the conveyed carton board, the slitting mechanism comprises a movable support frame arranged between a conveying seat and the top plate, a plurality of first telescopic pieces are fixedly arranged between the support frame and the top plate and used for adjusting the height of the support frame, a plurality of pressing plate assemblies are arranged on one side, far away from the top plate, of the support frame and used for pressing the shearing position of the carton board, and a cutting assembly is movably arranged at the center of the support frame and used for slitting the carton board.

As a further aspect of the present invention: the supporting plates are arranged on two sides of the rotating roller, the supporting plates on the two sides are fixedly arranged on the top plate, the protruding section is arranged on the surface of the rotating roller and used for being in discontinuous contact with the carton board to carry out friction conveying, and a first driving piece is arranged at one end of the rotating roller and used for driving the rotating roller to rotate.

As the utility model discloses further scheme again: a plurality of rolling rods are rotatably arranged in the conveying seat.

As a further aspect of the present invention: the pressing plate assembly comprises a plurality of sliding cylinders fixedly arranged on one side, close to the conveying seat, of the support frame, sliding columns are arranged in the sliding cylinders in a sliding mode, elastic pieces are arranged on the outer sides of the sliding columns, and pressing plates are fixedly arranged at one ends, far away from the sliding cylinders, of the sliding columns on any two sides.

As a further aspect of the present invention: the cutting assembly comprises a fixed sliding rail arranged at the middle part of the support frame, a pneumatic sliding block is connected to the sliding rail in a sliding mode, a mounting frame is fixedly arranged on the pneumatic sliding block, a cutting disc is arranged inside the mounting frame in a rotating mode, and a driving unit is arranged on the cutting disc and used for driving the cutting disc to rotate.

As the utility model discloses further scheme again: the drive unit comprises a second driving piece fixedly arranged on the mounting frame, belt wheels are fixedly arranged at the output end of the second driving piece and the cutting disc, and a synchronous belt is arranged between the two belt wheels.

As a further aspect of the present invention: the vertical plate is provided with a plate inlet.

Compared with the prior art, the beneficial effects of the utility model are that:

through the utility model discloses a device is cut to cardboard for carton processing through the mode of friction cardboard, and automatic carrying indirectly to the cardboard, the cardboard carries the stage, can not produce the motion of cutting, and when the cardboard stopped to carry, can slide the formula cutting of sending through compressing tightly the cardboard, guarantees that the cutting of cardboard is steady, can not appear the condition of edge of a knife slope, and it is swift convenient to use, guarantees the quality of cardboard cutting, has usable value in carton processing technology field.

Drawings

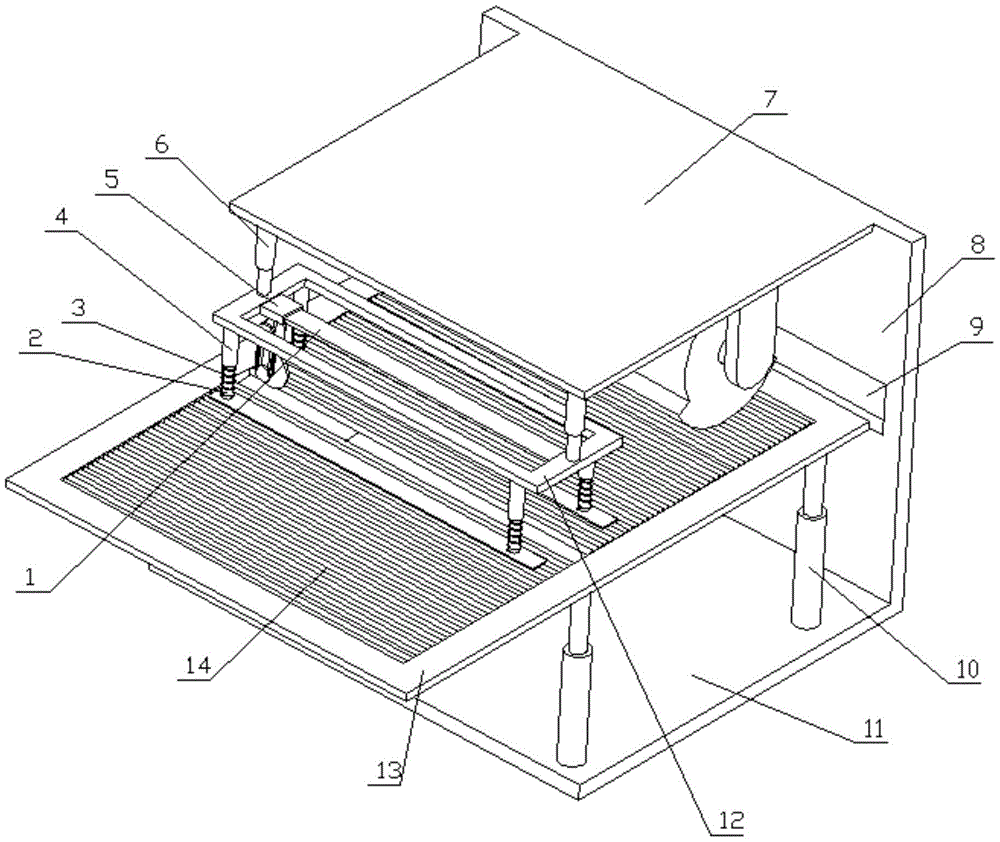

Fig. 1 is a schematic structural view of a paperboard slitting device for processing cartons.

Fig. 2 is a left side view structural diagram of the paperboard slitting device for carton processing.

Fig. 3 is an enlarged schematic view of a in fig. 2.

In the figure: the automatic cutting machine comprises a sliding rail 1, a sliding column 2, a sliding column 3, a spring 4, a sliding barrel 5, a pneumatic sliding block 6, a first telescopic piece 7, a top plate 8, a vertical plate 8, a plate inlet 9, a second telescopic piece 10, a seat plate 11, a support frame 12, a conveying seat 13, a rolling rod 14, a first driving piece 15, a support plate 16, a rotating roller 17, a second driving piece 18, a mounting frame 19 and a cutting disc 20.

Detailed Description

In the description of the present invention, it is to be understood that the terms "upper", "lower", "front", "back", "middle", "left", "right", "top", "bottom", "inner", "outer", and the like indicate orientations and positional relationships based on those shown in the drawings, and are only for convenience of describing the invention and simplifying the description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed in a specific orientation, and be operated, and thus, should not be construed as limiting the present invention.

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative efforts all belong to the protection scope of the present invention.

The following detailed description is provided for the specific embodiments of the present invention.

As shown in fig. 1-3, the embodiment of the utility model provides a device is cut to cardboard for carton processing, including bedplate 11 to and the fixed riser 8 of establishing at bedplate 11 avris, one side that bedplate 11 was kept away from to riser 8 is fixed and is equipped with roof 7, device is cut to cardboard for carton processing still includes:

the board conveying mechanism is arranged on one side, close to the seat plate 11, of the top plate 7 and used for carrying carton boards in a friction mode, the board conveying mechanism comprises a rotating roller 17 rotatably arranged on the top plate 7 and a conveying seat 13 movably arranged between the top plate 7 and the seat plate 11, the conveying seat 13 is arranged on one side, far away from the top plate 7, of the rotating roller 17, a plurality of second telescopic pieces 10 are arranged on one side, far away from the rotating roller 17, of the conveying seat 13, and the second telescopic pieces 10 are fixedly arranged on the seat plate 11 and used for adjusting gaps between the conveying seat 13 and the rotating roller 17; and

cut mechanism, establish the one end of keeping away from riser 8 at roof 7, a carton board for conveying is come cuts, cut mechanism including the activity establish the strut 12 between transport seat 13 and roof 7, it is fixed to be equipped with a plurality of first extensible members 6 between strut 12 and the roof 7, a height for adjusting strut 12, one side that roof 7 was kept away from to strut 12 is equipped with a plurality of clamp plate assembly, a shearing position for compressing tightly the carton board, strut 12 center activity is equipped with cutting assembly, a carton board is cut.

As shown in fig. 1-2, in an embodiment of the present invention, two side supporting plates 16 are disposed on two sides of the rotating roller 17, the two side supporting plates 16 are fixedly disposed on the top plate 7, a protruding section is disposed on the surface of the rotating roller 17 for intermittently contacting the carton boards for friction transportation, and a first driving member 15 is disposed at one end of the rotating roller 17 for driving the rotating roller 17 to rotate.

As shown in fig. 1-2, in an embodiment of the present invention, a plurality of rollers 14 are rotatably disposed inside the conveying base 13 to reduce the resistance of the paper board conveying.

As shown in fig. 1-2, in an embodiment of the present invention, the pressing plate assembly includes a plurality of sliding cylinders 4 fixedly disposed on one side of the supporting frame 12 close to the conveying base 13, sliding pillars 2 are slidably disposed in the sliding cylinders 4, elastic members are disposed outside the sliding pillars 2, the elastic members are springs 3, and pressing plates are fixedly disposed at one ends of the sliding pillars 2 on any two sides far away from the sliding cylinders 4.

As shown in fig. 1-2, in an embodiment of the present invention, the cutting assembly includes a fixed slide rail 1 arranged at the middle of the support frame 12, a pneumatic slider 5 is slidably connected to the slide rail 1, a mounting frame 19 is fixedly arranged on the pneumatic slider 5, a cutting disc 20 is rotatably arranged inside the mounting frame 19, and the cutting disc 20 is provided with a driving unit for driving the cutting disc 20 to rotate.

As shown in fig. 3, in an embodiment of the present invention, the driving unit includes a second driving member 18 fixedly disposed on the mounting frame 19, the output end of the second driving member 18 and the cutting disc 20 are both fixedly provided with belt pulleys, and a synchronous belt is disposed between the two belt pulleys.

As shown in fig. 1-2, in an embodiment of the present invention, the vertical plate 8 is provided with a plate inlet 9, so that the transportation of the paper board can be directly performed.

The utility model discloses a theory of operation: when the device is used for cutting the paper boards of the paper boxes, firstly, the height of the conveying seat 13 is controlled by the second telescopic part 10 according to the thickness of the paper boards, the paper boards are placed on the conveying seat 13 through the board inlet 9, the first driving part 15 is controlled to drive the rotary roller 17 to rotate, the protruding section of the rotary roller 17 can contact the paper boards to convey the paper boards, when the rotary roller 17 does not contact the paper boards, the paper boards are stopped to be conveyed, the second telescopic part 10 is controlled to push the support frame 12 to move downwards, the press plate can press the shearing position of the paper boards through the rebounding of the elastic part, the second driving part 18 is opened to control the cutting disc 20 to rotate, so that the cutting disc 20 contacts the paper boards, then, the cutting disc 20 is controlled to cut along the line by the pneumatic slide block 5 to realize the cutting process of the paper boards, after the cutting is finished, the support frame 12 is controlled by the second telescopic part 10, the cutting disc 20 is controlled to return by the pneumatic slide block 5, then the first driving part 15 continues to control the rotary roller 17 to return to contact the paper boards, carry out propelling movement once more to the cardboard, repeat this process, realize the even process of cutting of cardboard of carton.

It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein, and any reference signs in the claims are not to be construed as limiting the claim concerned.

Although the preferred embodiments of the present invention have been described in detail, the present invention is not limited to the above embodiments, and various changes can be made without departing from the spirit of the present invention within the knowledge of those skilled in the art.

Claims

1. The utility model provides a device is cut to cardboard for carton processing, includes the bedplate to and the fixed riser of establishing at the bedplate avris, the fixed roof that is equipped with in one side that is equipped with of bedplate was kept away from to the riser, device is cut to cardboard for carton processing still includes:

the board conveying mechanism is arranged on one side, close to the seat plate, of the top plate and used for carrying carton boards in a friction mode, the board conveying mechanism comprises a rotating roller rotatably arranged on the top plate and a conveying seat movably arranged between the top plate and the seat plate, the conveying seat is arranged on one side, away from the top plate, of the rotating roller, a plurality of second telescopic pieces are arranged on one side, away from the rotating roller, of the conveying seat, and the second telescopic pieces are fixedly arranged on the seat plate and used for adjusting gaps between the conveying seat and the rotating roller; and

cut mechanism, establish the one end of keeping away from the riser at the roof, a carton board for sending is come cuts, cut the mechanism and establish the strut between transport seat and roof including the activity, fixedly between strut and the roof being equipped with a plurality of first extensible members, a height for adjusting the strut, one side that the roof was kept away from to the strut is equipped with a plurality of pressure plate assembly, a shearing position for compressing tightly the carton board, the activity of strut center is equipped with cutting assembly, a carton board is cut.

2. A paperboard slitting device for carton processing according to claim 1, wherein support plates are arranged on two sides of the roller, the support plates on the two sides are fixedly arranged on the top plate, a raised section is arranged on the surface of the roller and is used for intermittently contacting the paperboard for friction conveying, and a first driving member is arranged at one end of the roller and is used for driving the roller to rotate.

3. The paperboard slitting device for carton processing according to claim 1 or 2, wherein a plurality of rolling rods are rotatably arranged inside the conveying seat.

4. A paperboard slitting device for processing cartons as claimed in claim 1, where the pressing plate assembly comprises a plurality of sliding cylinders fixedly disposed on the side of the supporting frame close to the conveying base, sliding columns are slidably disposed in the sliding cylinders, an elastic member is disposed outside the sliding columns, and a pressing plate is fixedly disposed at one end of any two sides of the sliding columns far away from the sliding cylinders.

5. The paperboard slitting device for carton processing according to claim 1, wherein the cutting assembly comprises a slide rail fixedly arranged in the middle of the support frame, a pneumatic slider is connected to the slide rail in a sliding manner, a mounting frame is fixedly arranged on the pneumatic slider, a cutting disc is rotatably arranged inside the mounting frame, and a driving unit is arranged on the cutting disc and used for driving the cutting disc to rotate.

6. The carton board slitting device for carton processing according to claim 5, wherein the driving unit comprises a second driving member fixedly arranged on the mounting frame, belt pulleys are fixedly arranged at an output end of the second driving member and the cutting disc, and a synchronous belt is arranged between the two belt pulleys.

7. A carton board slitting device as set forth in claim 1 wherein the vertical plate is provided with a board inlet.
