CN217035090U - Self-luminous body with ultraviolet lamp light supplement - Google Patents
Self-luminous body with ultraviolet lamp light supplement Download PDFInfo
- Publication number
- CN217035090U CN217035090U CN202220752479.4U CN202220752479U CN217035090U CN 217035090 U CN217035090 U CN 217035090U CN 202220752479 U CN202220752479 U CN 202220752479U CN 217035090 U CN217035090 U CN 217035090U
- Authority
- CN
- China
- Prior art keywords
- self
- power supply
- luminous
- luminous body
- supply device
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
- 239000013589 supplement Substances 0.000 title claims description 10
- 239000000463 material Substances 0.000 claims abstract description 21
- 239000000758 substrate Substances 0.000 claims abstract description 19
- 239000011248 coating agent Substances 0.000 claims abstract description 11
- 238000000576 coating method Methods 0.000 claims abstract description 11
- 239000010410 layer Substances 0.000 claims description 23
- 230000001502 supplementing effect Effects 0.000 claims description 8
- 239000002131 composite material Substances 0.000 claims description 4
- 239000011521 glass Substances 0.000 claims description 3
- 230000001939 inductive effect Effects 0.000 claims description 3
- 229920003023 plastic Polymers 0.000 claims description 3
- 239000004033 plastic Substances 0.000 claims description 3
- 239000011094 fiberboard Substances 0.000 claims description 2
- 239000002184 metal Substances 0.000 claims description 2
- 238000000465 moulding Methods 0.000 claims description 2
- 239000002356 single layer Substances 0.000 claims description 2
- 239000012780 transparent material Substances 0.000 claims description 2
- 239000002023 wood Substances 0.000 claims description 2
- VVQNEPGJFQJSBK-UHFFFAOYSA-N Methyl methacrylate Chemical compound COC(=O)C(C)=C VVQNEPGJFQJSBK-UHFFFAOYSA-N 0.000 claims 1
- 229920005372 Plexiglas® Polymers 0.000 claims 1
- 230000007613 environmental effect Effects 0.000 abstract description 4
- 239000003973 paint Substances 0.000 abstract 1
- NIXOWILDQLNWCW-UHFFFAOYSA-N acrylic acid group Chemical group C(C=C)(=O)O NIXOWILDQLNWCW-UHFFFAOYSA-N 0.000 description 13
- 239000011449 brick Substances 0.000 description 10
- 239000011159 matrix material Substances 0.000 description 9
- 241000283707 Capra Species 0.000 description 5
- 230000006698 induction Effects 0.000 description 5
- 230000000694 effects Effects 0.000 description 4
- 238000005265 energy consumption Methods 0.000 description 3
- 238000004146 energy storage Methods 0.000 description 3
- 239000002904 solvent Substances 0.000 description 3
- 210000001015 abdomen Anatomy 0.000 description 2
- 239000011324 bead Substances 0.000 description 2
- 238000005034 decoration Methods 0.000 description 2
- 239000003292 glue Substances 0.000 description 2
- 238000009434 installation Methods 0.000 description 2
- 238000000034 method Methods 0.000 description 2
- 230000000007 visual effect Effects 0.000 description 2
- 238000004026 adhesive bonding Methods 0.000 description 1
- 230000003796 beauty Effects 0.000 description 1
- 238000006243 chemical reaction Methods 0.000 description 1
- 239000003086 colorant Substances 0.000 description 1
- 238000010276 construction Methods 0.000 description 1
- 238000004134 energy conservation Methods 0.000 description 1
- 238000005286 illumination Methods 0.000 description 1
- 230000001678 irradiating effect Effects 0.000 description 1
- 238000012423 maintenance Methods 0.000 description 1
- 239000002245 particle Substances 0.000 description 1
- 230000000192 social effect Effects 0.000 description 1
Images
Landscapes
- Non-Portable Lighting Devices Or Systems Thereof (AREA)
Abstract
本实用新型公开了一种具有紫光灯补光的自发光体，包括自发光体、紫光灯组和供电装置；自发光体由发光材料浇筑成型、或由在透明基体表面以局部覆盖或全部覆盖方式覆盖自发光层构成；发光层由自发光板粘贴或由自发光涂料涂覆在基体表面形成；紫光灯组设置在自发光体邻侧或内侧；供电装置设置在自发光体外侧或内嵌在自发光体的基体内的凹槽中，其与紫光灯组连接以供电；该具有紫光灯补光的自发光体适用范围广，且解决了自发光材料本身亮光时间短的问题，在大量能源节约的同时提高经济效益和环境美感，具有很好的市场推广前景。
The utility model discloses a self-illuminating body with a violet light supplementary light, comprising a self-illuminating body, a purple light lamp group and a power supply device; It is formed by covering the self-luminous layer; the light-emitting layer is formed by pasting the self-luminous plate or coating the surface of the substrate with self-luminous paint; the purple light group is arranged on the adjacent side or inner side of the self-luminous body; the power supply device is arranged on the outside of the self-luminous body or embedded in In the groove in the base of the self-luminous body, it is connected with the purple light group to supply power; the self-luminous body with the supplementary light of the purple light has a wide range of applications, and solves the problem of the short lighting time of the self-luminous material itself. It can improve economic benefits and environmental aesthetics while saving, and has a good market promotion prospect.
Description
Technical Field
The utility model relates to the technical field of luminous decoration, in particular to a self-luminous body with a purple light lamp for supplementing light.
Background
People are gradually improved in pursuit of beautiful enjoyment, and pursuit of high-quality living and living environments is gradually intensified, so that a large number of light lightening projects are carried out in all corners where people live, and in many places where people live and play densely, decorated night is the same as that in the daytime, but a large amount of electric power is consumed, and meanwhile, environmental protection and energy problems are caused.
The self-luminous decorative material has been accepted by the society and people in recent years due to its environmental energy saving. People take various forms: floor tiles, particles, sculptures, signs and the like are in various bright appearances on the market. However, the current self-luminous material has short afterglow time and low brightness, so that the material cannot really enter the market, and many users holding a good desire ignore the material because the expected ornamental and social effects in mind are not achieved.
SUMMERY OF THE UTILITY MODEL
The utility model provides an energy storage and light emitting type shop signboard aiming at the actual situation that a high-brightness lamp and a large amount of energy are used on the shop signboard in order to attract customers at present, and aims to utilize an energy storage and light emitting material, use clean energy at the same time, reduce the number of lamps, reduce energy consumption, improve the brightness of shops, attract customers, attract business and improve economic benefits under the state of low cost expenditure.
Therefore, the technical scheme of the utility model is as follows:
a self-luminous body with a purple light lamp for supplementing light comprises a self-luminous body, a purple light lamp group and a power supply device;
the self-luminous body is formed by pouring and molding a luminous material or covering a self-luminous layer on the surface of the transparent substrate in a partial or complete covering mode; the luminous layer is formed by sticking a self-luminous plate on the surface of a transparent substrate or coating a self-luminous coating on the surface of the substrate;
the purple light lamp group consists of a plurality of purple light spot lamps, a plurality of purple light module lamps or a plurality of purple light lamp strings which are connected in parallel; the purple light lamp group consisting of a plurality of purple light lamps or a plurality of purple light module lamps is arranged at the adjacent side of the self-luminous body through the bracket in a way that light rays face the self-luminous body; the violet light group consisting of a plurality of violet light strings is arranged around the periphery of the self-luminous body or embedded in a base body arranged in the self-luminous body along the circumferential direction; the ultraviolet spotlight, the ultraviolet module lamp or the ultraviolet lamp string are all assembled by UVA ultraviolet lamp beads or UVA ultraviolet lamps;
the power supply device is arranged outside the self-luminous body or embedded in a groove in a base body of the self-luminous body and is connected with the purple light lamp group to supply power.
Furthermore, the thickness of the self-luminous plate is 1-10 mm; the thickness of the self-luminous layer is 0.5-5 mm.
Furthermore, the power supply device is a solar power supply device and a power supply connection timer; the solar power supply device comprises a solar panel, a photovoltaic charge controller and a storage battery which are connected in sequence; the solar cell panel is obliquely and upwards fixed on the adjacent side of the self-luminous body through the bracket and faces to the sunny side, or is embedded in the sunny side of the substrate of the self-luminous body which is not covered with the self-luminous layer; the storage battery is connected with the purple light lamp set through the power supply connection timer so as to intermittently supply power to the purple light lamp set.
Furthermore, the power supply device is an external power supply device and the power supply is connected with the timer; the external power supply device comprises a power plug and a transformer which are connected, and the transformer is connected with the purple light lamp bank through a power connection timer to intermittently supply power to the purple light lamp bank.
Furthermore, the power supply device comprises a solar power supply device, an external power supply device, a power supply connection timer and a change-over switch; the solar power supply device comprises a solar panel, a photovoltaic charge controller and a storage battery which are connected in sequence; the solar cell panel is obliquely and upwards fixed at the adjacent side of the self-luminous body through the bracket and faces towards the sunny side, or is embedded in the sunny side of the base body of the self-luminous body, which is not covered with the self-luminous layer; the external power supply device comprises a power plug and a transformer which are connected; the transformer and the storage battery are respectively connected with the change-over switch to convert a power supply mode; the change-over switch is connected with the purple light lamp set through the power supply connection timer so as to intermittently supply power to the purple light lamp set.
Furthermore, the self-luminous body with the ultraviolet lamp for supplementing light also comprises a photosensitive induction switch which is arranged between the power supply device and the power supply connection timer in an electric connection mode.
Further, the transparent substrate is a glass substrate, an organic glass substrate or a substrate made of other transparent materials.
Furthermore, the self-luminous body is arranged on the surface of an auxiliary display board, embedded and fixed in a groove formed in the surface of the auxiliary display board, or embedded and fixed in a through hole formed in the surface of the auxiliary display board.
Further, the auxiliary display board is a single-layer board or a composite board made of at least one of metal board, wood board, fiber board, plastic board and rubber board.
Compared with the prior art, the self-luminous body with the ultraviolet lamp light supplement function can be used for various aspects such as signboard indication, wall surface and ground decoration, space customization or image beautification, effectively solves the problems of low brightness and short light-emitting time of the self-luminous material, realizes a large amount of energy conservation on the premise of meeting the pursuit of people on living environment beauty, improves economic benefits and environmental aesthetic feeling, and has good market popularization prospect.
Drawings

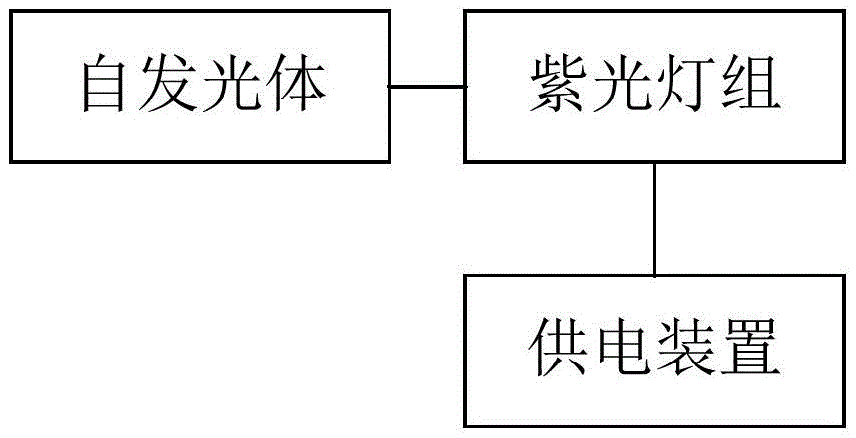

FIG. 1 is a schematic view of the components of a luminaire with an ultraviolet lamp according to the present invention;
fig. 2 is a schematic structural view of the light-emitting floor tile with the uv lamp according to embodiment 1 of the present invention;
fig. 3 is a schematic structural view of a light-emitting floor tile with an ultraviolet lamp according to embodiment 2 of the present invention;
fig. 4 is a schematic structural view of a light-emitting garden sculpture with an ultraviolet lamp according to embodiment 3 of the present invention;
fig. 5 is a schematic structural view of a luminescent billboard with a violet lamp according to embodiment 4 of the present invention.
Detailed Description
The utility model will be further described with reference to the following drawings and specific examples, which are not intended to limit the utility model in any way.
Example 1
Referring to fig. 1 and 2, the light-emitting floor tile with the uv lamp comprises a light-emitting floor tile body, a uv lamp set and a power supply device; in particular, the amount of the solvent to be used,
the luminous floor tile body is a composite brick body consisting of a waterproof board 3, a transparent matrix 2 and a self-luminous layer 1 which completely covers the upper surface of the transparent matrix 2, wherein the waterproof board, the transparent matrix 2 and the self-luminous layer are sequentially overlapped from bottom to top, and the length, the width and the thickness of the composite brick body are respectively 600mm, 600mm and 7 mm; wherein,
the transparent substrate 2 adopts an acrylic plate with the length multiplied by the width multiplied by the thickness of 600mm multiplied by 6 mm; in order to install an independent purple light lamp group and a power supply device on each light-emitting floor tile, four strip-shaped lamp grooves are respectively formed in the lower surface of the acrylic plate along the four edges of the plate body; a battery mounting groove and a solar panel mounting groove are respectively formed in the center of the lower surface of the acrylic plate; meanwhile, a wire passing groove communicated with the strip-shaped lamp groove, the battery mounting groove and the solar cell panel mounting groove is formed in the lower surface of the acrylic plate;
the self-luminous layer 1 is formed by coating a commercially available common self-luminous coating on the upper surface of an acrylic plate and curing; the length x width x thickness of the self-light-emitting layer 1 is 600mm x 0.5 mm;
the waterproof board 3 is an acrylic board with the length multiplied by the width multiplied by the thickness of 600mm multiplied by 0.5mm, and is sealed and fixed at the lower surface of the transparent matrix 2 through waterproof glue so as to protect components arranged in each groove of the transparent matrix 2;
the purple light lamp group consists of four purple light lamp strings which are connected in parallel, and the four purple light lamp strings are respectively arranged in four strip-shaped lamp grooves formed in the lower surface of the acrylic plate and arranged in grooves in a base body of the self-luminous body;
the power supply device consists of a solar power supply device, a power supply connection timer and a photosensitive induction switch; the solar power supply device comprises a solar panel, a photovoltaic charge controller and a storage battery which are connected in sequence; wherein the solar cell panel is fixed in the solar cell panel mounting groove in a horizontally upward mode; the storage battery, the photovoltaic charging controller and the power supply connection timer are arranged in the battery mounting groove; the storage battery, the photosensitive inductive switch, the power supply connection timer and the purple light lamp set are sequentially and electrically connected, the effect of automatically turning on the lamp in the dark is achieved, and meanwhile the storage battery is intermittently used for supplying power to the purple light lamp set in a power-on 5s and power-off 15s mode through the power supply connection timer.
The luminous floor tile with the ultraviolet lamp is provided with an independent power supply device, and the problems of wire laying and external power supply do not need to be considered when the luminous floor tile is used for laying the ground in a public place or a private place; if damage occurs during use, the maintenance can also be directly completed through independent replacement.
Example 2
Referring to fig. 3, a light emitting floor tile with a violet lamp is composed of a light emitting floor tile body, a violet lamp set and a power supply device; in particular, the amount of the solvent to be used,
the length multiplied by the width multiplied by the thickness of the luminous floor tile body is 600mm multiplied by 4mm, and the luminous floor tile body is composed of a common commercial brick body 3 and a plurality of self-luminous layers 1 with star shapes embedded in the brick body; wherein,
the common brick body 3 sold in the market adopts a brick body with the length multiplied by the width multiplied by the thickness of 600mm multiplied by 6mm, and a plurality of grooves which have different sizes and star shapes are arranged on the brick body; the depth of the groove is 3 mm;
the self-luminous layer 1 is composed of a plurality of star-shaped self-luminous layers which are matched with the size of star-shaped grooves formed in the brick body, is obtained by cutting a commercially available self-luminous plate with the thickness of 3mm, and is respectively bonded and fixed in each groove on the common brick body 3 in a one-to-one correspondence manner; in order to facilitate the installation of the purple light lamp group, a lamp groove is formed at the bottom of each groove, and wire passing grooves which can be communicated are formed among the lamp grooves;
the purple light lamp group is composed of two purple light lamp strings connected in parallel, purple light lamp beads on the two purple light lamp strings are respectively arranged in each lamp groove and are connected through wires passing through the wire passing grooves, the ends of the wires finally connected in parallel of the two purple light lamp strings penetrate through wire holes formed in the side edges of the common brick bodies 3, and when a road surface is actually laid, a plurality of floor tiles are connected in parallel in an external wire laying mode and further connected with an external power supply device;
the power supply device consists of a solar power supply device, a power supply connection timer and a photosensitive induction switch; the solar power supply device comprises a solar panel, a photovoltaic charging controller and a storage battery which are sequentially connected, and can be arranged on a frame body near pavement or a support specially arranged independently during construction; the solar cell panel is arranged towards the sun in an upward inclined mode, and the storage battery, the photovoltaic charging controller and the power supply connection timer are arranged in a box body located below the solar cell panel; the storage battery, the photosensitive induction switch, the power supply connection timer and the purple light lamp set are electrically connected in sequence, and the storage battery is intermittently used for supplying power to the purple light lamp set by the power supply connection timer in a mode of electrifying for 5s and powering off for 15 s.
As another embodiment of the above examples 1 and 2, the uv lamp string forming the uv lamp set can also be directly adhered to one side edge of the light-emitting floor tile body by gluing; when the road is paved, the side adhered with the purple light lamp string is arranged at the side of the road edge.
Example 3
Referring to fig. 4, a self-luminous garden sculpture with a violet lamp, which is composed of a self-luminous body having a goat form, a violet lamp set and a power supply device; in particular, the amount of the solvent to be used,
the self-luminous body consists of a transparent substrate 2 and a self-luminous layer 1 which completely covers the upper surface of the transparent substrate 2; the transparent matrix 2 is a hollow acrylic matrix which is integrally cast and formed and has a goat shape, and the self-luminous layer 1 is formed by coating a commercially available common self-luminous coating on the outer surface of the transparent matrix 2 and curing the coating; the thickness of the self-luminescent layer 1 is 1 mm; meanwhile, in order to facilitate the installation of the purple light lamp group, openings are formed in the acrylic base body, positioned at the top of the head, the bottom side and the abdomen of the goat and at the bottoms of the four limbs;
the purple light lamp group consists of a plurality of purple light lamp strings 3 which are connected in parallel and are uniformly distributed and fixed on the wall surface of the inner cavity of the hollow acrylic matrix through openings at the top of the head, the bottom of the abdomen and the bottoms of the limbs of the goat;
because the sculpture is large in size and the number of the ultraviolet lamps which need to be installed correspondingly is large, in order to ensure effective power supply, the power supply device comprises a solar power supply device, an external power supply device, a power supply connection timer, a photosensitive induction switch and a change-over switch; the solar power supply device comprises a solar panel, a photovoltaic charge controller and a storage battery which are connected in sequence; the solar cell panel is obliquely and upwards fixed at the adjacent side of the self-luminous body through the bracket and faces towards the sunny side, or is embedded in the sunny side of the base body of the self-luminous body, which is not covered with the self-luminous layer; the external power supply device comprises a power plug and a transformer which are connected; the transformer and the storage battery are respectively connected with the change-over switch, and the power supply mode is switched at any time according to actual conditions of actual needs, for example, the power supply is realized by using an external power supply in rainy days or haze days, and the power supply is realized by using solar energy in fine days; the change-over switch, the photosensitive inductive switch, the power supply connection timer and the purple light lamp set are electrically connected in sequence to intermittently supply power to the purple light lamp set.
As another implementation manner of embodiment 3, the ultraviolet lamp string forming the ultraviolet lamp set may also be embedded directly in the base body and integrally cast with the base body when the acrylic base body having a goat shape is cast, and the wire connection end of the ultraviolet lamp string is left outside the acrylic base body, so as to facilitate connection of the power supply device.
Example 4
Referring to fig. 5, a self-luminous billboard with a violet lamp is composed of a signboard 1 arranged on an auxiliary board body 2, a violet lamp group 3 and a power supply device; wherein,
the signboard 1 is shop name characters made of self-luminous materials, and is fixed on one side of the auxiliary plate body 2 through glue in the middle, and the auxiliary plate body 2 is made of an aluminum-plastic plate and is fixed above the shop door surface in a hoisting manner;
the purple light lamp group consists of three purple light spot lamps; the three violet spot lamps are uniformly distributed above the bottom plate 10 through lamp brackets, and each violet spot lamp is arranged in a way that the light irradiation angle faces the signboard 1;
the power supply device is the same as the embodiment 3, and comprises a solar power supply device, an external power supply device, a power supply connection timer and a change-over switch; the solar power supply device comprises a solar panel, a photovoltaic charge controller and a storage battery which are connected in sequence; the solar cell panel is obliquely and upwards fixed at the adjacent side of the self-luminous body through the bracket and faces towards the sunny side, or is embedded in the sunny side of the base body of the self-luminous body, which is not covered with the self-luminous layer; the external power supply device comprises a power plug and a transformer which are connected; the transformer and the storage battery are respectively connected with the change-over switch, and the power supply mode is switched at any time according to actual conditions of actual needs, for example, the power supply is realized by using an external power supply in rainy days or haze days, and the power supply is realized by using solar energy in sunny days; the change-over switch is connected with the purple light lamp set through the power supply connection timer so as to intermittently supply power to the purple light lamp set.
As another embodiment of example 4, the signboard 1 may be configured by coating a self-light emitting layer on the surface of a shop name letter made of an acrylic material by a self-light emitting material.
In the above embodiments 1 to 4, both the violet light string and the violet light lamp employ the UVA violet lamp having a wavelength of 395 nm. In addition, when the floor tile is used, the self-luminous material presents two different colors under the irradiation of the ultraviolet lamp and without the irradiation of the ultraviolet lamp, so that the road surface paved by the floor tile has different light conversion effects, and the floor tile has the practicability of illumination and is rich in aesthetic feeling; although other lights including sunlight and visible light can generate light supplement effect when irradiating the self-luminous material, but the appearance color of the self-luminous material can not be changed in the light supplementing process, and when the light, the sunlight and the visible light are weak, the speed of light supplement for the self-luminous material is very low, the change of vision of people usually occurs after tens of minutes, the light supplement is carried out on the self-luminous material by UVA purple light, the luminous effect of the self-luminous material is obviously enhanced after several seconds, the visual effect of people is obviously changed, and the self-luminous material can emit more bright feeling than other lights with any color in the light supplementing process, so that people can quickly feel relaxed and happy, the attention and curiosity of people can be improved instantly, and the light supplementing speed of the purple light lamp to the self-luminous material is tens of times higher than that of other light lamps under the light with the same brightness.
In conclusion, the self-luminous body with the ultraviolet lamp can appear in various forms in an environment needing to be bright, and the energy-storage luminous material is utilized to match the ultraviolet lamp set and the power supply equipment, so that the self-luminous body can keep enough brightness and brightness without saving energy consumption in a low-energy consumption and low-cost expenditure state, the visual aesthetic feeling of people can be improved, and the economic benefit is improved.
Claims (9)
1. A self-luminous body with a purple light lamp for supplementing light is characterized by comprising a self-luminous body, a purple light lamp group and a power supply device; wherein,
the self-luminous body is formed by pouring and molding a luminous material or covering a self-luminous layer on the surface of the transparent substrate in a partial or complete covering mode; the luminous layer is formed by sticking a self-luminous plate on the surface of a transparent substrate or coating a self-luminous coating on the surface of the substrate;
the purple light lamp group consists of a plurality of purple light shooting lamps, a plurality of purple light module lamps or a plurality of purple light lamp strings which are connected in parallel; the purple light lamp group consisting of a plurality of purple light lamps or a plurality of purple light module lamps is arranged at the adjacent side of the self-luminous body through the bracket in a way that light rays face the self-luminous body; the violet light group consisting of a plurality of violet light strings is arranged around the periphery of the self-luminous body or embedded in a base body arranged in the self-luminous body along the circumferential direction;
the power supply device is arranged outside the self-luminous body or embedded in a groove in a base body of the self-luminous body and is connected with the purple light lamp group to supply power.
2. The self-luminous body with the ultraviolet lamp light supplement function as claimed in claim 1, wherein the thickness of the self-luminous plate is 1-10 mm; the thickness of the self-luminous layer is 0.5-5 mm.
3. The self-luminous body with the ultraviolet lamp light supplement function as claimed in claim 1, wherein the power supply device is a solar power supply device and a power connection timer; the solar power supply device comprises a solar panel, a photovoltaic charge controller and a storage battery which are connected in sequence; the solar cell panel is obliquely and upwards fixed at the adjacent side of the self-luminous body through the bracket and faces towards the sunny side, or is embedded in the sunny side of the base body of the self-luminous body, which is not covered with the self-luminous layer; the storage battery is connected with the purple light lamp set through the power supply connection timer so as to intermittently supply power to the purple light lamp set.
4. The self-luminous body with the ultraviolet lamp for supplementing light according to claim 1, wherein the power supply device is an external power supply device and a power supply connection timer; the external power supply device comprises a power plug and a transformer which are connected, and the transformer is connected with the purple light lamp bank through a power connection timer to intermittently supply power to the purple light lamp bank.
5. The self-luminous body with the ultraviolet lamp light supplement function as claimed in claim 1, wherein the power supply device is a solar power supply device, an external power supply device, a power connection timer and a change-over switch; the solar power supply device comprises a solar panel, a photovoltaic charge controller and a storage battery which are connected in sequence; the solar cell panel is obliquely and upwards fixed at the adjacent side of the self-luminous body through the bracket and faces towards the sunny side, or is embedded in the sunny side of the base body of the self-luminous body, which is not covered with the self-luminous layer; the external power supply device comprises a power plug and a transformer which are connected; the transformer and the storage battery are respectively connected with the change-over switch to convert a power supply mode; the change-over switch is connected with the purple light lamp set through the power supply connection timer so as to intermittently supply power to the purple light lamp set.
6. The self-luminous body with the ultraviolet lamp light supplement function as claimed in any one of claims 3 to 5, further comprising a photosensitive inductive switch electrically connected between the power supply device and the power connection timer.
7. The self-luminous body with a fill light from a violet lamp as claimed in claim 1, wherein the transparent substrate is a glass substrate, a plexiglass substrate or a substrate made of other transparent materials.
8. The self-luminous body with the fill light of the ultraviolet lamp as claimed in claim 1, wherein the self-luminous body is disposed on a surface of an auxiliary display board, embedded and fixed in a groove formed on the surface of the auxiliary display board, or embedded and fixed in a through hole formed on the surface of the auxiliary display board.
9. The self-luminous body with the fill light of the ultraviolet lamp as claimed in claim 8, wherein the auxiliary display board is a single layer board or a composite board made of at least one of a metal board, a wood board, a fiber board, a plastic board and a rubber board.
