本实用新型涉及一种一体式护栏结构，包括：固定件，其包括锚栓和固定板；锚栓预埋于墙基础内，固定板与锚栓固接；T型立柱，其沿竖直方向延伸并通过第一连接组件与固定板固接；装饰板，其与玻璃栏板相对布置，装饰板包括弯折部，弯折部通过第二连接组件与T型立柱连接；玻璃栏板，其下端卡接于U型槽内，上端卡接与U形凹槽内；U型槽，其开口向上，并沿玻璃栏板的长度方向延伸，U型槽通过第三连接组件与固定板固接；扶手，其通过第四连接组件与T型立柱连接，其设有沿玻璃栏板的长度方向延伸U形凹槽，U形凹槽开口向下。本实用新型提供的一体式护栏结构，玻璃栏板与装饰板整体安装，施工工艺简单，有效提升施工效率，降低施工成本。
The utility model relates to an integrated guardrail structure, comprising: a fixing piece, which includes an anchor bolt and a fixing plate; the anchor bolt is pre-buried in a wall foundation, and the fixing plate is fixedly connected with the anchor bolt; Extending and fixing with the fixing plate through the first connecting component; the decorative plate, which is arranged opposite to the glass fence, the decorative plate includes a bending part, and the bending part is connected with the T-shaped column through the second connecting component; the glass fence, the The lower end is clamped in the U-shaped groove, and the upper end is clamped into the U-shaped groove; the U-shaped groove, whose opening is upward, extends along the length direction of the glass fence, and the U-shaped groove is fixedly connected to the fixing plate through the third connecting component The handrail is connected with the T-shaped column through the fourth connecting component, and it is provided with a U-shaped groove extending along the length direction of the glass fence, and the U-shaped groove opens downward. In the integrated guardrail structure provided by the utility model, the glass guardrail and the decorative plate are integrally installed, the construction process is simple, the construction efficiency is effectively improved, and the construction cost is reduced.
Description
Technical Field
The utility model relates to the field of building guardrails, in particular to an integrated guardrail structure.
Background
Along with the development of modern building construction technology and the improvement of the requirements of life quality of people, various building external facades widely adopt glass breast boards, and simultaneously, in order to achieve the overall coordination and unification of building skins, external wall decorations which are consistent with the building style, such as perforated aluminum veneers and the like, are often designed on the outer sides of the glass breast boards; the glass breast board plays the role of edge safety protection and simultaneously realizes the unification of the building facade effect.
However, the glass balustrade and the exterior wall decoration are often designed into two mutually independent systems, the construction process is complex, the construction efficiency is low, and the construction cost of the building is increased. Accordingly, it is desirable to provide an integrated guardrail structure.
SUMMERY OF THE UTILITY MODEL
The utility model provides an integrated guardrail structure, aiming at the problem that the construction process is complicated due to the fact that a glass breast board and an outer wall decoration are designed into two mutually independent systems.
An integrated guardrail structure comprises a guardrail body,
a fixing member including an anchor bolt and a fixing plate; the anchor bolts are embedded in the wall foundation, and the fixing plate is fixedly connected with the anchor bolts;
a T-shaped upright post extending in the vertical direction; the T-shaped upright post is fixedly connected with the fixing plate through a first connecting assembly;
a decorative panel disposed opposite the glass balustrade; the side edge of the decorative plate is bent towards the T-shaped stand column to form a bent part, and the bent part is connected with the T-shaped stand column through a second connecting assembly;
the lower end of the glass breast board is fixed through a third connecting assembly; the third connecting assembly is fixedly connected with the fixing plate and comprises a U-shaped groove extending along the length direction of the glass breast board, the opening of the U-shaped groove is upward, and the lower end of the glass breast board is clamped in the U-shaped groove;
the handrail is connected with T type stand through fourth coupling assembling, and it is equipped with the length direction extension U-shaped recess along the glass breast board, and U-shaped recess opening is downward, the upper end joint of glass breast board is in the U-shaped recess.
Furthermore, the horizontal section of the T-shaped upright post is T-shaped and comprises a first rectangular pipe and a second rectangular pipe, and the first rectangular pipe is perpendicular to the second rectangular pipe and is fixedly connected with the second rectangular pipe; the first connecting assembly comprises a first corner connector, the first corner connector comprises a first arm and a second arm, and the first arm is perpendicular to the second arm; the right-angle edge on one side of the first corner connector is welded with the fixing plate; the first arm is bolted to a first rectangular tube.
Furthermore, the first arm is provided with a strip-shaped through hole extending along the thickness direction of the glass breast board; the first connecting assembly further comprises a first bolt and a first nut matched with the first bolt; the first bolt penetrates through the strip-shaped through hole and the first rectangular pipe in sequence and then is locked with the first nut.
Further, the second connection assembly comprises a second corner connector and a self-tapping screw; the second corner brace comprises a third arm and a fourth arm; the third wall is fixedly connected with the bent part; the fourth arm is fixedly connected with the second rectangular pipe through a tapping screw.
Furthermore, the third connecting assembly also comprises a square tube, and the square tube comprises a first plane and a second plane which are adjacent; the U-shaped groove comprises a back surface, and the first plane is fixedly connected with the back surface; the second plane is fixedly connected with the fixing plate.
Furthermore, the fourth connecting assembly comprises a T-shaped connecting piece, a first countersunk screw and a second countersunk screw; the T-shaped connecting piece comprises a first plate body and a second plate body; the first plate body is positioned above the T-shaped upright post, the first rectangular tube comprises a rectangular cavity, and the second plate body extends into the rectangular cavity and extends along the height direction of the glass breast board; the first countersunk head screw penetrates through the first rectangular pipe and is fixedly connected with the second plate body in sequence; the handrail and the first plate body are bolted through a second countersunk head screw.
Furthermore, the handrail is provided with a U-shaped groove extending along the length direction of the glass breast board, the opening of the U-shaped groove is downward, and the upper end of the glass breast board is clamped in the U-shaped groove.
Has the advantages that: according to the integrated guardrail structure provided by the utility model, the glass breast board and the decorative board are integrally installed, the glass breast board and the decorative board are connected through the T-shaped stand column, and compared with the traditional glass breast board and decorative board which are independent and are connected respectively, the integrated guardrail structure has the advantages that the construction process is simple, the construction efficiency is effectively improved, and the construction cost is reduced.
Drawings
The utility model is described in further detail below with reference to the figures and specific embodiments.

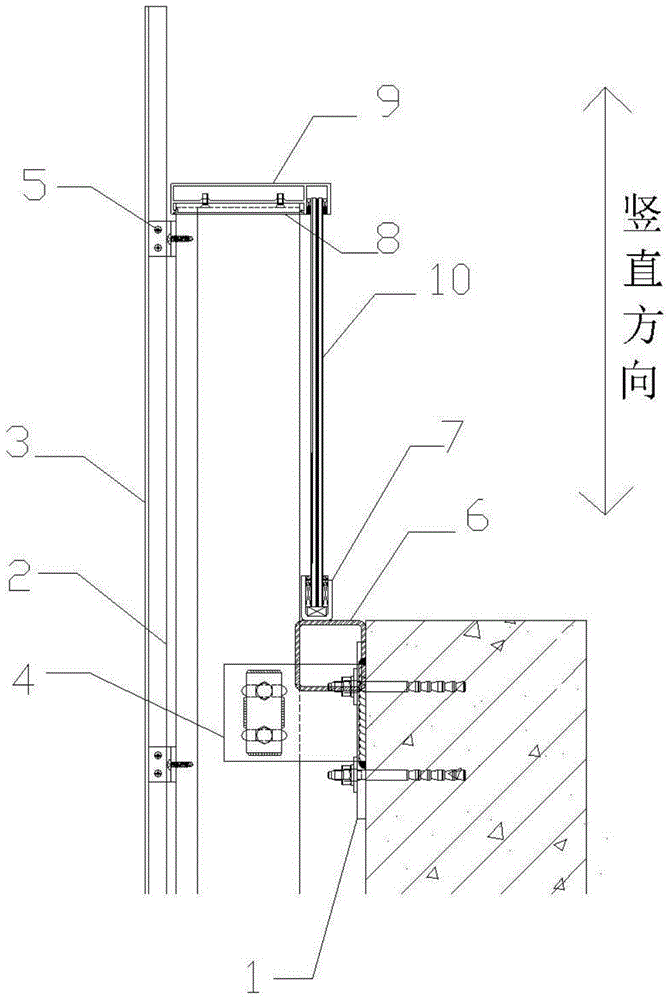

Fig. 1 is a schematic view of the whole structure of the integrated guardrail structure.
Fig. 2 is a schematic vertical cross-sectional view of the fastener.
Fig. 3 is a schematic cross-sectional view of the fastener in a horizontal direction.
Fig. 4 is a schematic structural view of the armrest.
Fig. 5 is a schematic horizontal sectional view of a T-shaped pillar.
Fig. 6 is a schematic structural view of the T-shaped connector.
FIG. 7 is a diagram of a first corner code structure.
Reference numerals are as follows:
1. a fixing member; 11. an anchor bolt; 12. a fixing plate; 13. a second nut;
2. a T-shaped upright post; 21. a first rectangular tube; 211. a rectangular cavity; 22. a second rectangular tube;
3. a decorative plate; 31. a bending section;
4. a first connection assembly; 41. a first corner connector; 411. a right-angle side; 42. a first arm; 421. a strip-shaped through hole; 43. a first bolt; 44. a first nut;
5. a second connection assembly; 51. a second corner connector; 511. a third arm; 512. a fourth arm; 52. a self-tapping screw;
6. a square tube; 61. a first plane; 62. a second plane;
7. a U-shaped groove; 71. a back side;
81. a T-shaped connector; 811. a first plate body; 812. a second plate body; 82. a first countersunk screw; 83. a second countersunk screw;
9. a handrail; 91. a connecting plate; 92. a U-shaped groove;
10. a glass balustrade.
Detailed Description
The technical solutions of the present invention will be described clearly and completely with reference to the accompanying drawings, and it should be understood that the described embodiments are some, but not all embodiments of the present invention. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", etc., indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, but do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and thus, should not be construed as limiting the present invention. Furthermore, the terms "first," "second," and "third" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance.
In the description of the present invention, it should be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "connected," and "connected" are to be construed broadly, e.g., as meaning either a fixed connection, a removable connection, or an integral connection; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meanings of the above terms in the present invention can be understood in a specific case to those of ordinary skill in the art. Furthermore, the technical features involved in the different embodiments of the present invention described below may be combined with each other as long as they do not conflict with each other.
The embodiment provides an integral type guardrail structure, and it includes T type stand 2, glass breast board 10, decorative board 3, handrail 9, pre-buried with the wall foundation's mounting 1, connect mounting 1 and T type stand 2's first coupling assembling 4, the second subassembly of connecting decorative board 3 and T type stand 2, the third coupling assembling of connecting glass breast board 10 and mounting 1, the fourth coupling assembling of connecting handrail 9 and T type stand 2.
Specifically, the T-shaped column 2 extends in a vertical direction, and includes a first rectangular tube 21 and a second rectangular tube 22 that are perpendicular to each other; the horizontal section of the T-shaped upright post 2 is T-shaped.
Specifically, the decorative plate 3 is a wave-shaped aluminum plate, the decorative plate 3 is arranged opposite to the glass breast board 10, and the side edge of the decorative plate 3 is bent towards the T-shaped upright post 2 to form a bent part 31.
Specifically, the fixing member 1 comprises an anchor bolt 11, a fixing plate 12 and a second nut 13 matched with the anchor bolt 11, wherein the anchor bolt 11 is embedded in the wall foundation, and the anchor bolt 11 extends out of the wall foundation and is locked with the second nut 13 after penetrating through the fixing plate 12; the fixing member 1 includes four anchor bolts 11, and the four anchor bolts 11 are arranged in a square shape. A washer may also be provided between the second nut 13 and the fixing plate 12.
Specifically, the first connection assembly 4 includes a first corner connector 41, a first bolt 43, a first nut 44 engaged with the first bolt 43, a first flat gasket, a second flat gasket, and a spring gasket; the first corner brace 41 comprises a first arm 42 and a second arm which are perpendicular to each other, and a right-angled edge 411 on one side of the first corner brace 41 is welded with the fixing plate 12; the first arm 42 is provided with a strip-shaped through hole 421 extending along the thickness direction of the glass balustrade 10, and the first bolt 43 is connected with the first corner brace 41 and the first square tube through the strip-shaped through hole 421. The first corner connector 41 comprises a first corner connector I and a first corner connector II, the first corner connector I and the first corner connector II are respectively positioned on two sides of the first rectangular pipe 21, and the first connecting assembly 4 further comprises two flat gaskets and a spring gasket; the first bolt 43 passes through the first flat gasket, the first corner brace I, the first square tube, the first corner brace II, the second flat gasket and the spring gasket in sequence and then is locked with the first nut 44. In this structure, through setting up bar through-hole 421, adjustable T type stand 2 and the relative position of mounting 1 in glass railing thickness direction.
Specifically, the second connection assembly 5 includes a second corner brace 51 and a self-tapping screw 52; the second corner brace 51 comprises a third arm 511 and a fourth arm 512; the third arm 511 may be fixedly connected to the bending part 31 by a stainless steel rivet, and the third arm 511 may also be welded to the bending part 31; the tapping screw 52 passes through and fixedly connects the fourth arm 512 and the second rectangular tube 22 in turn. Two adjacent decorative boards 3 can be respectively connected with the two sides of the second square pipe.
Specifically, for fixing the lower end of the glass balustrade 10; the lower end of the glass baffle plate 10 is placed in the U-shaped groove 7, and a hard rubber block is placed between the glass baffle plate 10 and the U-shaped groove 7, wherein the hard rubber block comprises a first hard rubber block positioned at the bottom end of the glass baffle plate 10 and used as a buffer sheet gasket of the glass baffle plate 10 and the U-shaped groove 7; the hard rubber blocks also comprise second hard rubber blocks positioned at two sides of the glass breast board 10, and the second hard rubber blocks are used for enabling the U-shaped groove 7 to clamp the glass breast board 10.
Specifically, the third connecting assembly comprises a square tube 6, the square tube 6 comprises a first plane 61 and a second plane 62, the surface of the U-shaped groove 7 away from the opening thereof is a back surface 71, and the first plane 61 is welded with the back surface 71; the second plane 62 is welded to the fixed plate 12. The end parts of the U-shaped grooves 7 are connected with the square pipes 6, and the two adjacent U-shaped grooves 7 are connected sequentially from head to tail through the square pipes 6, so that the two adjacent U-shaped grooves 7 are fixed on one fixing plate 12.
Specifically, the handrail 9 includes a U-shaped groove 92 extending along the length direction of the glass balustrade 10, the U-shaped groove 92 is opened downwards, and the upper end of the glass balustrade 10 is clamped in the U-shaped groove 92. The handrail 9 further comprises a connecting plate 91, the connecting plate 91 extends from one side of the U-shaped groove 92 close to the decorative plate 3 along the thickness direction of the glass balustrade 10, and the connecting plate 91 is horizontally arranged. The gaps between the glass balustrade 10 and the U-shaped groove 7 and the U-shaped groove 92 are sealed by sealant. The upper end of the glass breast board 10 is fixed through the U-shaped groove 92, and the lower end is fixed through the U-shaped groove 7, so that the structural stability is strong.
Specifically, the fourth connecting assembly includes a T-shaped connecting member 81, a first countersunk screw 82, and a second countersunk screw 83; the T-shaped connecting piece 81 comprises a first plate body 811 and a second plate body 812, wherein the first plate body 811 is vertically connected with the second plate body 812 in a T shape; the first plate body 811 is horizontally arranged and positioned above the T-shaped upright post 2, and the first plate body 811 is bolted with the connecting plate 91; the first rectangular tube 21 comprises a rectangular cavity 211, and the second plate 812 extends into the rectangular cavity 211 and extends along the height direction of the glass balustrade 10; the first countersunk head screws 82 sequentially penetrate through and are fixedly connected with the first rectangular pipe 21 and the second plate body 812; the second plate body 812 includes two second plate bodies 812 arranged oppositely at an interval, and the two second plate bodies 812 are inserted into the rectangular cavity 211 and are fixedly connected with the first rectangular tube 21 through the first countersunk head screws 82, respectively.
When integral type guardrail structure installation, pre-buried mounting 1 is connected through first coupling assembling 4 mounting 1 and T type stand 2, through the fixed U type groove 7 of third coupling assembling, connect through the fourth coupling assembling handrail 9 and T type stand 2 are connected decorative board 3 and T type stand 2 through second coupling assembling 5, install glass breast board 10 at last, and during the installation of glass breast board 10, insert U type recess with glass breast board 10 earlier, remove glass breast board 10 again and insert U type inslot 7 with glass breast board 10.
This embodiment provides an integral type guardrail structure, glass breast board 10 and 3 integral erection of decorative board, and glass breast board 10 passes through T type stand 2 with 3 dual systems of decorative board to be connected, is independent dual system for traditional glass breast board 10 and decorative board 3, needs dual-column to connect respectively, and integral type guardrail structure's construction simple process effectively promotes the efficiency of construction, reduces construction cost.
It should be understood that the above examples are only for clarity of illustration and are not intended to limit the embodiments. Other variations and modifications will be apparent to persons skilled in the art in light of the above description. This need not be, nor should it be exhaustive of all embodiments. And obvious variations or modifications of the utility model may be made without departing from the spirit or scope of the utility model.
