CN216963760U

CN216963760U - Metal machine tooling sweeps processing apparatus

Info

Publication number: CN216963760U
Application number: CN202220032230.6U
Authority: CN
Inventors: 赵寅峥; 郭书秀; 赵泽远
Original assignee: Suzhou Zhuoxiu Automation Equipment Co ltd
Current assignee: Suzhou Geshiman Precision Machinery Co.,Ltd.
Priority date: 2022-01-07
Filing date: 2022-01-07
Publication date: 2022-07-15
Anticipated expiration: 2032-01-07

Abstract

The utility model discloses a metal machining waste processing device, which comprises a processing box with a hollow structure inside and an isolation plate arranged on the inner side of the processing box. The end face is connected with a handle rod with a columnar structure, the interior of the isolation plate is provided with a filter mechanism, the outer wall of the treatment box is fitted with a front water baffle, one side of the isolation plate is connected with a connecting pile, and the outer wall of the treatment box is provided with a longitudinal direction for connecting the piles. The moving drainage is slotted, the front end of the connecting pile is fixedly connected with one side wall of the front water blocking plate, and the surface of the front water blocking plate is provided with a hole-opening operating mechanism. The utility model can manually drive the closed horizontal bar to move laterally, so that the closed horizontal bar can close the opening of the filter opening, so that the aperture of the filter opening can be reduced. The particles are trapped under the isolation plate, and solutions such as water pass through the reduced filter openings and are discharged from the interior of the treatment tank.

Description

Metal machine tooling sweeps processing apparatus

Technical Field

The utility model relates to the technical field of metal processing, in particular to a metal machining scrap processing device.

Background

Metal processing refers to the production activities of human beings for processing metal elements or materials with metal characteristics mainly composed of the metal elements, is a process technology for processing metal materials into articles, parts and components, comprises large parts of bridges, ships and the like and even fine components of engines, jewels and wristwatches, and is widely applied to different fields of science, industry, artworks, handicraft and the like.

At present, in the metal processing process, a workbench is generally cleaned quickly by adopting a flushing method, so that residual scraps are mixed into a solution to be discharged, and a large amount of metal waste is caused.

SUMMERY OF THE UTILITY MODEL

The utility model aims to provide a metal machining scrap treatment device, which aims to solve the problem that in the existing metal machining process, a workbench is generally cleaned quickly by a flushing method, so that residual scraps are mixed into a solution and discharged, and a large amount of metal is wasted.

In order to solve the technical problems, the utility model is realized by the following technical scheme: the utility model provides a metal machining sweeps processing apparatus, includes that inside is hollow structure's processing case and sets up in the division board of processing incasement side, and the division board is square platelike structure, the closed filtration top cap that has fretwork platelike structure in top trompil top of processing case, the up end of division board is connected with the handle pole of column structure, the inside of division board is provided with filter mechanism, the outer wall laminating of processing case has preceding water baffle, one side of division board is connected with the connection stake, the drainage fluting that is used for connecting stake longitudinal movement is offered to the outer wall of processing case, connect a front end of stake and a lateral wall fixed connection of preceding water baffle, trompil operating device has been seted up on the surface of preceding water baffle.

As a preferable technical scheme of the utility model, the filtering top cover is internally provided with a movable opening capable of accommodating the handle rod to move longitudinally, and the handle rod penetrates through the inner side of the movable opening and extends upwards.

As a preferred technical scheme of the utility model, clamping plates are fixed at the side ends of the filtering top cover, clamping grooves are formed in the outer wall of the treatment box, and the clamping plates vertically correspond to the clamping grooves.

As a preferable technical scheme of the utility model, the filtering mechanism comprises filtering openings and closed transverse strips, the filtering openings are arranged in the isolating plate in a square hollow structure, the closed transverse strips are arranged on one side of the filtering openings, a plurality of groups of filtering openings and closed transverse strips are transversely and alternately distributed, the closed transverse strips can transversely move through the movable connection with the inner wall of the isolating plate, and the other end of the isolating plate is movably connected with the inner wall of the treatment box.

As a preferable technical solution of the present invention, the opening operation mechanism includes a transverse opening and an operation rod, the transverse opening is opened inside the front water deflector, the operation rod is disposed inside the transverse opening, and the operation rod penetrates through an inner wall of the connecting pile and extends toward an inside of the partition plate.

As a preferable technical scheme of the utility model, a closed bottom cover plate is attached to the bottom end of the treatment box, and a cover plate shaft is connected to one side of the closed bottom cover plate.

Compared with the prior art, the utility model can achieve the following beneficial effects:

1. the metal waste chip cleaning device is directly arranged at a cleaning port of a metal machining table, metal waste chips with larger volume can be filtered by utilizing the top filtering top cover, fine particle impurities mixed with solutions such as water and the like are discharged into the inside of the partition board, the closed transverse bar can be driven to transversely move manually, the closed transverse bar can close the opening of the filtering opening, the aperture of the filtering opening is reduced, fine particles can be isolated below the partition board by driving the partition board to downwards move, the solutions such as water and the like pass through the reduced filtering opening and are discharged from the inside of the treatment box, and therefore the metal waste chips and the solutions such as water and the like are thoroughly separated, and waste of metal resources can be greatly reduced;

2. the whole device adopts manual operation, the isolating plate can be driven to move up and down by extending the handle rod of the columnar structure upwards, the structure is simple, and the production and use cost is lower;

3. the bottom of the utility model is provided with a group of closed bottom cover plates which can be opened by the rotation of the cover plate shaft for closing, and residual metal scraps can be taken out after solutions such as water and the like are discharged.

Drawings

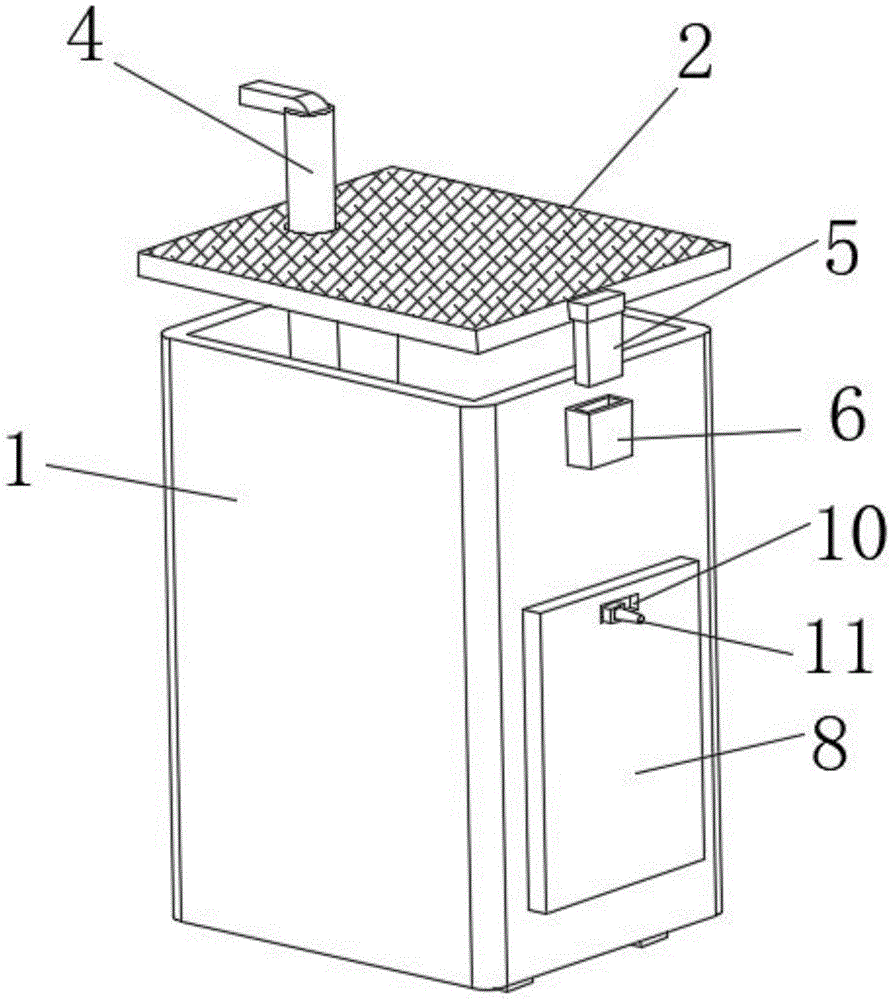

FIG. 1 is a schematic structural view of a metal machining scrap treatment apparatus according to the present invention;

FIG. 2 is an internal view of a metal machining scrap handling apparatus of the present invention;

FIG. 3 is a top plan view of the isolator plate of FIG. 2 of a metal machining scrap handling device of the present invention.

In the drawings, the reference numbers indicate the following list of parts:

1. a treatment box; 2. a filter top cover; 3. movably opening a hole; 4. a handle bar; 5. clamping a plate; 6. a card slot; 7. a separator plate; 8. a front water baffle; 9. closing the bottom cover plate; 10. transversely opening a hole; 11. operating the supporting rod; 12. filtering and opening holes; 13. closing the horizontal strips; 14. connecting piles; 15. draining and grooving; 16. a cover plate shaft.

Detailed Description

The present invention will be further described with reference to specific embodiments for the purpose of facilitating an understanding of technical means, characteristics of creation, objectives and functions realized by the present invention, but the following embodiments are only preferred embodiments of the present invention, and are not intended to be exhaustive. Based on the embodiments in the implementation, other embodiments obtained by those skilled in the art without any creative efforts belong to the protection scope of the present invention. The experimental methods in the following examples are conventional methods unless otherwise specified, and materials, reagents and the like used in the following examples are commercially available unless otherwise specified.

Referring to fig. 1, 2 and 3, the utility model is a metal machining scrap processing device, comprising a processing box 1 and a partition board 7, a filtering top cover 2 is closed above an opening at the top end of the processing box 1, the partition board 7 is arranged at the inner side of the processing box 1 with a hollow structure, a handle 4 is connected to the upper end surface of the partition board 7, a movable opening 3 capable of accommodating the handle 4 to move longitudinally is arranged in the filtering top cover 2, the handle 4 with a columnar structure penetrates through the inner side of the movable opening 3 and extends upwards, a closed bottom cover plate 9 is attached to the bottom end of the processing box 1, a cover plate shaft 16 is connected to one side of the closed bottom cover plate 9, the filtering top cover 2 adopts a hollowed-out plate structure, a clamping plate 5 is fixed to the side end of the filtering top cover 2, a clamping groove 6 is arranged on the outer wall of the processing box 1, the clamping plate 5 corresponds to the clamping groove 6 up and down, a front water baffle plate 8 is attached to the outer wall of the processing box 1, one side of division board 7 is connected with connecting pile 14, the outer wall of processing case 1 is offered and is used for connecting the drainage fluting 15 of 14 longitudinal movement of pile, the front end of connecting pile 14 and a lateral wall fixed connection of preceding water baffle 8, through the swing joint of handle pole 4 with activity trompil 3, can manually operation handle pole 4 reciprocates, can drive division board 7 like this and reciprocate, and one end and the connecting pile 14 of division board 7 are connected, and the other end and the preceding water baffle 8 of connecting pile 14 are connected, and the inside department that runs through processing case 1 at connecting pile 14 has seted up longitudinal structure's drainage fluting 15, when drive division board 7 moves down, the preceding water baffle 8 of closed in drainage fluting 15 the place ahead moves down, it can to discharge from drainage fluting 15 outside like this the solution such as the water that stores in processing case 1 inside.

As shown in fig. 1 and 3, a filtering mechanism is arranged inside the isolation plate 7, the filtering mechanism comprises filtering openings 12 and closing cross bars 13, the filtering openings 12 are arranged inside the isolation plate 7 in a square hollow structure, one side of the filtering openings 12 is provided with the closing cross bars 13, a plurality of groups of filtering openings 12 and closing cross bars 13 are transversely and alternately distributed, the closing cross bars 13 can transversely move through the movable connection with the inner wall of the isolation plate 7, the other end of the isolation plate 7 in a square plate-shaped structure is movably connected with the inner wall of the treatment box 1, the device utilizes the top filtering top cover 2 to carry out primary filtering, then utilizes the plurality of groups of filtering openings 12 inside the isolation plate 7 to carry out secondary filtering, the openings of the filtering openings 12 can be closed through the transverse movement of the closing cross bars 13, the larger the transverse adjustment amplitude of the closing cross bars 13 is, the smaller the openings of the filtering openings 12 are, the smaller the filterable impurities are, the metal scrap particles can be blocked under the partition plate 7 for storage through downward movement of the partition plate 7 for a plurality of times.

As shown in fig. 1, 2 and 3, the surface of the front water baffle 8 is provided with an opening operation mechanism, the opening operation mechanism comprises a transverse opening 10 and an operation support rod 11, the transverse opening 10 is arranged inside the front water baffle 8, the operation support rod 11 is arranged inside the transverse opening 10, the operation support rod 11 penetrates through the inner wall of the connecting pile 14 and extends towards the inside of the isolation plate 7, the tail end of the operation support rod 11 is connected with the side ends of a plurality of groups of closing cross bars 13, the operation support rod 11 capable of accommodating the transverse movement of the operation support rod 11 is started at the front water baffle 8, and the transverse position of the closing cross bar 13 can be easily changed by externally operating the operation support rod 11.

One specific application of this embodiment is: when the device is used, the device is firstly installed at a cleaning port of a metal machining table, impurities are generally taken out by directly flushing water after metal machining is finished, water and metal scraps can be collected by the device, the filtering top cover 2 with larger pore diameter is used for filtering for the first time, larger metal particles are isolated above the filtering top cover 2, fine particle impurities mixed with solutions such as water are discharged into the isolating plate 7, then the operation supporting rod 11 is operated to move rightwards to a proper position, a plurality of groups of closing cross bars 13 connected with the tail end of the operation supporting rod 11 move rightwards and close the opening of the filtering opening 12, then the top end of the handle rod 4 is held, the isolating plate 7 is pushed downwards by the movable connection of the handle rod 4 and the movable opening 3, and the metal scrap particles can be blocked below the isolating plate 7 for storage through downwards moving the isolating plate 7 for a plurality of times, and the connecting pile 14 is provided with a drainage slot 15 with a longitudinal structure penetrating through the inside of the treatment tank 1, when the partition board 7 is driven to move downwards, the front water baffle 8 closed in front of the drainage slot 15 moves downwards, so that the solution such as water stored in the treatment tank 1 can be discharged outwards from the drainage slot 15, and finally the metal waste chips stored at the bottom layer of the treatment tank 1 can be taken out by using the closed bottom cover plate 9 which can be rotatably unfolded.

In the present invention, unless otherwise expressly stated or limited, "above" or "below" a first feature means that the first and second features are in direct contact, or that the first and second features are not in direct contact but are in contact with each other via another feature therebetween. Also, the first feature being "on," "above" and "over" the second feature includes the first feature being directly on and obliquely above the second feature, or merely indicating that the first feature is at a higher level than the second feature. A first feature being "under," "below," and "beneath" a second feature includes the first feature being directly under and obliquely below the second feature, or simply meaning that the first feature is at a lesser elevation than the second feature.

The foregoing shows and describes the general principles, essential features, and advantages of the utility model. It should be understood by those skilled in the art that the present invention is not limited to the above embodiments, and the above embodiments and descriptions are only preferred examples of the present invention and are not intended to limit the present invention, and that various changes and modifications may be made without departing from the spirit and scope of the present invention, which fall within the scope of the claimed invention. The scope of the utility model is defined by the appended claims and equivalents thereof.

Claims

1. A metal machining waste processing device, comprising a processing box (1) with a hollow structure inside and an isolation plate (7) arranged on the inside of the processing box (1), and the isolation plate (7) is a square plate-like structure , characterized in that a filter top cover (2) with a hollow plate-like structure is closed above the top opening of the treatment box (1), and a handle rod (4) with a columnar structure is connected to the upper end surface of the isolation plate (7). ), the interior of the isolation plate (7) is provided with a filtering mechanism, the outer wall of the treatment box (1) is fitted with a front water baffle (8), and one side of the isolation plate (7) is connected with a connecting pile (14), the outer wall of the treatment box (1) is provided with a drainage slot (15) for the longitudinal movement of the connection pile (14), and the front end of the connection pile (14) is connected to a front end of the front water baffle (8). The side walls are fixedly connected, and the surface of the front water blocking plate (8) is provided with an opening operating mechanism.

2. A metal machining waste disposal device according to claim 1, characterized in that: the inside of the filter top cover (2) is provided with a movable opening (3) capable of accommodating the longitudinal movement of the shank (4). ), the handle (4) penetrates through the inner side of the movable opening (3) and extends upward.

3. A metal machining waste processing device according to claim 1, characterized in that: the side end of the filter top cover (2) is fixed with a card plate (5), and the processing box (1) has a The outer wall is provided with a card slot (6), and the card plate (5) corresponds to the card slot (6) up and down.

4. A metal machining waste disposal device according to claim 1, characterized in that: the filtering mechanism comprises filtering openings (12) and closed horizontal bars (13), and the filtering openings (12) A square hollow structure is opened inside the isolation plate (7), one side of the filter opening (12) is provided with a closed horizontal bar (13), and multiple sets of the filtering opening (12) and the closed horizontal bar are provided. (13) Alternately distributed laterally, the closed transverse bars (13) can move laterally through the movable connection with the inner wall of the isolation plate (7), and the other end of the isolation plate (7) is movably connected with the inner wall of the processing box (1) .

5. A metal machining waste disposal device according to claim 1, characterized in that: the opening operating mechanism comprises a lateral opening (10) and an operating support rod (11), and the lateral opening ( 10) Open inside the front water baffle (8), the operating support rod (11) is arranged on the inner side of the transverse opening (10), and the operating support rod (11) penetrates through the inner wall of the connecting pile (14) And extend to the interior of the isolation plate (7).

6. A metal machining waste disposal device according to claim 1, characterized in that: the bottom end of the processing box (1) is fitted with a closed bottom cover plate (9), and the closed bottom cover plate One side of (9) is connected with a cover plate shaft (16).
