CN216962784U

CN216962784U - Joint cold and hot compress device

Info

Publication number: CN216962784U
Application number: CN202122545431.4U
Authority: CN
Inventors: 吴娟; 张晓婕; 张爽
Original assignee: Beijing Jishuitan Hospital
Current assignee: Beijing Jishuitan Hospital
Priority date: 2021-10-21
Filing date: 2021-10-21
Publication date: 2022-07-15
Anticipated expiration: 2031-10-21

Abstract

The utility model belongs to the technical field of orthopaedic clinical nursing, and discloses a joint cold and hot compress device. It includes a main body bag, a strap and a strap buckle; the main body bag is a hollow cuboid structure with an opening, including two parts: front and back; Connection; the strap buckle is provided with a through hole larger than the width and thickness of the strap, and the strap buckle is connected to the other side edge of the main body bag. The device also includes a thermal insulation compartment, a magnet buckle, a mesh bag, a lanyard, a Velcro and a Velcro; the thermal insulation compartment is arranged in the main body bag and is detachably connected to the main body bag; the magnetic buckle is arranged on both sides of the edge of the main body bag, The rope is connected to the edge of one side of the main body bag, the Velcro is connected to the strap, and the Velcro is connected to the inner bag surface of the opening side of the main body bag. At the same time, the device is waterproof, heat-insulating, breathable and durable, takes up little space and is easy to carry.

Description

Joint cold and hot compress device

Technical Field

The utility model belongs to the technical field of orthopedics clinical care, and particularly relates to a joint cold and hot compress device.

Background

Cold/hot compress is a means of rapidly treating joints after athletic injuries and has found widespread use in athletic injuries. Generally, cold/hot compress is to place a cold/hot compress bag over the injury site or joint; when in cold compress, the cold compress bag needs to be put into a refrigerator for freezing and then used; when hot compress is carried out, the hot compress bag needs to be put into hot water for heating. For example, cold compress can be carried out after reconstruction of anterior cruciate ligament of knee joint and reconstruction of external ankle ligament, pain caused by soft tissue, arthritis and the like can be hot compressed, and the effect of adjuvant therapy is achieved.

As for the cold/hot compress bag, the appearance material is made of materials such as soft silica gel and rubber, and the internal filler is macromolecular condensed gel, namely tourmaline liquid. However, when the patient is subjected to cold/hot compress, the cold/hot compress bag is troublesome to fix and is easy to slip, particularly, when the patient moves, the cold/hot compress bag slips more obviously, and the patient often mainly complains that the cold/hot compress bag cannot be fixed and feels worried, so that the cold/hot compress bag is not friendly to the cold/hot compress auxiliary treatment. In the clinical application, the dressing bag is usually fixed by elastic binding ropes, however, when a patient moves the joint, the cold/hot dressing bag is not tightly adhered to the joint, the cold/hot dressing bag often falls off, and the auxiliary treatment effect is reduced. Although the fixing problem of the cold/hot compress bag can be temporarily solved by fixing the cold/hot compress bag by using the elastic cord when the cold/hot compress bag is used after the early rehabilitation exercise of the patient after the operation, the fixing mode is only used on the bed. The cold/hot compress can not be carried out after the patient is discharged and the patient is subjected to the rehabilitation exercise in the middle and later periods, and great trouble is brought to the patient.

SUMMERY OF THE UTILITY MODEL

The utility model aims to provide a cold and hot compress device for joints, which aims to solve the problems that a cold and hot compress bag is easy to slide off and is difficult to fix when cold and hot compress treatment is carried out on a patient in the prior art.

In order to achieve the purpose, the utility model provides the following technical scheme:

a cold and hot compress device for joints, comprising: the main body bag, the binding band buckle and the heat insulation interlayer; wherein:

the main body bag comprises a main body bag front surface and a main body bag back surface which are mutually attached; the front surface of the main body bag and the back surface of the main body bag are mutually attached to form a hollow rectangular bag body with an opening at one side;

the binding band is a strip-shaped belt;

the bandage buckle is provided with a through hole which is larger than the width and the thickness of the bandage;

the bandage and the bandage buckle are arranged on the two opposite side edges of the main body bag.

The heat-insulating interlayer is a strip-shaped object and can be vertically arranged in the hollow rectangular bag body in a detachable mode.

Further, the device also comprises a mesh bag; wherein:

the mesh bag is arranged on the front surface of the main body bag and is detachably connected with the main body bag.

Further, the device also comprises a magic tape;

the magic tape comprises a suede surface and a hook surface which are matched with each other; the suede surface is arranged on one surface of the binding band, and the hook surface is arranged on the other surface of the binding band.

Furthermore, the inner side of the opening is provided with a thread gluing which can adhere the front surface of the main bag and the back surface of the main bag.

Further, the strap is an elastic strap.

Further, the front surface and the back surface of the main bag are both made of laminated cloth;

the laminated cloth comprises an oxford cloth layer, a pearl cotton layer, a composite non-woven cloth layer and an aluminum film layer which are sequentially attached.

Furthermore, the bag also comprises a plurality of pairs of magnet buttons which are arranged on the side edges of the two sides of the front surface and the back surface of the main bag.

Further, the thickness of the pearl wool layer is 6 mm.

Compared with the prior art, the utility model has the advantages that:

1) the cold/hot compress bag is placed in the main body bag, and the main body bag is fixed on the injured part of the patient through the bandage and the bandage buckle, so that the cold/hot compress bag is closer to the injured part of the patient, the cold/hot compress bag is prevented from sliding off, and the auxiliary treatment effect is better played;

2) by arranging the mesh bag on the front surface of the main bag, on one hand, articles related to auxiliary treatment can be accommodated, and on the other hand, other accessory parts such as a main bag binding belt, a binding belt buckle and the like can be accommodated, so that the storage space is reduced, and meanwhile, the cold/hot compress device is prevented from being exposed and damaged and parts of detachable parts are prevented from being lost;

3) through the magic tape and the thread gluing, the cold/hot compress fixing device can be more quickly and firmly fixed on the injured part of the patient while the cold/hot compress bag can be quickly placed into the main bag, and the cold/hot compress fixing device plays a positive role in the auxiliary treatment of the patient;

4) through the 4-layer structure of the main body bag, the risk that the damaged part of the patient is frostbitten by supercooling the cold compress bag and the damaged part of the patient is scalded by overheating the hot compress bag is avoided.

5) The magnet buttons are arranged at the edges of the main body bag, when the injured part of a patient is small, the main body bag can be adsorbed by the magnet buttons, the space of the main body bag is reduced, when the injured part of the patient is large, the magnet buttons can be opened to increase the space in the main body bag, more cold/hot compress bags are placed, and the defect that the main body bag is fixed in space is avoided;

drawings

The accompanying drawings, which are incorporated in and constitute a part of this specification, are included to provide a further understanding of the utility model, and are incorporated in and constitute a part of this specification, illustrate exemplary embodiments of the utility model and together with the description serve to explain the utility model and not to limit the utility model. In the drawings:

FIG. 1 is a schematic view showing a structure of a conventional hot and cold compress bag in the prior art;

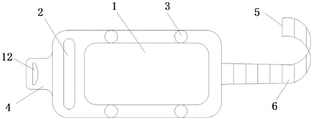

FIG. 2 is a front view of a horizontal plate structure of a joint hot and cold compress device according to the present invention;

FIG. 3 is a schematic reverse side view of a horizontal plate structure of a joint hot and cold compress device according to the present invention;

FIG. 4 is a front view of a vertical plate structure of a joint hot and cold compress device according to the present invention;

FIG. 5 is a schematic reverse side view of a vertical plate structure of a joint hot and cold compress device according to the present invention;

FIG. 6 is an enlarged schematic view of the portion A of the main body bag of FIG. 7;

fig. 7 is a cross-sectional view of the body bag of fig. 2.

Wherein: 1-main bag, 2-thread gluing, 3-magnet buckle, 4-strap buckle, 5-strap, 6-magic tape, 7-mesh bag, 8-hanging rope, 9-heat preservation interlayer, 10-main bag front side, 11-main bag back side, 12-through hole, 100-cold and hot compress bag, 101-oxford fabric, 102-pearl cotton, 103-composite non-woven fabric and 104-aluminum film.

Detailed Description

The present invention will be described in detail below with reference to the embodiments with reference to the attached drawings. It should be noted that the embodiments and features of the embodiments may be combined with each other without conflict.

The following detailed description is exemplary in nature and is intended to provide further details of the utility model. Unless otherwise defined, all technical terms used herein have the same meaning as commonly understood by one of ordinary skill in the art to which this invention belongs. The terminology used herein is for the purpose of describing particular embodiments only and is not intended to be limiting of exemplary embodiments according to the utility model.

Fig. 1 is a schematic view of a prior art cold and hot compress bag 100.

As shown in figures 2-5, the device can be divided into two structures of a horizontal plate and a vertical plate according to the requirements of patients, the hot compress device with the horizontal plate structure takes one side with longer length of the rectangular dimension as a bottom edge and one side with shorter length as a side edge, and the bandage 5 and the bandage buckle 4 are respectively connected to the middle edges of the two sides of the short edge. The vertical plate structure cold and hot compress device is opposite to the horizontal plate structure cold and hot compress device in that one side with long length of the rectangle is set as a side edge, the other side with short length is set as a bottom edge, and then the bandage 5 and the bandage buckle 4 are respectively connected to the middle edge positions of the two sides of the long edge. The horizontal plate structure cold compress device and the vertical plate structure cold compress device are determined according to the part of the patient needing cold and hot compress, so that the defect of single structure is avoided; preferably, the vertical plate structure cold and hot compress device is used for knee joints and the like, and the horizontal plate structure cold and hot compress device is used for elbow joints or ankle joints and the like. Further specifically, the one end of bandage 5 still can directly detain 4 integrated designs with the bandage to detain 4 with the bandage 5 of integration and connect on main part bag 1, so set up, when binding up main part bag 1, detain 4 simultaneous connections because of bandage 5 and main part bag 1 and bandage, make the cold and hot compress bag 100 of ligature patient's skin of laminating more, and is more firm, makes the effect of cold compress or hot compress further promote simultaneously, has avoided the defect to main part bag 1 edge damage when binding up power too big.

The utility model relates to a joint cold and hot compress device, which aims to solve the problem that a cold and hot compress bag 100 is difficult to fix on the joint or the injured part of a patient, and comprises the following components: the main body bag 1, the bandage 5 and the bandage buckle 4; the main body bag 1 is a hollow cuboid structure provided with an opening, and the main body bag 1 comprises a main body bag front surface 10 and a main body bag back surface 11 which are mutually attached; the front surface 10 and the back surface 11 of the main body bag are mutually attached to form a hollow rectangular bag body with an opening at one side; the binding band 5 is a strip-shaped belt, and one end of the strip-shaped belt is connected with one side edge of the main bag 1; the binding belt buckle 4 is provided with a through hole 12 which is larger than the width and the thickness of the binding belt 5, preferably a rectangular hole or a through hole with one rectangular edge and the other arc-shaped edge, the binding belt buckle 4 is connected with the edge of the other side of the main body bag 1, namely the binding belt 5 and the binding belt buckle 4 are respectively arranged on the two opposite side edges of the main body bag 1.

In addition, the device also comprises a heat-insulating interlayer 9, a magnet buckle 3, a mesh bag 7, a hanging rope 8, a magic tape 6 and a thread gluing 2; the heat-insulation interlayer 9 is a strip-shaped object, is vertically arranged between the front surface 10 and the back surface 11 of the main bag, and can be detachably and vertically arranged in the hollow rectangular bag body; the heat preservation interlayer 9 keeps the same shape with the cold and hot compress bag 100 in shape, but is larger than the size of the cold and hot compress bag 100 in length and width dimension, the maximum and longest dimension is determined according to the size of the main bag 1, so that the main bag 1 can be conveniently and quickly inserted, the heat preservation, heat insulation and separation effects can be simultaneously realized, and the material can be a thin plate which is formed by 8mm pearl wool, non-woven fabric and thickened aluminum film and has the heat preservation interlayer and certain softness. The magnet buttons 3 are arranged on two sides of the edge of the front side 10 of the main bag and the edge of the back side 11 of the main bag, so that the space in the hollow rectangular bag body can be enlarged and reduced by attaching or opening the magnet buttons 3, and the cold and hot compress bag 100 can be conveniently added. The mesh bag 7 is arranged on the front surface 10 of the main body bag and is detachably connected with the main body bag 1; the hanging rope 8 is connected with the edge of the main bag 1; the magic tape 6 comprises a suede surface and a hook surface which are matched with each other; the suede surface is arranged on one surface of the binding belt 5, and the hook surface is arranged on the other surface of the binding belt 5. The inner side of the hollow rectangular opening is provided with a thread gluing 2 capable of adhering the front 10 and the back 11 of the main bag, and two parts of structures of the thread gluing 2 are respectively arranged on the inner bag body at the opening side of the front 10 and the back 11 of the main bag.

More specifically, the device takes the main body bag 1 as a main body, and the middle edge positions of the two sides of the main body bag 1 are respectively connected with the binding belt buckle 4 and the binding belt 5, so that the cold and hot compress bag 100 in the main body bag 1 is bound on the joint or the injured part of the patient through the binding belt to carry out cold compress or hot compress, thereby achieving the purpose of auxiliary treatment. Specifically, the main bag 1 is of a rectangular structure, and the front surface 10 and the back surface 11 of the main bag are both made of laminated cloth; comprises a 4-layer structure, as shown in figure 6, a fourth layer of aluminum film 104, a third layer of composite non-woven fabric 103, a second layer of 6mm pearl cotton 102 and a first layer of oxford 101 which is in contact with the external environment and the air are arranged in sequence from the innermost layer of the main bag 1, namely the layer which is in contact with the cold and hot compress bag 100 to the outside; preferably, the aluminum film is a thickened aluminum film; the thickness of the pearl cotton layer is 6 mm. Three sides of the rectangle of the front surface 10 of the main bag are connected with three sides corresponding to the back surface 11 of the main bag to form an opening at one side, the hollow rectangular bagged object is the

main bag

1, and 1 or 2 or more thread gluing 2 are arranged on the bag surface inside the opening side of the main bag 1 for rapidly containing the cold and hot compress bag 100 in the main bag 1.

More specifically, when the cold and hot compress bag 100 needs to be put into the main body bag 1, the thread gluing 2 arranged on the inner surface of the opening side of the theme bag 1 is opened, then the cold and hot compress bag 100 is put into the main body bag and then the adhesive tape 2 is adhered, the bandage 5 is fastened to the injured part or joint of the patient, the magic tape 6 is arranged on the bandage 5, the cold and hot compress bag 100 to be fixed can be further quickly and stably fixed on the injured part or joint of the patient, and the above operations can be repeated when the cold and hot compress bag 100 is taken out or replaced.

More specifically, as shown in fig. 7, a detachable heat insulation interlayer 9 is arranged in the middle part vertical to the front surface 10 and the back surface 11 of the main body bag, when a plurality of cold and hot compress bags 100 need to be arranged, the cold and hot compress bags 100 can be arranged in the spaces of a plurality of main body bags 1 separated by the heat insulation interlayer 9, by the arrangement, the auxiliary treatment effect of the cold and hot compress bag 100 can be further doubled, when a patient is subjected to cold compress treatment, a plurality of cold compress bags can be arranged, the cold compress duration is lengthened, and the cold compress area is enlarged; the heat accumulation of hot compress reduces the heat loss during hot compress, and strengthens the effect of hot compress adjuvant therapy. Specifically, the heat-insulating interlayer 9 is a thin plate material which can be deformed, bent or folded when stressed, can be made of a material which is wear-resistant, has a certain waterproof function and is good in air permeability, and preferably comprises three or more layers of heat-insulating interlayers 9 consisting of 8mm pearl wool, composite non-woven fabrics and thickened aluminum films.

Example 1:

set up main part bag 1 to monolithic structure, main part bag front 10 and main part bag reverse side 11 are a whole through main part bag side edge connection, when cold and hot compress bag 100 is put into to needs in the cold and hot compress device, according to patient's needs, directly put into cold and hot compress bag 100 to main part bag 1 when putting into a small amount of cold and hot compress bag 100, and set up a plurality of magnet buttons 3 on main part bag 1 edge, when a plurality of cold and hot compress bags 100 are put into to needs, can open the magnet button 3 on main part bag 1 edge, increase the volume of main part bag 1, hold more cold and hot compress bag 100, when less or do not need too much cold and hot compress bag 100 in patient's injured position, can be closed with magnet button 3 on main part bag 1 edge, reduce the volume in the main part bag 1, play the effect of better fixed cold and hot compress bag 10000, play positive effect for patient's adjunctie therapy.

Example 2

Set up main part bag 1 into main part bag front 10 and main part bag reverse side 11 two parts, and set up a plurality of quantity equal magnet at main part bag front 10 edge and main part bag reverse side 11 edge and detain 3, when needs carry out cold and hot compress auxiliary treatment at patient's joint or injury position, main part bag 1 is assembled to accomplish fast through main part bag front 10 and main part bag reverse side 11 edge's magnet knot to main part bag 1's front and back both sides, and put into cold and hot compress bag 100 in main part bag 1, be fixed in patient's injury position or joint with cold and hot compress device afterwards, can accomplish patient's auxiliary treatment. Specifically, the fixing manner or structure of the main body bag 1 and the arrangement manner of the magnet buckle 3 on the main body bag include, but are not limited to, the two structures listed in the embodiment.

The joint cold and hot compress device solves the problem that the cold and hot compress bag 100 slides off when being fixed at the joint when a patient recovers. The utility model ensures that the seal of the main bag 1 is fixed and the cold and hot compress bag 100 can not fall out through the design of the built-in magnet button 3; and through the detachable heat preservation interlayer 9 on the main body bag 1, the number of the cold and hot compress bags 100 in the main body bag 1 can be increased during cold/hot compress of patients, and the effects of accelerating cold compress and hot compress are achieved. Magnet is detained 3 and is adopted the principle of positive negative pole magnet attraction, and two liang of looks are inhaled, play the effect of fixed ice bag, and high elasticity bandage and high viscosity magic are pasted, adjustable size, and stretch-proof has that elasticity is tensile, waterproof thermal-insulated, ventilative durable, dual-purpose external transparent pocket: small articles can be arranged, and the searching is convenient; the integral device can be folded and placed in an external transparent mesh bag, so that the occupied space is small and the carrying is convenient; the hanging rope 8 is attached to the main bag 1, and the joint cold and hot compress device can be carried by hand or used for hanging schoolbag and other articles, so that the joint cold and hot compress device is convenient to store and carry.

It will be appreciated by those skilled in the art that the utility model can be embodied in other specific forms without departing from the spirit or essential characteristics thereof. The embodiments disclosed above are therefore to be considered in all respects as illustrative and not restrictive. All changes which come within the scope of or equivalence to the utility model are intended to be embraced therein.

Finally, it should be noted that: the above embodiments are only for illustrating the technical solutions of the present invention and not for limiting the same, and although the present invention is described in detail with reference to the above embodiments, those of ordinary skill in the art should understand that: modifications and equivalents may be made to the embodiments of the utility model without departing from the spirit and scope of the utility model, which is to be covered by the claims.

Claims

1. A joint cold and hot compress device, characterized in that, comprising: a main body bag (1), a strap (5), a strap buckle (4) and a thermal insulation layer (9); wherein:

The main body bag (1) comprises a front surface (10) of the main body bag and a reverse surface (11) of the main body bag that are attached to each other; the front surface (10) of the main body bag and the reverse surface (11) of the main body bag are mutually attached to form a hollow rectangular bag with an opening on one side body;

The strap (5) is a strip-shaped object;

The strap buckle (4) is provided with a through hole (12) larger than the width and thickness of the strap (5);

The straps (5) and the strap buckles (4) are respectively arranged on the opposite side edges of the main body bag (1);

The thermal insulation layer (9) is a strip-shaped object, which can be detachably and vertically arranged in the hollow rectangular bag body.

2. A joint cold and hot compress device according to claim 1, characterized in that, the device further comprises a mesh bag (7); wherein:

The mesh bag (7) is arranged on the front surface (10) of the main body bag, and is detachably connected to the main body bag (1).

3. A joint hot and cold compress device according to claim 1, characterized in that, the device further comprises a Velcro (6);

The Velcro (6) includes a suede surface and a hook surface that cooperate with each other; the suede surface is arranged on one side of the strap (5), and the hook surface is arranged on the other side of the strap (5).

4. A joint cold and hot compress device according to claim 1, characterized in that, the inside of the opening is provided with a hook and loop fastener (2) capable of bonding the front side (10) of the main body bag and the back side (11) of the main body bag .

5 . The joint cold and hot compress device according to claim 1 , wherein the strap ( 5 ) is an elastic strap. 6 .

6. A joint hot and cold compress device according to claim 1, characterized in that, both the front side (10) of the main body bag and the back side (11) of the main body bag are made of laminated cloth;

The laminated cloth comprises an Oxford cloth layer (101), an pearl cotton layer (102), a composite non-woven fabric layer (103) and an aluminum film layer (104) that are laminated in sequence.

7 . The joint cold and hot compress device according to claim 1 , further comprising several pairs of magnet buckles ( 3 ), and the plurality of pairs of magnet buckles ( 3 ) are arranged on the front surface ( 10 ) of the main body bag and the main body. 8 . On both sides of the reverse side of the bag (11).

8. A joint cold and hot compress device according to claim 6, characterized in that, the thickness of the pearl cotton layer (102) is 6 mm.
