Abstract

The utility model relates to the technical field of shrimp farming, and discloses a material spreading device for shrimp farming, which comprises a material mixing cylinder. There is a discharge pipe, a feeding pipe is arranged on one side of the top of the mixing cylinder, a first rotating shaft is movably installed at the bottom of the inner side of the mixing cylinder, and one end of the first rotating shaft extends to the feeding pipe Inside, the first rotating shaft is provided with a feeding auger, a transmission shaft is movably installed inside the discharge pipe, the top of the transmission shaft is movably connected with the inner wall of the feeding pipe, and the transmission shaft is movably connected to the inner wall of the feeding pipe. A spreading disc is fixedly installed at the bottom end of the mixing cylinder, a second rotating shaft is movably installed at the middle position inside the mixing cylinder, and stirring blades are arranged on both sides of the second rotating shaft. By arranging a series of structures in the utility model, the device has the characteristics of convenient and uniform material spreading in the actual use process.

Description

A sprinkling device for shrimp farming

technical field

The utility model relates to the technical field of shrimp farming, in particular to a spreading device for shrimp farming.

Background technique

Shrimp is an arthropod that lives in water. It belongs to arthropod crustaceans. There are many species, including Antarctic red shrimp, green shrimp, river shrimp, grass shrimp, prawn, prawn, and lobster. Shrimp has high dietary nutritional value, can be steamed, fried, etc., and can be used as a Chinese herbal medicine.

When cultivating shrimps, it is necessary to put feed into the breeding pond to provide the shrimps with the required nutrients and help them grow. , Manual spreading is not only time-consuming and labor-intensive, but also the uniformity of spreading is poor. To this end, we propose a spreading device for shrimp farming.

Utility model content

The purpose of the utility model is to provide a spreading device for shrimp raising, which has the effects of convenient spreading and uniform spreading.

The above-mentioned technical purpose of the present utility model is achieved through the following technical solutions: a material-spreading device for shrimp farming, comprising a mixing cylinder, a feeding pipe is arranged under one side of the mixing cylinder, and the feeding pipe is One side of the bottom is provided with a discharge pipe, one side of the top of the mixing cylinder is provided with a feeding pipe, and the bottom of the inner side of the mixing cylinder is movably installed with a first rotating shaft, and one end of the first rotating shaft extends to On the inner side of the feeding pipe, a feeding auger is arranged on the first rotating shaft, a transmission shaft is movably installed inside the feeding pipe, and the top end of the transmission shaft is movably connected with the inner wall of the feeding pipe , the bottom end of the transmission shaft is fixedly installed with a spreading disc.

The utility model is further configured as follows: a second rotating shaft is movably installed at the middle position inside the mixing cylinder, and stirring blades are arranged on both sides of the second rotating shaft.

By adopting the above technical scheme, when the second rotating shaft rotates, it can drive the stirring blade to move, and the stirring blade can mix and stir the feed added into the mixing cylinder to ensure the uniform mixing of the feed.

The utility model is further provided as follows: a first motor is fixedly installed on one side of the mixing cylinder, and one end of the first rotating shaft is fixedly connected with the output end of the first motor.

By adopting the above technical solution, the first motor can be controlled to drive the first rotating shaft to rotate.

The utility model is further provided as follows: a second motor is fixedly installed at the middle position of the top of the mixing cylinder, and the top end of the second rotating shaft is fixedly connected with the output end of the second motor.

By adopting the above technical solution, the second motor can be controlled to drive the second rotating shaft to rotate.

The utility model is further provided as follows: the side wall and the bottom of the spreading plate are densely provided with a plurality of seepage holes.

By adopting the above technical scheme, the material falling on the spreading plate can be spread out evenly.

The utility model is further provided as follows: one end of the first rotating shaft located inside the material conveying pipe is fixedly sleeved and installed with a first bevel angle gear, and the transmission shaft is fixedly sleeved and installed with a second bevel angle gear, The first bevel gear is located at one side of the bottom of the second bevel gear, and the first bevel gear and the second bevel gear are in mesh with each other.

By adopting the above technical solution, when the first rotating shaft rotates, it can drive the first bevel gear to rotate, the first bevel gear drives the second bevel gear to rotate, and the second bevel gear drives the transmission shaft to rotate.

The beneficial effect of the utility model is: the material required for shrimp raising can be added into the mixing cylinder through the feeding pipe, and the second motor is controlled so that the second motor drives the second rotating shaft to rotate, and the second rotating shaft drives the stirring blade The stirring blade can mix and stir the feed added into the mixing barrel to ensure that the feed is mixed evenly, and then control the first motor, so that the first motor can drive the first rotating shaft to rotate. When the first rotating shaft rotates, it can drive the first rotating shaft to rotate. The first bevel gear rotates, the first bevel gear drives the second bevel gear to rotate, and the second bevel gear drives the transmission shaft to rotate, while the first rotating shaft rotates, the material can be conveyed through the feeding auger. It is unloaded to the spreading disc through the discharge pipe, and the transmission shaft drives the spreading disc to rotate, so that the material falling on the spreading disc can be evenly scattered, and the effect of spreading is improved.

Description of drawings

In order to illustrate the technical solutions in the embodiments of the present invention more clearly, the following briefly introduces the accompanying drawings used in the description of the embodiments. Obviously, the drawings in the following description are only some implementations of the present invention. For example, for those of ordinary skill in the art, other drawings can also be obtained based on these drawings without any creative effort.

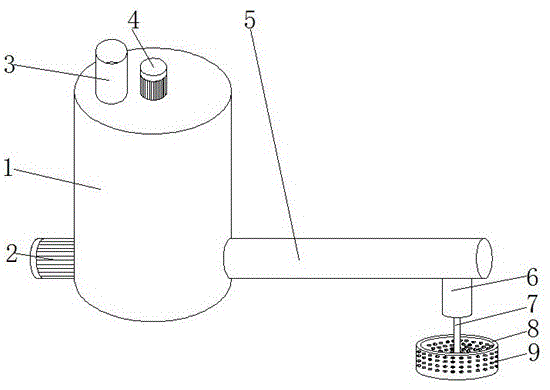

Figure 1 is a schematic diagram of the overall structure of the present invention.

Figure 2 is a cross-sectional view of the present invention.

Fig. 3 is an enlarged view of the position A in Fig. 2 of the present utility model.

In the figure, 1, mixing cylinder; 2, first motor; 3, feeding pipe; 4, second motor; 5, feeding pipe; 6, discharging pipe; 7, transmission shaft; 8, spreading plate; 9 , seepage hole; 10, feeding auger; 11, first rotating shaft; 12, stirring blade; 13, second rotating shaft; 14, first bevel gear; 15, second bevel gear.

Detailed ways

The technical solutions of the present invention will be clearly and completely described below with reference to specific embodiments. Obviously, the described embodiments are only some of the embodiments of the present invention, but not all of the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to FIGS. 1-3 , the present utility model provides a technical solution: a technical solution of a material-spreading device for shrimp farming, comprising a mixing cylinder 1 , and a material conveying pipe 5 is arranged under one side of the mixing cylinder 1 . One side of the bottom of the pipe 5 is provided with a discharge pipe 6, one side of the top of the mixing cylinder 1 is provided with a feeding pipe 3, the bottom of the inner side of the mixing cylinder is movably installed with a first rotating shaft 11, and one end of the first rotating shaft 11 extends To the inner side of the conveying pipe 5, a conveying auger 10 is arranged on the first rotating shaft 11, a transmission shaft 7 is movably installed inside the discharging pipe 6, and the top of the transmission shaft 7 is movably connected with the inner wall of the conveying pipe 5, and the transmission The bottom end of the shaft 7 is fixedly mounted with a spreading disc 8 .

Preferably, a second rotating shaft 13 is movably installed at the middle position inside the mixing cylinder 1, and stirring blades 12 are provided on both sides of the second rotating shaft 13. When the second rotating shaft 13 rotates, it can drive the stirring blades 12 to move. , the stirring blade 12 can mix and stir the feed added into the mixing barrel 1 to ensure that the feed is mixed evenly.

Preferably, the first motor 2 is fixedly installed on one side of the mixing cylinder 1, and one end of the first rotating shaft 11 is fixedly connected with the output end of the first motor 2, and the first motor 2 can be controlled to drive the first rotating shaft 11 to rotate. .

Preferably, a second motor 4 is fixedly installed at the middle position of the top of the mixing cylinder 1, and the top end of the second rotating shaft 13 is fixedly connected to the output end of the second motor 4, and the second motor 4 can be controlled to drive the second rotating shaft 13 Turn.

Preferably, the side wall and the bottom of the spreading pan 8 are densely provided with a plurality of seepage holes 9, so that the material falling on the spreading pan 8 can be evenly spread out.

Preferably, one end of the first rotating shaft 11 located inside the feeding pipe 5 is fixedly fitted with a first bevel gear 14 , and the transmission shaft 7 is fixedly fitted with a second bevel gear 15 , and the first bevel gear 14 It is located on one side of the bottom of the second bevel gear 15, and the first bevel gear 14 and the second bevel gear 15 mesh with each other. When the first rotating shaft 11 rotates, it can drive the first bevel gear 14 to rotate, and the first The bevel gear 14 drives the second bevel gear 15 to rotate, and the second bevel gear 15 drives the transmission shaft 7 to rotate.

Working principle: Check the safety of each structure of the device before use, install the device on a breeding boat or other driving device, and add the materials required for shrimp farming to the inside of the mixing cylinder 1 through the feeding pipe 3 to control the first Two motors 4, so that the second motor 4 drives the second rotating shaft 13 to rotate, and the second rotating shaft 13 drives the stirring blade 12 to move, and the stirring blade 12 can mix and stir the feed added into the mixing cylinder 1 to ensure that the feed is mixed evenly , and then control the first motor 2, so that the first motor 2 can drive the first rotating shaft 11 to rotate, when the first rotating shaft 11 rotates, it can drive the first bevel gear 14 to rotate, and the first bevel gear 14 drives the first The two conical angle gear 15 rotates, the second conical angle gear 15 drives the transmission shaft 7 to rotate, and the first rotating shaft 11 rotates at the same time, the material can be conveyed through the feeding auger 10, so that the material can be unloaded through the discharge pipe 6 to the On the spreading plate 8, and the transmission shaft 7 drives the spreading plate 8 to rotate, so that the material falling on the spreading plate 8 can be evenly spread out, and the effect of spreading the material is improved.

It should be noted that, in this document, relational terms such as first and second are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply any relationship between these entities or operations. any such actual relationship or sequence exists. Moreover, the terms "comprising", "comprising" or any other variation thereof are intended to encompass non-exclusive inclusion such that a process, method, article or device comprising a list of elements includes not only those elements, but also includes not explicitly listed other elements, or also include elements inherent to this process, method, article or equipment, and the standard parts used in this application document can be purchased from the market, and can be purchased according to the description and drawings. For customization, the specific connection method of each part adopts the mature conventional means in the existing technology, the machinery, parts and equipment adopt the conventional type in the existing technology, and the circuit connection adopts the conventional connection method in the existing technology. No specific description will be made here.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (6)

1. The utility model provides a breed shrimp with spilling material device, includes mixing cylinder (1), its characterized in that: the below of compounding section of thick bamboo (1) one side is provided with conveying pipeline (5), one side of conveying pipeline (5) bottom is provided with discharging pipe (6), one side at compounding section of thick bamboo (1) top is provided with filling tube (3), the inboard bottom movable mounting of compounding section of thick bamboo has first axis of rotation (11), the one end of first axis of rotation (11) extends to the inboard of conveying pipeline (5), set up defeated material auger (10) on first axis of rotation (11), the inside movable mounting of discharging pipe (6) has transmission shaft (7), the top of transmission shaft (7) with the inner wall swing joint of conveying pipeline (5), the bottom fixed mounting of transmission shaft (7) has spilling charging tray (8).

2. The shrimp-farming scattering device according to claim 1, characterized in that: a second rotating shaft (13) is movably mounted in the middle of the interior of the mixing barrel (1), and stirring blades (12) are arranged on two sides of the second rotating shaft (13).

3. The shrimp-farming scattering device according to claim 1, characterized in that: one side fixed mounting of compounding section of thick bamboo (1) has first motor (2), the one end of first axis of rotation (11) with the output fixed connection of first motor (2).

4. The shrimp-farming scattering device according to claim 2, characterized in that: and a second motor (4) is fixedly mounted at the middle position of the top of the mixing barrel (1), and the top end of the second rotating shaft (13) is fixedly connected with the output end of the second motor (4).

5. The shrimp-farming scattering device according to claim 1, characterized in that: the side wall and the bottom of the material scattering disc (8) are both provided with a plurality of material seeping holes (9) densely.

6. The shrimp-farming scattering device according to claim 1, characterized in that: the first rotating shaft (11) is located one end inside the conveying pipe (5) and fixedly sleeved with a first taper angle gear (14), a second taper angle gear (15) is fixedly sleeved on the transmission shaft (7), the first taper angle gear (14) is located on one side of the bottom of the second taper angle gear (15), and the first taper angle gear (14) and the second taper angle gear (15) are meshed with each other.
