Abstract

The utility model discloses a multi-station garbage collection device, which comprises a collection room, a multi-station garbage collection mechanism and a garbage compaction mechanism. A garbage injection port is excavated on one side of the collection room, and the multi-station garbage collection mechanism is arranged in the collection chamber. In the room, the multi-station garbage collection mechanism includes a rotating support seat, and a rotating groove matching the rotating support seat is excavated in the collecting room. The side of the rotating support seat located in the rotating groove is connected with a plurality of evenly distributed rollers. The side of the rotary support seat away from the roller is connected to a limit box, and the outer side of the limit box is provided with a plurality of evenly distributed garbage collection buckets. By arranging a corresponding multi-station garbage collection mechanism, the utility model can collect and store garbage through a plurality of trash cans, reduce the garbage overflow situation of the garbage collection device, and improve the stability of garbage storage by the garbage collection device. .

Description

Multistation garbage collection device

Technical Field

The utility model belongs to the technical field of garbage collection, and particularly relates to a multi-station garbage collection device.

Background

The garbage collection is a process that garbage is collected and transported to a transfer station or a garbage disposal plant from the beginning of being thrown in, and the collection process is mainly completed in urban areas such as residential areas and commercial areas, and directly influences the living environment of residents.

At present, a common garbage collection device mainly comprises a garbage can, a garbage house, a garbage bag, a garbage station and the like, wherein the garbage can is most widely applied, the existing garbage can is mainly and independently arranged at different garbage collection places in the using process, the garbage stored in the garbage can is cleaned and transported in a regular cleaning mode of a garbage cleaning and transporting vehicle, the capacity of storing the garbage by using a single garbage can is limited, when the garbage is too much, the requirement of collecting and storing the garbage can cannot be met by using the single garbage can, and the effect of collecting and storing the garbage by using the garbage collection device is poor.

Therefore, in order to solve the above technical problems, a need exists for a multi-station garbage collection device.

SUMMERY OF THE UTILITY MODEL

The utility model aims to provide a multi-station garbage collection device to solve the problem that the effect of collecting and storing garbage is poor.

In order to achieve the above object, an embodiment of the present invention provides the following technical solutions:

a multistation garbage collection device, comprising: the garbage compaction device comprises a collection room, a multi-station garbage collection mechanism and a garbage compaction mechanism;

a garbage throwing port is drilled at one side of the collecting room;

the multi-station garbage collection mechanism is arranged in the collection room and comprises a rotary supporting seat, a rotary groove matched with the rotary supporting seat is formed in the collection room in a chiseled mode, one side, located in the rotary groove, of the rotary supporting seat is connected with a plurality of uniformly distributed idler wheels, one side, away from the idler wheels, of the rotary supporting seat is connected with a limiting box, and a plurality of uniformly distributed garbage collection barrels are arranged on the outer side of the limiting box;

the garbage compacting mechanism is arranged on one side, away from the garbage throwing opening, of the collecting room and comprises a control box, a pressing plate is arranged on one side of the control box, and the pressing plate is matched with the garbage collecting barrel.

Further, be equipped with the driving barrel in the rotatory recess, driving barrel and rotary supporting seat fixed connection, accessible driving barrel plays to be connected spacing effect with drive ring gear to rotary supporting seat, and the accessible carries out rotary drive's mode to the driving barrel and carries out rotation control to the rotary supporting seat, fixedly connected with drive ring gear in the driving barrel, accessible drive ring gear carries out rotary drive with mutually supporting of driving barrel to the driving barrel.

Further, drive ring gear internal gearing has drive gear, and the accessible carries out drive control to drive ring gear to the rotation of drive gear, the drive gear in-connection has the transmission pivot, and the transmission pivot plays the effect of supporting spacing and rotary drive to drive gear, one side that the room was kept away from in the transmission pivot is connected with the rotating electrical machines, and the rotating electrical machines plays the effect of providing power, and the operating condition of accessible control rotating electrical machines carries out drive control to the transmission pivot, be connected with the motor support between rotating electrical machines and the rotatory supporting seat, the motor support plays to support spacing effect to the rotating electrical machines, has improved rotating electrical machines's operating stability.

Further, one side that rotatory supporting seat was kept away from to the spacing case is connected with the mount, and the mount plays the effect of connecting jack catch and spacing case, the outside of mount is connected with a plurality of evenly distributed's jack catch, jack catch and garbage collection bucket phase-match, the mutually supporting of a plurality of jack catches of accessible play the spacing effect of block to the garbage collection bucket.

Further, one side that the clamp plate is close to the control box is connected with a plurality of evenly distributed's lift connecting rod, and the lift connecting rod plays the effect of supporting spacing and lifting control to the control box, the one end fixedly connected with lift control board that the lift connecting rod is located the control box, and lift control board plays the effect of supporting fixed and mobile control to the lift connecting rod, sliding connection has a plurality of spacing guide arms between lift control board and the control box, and accessible spacing guide arm plays the spacing effect of removal to lift control board.

Further, the lifting control board is internally threaded with a lifting lead screw, the lifting control board can be controlled to lift through the rotation of the lifting lead screw through the mutual matching of the lifting lead screw and the lifting control board, the lifting lead screw is connected with a lifting motor in a transmission mode at one end far away from the pressing plate, the lifting motor plays a role in providing power, and the running state of the lifting motor can be controlled to control the rotating state of the lifting lead screw.

Compared with the prior art, the utility model has the following advantages:

according to the utility model, by arranging the corresponding multi-station garbage collection mechanism, garbage can be collected and stored through the plurality of garbage cans, the condition that the garbage collection device overflows is reduced, and the stability of the garbage collection device for storing the garbage is improved.

Drawings

In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings used in the description of the embodiments or the prior art will be briefly described below, it is obvious that the drawings in the following description are only some embodiments described in the present invention, and for those skilled in the art, other drawings can be obtained according to the drawings without creative efforts.

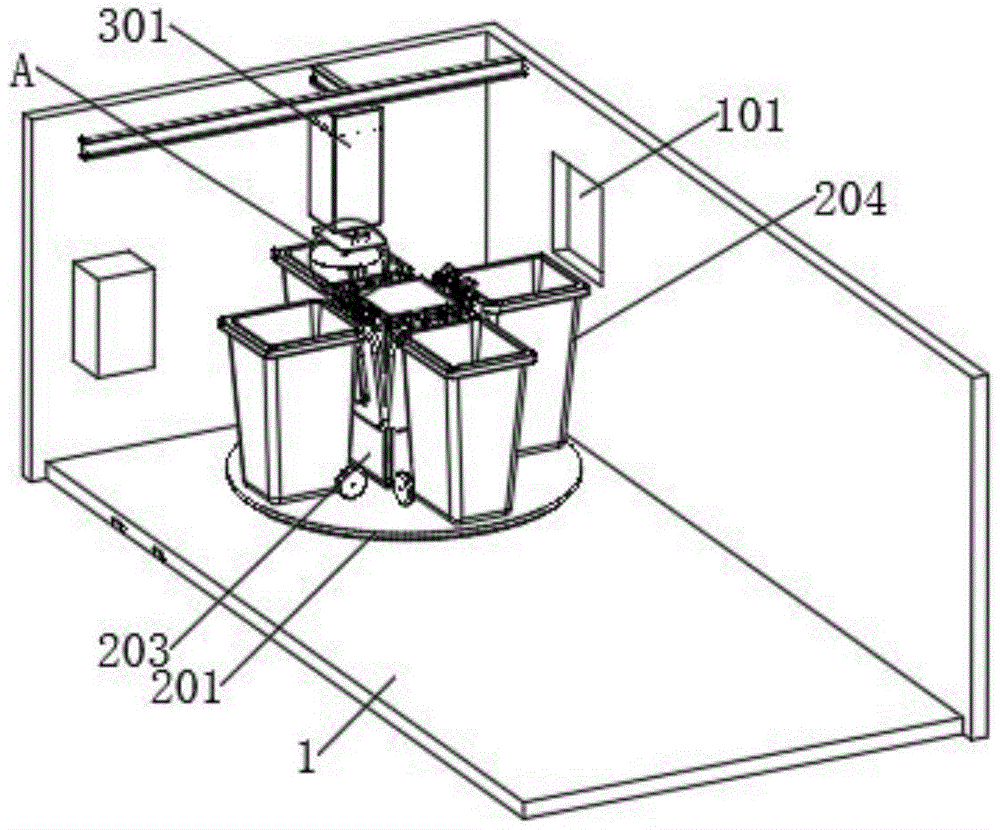

Fig. 1 is a perspective view of a multi-station garbage collection apparatus according to an embodiment of the present invention;

FIG. 2 is a schematic view of the structure at A in FIG. 1;

FIG. 3 is a side cross-sectional view of a multi-station waste collection device according to one embodiment of the present invention;

FIG. 4 is a schematic view of the structure of FIG. 3 at B;

fig. 5 is a schematic structural diagram at B in fig. 3.

In the figure: 1. the garbage collecting device comprises a collecting room, 101, a garbage input port, 2, a multi-station garbage collecting mechanism, 201, a rotary supporting seat, 202, a roller, 203, a limiting box, 204, a garbage collecting barrel, 205, a driving barrel, 206, a driving gear ring, 207, a transmission gear, 208, a transmission rotating shaft, 209, a rotary motor, 210, a motor support, 211, a fixed frame, 212, a clamping jaw, 3, a garbage compacting mechanism, 301, a control box, 302, a pressing plate, 303, a lifting connecting rod, 304, a lifting control plate, 305, a limiting guide rod, 306, a lifting screw rod and 307, and a lifting motor.

Detailed Description

The present invention will be described in detail below with reference to embodiments shown in the drawings. The embodiments are not intended to limit the present invention, and structural, methodological, or functional changes made by those skilled in the art according to the embodiments are included in the scope of the present invention.

The utility model discloses a multi-station garbage collection device, which comprises a collection room 1, a multi-station garbage collection mechanism 2 and a garbage compaction mechanism 3, and is shown in figures 1-5.

Referring to fig. 1, a garbage input port 101 is cut at one side of the collecting chamber 1, and garbage can be input into the garbage collecting can 204 through the garbage input port 101.

Specifically, one side of the garbage throwing-in opening 101 is connected with a photoelectric sensor, and the photoelectric sensor can detect whether the garbage collecting barrel 204 positioned below the garbage throwing-in opening 101 is in a full state.

Referring to fig. 1-4, the multi-station garbage collecting mechanism 2 is disposed in the collecting room 1, the multi-station garbage collecting mechanism 2 includes a rotary supporting seat 201, the rotary supporting seat 201 can support and control rotation of the garbage collecting bin 204, and the garbage collecting bins 204 can store and collect garbage by rotating the garbage collecting bins 204.

Wherein, it has and rotates supporting seat 201 assorted rotation recess to open in the room 1 of collection, can carry out the spacing effect of block to gyro wheel 202 through opening rotation recess.

Referring to fig. 3 to 4, one side of the rotary support base 201 located in the rotary groove is connected with a plurality of rollers 202 which are uniformly distributed, so that the rollers 202 can support and limit the rotary support base 201, thereby improving the convenience of rotation of the rotary support base 201.

Referring to fig. 1, one side of the rotary supporting seat 201 away from the roller 202 is connected with a limiting box 203, and the limiting box 203 can support and limit the garbage collection can 204.

Referring to fig. 1, the outer side of the limiting box 203 is provided with a plurality of garbage collection barrels 204 which are uniformly distributed, and garbage can be collected and stored by the plurality of garbage collection barrels 204, so that the effect of collecting and storing garbage by the garbage collection device is improved.

Referring to fig. 3 to 4, a driving cylinder 205 is arranged in the rotary groove, the driving cylinder 205 is fixedly connected with the rotary support seat 201, the rotary support seat 201 and the driving gear ring 206 can be connected and limited by the driving cylinder 205, and the rotary support seat 201 can be controlled to rotate by driving the driving cylinder 205 in a rotary manner.

Referring to fig. 3-4, a driving ring gear 206 is fixedly connected in the driving cylinder 205, and the driving cylinder 205 can be driven to rotate by the cooperation of the driving ring gear 206 and the driving cylinder 205.

Referring to fig. 3 to 4, a transmission gear 207 is engaged in the drive ring gear 206, and the drive ring gear 206 is driven and controlled by the rotation of the transmission gear 207.

Referring to fig. 3 to 4, a transmission rotating shaft 208 is connected in the transmission gear 207, and the transmission rotating shaft 208 plays a role in supporting, limiting and rotationally driving the transmission gear 207.

Referring to fig. 3-4, a rotating motor 209 is connected to a side of the transmission shaft 208 away from the collecting chamber 1, and the rotating motor 209 provides power to control the driving of the transmission shaft 208 by controlling the operating state of the rotating motor 209.

Referring to fig. 3-4, a motor support 210 is connected between the rotating electrical machine 209 and the rotating support base 201, and the motor support 210 plays a role in supporting and limiting the rotating electrical machine 209, thereby improving the operation stability of the rotating electrical machine 209.

Referring to fig. 3-4, a fixing frame 211 is connected to a side of the limiting box 203 away from the rotary supporting seat 201, and the fixing frame 211 serves to connect the clamping jaws 212 with the limiting box 203.

Referring to fig. 3-4, the outer side of the fixing frame 211 is connected with a plurality of jaws 212 which are uniformly distributed, the jaws 212 are matched with the garbage can 204, and the garbage can 204 can be clamped and limited by the mutual matching of the jaws 212.

Referring to fig. 3-5, the garbage compacting mechanism 3 is disposed on a side of the collecting room 1 away from the garbage input port 101, the garbage compacting mechanism 3 includes a control box 301, and the control box 301 plays a role in supporting, limiting and controlling the lifting of the pressing plate 302.

Referring to fig. 3 to 5, a pressing plate 302 is disposed on one side of the control box 301, the pressing plate 302 is matched with the garbage can 204, and the garbage stored in the garbage can 204 can be squeezed by the lifting and lowering movement of the pressing plate 302, so that the effect of the garbage can 204 on storing the garbage is improved.

Referring to fig. 3-5, one side of the pressing plate 302 close to the control box 301 is connected with a plurality of lifting connecting rods 303 which are uniformly distributed, and the lifting connecting rods 303 play a role in supporting, limiting and controlling the lifting of the control box 301.

Referring to fig. 3-5, a lifting control board 304 is fixedly connected to one end of the lifting connecting rod 303 located in the control box 301, and the lifting control board 304 plays a role in supporting, fixing and controlling movement of the lifting connecting rod 303.

Referring to fig. 3 to 5, a plurality of limit guide rods 305 are slidably connected between the lifting control plate 304 and the control box 301, and the lifting control plate 304 can be limited in movement by the limit guide rods 305.

Referring to fig. 3 to 5, the lifting control plate 304 is internally threaded with a lifting screw 306, and the lifting control plate 304 can be controlled to lift by the rotation of the lifting screw 306 through the cooperation between the lifting screw 306 and the lifting control plate 304.

Referring to fig. 3 to 5, one end of the lifting screw 306, which is far away from the pressing plate 302, is connected to a lifting motor 307 in a transmission manner, and the lifting motor 307 plays a role of providing power, so that the rotation state of the lifting screw 306 can be controlled by controlling the operation state of the lifting motor 307.

When the garbage collecting device is used specifically, garbage can be put into the rotary supporting seat 201 through the garbage putting-in opening 101, the garbage can be collected and stored through the garbage collecting barrel 204, when the garbage collecting barrel 204 is full of garbage, the driving rotating shaft 208 can be driven to rotate by controlling the operation of the rotating motor 209, the driving barrel 205 can be driven to rotate along with the rotation of the driving rotating shaft 208 through the mutual meshing of the driving gear 207 and the driving gear ring 206, the rotary supporting seat 201 can be controlled to rotate through the rotation of the driving barrel 205, the plurality of garbage collecting barrels 204 can be moved in a rotating mode through the rotation control of the rotary supporting seat 201, and the garbage can be collected and stored through the plurality of garbage collecting barrels 204;

the garbage collection barrel 204 which is full of garbage is moved to the lower part of the garbage compacting mechanism 3 under the action of the rotary supporting seat 201, the lifting screw rod 306 is controlled to rotate through controlling the operation of the lifting motor 307, the lifting control plate 304 moves correspondingly along with the rotation of the lifting screw rod 306 under the interaction of the internal and external threads, the lifting control plate 304 moves to drive the pressing plate 302 to move up and down, the garbage in the garbage collection barrel 204 is compacted through the lifting of the pressing plate 302, and the garbage collection barrel 204 can store the garbage.

According to the technical scheme, the utility model has the following beneficial effects:

It will be evident to those skilled in the art that the utility model is not limited to the details of the foregoing illustrative embodiments, and that the present invention may be embodied in other specific forms without departing from the spirit or essential attributes thereof. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the utility model being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.

Furthermore, it should be understood that although the present description refers to embodiments, not every embodiment may contain only a single embodiment, and such description is for clarity only, and those skilled in the art should integrate the description, and the embodiments may be combined as appropriate to form other embodiments understood by those skilled in the art.

Claims

1. A multistation garbage collection device, its characterized in that includes:

the garbage collecting device comprises a collecting room (1), wherein a garbage throwing port (101) is formed in one side of the collecting room (1);

the multi-station garbage collection mechanism (2) is arranged in the collection room (1), the multi-station garbage collection mechanism (2) comprises a rotary supporting seat (201), a rotary groove matched with the rotary supporting seat (201) is formed in the collection room (1) in a chiseled mode, one side, located in the rotary groove, of the rotary supporting seat (201) is connected with a plurality of uniformly distributed idler wheels (202), one side, away from the idler wheels (202), of the rotary supporting seat (201) is connected with a limiting box (203), and a plurality of uniformly distributed garbage collection barrels (204) are arranged on the outer side of the limiting box (203);

the garbage compacting mechanism (3) is arranged on one side, away from the garbage throwing opening (101), of the collecting room (1), the garbage compacting mechanism (3) comprises a control box (301), a pressing plate (302) is arranged on one side of the control box (301), and the pressing plate (302) is matched with the garbage collecting barrel (204).

2. A multi-station garbage collection device according to claim 1, wherein a driving barrel (205) is arranged in the rotary groove, the driving barrel (205) is fixedly connected with the rotary supporting seat (201), and a driving gear ring (206) is fixedly connected in the driving barrel (205).

3. A multi-station garbage collection device according to claim 2, characterized in that a transmission gear (207) is engaged with the driving gear ring (206), a transmission rotating shaft (208) is connected in the transmission gear (207), a rotating motor (209) is connected to one side of the transmission rotating shaft (208) far away from the collection room (1), and a motor support (210) is connected between the rotating motor (209) and the rotating support base (201).

4. A multi-station garbage collection device according to claim 1, wherein a fixing frame (211) is connected to one side of the limiting box (203) far away from the rotary supporting seat (201), a plurality of clamping jaws (212) are uniformly distributed and connected to the outer side of the fixing frame (211), and the clamping jaws (212) are matched with the garbage collection barrel (204).

5. A multi-station garbage collection device according to claim 1, wherein a plurality of lifting connecting rods (303) are uniformly distributed on one side of the pressing plate (302) close to the control box (301), a lifting control plate (304) is fixedly connected to one end of each lifting connecting rod (303) in the control box (301), and a plurality of limiting guide rods (305) are slidably connected between the lifting control plate (304) and the control box (301).

6. A multi-station garbage collection device according to claim 5, wherein the lifting control plate (304) is internally threaded with a lifting screw (306), and one end of the lifting screw (306) far away from the pressing plate (302) is in transmission connection with a lifting motor (307).
