CN216917870U - Truck loader

Info

Publication number: CN216917870U
Application number: CN202220403054.2U
Authority: CN
Inventors: 马锁才; 韩硕; 李文兴; 简珣; 于振中
Original assignee: HRG International Institute for Research and Innovation
Current assignee: HRG International Institute for Research and Innovation
Priority date: 2022-02-24
Filing date: 2022-02-24
Publication date: 2022-07-08
Anticipated expiration: 2032-02-24

Abstract

The utility model discloses a truck loader, which relates to the field of material loading, comprising a bracket, a traveling mechanism, a lifting mechanism, and a loading rack. The traveling mechanism is installed at the bottom of the bracket, and the lifting mechanism is fixedly connected to the On the bracket, the carrier is fixedly connected to the moving end of the lifting mechanism. The utility model has the advantages that the bagged materials on the forklift can be stacked on the truck by the truck loader, the structure is simple, and the use is convenient and flexible.

Description

Truck loader

Technical Field

The utility model relates to the field of material loading, in particular to a truck loading machine.

Background

The bagged materials are convenient and labor-saving to transport through the forklift, and on how to put the bagged materials on the forklift onto the truck, the existing device is complex in structure and inconvenient to use. The patent document with the publication number of CN211895207U discloses a loading device, wherein a conveying line and a loading area are sequentially arranged below a heavy-duty truss robot from left to right, wherein a driving end of the conveying line is used for a laser forklift to carry goods in an area at one end of the heavy-duty truss robot conveying line, which is far away from the heavy-duty truss robot; the loading area is used for loading the carriage of the freight truck; the device occupies a large space and is inconvenient and flexible to use.

SUMMERY OF THE UTILITY MODEL

The utility model aims to solve the technical problem of providing a truck loader which is convenient and flexible to use.

The utility model solves the technical problems through the following technical means: the truck loader comprises a support, a traveling mechanism, a lifting mechanism and a load carrying rack, wherein the traveling mechanism is installed at the bottom of the support, the lifting mechanism is fixedly connected to the support, and the load carrying rack is fixedly connected to the moving end of the lifting mechanism. Can put the truck with the bagged materials sign indicating number on the fork truck through truck carloader, simple structure makes things convenient for nimble use.

As an optimized technical scheme, the travelling mechanism comprises two groups of moving wheels which are symmetrically arranged, and each moving wheel is provided with power drive and can freely steer.

As the optimized technical scheme, the goods carrying rack comprises an installation rack, a bottom plate, a push plate and a telescopic mechanism, wherein the bottom plate is located below the installation rack, and the push plate is installed on the front side of the installation rack through the telescopic mechanism.

As an optimized technical scheme, the goods carrying rack further comprises side plates, and the two side plates are respectively installed on two sides of the installation rack.

As an optimized technical scheme, the goods carrying rack further comprises side plate clamping mechanisms, the two side plates are respectively in sliding fit with the two sides of the mounting rack, and the two side plate clamping mechanisms are respectively and fixedly connected with the two sides of the mounting rack and the moving ends of the mounting rack respectively and fixedly connected with the two side plates.

As an optimized technical scheme, the goods carrying rack further comprises a bottom plate swinging push rod, wherein the bottom plate swinging push rod is fixedly connected to the mounting frame, and the swinging end of the bottom plate swinging push rod is fixedly connected with the bottom plate.

The utility model has the advantages that: can put the truck with the bagged materials sign indicating number on the fork truck through truck carloader, simple structure makes things convenient for nimble use.

Drawings

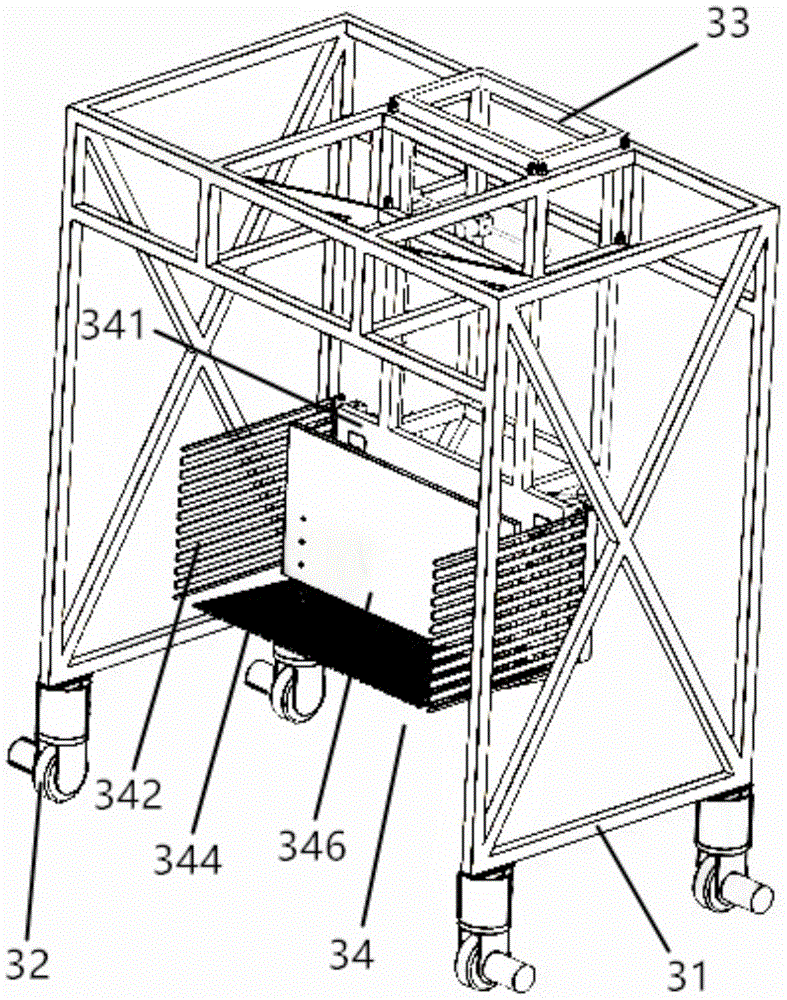

Fig. 1 is a schematic structural view of a first view angle of a truck loader according to an embodiment of the utility model.

Fig. 2 is a schematic structural view of a truck loader according to an embodiment of the utility model with one side panel removed from a second view.

Fig. 3 is a schematic diagram of the state of the truck loader docked with the rotary forklift according to the embodiment of the utility model.

Fig. 4 is a schematic view of a loading state of a truck loader according to an embodiment of the utility model.

Detailed Description

In order to make the objects, technical solutions and advantages of the embodiments of the present invention clearer, the technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the embodiments of the present invention, and it is obvious that the described embodiments are some embodiments of the present invention, but not all embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

As shown in fig. 1 and 2, the truck-loader 3 includes a support 31, a traveling mechanism 32, a lifting mechanism 33, and a loading rack 34; the travelling mechanism 32 is arranged at the bottom of the bracket 31 and comprises two groups of symmetrically arranged moving wheels, wherein each group of moving wheels is provided with two moving wheels, and each moving wheel is provided with power drive and can freely turn; the lifting mechanism 33 is fixedly connected to the support 31, the load carrier 34 is fixedly connected to the moving end of the lifting mechanism 33, and the lifting mechanism 33 can drive the load carrier 34 to lift.

The goods shelf 34 comprises a mounting rack 341, a side plate 342, a side plate clamping mechanism 343, a bottom plate 344, a bottom plate swinging push rod 345, a push plate 346 and a telescopic mechanism 347; the two side plates 342 are respectively matched with the two sides of the mounting rack 341 in a sliding manner; the two side plate clamping mechanisms 343 are respectively and fixedly connected to two sides of the mounting frame 341, and the moving ends are respectively and fixedly connected with the two side plates 342, so that the two side plates 342 can be driven to move close to or away from each other in a small range; the bottom plate 344 is located below the mounting frame 341; the bottom plate swinging push rod 345 is fixedly connected to the mounting frame 341, and the swinging end is fixedly connected with the bottom plate 344, so that the bottom plate 344 can be driven to swing in a small amplitude; the push plate 346 is arranged on the front side of the mounting frame 341 through a telescopic mechanism 347, and the telescopic mechanism 347 can drive the push plate 346 to move close to or far away from the mounting frame 341; the lifting mechanism 33, the side plate clamping mechanism 343, the bottom plate swinging push rod 345 and the telescoping mechanism 347 are all driven by a motor.

As shown in fig. 3 and 4, the truck loader of the utility model has the working principle that: the rotary forklift 2 moves to the position near the truck loader 3, the material 4 is transferred to the truck loader 3, and a side plate 342 of the truck loader 3 clamps the material 4; then the truck loader 3 moves to the truck, and the carriage of the truck passes through the middle of the bracket 31 until the carriage moves to a position needing stacking and then stops; then the lifting mechanism 33 drives the loading rack 34 to descend, and the push plate 346 pushes out the material 4 codes in the carriage after the loading rack 34 is in place; in the loading process of the truck loader 3, the forklift 2 is rotated to return to take the next material; and repeating the steps to stack the materials 4 in the truck compartment from bottom to top and from inside to outside until the truck is full.

The above examples are only intended to illustrate the technical solution of the present invention, but not to limit it; although the present invention has been described in detail with reference to the foregoing embodiments, it will be understood by those of ordinary skill in the art that: the technical solutions described in the foregoing embodiments may still be modified, or some technical features may be equivalently replaced; and such modifications or substitutions do not depart from the spirit and scope of the corresponding technical solutions of the embodiments of the present invention.

Claims

1. The utility model provides a truck loading machine which characterized in that: the lifting mechanism is fixedly connected to the support, and the goods carrying rack is fixedly connected to the moving end of the lifting mechanism.

2. The truck loader of claim 1, characterized in that: the running mechanism comprises two groups of moving wheels which are symmetrically arranged, and each moving wheel is provided with power drive and can freely turn.

3. The truck loader of claim 1, characterized in that: the goods carrying rack comprises a mounting rack, a bottom plate, a push plate and a telescopic mechanism, wherein the bottom plate is located below the mounting rack, and the push plate is installed on the front side of the mounting rack through the telescopic mechanism.

4. The truck loader of claim 3, characterized in that: the goods carrying rack further comprises side plates, and the two side plates are respectively installed on two sides of the installation rack.

5. The truck loader of claim 4, characterized in that: the goods carrying rack further comprises side plate clamping mechanisms, the two side plates are respectively in sliding fit with the two sides of the mounting rack, and the two side plate clamping mechanisms are respectively and fixedly connected with the two sides of the mounting rack and the moving ends of the mounting rack respectively and fixedly connected with the two side plates.

6. The truck loader of claim 3, characterized in that: the goods carrying rack further comprises a bottom plate swinging push rod, and the bottom plate swinging push rod is fixedly connected to the mounting frame, and the swinging end of the bottom plate swinging push rod is fixedly connected with the bottom plate.
