CN216907113U - Draw-bar box with baffle - Google Patents

Abstract

The utility model belongs to the technical field of trolley cases, in particular to a trolley case with baffles. There is a groove inside, a baffle is arranged inside the groove, a lower beam and an upper beam are respectively arranged at the upper and lower ends of the baffle, and the outer wall of the baffle is provided with a baffle frame, and the outer wall of the upper beam is provided with a space. A first metal rod is arranged inside the empty slot. By arranging baffles, high-elasticity elastic side walls, high-elasticity elastic belts and small baffles, the utility model can effectively expand the outer load space of the box body, and can put bags or some bags into the high-elasticity elastic side walls. , can liberate the user's hands, make the user's travel more relaxed and pleasant, and also effectively increase the load-carrying function of the box. The fixation of large and small bags is required.

Description

A trolley case with baffle

technical field

The utility model relates to the technical field of trolley cases, in particular to a trolley case with baffles.

Background technique

The trolley case refers to the luggage with trolleys and rollers. It is widely used because of its convenience. At the same time, the trolley case is also equipped with a trolley because of the box. There are single-tube trolleys and double-tube trolleys. The tube is divided to facilitate dragging when walking, which greatly reduces the burden. The trolley case can be carried or dragged. As one of the daily utensils that people use to travel, the trolley case plays a very important role. It greatly improves the The convenience of people traveling, the early suitcases were made of wood or other heavy materials. With the popularity of air travel, the materials of suitcases tended to be lighter, hard plastic or cloth.

The existing technology has the following problems:

The traditional trolley case does not have additional space for external loading. In addition to carrying the trolley case with you when traveling or on a business trip, it has become the norm to carry a bag and some bags, which will cause too many bags, which will lead to inconvenience. Difficulties, and the hands are not free, making travel or business trips not easy and pleasant.

Utility model content

Aiming at the deficiencies of the prior art, the utility model provides a trolley case with baffles, which solves the problem that the traditional trolley case does not have an additional external load space, and in addition to carrying the trolley case with you when traveling or on a business trip, the Carrying a bag and some bags has also become the norm, which will cause too many bags, which will lead to the problem of rushing around and inconvenience.

In order to achieve the above purpose, the utility model provides the following technical solutions: a trolley case with baffles, including a case body, a first pocket is provided on one side of the outer wall of the case body, and the inside of the first pocket is provided with a Bottom frame, the interior of the bottom frame is provided with a groove, the interior of the groove is provided with a baffle, the upper and lower ends of the baffle are respectively provided with a lower beam and an upper beam, and the outer wall of the baffle is provided with baffle frame, the outer wall of the upper beam is provided with an empty groove, the interior of the empty groove is provided with a first metal rod, the outer wall of the first metal rod is provided with a high elastic elastic band, and the bottom of the upper beam is The end is provided with a second metal rod, the outer wall of the second metal rod is provided with a high-elastic elastic side wall, the outer wall of the upper beam is provided with a small baffle, and the outer wall of the baffle is provided with a decorative hole, The back of the box body is provided with a pull rod, and the upper end of the first pocket is provided with a first bag cover.

As a preferred technical solution of the present invention, the lower end of the first pocket is provided with a second pocket, and the upper end of the second pocket is provided with a second bag cover.

As a preferred technical solution of the present invention, a handle is provided on the side wall of the box body, and a zipper is provided on one side of the handle and located on the outer wall of the box body.

As a preferred technical solution of the present invention, the bottom end of the box body is symmetrically provided with runners, the number of the runners is four, and the connection ends of the runners are fixedly connected to the box body.

As a preferred technical solution of the present invention, the size of the baffle is matched with the size of the groove, the baffle frame and the baffle are fixedly connected, and the connecting end of the high elastic side wall is connected to the second The metal rod is fixedly connected, and one end of the high elastic elastic band is fixedly connected with the first metal rod.

As a preferred technical solution of the present invention, the shape of the decorative holes is circular, the number of decorative holes is several groups, and the decorative holes are evenly distributed on the baffle.

As a preferred technical solution of the present invention, the shape of the bottom frame is U-shaped, and the materials of the bottom frame and the baffle are hard plastics.

As a preferred technical solution of the present invention, the outer walls of the first bag cover and the second bag cover are provided with snap buttons, the snap buttons are circular in shape, and the number of snap buttons is four groups.

Compared with the prior art, the utility model provides a trolley case with baffles, which has the following beneficial effects:

1. This kind of trolley case with baffle is provided with baffle, high elastic elastic side wall, high elastic elastic band and small baffle. When the trolley case is used, first pull the baffle out of the first pocket, and then put the baffle out of the first pocket. The small baffle is opened, and then the high-elastic elastic side wall and the high-elastic elastic band are pulled open, which effectively expands the outer load space of the box. The bag or some bags can be put into the high-elastic elastic side wall, which can liberate the user's Both hands make the user travel more relaxed and pleasant, and also effectively increase the carrying capacity of the box. In addition, the high-elastic elastic side walls and high-elastic elastic straps have greater elasticity, which can be applied to the fixing needs of bags of different sizes. , the operation is simple and convenient, and the practicality of the trolley case is improved.

2. The trolley case with baffle is provided with a bottom frame, a groove, a first pocket and a first bag cover. After the baffle is used, first slide the baffle into the first pocket through the groove. In the bottom frame, the baffle can be put into the first pocket, and then the first pocket cover can be covered, which can ensure the cleanliness of the box when it is placed, and prevent the phenomenon of obstruction during storage and placement, so as to facilitate the storage of the box. , In addition, when not needed, it can be removed as a whole, and the empty first pocket can be used to store documents, the operation is simple and convenient, and the practicability of the trolley case is improved.

Description of drawings

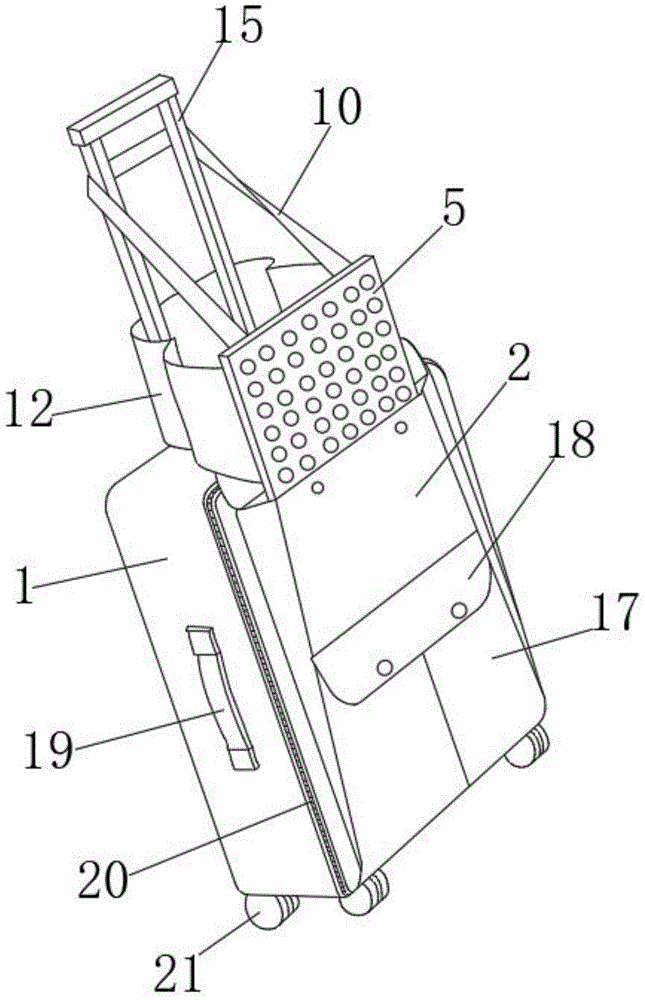

Fig. 1 is the appearance structure schematic diagram of the utility model trolley case;

Figure 2 is a schematic structural diagram of the baffle plate of the present invention;

FIG. 3 is a schematic structural diagram of the utility model in the storage state of the baffle.

In the figure: 1. Box body; 2. First pocket; 3. Bottom frame; 4. Groove; 5. Baffle plate; 6. Lower beam; 7. Upper beam; 8. Bezel frame; 9. Empty slot; 10, the first metal rod; 11, the high elastic elastic band; 12, the high elastic elastic side wall; 13, the small baffle; 14, the decorative hole; , The second bag cover; 19, the handle; 20, the zipper; 21, the wheel; 22, the second metal rod.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to Figures 1-3, in this embodiment: a trolley case with baffles, including a box body 1, a first pocket 2 is provided on one side of the outer wall of the box body 1, and the first pocket 2 is used to place the baffle plate A bottom frame 3 is provided inside the first pocket 2, and a groove 4 is provided inside the bottom frame 3 for sliding and storing the baffle 5, and the interior of the groove 4 is provided with a baffle 5, The upper and lower ends of the baffle 5 are respectively provided with a lower beam 6 and an upper beam 7, and the outer wall of the baffle 5 is provided with a baffle frame 8, and the outer wall of the upper beam 7 is provided with an empty slot 9, and the interior of the empty slot 9 is provided. There is a first metal rod 10 for installing the high elastic elastic band 11, the outer wall of the first metal rod 10 is provided with a high elastic elastic band 11, and the bottom end of the upper beam 7 is provided with a second metal rod 22 for installing the high elastic elastic band Side wall 12, the outer wall of the second metal rod 22 is provided with a high elastic elastic side wall 12, pull the baffle 5 out of the first pocket 2, then open the small baffle 13, and then pull open the high elastic elastic side wall 12 and The high-elastic elastic band 11 effectively expands the external load space of the box body 1, and can put a bag or some bags into the high-elastic elastic side wall 12, which can liberate the user's hands. The outer wall of the upper beam 7 is provided with small The baffle 13 and the outer wall of the baffle 5 are provided with decorative holes 14 to achieve ventilation and reduce their own weight.

In this embodiment, the lower end of the first pocket 2 is provided with a second pocket 17, and the upper end of the second pocket 17 is provided with a second bag cover 18. The second pocket 17 can be used to store small objects or documents, and the second bag cover 18 can Play a blocking role; the side wall of the box body 1 is provided with a handle 19, one side of the handle 19 and the outer wall of the box body 1 is provided with a zipper 20, the handle 19 can extract the box body 1, and the zipper 20 can be opened Or close the box cover; the bottom end of the box body 1 is symmetrically provided with runners 21, the number of runners 21 is four groups, and the connection end of the runners 21 is fixedly connected with the box body 1, and the runners 21 are convenient for the box body 1 to move. The size of the baffle 5 matches the size of the groove 4, the baffle frame 8 is fixedly connected with the baffle 5, the connecting end of the high-elastic elastic side wall 12 is fixedly connected with the second metal rod 22, and the high-elastic elastic belt 11 is fixedly connected. One end is fixedly connected with the first metal rod 10, first pull the baffle 5 out of the first pocket 2, then open the small baffle 13, and then pull open the high elastic elastic side wall 12 and the high elastic elastic belt 11, effectively expanding The outer load space of the box body 1 can be saved, and the bag or some bags can be put into the high elastic elastic side wall 12, which can liberate the user's hands, make the user travel more relaxed and happy, and also effectively increase the box body 1. In addition, the high-elastic elastic side wall 12 and the high-elastic elastic band 11 have greater elasticity, which can be applied to the fixing needs of bags of different sizes; the shape of the decorative hole 14 is circular, and the number of decorative holes 14 There are several groups, the decorative holes 14 are evenly distributed on the baffle 5, and the decorative holes 14 can make the baffle 5 achieve the effect of ventilation and reduce its own weight; the shape of the bottom frame 3 is U-shaped, and the The materials are all rigid plastics; the outer walls of the first bag cover 16 and the second bag cover 18 are provided with snap buttons, the shape of the snap buttons is circular, and the number of snap buttons is four groups, and the snap buttons are used for pockets and bags connection of the cover.

The working principle and use process of the utility model: when the trolley case is used, the baffle 5 is first pulled out of the first pocket 2, then the small baffle 13 is opened, and then the high-elastic elastic side walls 12 and the high-elastic elastic belt are opened. 11. The external load space of the box body 1 is effectively expanded, and the bag or some bags can be put into the high elastic elastic side wall 12, which can liberate the user's hands, make the user travel more relaxed and pleasant, and also effective. The loading function of the box body 1 is increased. In addition, the high elastic elastic side walls 12 and the high elastic elastic band 11 have greater elasticity, which can be suitable for the fixing needs of bags of different sizes, and improve the practicability of the trolley case. Hold the pull rod 15 and push it, so that the runner 21 rotates and then pushes the box 1. After the baffle 5 is used up, first slide the baffle 5 into the chassis 3 in the first pocket 2 through the groove 4, so that the baffle 5 is used. The board 5 is put into the first pocket 2, and then the first pocket cover 16 is covered, which can ensure the cleanliness of the box body 1 when it is placed, and prevent the phenomenon of obstruction during storage and placement, so as to facilitate the storage of the box body 1. In addition, , when it is not needed, it can be removed as a whole, and the empty first pocket 2 can be used to store documents, which improves the practicability of the trolley case.

Finally, it should be noted that the above are only the preferred embodiments of the present invention, and are not intended to limit the present invention. , it is still possible to modify the technical solutions described in the foregoing embodiments, or perform equivalent replacements to some of the technical features. Any modification, equivalent replacement, improvement, etc. made within the spirit and principle of the present invention shall be included in the protection scope of the present invention.

Claims (8)

1. The utility model provides a draw-bar box of taking baffle, includes box (1), its characterized in that: a first pocket (2) is arranged on one side of the outer wall of the box body (1), a bottom frame (3) is arranged inside the first pocket (2), a groove (4) is formed inside the bottom frame (3), a baffle (5) is arranged inside the groove (4), a lower cross beam (6) and an upper cross beam (7) are respectively arranged at the upper end and the lower end of the baffle (5), a baffle frame (8) is arranged on the outer wall of the baffle (5), a hollow groove (9) is formed in the outer wall of the upper cross beam (7), a first metal rod (10) is arranged inside the hollow groove (9), a high-elastic band (11) is arranged on the outer wall of the first metal rod (10), a second metal rod (22) is arranged at the bottom end of the upper cross beam (7), a high-elastic band (12) is arranged on the outer wall of the second metal rod (22), a small baffle (13) is arranged on the outer wall of the upper cross beam (7), the outer wall of the baffle (5) is provided with a decorative hole (14), the back of the box body (1) is provided with a pull rod (15), and the upper end of the first pocket (2) is provided with a first pocket cover (16).

2. The draw-bar box with baffles of claim 1, wherein: the lower end of the first pocket (2) is provided with a second pocket (17), and the upper end of the second pocket (17) is provided with a second pocket cover (18).

3. The draw-bar box with baffles of claim 1, wherein: the side wall of the box body (1) is provided with a handle (19), and a zipper (20) is arranged on one side of the handle (19) and is positioned on the outer surface wall of the box body (1).

4. The draw-bar box with baffles of claim 1, wherein: the bottom symmetry of box (1) is provided with runner (21), the quantity of runner (21) is four groups, and the link of runner (21) is fixed connection with box (1).

5. The draw-bar box with baffles of claim 1, wherein: the size of baffle (5) and the size phase-match of recess (4), baffle frame (8) are fixed connection with baffle (5), the link of high-elastic elasticity side wall (12) is fixed connection with second metal pole (22), the one end and first metal pole (10) of high-elastic elasticity (11) are fixed connection.

6. The draw-bar box with baffles of claim 1, wherein: the shape of the decoration holes (14) is circular, the number of the decoration holes (14) is a plurality of groups, and the decoration holes (14) are uniformly distributed on the baffle plate (5).

7. The draw-bar box with baffles of claim 1, wherein: the chassis (3) is U-shaped, and the chassis (3) and the baffle (5) are both made of hard plastics.

8. The draw-bar box with baffles of claim 1, wherein: snap fasteners are arranged on the outer surface walls of the first pocket cover (16) and the second pocket cover (18), the snap fasteners are circular, and the number of the snap fasteners is four.
