CN216893244U - Dunjia type composite aluminum plate building facade structure with a motif element - Google Patents

Abstract

The utility model discloses a Dunjia type composite aluminum plate building facade structure with motif elements, which relates to the field of building facade structures. The utility model comprises a dragon skeleton, a concave aluminum-plastic board and a convex aluminum-plastic board which are arranged at the front of the dragon skeleton and are regularly arranged in the form of "yin and yang" motif elements; the dragon skeleton comprises a vertical keel, a horizontal keel, a Beams; concave aluminum-plastic panels and convex aluminum-plastic panels are respectively installed on the ends of the cantilever beams through the first fixing structure and the second fixing structure, and the side parts correspond and fit together to form an integral building facade. The utility model can well hide the keel without leaking out, can make the original monotonous facade show different light and shade changes at different times and different angles, avoid the splicing gap being too large when the angle is too large, and ensure the The overall smoothness of the façade avoids the inconspicuous changes of light and shade when the angle is too small, and ensures the rich changes of light and shade on the façade; making the building both a sense of rhythm and the beauty of change.

Description

Dunjia type composite aluminum plate building facade structure with a motif element

technical field

The utility model belongs to the field of building facade structures, in particular to a Dunjia type composite aluminum plate building facade structure with motif elements.

Background technique

The exterior facade of the existing building motif elements adopts a square frame to install a single-layer aluminum plate through fixing parts such as screw corners. The splicing gap between each unit is too large and the sense of flatness is poor; The façade angle of the motif element is too small, the light and shade changes are not obvious, and the dynamic and aesthetic changes of the building façade are poor. Therefore, in view of the above problems, it is of great significance to provide a Dunjia-type composite aluminum plate building facade structure with motif elements.

Utility model content

The utility model provides a Dunjia type composite aluminum plate building exterior facade structure with motif elements, which solves the above problems.

In order to solve the above-mentioned technical problems, the utility model is realized through the following technical solutions:

The utility model relates to a Dunjia-type composite aluminum plate building facade structure with motif elements, which comprises a dragon skeleton and a concave aluminum-plastic panel with Dunjia-type motif elements arranged in a regular arrangement of "yin and yang" and installed at the front of the dragon skeleton. and convex aluminum-plastic panels; the concave aluminum-plastic panels and convex aluminum-plastic panels are arranged to form an external facade;

The keel frame includes several vertically arranged vertical keels, several horizontal keels connecting each vertical keel horizontally, and a cantilever beam installed on the side of the connection position between the vertical keels and the horizontal keels;

The concave aluminum-plastic panel and the convex aluminum-plastic panel are both spindle-shaped, the pointed end of the convex aluminum-plastic panel is upward, the pointed end of the concave aluminum-plastic panel is downward, and the concave aluminum-plastic panel is The convex aluminum-plastic panels are respectively installed on the ends of the cantilever beams through the first fixing structure and the second fixing structure, and the side parts are corresponding and fit together to form an integral building facade.

Further, both sides of the concave aluminum-plastic panel are symmetrically provided with first scraping edges facing inward, and a first reinforcing rib that is consistent with the shape of the concave aluminum-plastic panel is disposed on the rear side of the concave aluminum-plastic panel; The opening angle of the outer part of the board is 150°; the included angle between the concave aluminum-plastic board and the horizontal plane is 15°.

Further, the first fixing structure includes a cantilever beam reinforcing rib installed vertically between the upper and lower cantilever beams, a suspension keel installed laterally at the ends of the upper and lower cantilever beams, and connected to the side of the suspension keel and the concave aluminum-plastic panel. The first bending steel connecting piece between the first reinforcing ribs, the first bending steel connecting piece is a corner rivet assembly.

Further, both sides of the convex aluminum-plastic panel are symmetrically provided with second scraping edges facing inward, and a second reinforcing rib that is consistent with the shape of the convex aluminum-plastic panel is disposed on the rear side of the convex aluminum-plastic panel; the The opening angle of the inner side of the convex aluminum-plastic panel is 150°; the included angle between the convex aluminum-plastic panel and the horizontal plane is 15°.

Further, the second fixing structure includes a connecting block connected with the second reinforcing rib by bolts and a second bending steel connecting piece for connecting the connecting block and the cantilever beam; the second bending steel connecting piece is an angle Code rivet assembly.

The utility model includes the following beneficial effects with respect to the prior art:

1. The utility model adopts the design of the combination of the facade motif element form and the structural keel, the dragon skeleton is arranged after the scraping edge of the motif element, and the continuity of the scraper is used to hide the keel well behind it without leaking out, Make the building more refined.

2. The motif element of the present utility model is in the shape of a spindle as a whole, with a horizontal bend of about 15°, so that the original monotonous facade presents different light and shade changes at different times and different angles, avoiding the splicing gap when the angle is too large. If it is too large, it ensures the overall smoothness of the façade, avoids the inconspicuous change of light and shade when the angle is too small, and ensures the rich light and shade of the façade.

3. In the splicing method of the motif elements of the present utility model, the arrangement of "yin and yang" is adopted: the sharper end faces upwards and is placed on the outside, which is "yang"; the sharper end faces down and is placed on the inside, It is "yin", and the two are arranged alternately, which further enriches the changes of the building facade, making the building both a sense of rhythm and the beauty of change.

Of course, any product implementing the present invention does not necessarily need to simultaneously achieve all of the above-mentioned advantages.

Description of drawings

In order to illustrate the technical solutions of the embodiments of the present invention more clearly, the following briefly introduces the accompanying drawings used in the description of the embodiments. Obviously, the accompanying drawings in the following description are only some embodiments of the present invention. For those of ordinary skill in the art, other drawings can also be obtained from these drawings without creative effort.

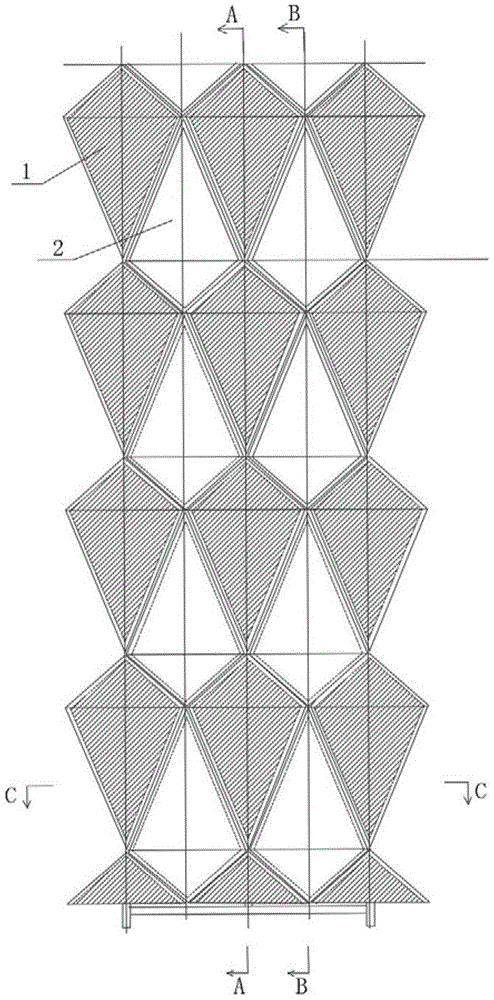

Fig. 1 is the overall structure schematic diagram of the Dunjia type composite aluminum plate building facade structure of a kind of motif element of the present utility model;

Fig. 2 is A-A sectional view in Fig. 1;

Fig. 3 is B-B sectional view in Fig. 1;

Fig. 4 is C-C sectional view in Fig. 1;

5 is a schematic structural diagram of a convex aluminum-plastic panel and a second fixing structure;

6 is a top view of the structure of the convex aluminum-plastic panel, the second fixed structure, and the dragon skeleton;

FIG. 7 is a top view of the structure of a convex aluminum-plastic panel;

Figure 8 is a right view of the structure of the concave aluminum-plastic panel, the first fixed structure, and the dragon skeleton;

9 is a top view of the structure of the concave aluminum-plastic panel;

Fig. 10 is the skeleton diagram of the building facade of the existing motif element;

In the accompanying drawings, the list of components represented by each number is as follows:

1- concave aluminum composite panel, 101- first scraping edge, 102- first reinforcing rib, 2- convex aluminum composite panel, 201- second scraping edge, 202- second reinforcing rib, 3- vertical keel, 4- Horizontal keel, 5-cantilever beam, 6-cantilever beam stiffener, 7-first bending steel connector, 8-hanging keel, 9-connecting block, 10-second bending steel connector.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

In the description of the present invention, it should be understood that the terms "front", "vertical", "lateral", "side", "end", "one end" and the like indicate orientation or positional relationship, only In order to facilitate the description of the present invention and simplify the description, it is not indicated or implied that the components or elements referred to must have a specific orientation, be constructed and operated in a specific orientation, and therefore should not be construed as a limitation of the present invention.

As shown in Figure 10, the exterior facade of the existing building motif element adopts a square frame to install a single-layer aluminum plate through fixing parts such as screw corner codes. The splicing gap between each unit is too large and flat. In addition, the facade angle of the motif elements of the building body is too small, the light and shade changes are not obvious, and the dynamic and aesthetic changes of the building facade are poor.

Please refer to FIGS. 1-9 , the Dunjia-type composite aluminum plate building facade structure of a motif element of the present invention includes a dragon skeleton, and Dunjia installed in the front of the dragon skeleton in a regular arrangement of "yin and yang". The concave aluminum-plastic panel 1 and the convex-type aluminum-plastic panel 2 of the motif element; the concave-type aluminum-plastic panel 1 and the convex-type aluminum-plastic panel 2 are arranged to form the facade;

The keel frame includes a plurality of vertical keels 3, a plurality of horizontal keels 4 that are connected horizontally between each vertical keel 3, and a cantilever beam 5 installed on the side of the connection position of the vertical keel 3 and the horizontal keel 4;

The concave aluminum-plastic panel 1 and the convex aluminum-plastic panel 2 are both spindle-shaped. The aluminum-plastic panels 2 are respectively installed on the ends of the cantilever beams 5 through the first fixing structure and the second fixing structure, and the side parts correspond and fit together to form an integral building facade.

Among them, the two sides of the concave aluminum-plastic panel 1 are symmetrically provided with first scraping edges 101 facing inward, and the rear side of the concave aluminum-plastic panel 1 is provided with a first reinforcing rib 102 consistent with the shape of the concave aluminum-plastic panel 1; The opening angle of the outer part of the plate 1 is 150°; the angle between the concave aluminum-plastic plate 1 and the horizontal plane is 15°.

Among them, the first fixing structure includes a cantilever beam reinforcing rib 6 vertically installed between the upper and lower two cantilever beams 5, a suspension keel 8 laterally installed on the ends of the upper and lower two cantilever beams 5, connected to the side of the suspension keel 8 and the concave aluminum The first bending steel connecting piece 7 between the first reinforcing ribs 102 of the plastic plate 1 is a corner rivet assembly.

Wherein, both sides of the convex aluminum-plastic panel 2 are symmetrically provided with second scraping edges 201 facing inward, and a second reinforcing rib 202 having the same shape as the convex aluminum-plastic panel 2 is provided on the rear side of the convex aluminum-plastic panel 2; The opening angle of the inner side of the convex aluminum-plastic panel 2 is 150°; the included angle between the convex aluminum-plastic panel 2 and the horizontal plane is 15°.

The second fixing structure includes a connecting block 9 connected to the second reinforcing rib 202 by bolts and a second bending steel connecting piece 10 for connecting the connecting block 9 and the cantilever beam 5; the second bending steel connecting piece 10 is Corner rivet assembly.

Among them, the surface of the suspension keel 8 is coated with fluorocarbon rollers; the surfaces of the vertical keel 3, the horizontal keel 4 and the cantilever beam 5 are hot-dip galvanized; the cantilever beam reinforcement 6 is made of aluminum alloy reinforcement.

The innovation of the facade form of the utility model brings a new architectural experience, and the changes of light and shadow are more abundant. The innovation of structural form makes the structure and façade effect harmonious and unified.

The combination design of the façade motif element form and the structural keel: the main keel is set behind the crease of the motif element, and the continuity of the crease is used to hide the keel well behind it without leaking out, making the building more refined; The keel is arranged along the middle crease to distribute the force reasonably, enhance the strength of the material, ensure the flatness of the material, and avoid the unevenness of the material caused by the connection between the edge of the material and the main frame.

The motif element is in the shape of a spindle as a whole, and the horizontal bending is about 15°, so that the original monotonous facade presents different light and shade changes at different times and different angles. The bending of about 15° avoids splicing when the angle is too large. The gap is too large, which ensures the overall flatness of the facade, avoids the indistinct changes in light and shade when the angle is too small, and ensures the rich changes in light and shade of the facade.

As for the connection between the motif element and the main keel, the main keel is set behind the crease of the motif element. Since the crease is continuous, the keel can be well hidden behind it without leaking out, making the building more refined. The keel is set along the middle crease on the façade motif element structure, which distributes the force reasonably, enhances the strength of the material, and at the same time ensures the flatness of the material, and also avoids the unevenness of the material caused by the connection between the edge of the material and the main frame.

Beneficial effects:

1. The utility model adopts the design of the combination of the facade motif element form and the structural keel, the dragon skeleton is arranged after the scraping edge of the motif element, and the continuity of the scraper is used to hide the keel well behind it without leaking out, Make the building more refined.

2. The motif element of the present utility model is in the shape of a spindle as a whole, with a horizontal bend of about 15°, so that the original monotonous facade presents different light and shade changes at different times and different angles, avoiding the splicing gap when the angle is too large. If it is too large, it ensures the overall smoothness of the façade, avoids the inconspicuous change of light and shade when the angle is too small, and ensures the rich light and shade of the façade.

3. In the splicing method of the motif elements of the present utility model, the arrangement of "yin and yang" is adopted: the sharper end faces upwards and is placed on the outside, which is "yang"; the sharper end faces down and is placed on the inside, It is "yin", and the two are arranged alternately, which further enriches the changes of the building facade, making the building both a sense of rhythm and the beauty of change.

The preferred embodiments of the present invention disclosed above are only used to help illustrate the present invention. The preferred embodiments do not describe all the details, nor do they limit the invention to only the described embodiments. Obviously, many modifications and variations are possible in light of the content of this specification. This specification selects and specifically describes these embodiments in order to better explain the principle and practical application of the present invention, so that those skilled in the art can well understand and utilize the present invention. The present invention is limited only by the claims and their full scope and equivalents.

Claims (5)

1. A building facade structure of a shield type composite aluminum plate of a mother element is characterized by comprising a keel frame, and a concave aluminum-plastic plate (1) and a convex aluminum-plastic plate (2) which are arranged at the front part of the keel frame and are provided with shield type mother elements in a positive-negative alternative regular arrangement; the concave aluminum-plastic panel (1) and the convex aluminum-plastic panel (2) are arranged to form an outer vertical surface;

the keel frame comprises a plurality of vertical keels (3) which are vertically arranged, a plurality of transverse keels (4) which are transversely connected among the vertical keels (3), and outriggers (5) which are arranged on the side parts of the connecting positions of the vertical keels (3) and the transverse keels (4);

concave type aluminium-plastic panel (1) and protruding type aluminium-plastic panel (2) are spindle-shaped, the sharp one end of protruding type aluminium-plastic panel (2) is up, the sharp one end of concave type aluminium-plastic panel (1) is down, concave type aluminium-plastic panel (1), protruding type aluminium-plastic panel (2) are installed in the tip of outrigger (5) through first fixed knot structure, second fixed knot respectively, and the lateral part is corresponding and the laminating forms outer facade of integral building.

2. The latent composite aluminum plate building facade structure of claim 1, wherein the concave aluminum-plastic panel (1) is symmetrically provided with inward first scraping edges (101) at both sides, and the first reinforcing ribs (102) having the same shape as the concave aluminum-plastic panel (1) are arranged at the rear side of the concave aluminum-plastic panel (1); the opening angle of the outer side part of the concave aluminum-plastic plate (1) is 150 degrees; the included angle between the concave aluminum-plastic plate (1) and the horizontal plane is 15 degrees.

3. The outer facade structure of latent shell formula composite aluminum plate of theme element building of claim 1, characterized in that, first fixed knot constructs including vertical cantilever beam strengthening rib (6) of installing between two upper and lower cantilever beams (5), transversely install in hanging fossil fragments (8) of two upper and lower cantilever beam (5) tip, connect first bending steel connecting piece (7) between first strengthening rib (102) of hanging fossil fragments (8) lateral part and concave type plastic-aluminum board (1), first bending steel connecting piece (7) are angle sign indicating number rivet subassembly.

4. The latent composite aluminum plate building facade structure of a theme element according to claim 1, wherein second scraping edges (201) facing inward are symmetrically provided at both sides of the convex aluminum-plastic plate (2), and second reinforcing ribs (202) having the same shape as the convex aluminum-plastic plate (2) are provided at the rear side of the convex aluminum-plastic plate (2); the opening angle of the inner side part of the convex aluminum-plastic plate (2) is 150 degrees; the included angle between the convex aluminum-plastic plate (2) and the horizontal plane is 15 degrees.

5. The shield composite aluminum plate building facade structure of a theme element according to claim 1, wherein the second fixing structure comprises a connection block (9) connected with the second reinforcing rib (202) by a bolt and a second bent steel connection member (10) for connecting the connection block (9) and the cantilever beam (5); the second bending steel connecting piece (10) is an angle code rivet assembly.
