Abstract
本实用新型公开了一种建筑瓦片组装用固定装置，所述瓦片具有前沿及后沿，所述瓦片底面凸设有横向的挡块和纵向的卡合部，所述瓦片侧边设有卡槽部，所述瓦片铺设于多个横向的挂瓦条，所述挡块卡阻于挂瓦条，所述前沿压叠相邻瓦片的后沿，所述卡合部嵌入相邻瓦片的卡槽部，所述挂瓦条与各瓦片间分别设有弹性固定件，所述弹性固定件包括一体成型的固定部、弹性部及勾部，所述固定部设有于挂瓦条。本实用新型的建筑瓦片组装用固定装置通过弹性固定件勾定挂瓦条与瓦片，达到使各个瓦片稳定组合及牢固压叠不掀离的效果。
The utility model discloses a fixing device for assembling a building tile. The tile has a front edge and a rear edge. There is a slot part, the tiles are laid on a plurality of horizontal tile strips, the block is blocked on the tile strips, the front edge is pressed against the rear edge of the adjacent tile, and the engaging part is embedded In the slot portion of adjacent tiles, elastic fixing pieces are respectively provided between the tile hanging strip and each tile. The elastic fixing pieces include an integrally formed fixing portion, an elastic portion and a hook portion. On hanging tiles. The fixing device for assembling building tiles of the utility model hooks the tile hanging strips and the tiles through the elastic fixing pieces, so as to achieve the effects of stably combining the tiles and being firmly stacked and not lifted off.
Description
Technical Field
The utility model relates to the technical field of buildings, in particular to a fixing device for assembling building tiles.
Background
The tile of prior art assembles the back and easily becomes flexible, runs into strong wind and heavy rain weather, and the tile lifts off easily, has the potential safety hazard.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide a fixing device for assembling building tiles, which solves the problems in the prior art.
In order to achieve the purpose, the utility model provides the following technical scheme: the utility model provides a fixing device is used in building tile equipment, the tile has forward position and back edge, the protruding horizontal dog and fore-and-aft block portion of being equipped with in tile bottom surface, the tile side is equipped with the draw-in groove portion, a plurality of horizontal battens of hanging are laid to the tile, the dog card hinders in the battens of hanging, the back edge of adjacent tile is folded to the forward position pressure, the draw-in groove portion of the adjacent tile of block portion embedding, be equipped with elastic fixing spare between battens of hanging and each tile respectively, elastic fixing spare includes integrated into one piece's fixed part, elastic part and colludes the portion, the fixed part is equipped with in the battens of hanging, collude the draw-in groove portion of forward position in portion, elastic part is drawn and is produced elasticity by fixed part and colluding the portion.
The hook part is provided with a horizontal section and a vertical section, the horizontal section is pressed against the top surface of the edge of the clamping groove part, and the vertical section is hooked against the clamping groove part.
Compared with the prior art, the utility model has the following beneficial effects:
the fixing device for assembling the building tiles hooks the batten and the tiles through the elastic fixing piece, and the effect of stably combining and firmly pressing and overlapping the tiles without lifting is achieved.
Drawings
FIG. 1 is a schematic view of the installation of the present invention;

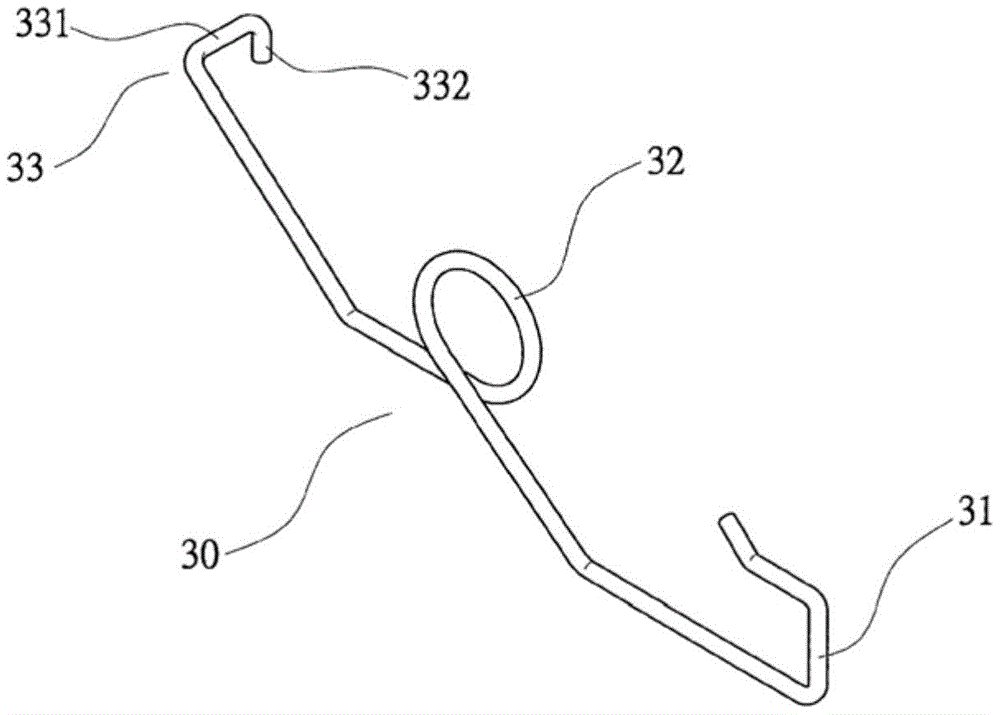

fig. 2 is a schematic structural diagram of the present invention.
Fig. 3 is an installation sectional view of the present invention.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-3, the present invention provides a mounting device for the assembly of building tiles, said tiles 20 having a front edge 20a and a rear edge 20b, the bottom surface of the tile 20 is convexly provided with a transverse stop block 201 and a longitudinal clamping part 203, the side edge of the tile 20 is provided with a clamping groove part 202, the tiles 20 are laid on a plurality of transverse battens 3, the stop blocks 201 are blocked on the battens 3, the front edge 20a overlaps the rear edge 20b of the adjacent tile, the engaging portion 203 engages the slot portion 202 of the adjacent tile, elastic fixing members 30 are respectively arranged between the batten 3 and each tile 20, the elastic fixing members 30 comprise a fixing portion 31, an elastic portion 32 and a hook portion 33 which are integrally formed, the fixing portion 31 is disposed on the batten 3, the hook portion 33 hooks into the front slot portion 202, and the elastic portion 32 is pulled by the fixing portion 31 and the hook portion 33 to generate elastic force.
The hook 33 has a horizontal portion 331 and a vertical portion 332, the horizontal portion 331 presses against the top surface of the edge of the slot 202, and the vertical portion 332 hooks against the slot 202.
The fixing device for assembling the building tiles hooks the batten and the tiles through the elastic fixing piece, and the effect of stably combining and firmly pressing and overlapping the tiles without lifting is achieved.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.
