The utility model discloses a dust removal polishing device for wood processing, which comprises a device body, supporting legs and a dust removal device, wherein the supporting legs are arranged at four corners of the bottom surface of the device body, a connecting plate is arranged at the top of the device body, a first electric cylinder is arranged at the top of the connecting plate, the output end of the first electric cylinder penetrates through the connecting plate and extends to the inside of the device body, a first electric telescopic rod is connected with the bottom of the first electric telescopic rod, a polishing motor is connected with the bottom of the first electric telescopic rod, a polishing disc is connected with the output end of the polishing motor, the dust removal device is arranged on the outer wall of the device body and comprises a dust hood, a telescopic pipe, a dust collection fan and a dust collection box, a first horizontal support frame is welded on one side of the outer wall of the device body, and a dust collection box is placed at the top of the first horizontal support frame. The vertical position of the polishing disk can be conveniently adjusted; the dust removal effect is improved; the polishing efficiency of the device is improved; the environment is prevented from being polluted, and the body health of workers is protected; the service life of the device in the later period is prolonged.
Description
Technical Field
The utility model relates to the technical field of wood processing, in particular to a dust removal polishing device for wood processing.
Background
Polishing is to carry out the sanding to the woodwork surface so that the timber face is level and smooth and detach the timber face woodwool, dust particle on the coating face, the bubble reaches the face sanding roughness of membrane, its effect mainly has the decontamination, make level, the anaglyph, polish, produce rough surface, in order to improve work efficiency, also can use electronic sander when the construction of polishing by a large scale, traditional being used for processing timber burnishing machine can satisfy people's user demand basically, but still there is certain problem, current burnishing device lacks certain dust collecting equipment, cause easily that dust scatters in polishing process, need the staff to clear up, influence healthy problem after the staff inhales, certain degree the practicality of polishing equipment has been reduced.
SUMMERY OF THE UTILITY MODEL
The utility model aims to solve the technical problem of overcoming the technical defects and provides a dust removal polishing device for wood processing.
In order to solve the problems, the technical scheme of the utility model is as follows: a dust removal and polishing device for wood processing comprises a device body, supporting legs and a dust removal device, wherein the supporting legs are arranged at four corners of the bottom surface of the device body, a connecting plate is arranged at the top of the device body, a first electric cylinder is arranged at the top of the connecting plate, the output end of the first electric cylinder penetrates through the connecting plate and extends to the inside of the device body, a first electric telescopic rod is connected with the bottom of the first electric telescopic rod, a polishing motor is connected with the output end of the polishing motor, a polishing disc is connected with the output end of the polishing motor, the outer wall of the device body is provided with the dust removal device, the dust removal device comprises a dust hood, a telescopic pipe, a dust collection fan and a dust collection box, a first horizontal support frame is welded at one side of the outer wall of the device body, a dust collection box is placed at the top of the first horizontal support frame, sliding grooves are formed in two sides of the inner wall of the dust collection box, a filter plate is arranged in the dust collection box, the two ends of the filter plate are connected in a sliding way inside the sliding groove, a dust collection fan is installed on one side of the connecting plate, a dust hood is installed at the bottom of the polishing motor, a telescopic pipe is inserted into the top of the dust collection box, the other end of the telescopic pipe sequentially penetrates through the dust collection fan and the device body and extends to the inside of the device body to be connected with the dust hood, horizontal support frames II are welded on the two sides of the outer wall of the device body, electric cylinders II are arranged at the tops of the horizontal support frames II, the output ends of the electric cylinders II penetrate through the outer wall of the device body and extend to the inside of the device body to be connected with electric telescopic rods II, clamping devices are arranged at the other ends of the electric telescopic rods II, reinforcing tooth pads are sleeved on the surfaces of the clamping devices, a plurality of discharge holes are formed in the bottom of the inner wall of the device body, and a collecting hopper is installed at the bottom of the device body, the device comprises a collecting hopper, a box door I, a visible glass and a control panel, wherein a discharge pipe is inserted at the bottom of the collecting hopper, the box door I is hinged to one side of the surface of the device body, the visible glass and the control panel are respectively installed on the surface of the box door I, and the box door II is hinged to one side of the surface of the dust collecting box.
And handles are arranged on one sides of the surfaces of the first box door and the second box door.
And the discharge pipe is provided with a control valve.
And the bottoms of the four supporting legs are provided with anti-slip pads.
Two the inner wall of spout all is equipped with the fixed plate, the both ends of filter and the inner wall sliding connection of fixed plate.
The bottom of dust absorption fan installs the support frame, the support frame welds in the top of device body.
And oblique support frames are welded at the bottoms of the first horizontal support frame and the second horizontal support frame, and the other ends of the oblique support frames are welded on the outer wall of the device body.
Compared with the prior art, the utility model has the advantages that: the vertical position of the polishing disc can be conveniently adjusted through the first electric cylinder and the first electric telescopic rod; the dust hood and the telescopic pipe are arranged, so that the dust hood and the polishing disk can move synchronously, and the dust removal effect is improved; through the arranged sliding chute, the fixed plate and the filter plate, the filter plate is convenient to replace and clean, and the environmental protection performance is high; the electric cylinder II, the electric telescopic rod II, the clamping device and the reinforcing tooth pad are arranged, so that efficient and stable clamping processing can be realized, and the polishing efficiency of the device is improved; the wood waste is collected and treated in time through the arranged discharge hole, the material collecting hopper and the discharge pipe, so that the environment pollution is avoided, and the health of workers is protected; through the visual glass who is equipped with, the condition of the operation of the inside machine of viewing device at any time in time discovers problem, solves the problem, improves the life in device later stage.
Drawings

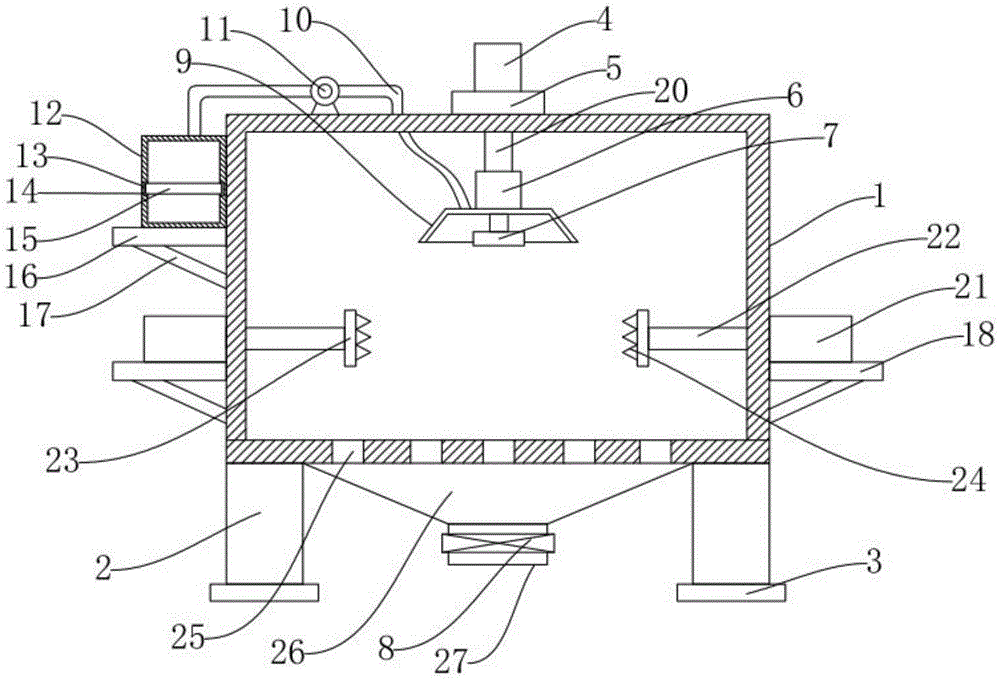

Fig. 1 is a schematic view of the internal structure of the present invention.
Fig. 2 is an external structural view of the present invention.
As shown in the figure: 1. a device body; 2. supporting legs; 3. a non-slip mat; 4. a first electric cylinder; 5. a connecting plate; 6. polishing the motor; 7. a polishing disk; 8. a control valve; 9. a dust hood; 10. a telescopic pipe; 11. a dust collection fan; 12. a dust collection box; 13. a chute; 14. a fixing plate; 15. a filter plate; 16. a first horizontal support frame; 17. an oblique support frame; 18. a second horizontal support frame; 19. a first box door; 20. a first electric telescopic rod; 21. a second electric cylinder; 22. a second electric telescopic rod; 23. a clamping device; 24. reinforcing the tooth pad; 25. a discharge hole; 26. a collection hopper; 27. a discharge pipe; 28. a handle; 29. a visible glass; 30. a control panel; 31. and a second box door.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments; all other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
As shown in fig. 1 to 2, a dust removing and polishing device for wood processing comprises a device body 1, supporting legs 2 and a dust removing device, wherein the supporting legs 2 are installed at four corners of the bottom surface of the device body 1, a connecting plate 5 is installed at the top of the device body 1, a first electric cylinder 4 is arranged at the top of the connecting plate 5, an output end of the first electric cylinder 4 penetrates through the connecting plate 5 and extends to the inside of the device body 1, a first electric telescopic rod 20 is connected to the inside of the device body 1, a polishing motor 6 is connected to the bottom of the first electric telescopic rod 20, a polishing disc 7 is connected to the output end of the polishing motor 6, the outer wall of the device body 1 is provided with the dust removing device, the dust removing device comprises a dust hood 9, a telescopic pipe 10, a dust collecting fan 11 and a dust collecting box 12, a first horizontal supporting frame 16 is welded at one side of the outer wall of the device body 1, and a dust collecting box 12 is placed at the top of the first horizontal supporting frame 16, the dust collection device is characterized in that sliding grooves 13 are respectively formed in two sides of the inner wall of the dust collection box 12, a filter plate 15 is arranged inside the dust collection box 12, two ends of the filter plate 15 are connected inside the sliding grooves 13 in a sliding manner, a dust collection fan 11 is installed on one side of the connecting plate 5, a dust collection hood 9 is installed at the bottom of the polishing motor 6, a telescopic pipe 10 is inserted into the top of the dust collection box 12, the other end of the telescopic pipe 10 sequentially penetrates through the dust collection fan 11 and the device body 1 and extends to the inside of the device body 1 to be connected to the dust collection hood 9, horizontal support frames two 18 are respectively welded on two sides of the outer wall of the device body 1, electric cylinders two 21 are respectively arranged at the tops of the horizontal support frames two 18, the output ends of the electric cylinders two 21 penetrate through the outer wall of the device body 1 and extend to the inside of the device body 1 to be connected with electric telescopic rods two 22, and clamping devices 23 are arranged at the other ends of the electric telescopic rods two 22, the surface cover of clamping device 23 is equipped with consolidates the bite-block 24, a plurality of relief hole 25 has been seted up to the bottom of device body 1 inner wall, aggregate bin 26 is installed to the bottom of device body 1, the bottom of aggregate bin 26 is inserted and is equipped with row material pipe 27, device body 1's surperficial one side articulates there is chamber door 19, visual glass 29 and control panel 30 are installed respectively to the surface of chamber door 19, the surperficial one side of dust collection box 12 articulates there is chamber door two 31.
And handles 28 are arranged on one sides of the surfaces of the first door 19 and the second door 31.
The discharge pipe 27 is provided with a control valve 8 for controlling the discharge amount of the scraps.
Four slipmat 3 is all installed to the bottom of supporting leg 2, improves the stability of device.
Two the inner wall of spout 13 all is equipped with fixed plate 14, the both ends of filter 15 and the inner wall sliding connection of fixed plate 14 make things convenient for the change in 15 later stages of filter.
The support frame is installed to dust absorption fan 11's bottom, the support frame welds in the top of device body 1, supports dust absorption fan 11 steadily.
In specific use, a worker puts wood to be processed into the device, the electric cylinders two 21 on two sides of the device are started, the electric cylinders two 21 drive the electric telescopic rods two 22 to horizontally move until the clamping devices 23 on the electric telescopic rods two 22 on two sides clamp the wood tightly, the reinforcing tooth pads 24 on the surfaces of the clamping devices 23 increase the friction force between the wood and the wood, the wood can be more stably clamped, after the wood is clamped, the electric cylinders one 4 are started, the electric cylinders one 4 drive the electric telescopic rods one 20 to vertically move until the polishing discs 7 at the bottoms of the electric telescopic rods one 20 contact the wood, the electric cylinders one 4 are closed, the polishing motors 6 are started to drive the polishing discs 7 to polish the wood, meanwhile, the worker starts the dust suction fan 11, the dust suction fan 11 sequentially passes through the dust suction cover 9 and the telescopic pipes 10, dust generated during polishing is sucked into the dust collection box 12, inside filter 15 of dust collection box 12 effectively carries out the layering with the dust and keeps apart, later stage staff can open two 31 of chamber door and change the clearance to filter 15, the sweeps that the timber produced in the polishing process simultaneously, can enter into collecting hopper 26 through relief hole 25, after work is accomplished, the staff opens control valve 8 and clears away the sweeps from arranging material pipe 27, guarantee the normal use of later stage device, also be favorable to environmental protection, at the during operation, the staff also can be through the operational aspect of 19 viewing device internal machines of chamber door, in time the discovery problem, the problem is solved, the service life of the device is prolonged.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.
The present invention and its embodiments have been described above, and the description is not intended to be limiting, and the drawings are only one embodiment of the present invention, and the actual structure is not limited thereto. In summary, those skilled in the art should appreciate that they can readily use the disclosed conception and specific embodiments as a basis for designing or modifying other structures for carrying out the same purposes of the present invention without departing from the spirit and scope of the utility model as defined by the appended claims.
Claims (7)
1. The utility model provides a dust removal burnishing device for wood working which characterized in that: the device comprises a device body (1), supporting legs (2) and a dust removing device, wherein the supporting legs (2) are installed at four corners of the bottom surface of the device body (1), a connecting plate (5) is installed at the top of the device body (1), a first electric cylinder (4) is arranged at the top of the connecting plate (5), an output end of the first electric cylinder (4) penetrates through the connecting plate (5) and extends to the inside of the device body (1) to be connected with a first electric telescopic rod (20), the bottom of the first electric telescopic rod (20) is connected with a polishing motor (6), an output end of the polishing motor (6) is connected with a polishing disc (7), the outer wall of the device body (1) is provided with the dust removing device, the dust removing device comprises a dust hood (9), a telescopic pipe (10), a dust collecting fan (11) and a dust collecting box (12), a first horizontal supporting frame (16) is welded on one side of the outer wall of the device body (1), a dust collection box (12) is placed at the top of the first horizontal support frame (16), sliding grooves (13) are formed in two sides of the inner wall of the dust collection box (12), a filter plate (15) is arranged inside the dust collection box (12), two ends of the filter plate (15) are connected inside the sliding grooves (13) in a sliding mode, a dust collection fan (11) is installed on one side of the connecting plate (5), a dust collection hood (9) is installed at the bottom of the polishing motor (6), a telescopic pipe (10) is inserted into the top of the dust collection box (12), the other end of the telescopic pipe (10) penetrates through the dust collection fan (11) and the device body (1) in sequence and extends to the inside of the device body (1) to be connected to the dust collection hood (9), second horizontal support frames (18) are welded to two sides of the outer wall of the device body (1), and second electric cylinders (21) are arranged at the tops of the second horizontal support frames (18), the output of electronic jar two (21) runs through the outer wall of device body (1) and extends to the internal connection of device body (1) has electric telescopic handle two (22), the other end of electric telescopic handle two (22) is equipped with clamping device (23), the surface cover of clamping device (23) is equipped with consolidates bite block (24), a plurality of relief hole (25) have been seted up to the bottom of device body (1) inner wall, collecting hopper (26) are installed to the bottom of device body (1), row's material pipe (27) are inserted to the bottom of collecting hopper (26), the surface one side of device body (1) articulates there is chamber door (19), visual glass (29) and control panel (30) are installed respectively to the surface of chamber door (19), the surface one side of dust collection box (12) articulates there is chamber door two (31).
2. The dust removing and polishing device for wood working according to claim 1, characterized in that: and one sides of the surfaces of the first box door (19) and the second box door (31) are provided with handles (28).
3. The dust removing and polishing device for wood working according to claim 1, characterized in that: and a control valve (8) is arranged on the discharge pipe (27).
4. The dust removing and polishing device for wood working according to claim 1, characterized in that: and the bottoms of the four supporting legs (2) are provided with anti-slip pads (3).
5. The dust removing and polishing device for wood working according to claim 1, characterized in that: the inner walls of the two sliding grooves (13) are provided with fixing plates (14), and two ends of the filter plate (15) are connected with the inner walls of the fixing plates (14) in a sliding mode.
6. The dust removing and polishing device for wood working according to claim 1, characterized in that: the bottom of dust absorption fan (11) is installed the support frame, the support frame welds in the top of device body (1).
7. The dust removing and polishing device for wood working according to claim 1, characterized in that: oblique support frames (17) are welded at the bottoms of the first horizontal support frame (16) and the second horizontal support frame (18), and the other ends of the oblique support frames (17) are welded on the outer wall of the device body (1).
