Abstract

The utility model discloses an intelligent production equipment for industrial production, which relates to the technical field of industrial production. The utility model comprises a base plate and a plurality of mounting plates on which motors are installed. A conveyor belt is movably connected to the outer surface of the guide wheel, a bearing plate is fixedly installed on the upper surface of the bottom plate, a trigger plate is arranged in the middle of the upper surface of the bearing plate, and a spring is symmetrically installed on the upper surface of the bearing plate. A movable plate is movably connected to the top ends of the plurality of the springs, and a trigger block is arranged in the middle of the lower surface of the plurality of the movable plates. According to the utility model, when the heavier workpiece is on the upper surface of the conveyor belt, it is pressed down by the weight, which drives the conveyor belt to contact the movable plate, and drives the trigger block to contact the trigger plate. , reducing the running speed of the conveyor belt, which can effectively ensure the stability when transferring heavier workpieces.

Description

An intelligent production equipment for industrial production

technical field

The utility model relates to the technical field of industrial production, in particular to an intelligent production equipment for industrial production.

Background technique

Industry is a social material production department that mines, collects and processes various raw materials of natural resources. Industry is a processing and manufacturing industry, and industry is the product of the development of social division of labor. After several development stages of handicraft industry and machine industry, industry is the second. The main components of the industry are divided into two categories: light industry and heavy industry. Among them, intelligent production equipment is becoming the main direction of future industrial development.

The Chinese utility model patent application number: CN202020370469.5 discloses an industrial intelligent production device. The structure includes a main frame, a detection mechanism and a conveying mechanism installed in the main frame. The detection mechanism includes a fine-tuning component, an identifier and a fill light. The fine-tuning component is fixed on the inner wall of the main frame, the identifier and the fill light are respectively installed on the fine-tuning component, and the conveying mechanism is installed under the detection mechanism. The industrial intelligent production device does not have the function of adjusting the running speed of the conveying device according to the weight of the workpiece, which is not convenient enough for the processing of the workpiece.

Therefore, it is necessary to propose an intelligent production equipment for industrial production to solve the above problems.

Utility model content

(1) Technical problems solved

The purpose of this utility model is: In order to solve the problem that the industrial intelligent production device does not have the function of adjusting the running speed of the conveying device according to the weight of the workpiece, and the processing of the workpiece is not convenient enough, the utility model provides an intelligent industrial production device. Production equipment.

(2) Technical solutions

The utility model specifically adopts the following technical solutions in order to achieve the above-mentioned purpose:

An intelligent production equipment for industrial production, comprising a base plate and a plurality of mounting plates on which motors are installed, guide wheels are fixedly connected to the output shaft ends of a plurality of the motors, and conveyor belts are movably connected to the outer surfaces of the two guide wheels. , a receiving plate is fixedly installed on the upper surface of the bottom plate, a trigger plate is arranged in the middle of the upper surface of the receiving plate, a spring is symmetrically installed on the upper surface of the receiving plate, and the tops of the plurality of springs are movably connected with a movable plate. A trigger block is arranged in the middle of the lower surface of a plurality of the movable plates, and the outer wall of the trigger plate is symmetrically provided with a connecting line and is connected with the motor.

Further, a vertical plate is fixedly installed on an upper surface of one side of the bottom plate, and a first sliding rail is symmetrically fixed on the inner wall of the vertical plate.

Further, the outer surfaces of the plurality of first sliding rails are provided with first driving sliders, and the outer walls of the plurality of first driving sliders are fixedly mounted with connecting plates.

Further, second sliding rails are fixedly mounted on the ends of the plurality of connecting plates, and second driving sliders are provided on the outer surfaces of the plurality of second sliding rails.

Further, rectangular plates are fixedly installed on the upper surfaces of the plurality of second driving sliders, and third sliding rails are fixedly installed on the upper surfaces of the plurality of rectangular plates.

Further, the outer surfaces of the plurality of third sliding rails are provided with third driving sliders, and the top plates are fixedly mounted on the upper surfaces of the plurality of third driving sliders.

Further, an infrared positioning device is provided on one upper surface of a plurality of the top plates, and a controller is provided on one upper surface of the plurality of the top plates.

Further, an inkjet printer is provided on one lower surface of the plurality of top plates, and the output ends of the plurality of controllers are connected to the infrared positioning device and the input end of the inkjet printer.

Further, a support plate is symmetrically and fixedly installed on the lower surface of the bottom plate, and the two support plates are located on the same horizontal plane.

(3) Beneficial effects

The beneficial effects of the present utility model are as follows:

1. In the present utility model, when the heavier workpiece is on the upper surface of the conveyor belt, it is pressed down by the weight, which drives the conveyor belt to contact the movable plate, and drives the trigger block to contact the trigger plate. Regulating the signal and reducing the running speed of the conveyor belt can effectively ensure the stability when transferring heavier workpieces.

2. The utility model realizes the multi-directional adjustment of the position of the top plate by activating the second driving slider and the third driving slider, and realizes the processing of a single workpiece by fixing the specific workpiece processing equipment on the upper surface of the top plate. , which can effectively improve the convenience of workpiece processing.

3. The utility model, through the setting of the inkjet printer and the start-up cooperation of the controller, realizes the inkjet processing at a specific position on the surface of the workpiece, which can effectively improve the use diversity of the device.

Description of drawings

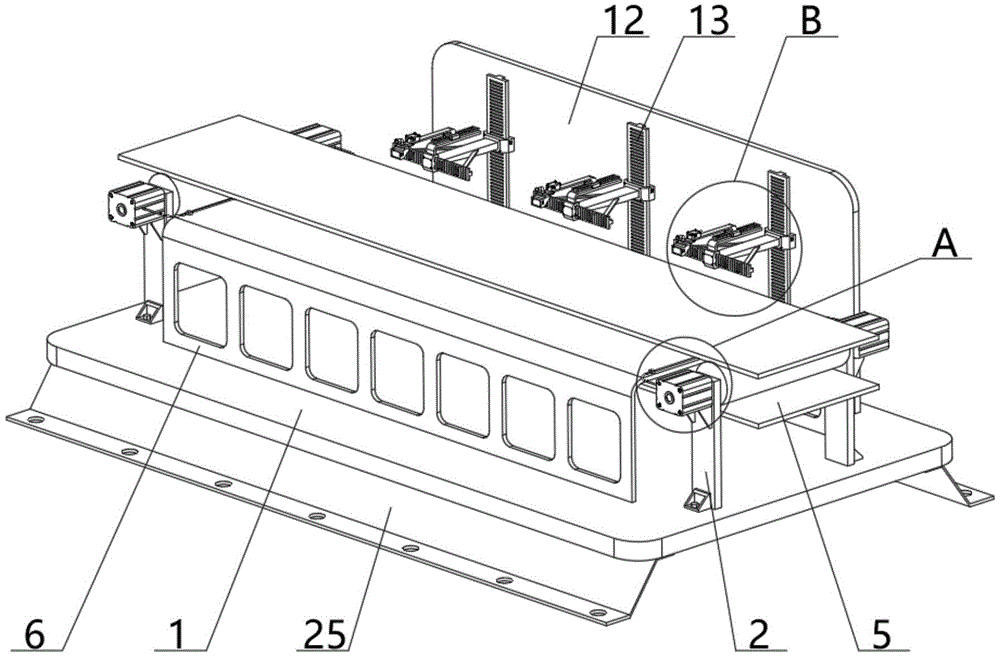

Fig. 1 is the three-dimensional top view schematic diagram of the structure of the utility model;

Fig. 2 is the three-dimensional side sectional schematic diagram of the structure of the utility model;

Fig. 3 is the enlarged schematic diagram of the structure of A area in Fig. 1 of the utility model;

Fig. 4 is the enlarged schematic diagram of the structure of B area in Fig. 1 of the utility model;

FIG. 5 is an enlarged schematic view of the structure of the C area in FIG. 2 of the present invention.

Reference signs: 1. Bottom plate; 2. Mounting plate; 3. Motor; 4. Guide wheel; 5. Conveyor belt; 6. Receiving plate; 7. Trigger plate; 8. Spring; 11, connecting line; 12, vertical plate; 13, first sliding rail; 14, first driving slider; 15, connecting plate; 16, second sliding rail; 17, second driving slider; 18, rectangular plate; 19. The third sliding rail; 20. The third driving slider; 21. The top plate; 22. The infrared positioning device; 23. The controller;

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Example 1

Please refer to Figure 1-5, an intelligent production equipment for industrial production, including a base plate 1 and a plurality of mounting plates 2 on which motors 3 are installed, and guide wheels 4 are fixedly connected to the ends of the output shafts of the plurality of motors 3. The outer surface of the wheel 4 is movably connected with the conveyor belt 5, the upper surface of the base plate 1 is fixedly installed with a bearing plate 6, the middle of the upper surface of the bearing plate 6 is provided with a trigger plate 7, and the upper surface of the bearing plate 6 is symmetrically and movably installed with a spring 8. A movable plate 9 is movably connected to the top of each spring 8 , and a trigger block 10 is arranged in the middle of the lower surface of the plurality of movable plates 9 .

In this embodiment, by arranging a plurality of mounting plates 2 on the upper surface of the bottom plate 1, the plurality of mounting plates 2 are located on the same horizontal plane, which are used to support and fix the motor 3, and drive the two guide wheels 4 to correspond to each other. By starting the motor 3, and through the rotation of the guide wheel 4, the conveyor belt 5 is driven to run. During this process, neatly arranged workpieces are placed on the upper surface of the conveyor belt 5. The workpieces of different specifications have different weights. At the same time, through the cooperation of the connecting wire 11, a control signal is sent to the motor 3 to reduce the operation of the conveyor belt 5. The speed can effectively ensure the stability when transferring heavier workpieces.

Example 2

1-5, this embodiment is further optimized on the basis of Embodiment 1. Specifically, a vertical plate 12 is fixedly installed on one upper surface of the bottom plate 1, and the inner wall of the vertical plate 12 is symmetrically and fixedly installed with The first slide rails 13, a plurality of first slide rails 13 are located on the same horizontal plane.

Specifically, the outer surfaces of the plurality of first sliding rails 13 are provided with first driving sliders 14 , the outer walls of the plurality of first driving sliders 14 are fixedly mounted with connecting plates 15 , and the plurality of first driving sliders 14 are connected to the first driving sliders 14 . The slide rail 13 is arranged in a sliding connection.

Specifically, the ends of the plurality of connecting plates 15 are fixedly mounted with second slide rails 16 , the outer surfaces of the plurality of second slide rails 16 are provided with second driving sliders 17 , and the plurality of second driving sliders 17 are connected with the second sliding rails 17 . The slide rail 16 is provided in a sliding connection.

Specifically, rectangular plates 18 are fixedly installed on the upper surfaces of the plurality of second driving sliders 17 , and third sliding rails 19 are fixedly installed on the upper surfaces of the plurality of rectangular plates 18 .

Specifically, the outer surfaces of the plurality of third sliding rails 19 are provided with third driving sliders 20 , the upper surfaces of the plurality of third driving sliders 20 are fixedly mounted with the top plate 21 , and the plurality of third driving sliders 20 are connected to the third driving sliders 20 . The slide rail 19 is provided in a sliding connection.

In this embodiment, the vertical plate 12 is provided on the upper surface of the base plate 1 to realize the support and fixation of the plurality of first sliding rails 13 , the plurality of first sliding rails 13 are located on the same horizontal plane, and are driven by the first driving slider 14 . In this process, by activating the second driving slider 17 and the third driving slider 20, the position of the top plate 21 can be adjusted in multiple directions. By fixing the specific workpiece processing equipment on the The upper surface of the top plate 21 realizes the processing of a single workpiece, which can effectively improve the convenience of processing the workpiece.

Example 3

Please refer to FIGS. 1-5 , this embodiment is optimized as follows on the basis of Example 1 or Example 2. Specifically, an infrared positioning device 22 is provided on the upper surface of one side of the plurality of top plates 21 , and one of the plurality of top plates 21 is provided with an infrared positioning device 22 . A controller 23 is provided on the upper surface of the side, and the output end of the controller 23 is connected with the input end of the infrared positioning device 22 .

Specifically, the inkjet printers 24 are provided on one lower surface of the plurality of top plates 21 , and the output ends of the plurality of controllers 23 are connected to the infrared positioning device 22 and the input end of the inkjet printer 24 .

Specifically, the lower surface of the bottom plate 1 is symmetrically and fixedly installed with support plates 25, and the two support plates 25 are located on the same horizontal plane for supporting and fixing the device.

In this embodiment, the infrared positioning device 22 is provided on the upper surface of the top plate 21 to locate the specific position of the workpiece on the upper surface of the conveyor belt 5, and the top plate 21 is driven to correspond to each other. Setting, and through the start-up cooperation of the controller 23, the coding processing can be performed on a specific position on the surface of the workpiece, which can effectively improve the variety of use of the device.

To sum up: in the actual use process of the present utility model, firstly, through the cooperation of the bottom plate 1 and the support plate 25, the device is fixedly installed in a specific use area, and by starting the motor 3 and through the rotation of the guide wheel 4, Drive the conveyor belt 5 to run. During this process, neatly arranged workpieces are placed on the upper surface of the conveyor belt 5. The weights of workpieces of different specifications are different. The movable plate 9 contacts, and drives the trigger block 10 to contact the trigger plate 7. At the same time, through the cooperation of the connecting wire 11, a control signal is sent to the motor 3 to reduce the running speed of the conveyor belt 5, which can effectively ensure the transfer of heavy workpieces. By activating the second driving slider 17 and the third driving slider 20, the position of the top plate 21 can be adjusted in multiple directions. The processing can effectively improve the convenience of processing the workpiece. By setting the infrared positioning device 22 on the upper surface of the top plate 21, it is used to locate the specific position of the workpiece on the upper surface of the conveyor belt 5, and the top plate 21 is driven to correspond to each other. During this process Among them, through the setting of the inkjet printer 24 and the start-up cooperation of the controller 23, the inkjet processing can be realized at a specific position on the workpiece surface, which can effectively improve the variety of use of the device, and is suitable for popularization.

The above are only preferred embodiments of the present utility model, and are not intended to limit the present utility model. The scope of patent protection of the present utility model is subject to the claims, and all equivalent structures made using the contents of the description and drawings of the present utility model are used. Changes should be included in the protection scope of the present invention.

Claims (9)

1. An intelligent production equipment for industrial production, comprising a base plate (1) and a plurality of mounting plates (2) mounted with a motor (3), characterized in that: the output shaft ends of the plurality of said motors (3) are fixed A guide wheel (4) is connected, the outer surfaces of the two guide wheels (4) are movably connected with a conveyor belt (5), and a receiving plate (6) is fixedly installed on the upper surface of the bottom plate (1), and the receiving plate The middle of the upper surface of (6) is provided with a trigger plate (7), a spring (8) is symmetrically installed on the upper surface of the receiving plate (6), and a movable plate (8) is movably connected to the top of the plurality of springs (8). 9), a trigger block (10) is arranged in the middle of the lower surface of the plurality of movable plates (9), and a connecting wire (11) is symmetrically arranged on the outer wall of the trigger plate (7) and is connected with the motor (3). 2 . The intelligent production equipment for industrial production according to claim 1 , wherein a vertical plate ( 12 ) is fixedly installed on an upper surface of one side of the bottom plate ( 1 ). A first sliding rail (13) is symmetrically and fixedly installed on the inner wall. 3. The intelligent production equipment for industrial production according to claim 2, characterized in that: the outer surfaces of the plurality of first sliding rails (13) are provided with first driving sliders (14), and a plurality of the first sliding rails (13) are provided on the outer surfaces. A connecting plate (15) is fixedly installed on the outer wall of the first driving slider (14). 4. An intelligent production equipment for industrial production according to claim 3, characterized in that: the ends of a plurality of the connecting plates (15) are fixedly installed with second slide rails (16), and a plurality of the first The outer surfaces of the two sliding rails (16) are provided with a second driving sliding block (17). 5 . The intelligent production equipment for industrial production according to claim 4 , wherein a rectangular plate ( 18 ) is fixedly installed on the upper surfaces of a plurality of the second driving sliders ( 17 ), and a plurality of the second driving sliders ( 17 ) A third sliding rail (19) is fixedly installed on the upper surface of the rectangular plate (18). 6 . The intelligent production equipment for industrial production according to claim 5 , wherein the outer surfaces of the plurality of third sliding rails ( 19 ) are provided with third driving sliders ( 20 ), and the plurality of A top plate (21) is fixedly mounted on the upper surface of the third driving slider (20). 7. A kind of intelligent production equipment for industrial production according to claim 6, characterized in that: an infrared positioning device (22) is provided on one upper surface of a plurality of the top plates (21), and a plurality of the top plates (21) are provided with an infrared positioning device (22). A controller (23) is provided on the upper surface of one side of 21). 8. The intelligent production equipment for industrial production according to claim 7, characterized in that: a plurality of said top plates (21) are provided with ink jet printers (24) on one side lower surface, and a plurality of said controllers The output end of (23) is connected with the infrared positioning device (22) and the input end of the ink jet printer (24). 9 . The intelligent production equipment for industrial production according to claim 1 , wherein a support plate ( 25 ) is symmetrically and fixedly installed on the lower surface of the bottom plate ( 1 ), and two support plates ( 25 ) are installed symmetrically on the lower surface of the bottom plate ( 1 ). on the same level.
