CN216872896U - A two-way fast-charging wireless mobile power supply supporting Qi protocol - Google Patents

Abstract

The utility model discloses a bidirectional fast-charging wireless mobile power supply supporting Qi protocol, which comprises a mobile power supply main body, and an outer sheath is arranged on the outside of the mobile power supply main body. In the process of using the wireless mobile power supply, the bidirectional fast-charging wireless mobile power supply supporting the Qi protocol is provided with an outer sheath outside the main body of the mobile power supply. At the same time, the material of the outer sheath is soft rubber material. When the main body of the mobile power supply falls to the ground, the outer sheath provided can protect the outside of the main body of the mobile power supply from falling. There are multiple sets of anti-skid strips on both sides, which can play a non-slip effect when holding the main body of the mobile power supply. At the same time, the cooperation between the outer sheath and the support plate is convenient for supporting and fixing the mobile power supply, which solves the problem of easy mobile power supply. The problem of protection and anti-drop on the outside of the power supply.

Description

A two-way fast-charging wireless mobile power supply supporting Qi protocol

technical field

The utility model relates to the technical field of mobile power sources, in particular to a bidirectional fast-charging wireless mobile power source supporting Qi protocol.

Background technique

The power bank is a portable charger that stores its own power and can be carried around mainly to supplement the power of some mobile devices such as mobile phones. At the same time, with the development of fast charging technologies such as mobile phones, the mobile power supply also realizes fast charging, which greatly saves money. Charging time, but some existing two-way fast charging wireless power banks that support the Qi protocol still have some shortcomings in the process of use, for example, it is not convenient to support the mobile phone during the charging process. It is convenient to clamp the mobile phone during the charging process, and it is also inconvenient to protect and prevent the outside of the mobile power supply from falling.

Utility model content

The purpose of the present invention is to provide a two-way fast charging wireless mobile power supply supporting Qi protocol, so as to solve the problem in the above-mentioned background technology that it is inconvenient to assist and place the mobile phone during the charging process.

In order to achieve the above purpose, the present invention provides the following technical solutions: a two-way fast-charging wireless mobile power supply supporting Qi protocol, comprising a mobile power supply main body, a fixed seat is fixed on the top of one end of the mobile power supply main body, and the mobile power supply main body is An outer sheath is arranged on the outside of the power bank, an electromagnetic coil is arranged inside one end of the fixing seat, a circuit board is arranged inside the fixing seat, and a plurality of groups of battery cells are vertically arranged inside the main body of the mobile power supply. The bottom of one end of the main body of the power supply is fixed with a clamp seat, one side of the bottom end of the main body of the mobile power supply is provided with two sets of output ends, the other side of the bottom end of the main body of the mobile power supply is provided with an input end, and the rear end of the main body of the mobile power supply is provided with reserved slot.

Preferably, a movable seat is provided at the rear end of the main body of the mobile power supply, a support plate is hinged to the rear end of the movable seat, and a card slot is provided through the middle position of one end of the supporting plate. A clamping block is fixed at the middle position of the bottom of the end.

Preferably, the inner diameter of the reserved groove is larger than the outer diameter of the movable seat, and an inner end of the reserved groove is movably connected with the front end of the movable seat.

Preferably, one side of the clamp seat is provided with a clamp, the top and bottom ends of one side of the clamp are laterally fixed with pull rods, and the top and bottom of the clamp base are respectively provided with inner grooves. A compression spring is laterally fixed on one side inside the inner groove, and one side of the pull rod penetrates one side of the clamping seat and the inside of the compression spring and is fixed with a limiting plate.

Preferably, the height of the inner side of the clamp base and the clamp head is the same as the height of the fixed base.

Preferably, an inner cavity is provided inside the outer sheath, a plurality of groups of anti-skid strips are fixed at equal intervals on both sides of the outer sheath, and a slot is provided through the bottom end of the outer sheath.

Compared with the prior art, the beneficial effect of the utility model is that the two-way fast-charging wireless mobile power supply supporting the Qi protocol not only realizes the convenient support and placement of the mobile phone during the charging process, but also realizes the convenient charging of the mobile phone. It is clamped during the charging process, and it is convenient to protect the outside of the mobile power supply from falling;

(1) By setting the reserved slot, movable seat, card block, card slot and support plate, during the use of the mobile power supply, the mobile phone with wireless charging function can be placed at the position of the electromagnetic coil at one end of the fixed seat. After the battery is installed, the mobile phone can be charged through the electromagnetic coil. During the charging process of the mobile phone being clamped on one end of the main body of the mobile power supply, the support plate can be hinged to the rear end of the movable seat by the rear end of the main body of the mobile power supply. After the support plate is turned up at the rear end of the main body of the mobile power supply, the main body of the mobile power supply can be fixed on the desktop by using the support plate turned up at the back end, which is convenient for the mobile phone to be erected and supported for use during the charging process. The support plate can be rotated inside the reserved slot set at the rear end of the main body of the mobile power supply, and after the support plate is turned 90°, the support plate can be horizontally fixed and supported on the desktop, which is convenient for the mobile phone to watch the video during the charging process, and A card slot is arranged inside the support plate, which can be latched and locked corresponding to the outside of the card block, and is fixed at the rear end of the main body of the mobile power supply when the support plate is not in use;

(2) By being provided with a tie rod, a collet, a compression spring, a clamp seat, a limit plate and an inner groove, during the use of the mobile power supply, the collet can be pulled on one side of the clamp seat by the bottom of one end of the main body of the mobile power supply. , the collet pulls to one side and drives two sets of tie rods fixed on one side to protrude from one side of the clamp seat, and at the same time, the compression spring set outside the pull rod will be compressed inside the inner groove, and the clamping head and the inner side of the clamp seat will be compressed. After pulling it to a certain distance, place the bottom of the mobile phone device between the chuck and the holder, and then release the chuck, the compression spring set on the outside of the pull rod will rebound and pull the pull rod and the chuck to move the bottom of the mobile phone. Clamping, which is convenient for auxiliary fixing of mobile phone equipment during the charging process;

(3) By being provided with an outer sheath, an anti-skid strip and an inner cavity, during the use of the wireless mobile power supply, an outer sheath is provided outside the main body of the mobile power supply, and the interior of the inner cavity and the main body of the mobile power supply are arranged inside the outer sheath. The outer parts of the mobile power supply are attached to each other, and the outer sheath is made of soft rubber material. When the main body of the mobile power supply falls to the ground and is hit, the outer sheath provided can prevent the outer part of the main body of the mobile power supply from falling. At the same time, there are multiple sets of anti-skid strips on both sides of the outer sheath, which can play a non-slip effect when holding the main body of the mobile power supply. At the same time, the cooperation between the outer sheath and the support plate is convenient for supporting and fixing the mobile power supply. .

Description of drawings

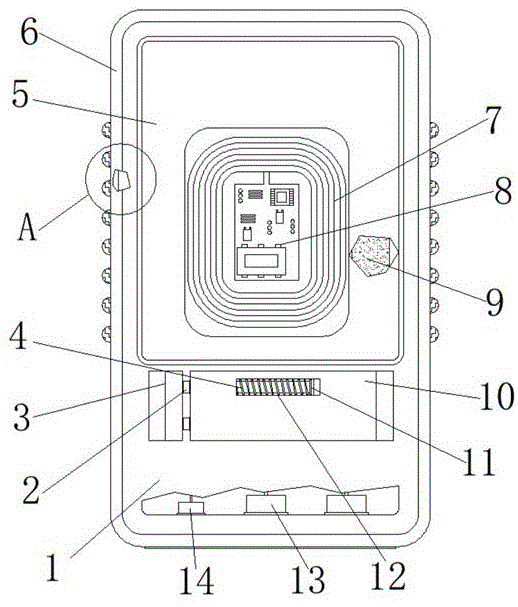

Fig. 1 is the front view sectional structure schematic diagram of the present utility model;

FIG. 2 is a schematic diagram of a partial cross-sectional enlarged structural schematic diagram of a rear view of a support plate of the present invention;

3 is a schematic view of the enlarged partial cross-sectional view of the chuck of the present utility model;

FIG. 4 is a schematic view of the enlarged structure of the partial cross-section at A in FIG. 1 of the present invention.

In the figure: 1. Main body of mobile power supply; 2. Pull rod; 3. Chuck; 4. Compression spring; 5. Fixed seat; 6. Outer sheath; 7. Electromagnetic coil; 8. Circuit board; 9. Battery core; 10 , clamp seat; 11, limit plate; 12, inner slot; 13, output end; 14, input end; 15, reserved slot; 16, movable seat; 17, card block; 18, card slot; 19, support plate ; 20. Anti-skid strips; 21. Inner cavity.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Embodiment 1: Please refer to Figure 1-4, a two-way fast charging wireless mobile power supply supporting Qi protocol, including a mobile power supply main body 1, a fixed base 5 is fixed on the top of one end of the mobile power supply main body 1, and the outside of the mobile power supply main body 1 is An outer sheath 6 is arranged, an electromagnetic coil 7 is arranged inside one end of the fixed seat 5, a circuit board 8 is arranged inside the fixed seat 5, and a plurality of groups of battery cells 9 are vertically arranged inside the mobile power supply main body 1. The mobile power supply main body 1 The bottom of one end is fixed with a clamp seat 10, one side of the bottom end of the mobile power supply main body 1 is provided with two sets of output terminals 13, the other side of the bottom end of the mobile power supply main body 1 is provided with an input terminal 14, and the interior of the rear end of the mobile power supply main body 1 is provided with reserved slot 15;

The rear end of the mobile power supply main body 1 is provided with a movable seat 16, the rear end of the movable seat 16 is hinged with a support plate 19, and a card slot 18 is provided through the middle of one end of the support plate 19. A block 17 is fixed at the position, the inner diameter of the reserved slot 15 is larger than the outer diameter of the movable seat 16, and one end inside the reserved slot 15 is movably connected with the front end of the movable seat 16;

Specifically, as shown in FIG. 1 and FIG. 2 , during the use of the mobile power supply, the mobile phone with the wireless charging function can be placed at the position of the electromagnetic coil 7 at one end of the fixing base 5 , and the electromagnetic coil can pass through the power bank. 7. When charging the mobile phone, the mobile phone is clamped on one end of the mobile power supply main body 1 for charging, the supporting plate 19 can be hinged on the rear end of the movable seat 16 by using the rear end of the mobile power supply main body 1 to connect the supporting plate 19. After the rear end of the main body of the mobile power supply 1 is turned up, the main body of the mobile power supply 1 can be fixed on the desktop by using the support plate 19 turned up at the rear end, which is convenient for the mobile phone to be upright and supported for use during the charging process. At the same time, the support plate 19 can be rotated inside the reserved groove 15 provided at the rear end of the main body of the mobile power supply 1, and after the support plate 19 is turned 90°, the support plate 19 can be laterally fixed and supported on the desktop, which is convenient for the charging process of the mobile phone. Video viewing is performed, and the support plate 19 is provided with a card slot 18 which can be latched and locked corresponding to the outside of the card block 17, and the support plate 19 is fixed at the rear end of the mobile power supply main body 1 when not in use.

Embodiment 2: one side of the clamp base 10 is provided with a clamp head 3, the top and bottom ends of one side of the clamp head 3 are respectively laterally fixed with a pull rod 2, and the top and bottom of the clamp base 10 are respectively provided with an inner groove 12 laterally. One side of the groove 12 is laterally fixed with the compression spring 4, one side of the pull rod 2 penetrates one side of the clamp seat 10 and the interior of the compression spring 4 and fixes the limit plate 11, and the inner height of the clamp seat 10 and the clamp head 3 is fixed and fixed. The height of seat 5 is the same;

Specifically, as shown in FIG. 1 and FIG. 3 , during the use of the mobile power supply, the collet 3 can be pulled on one side of the clamp base 10 at the bottom of one end of the main body of the mobile power supply 1 , and the collet 3 can be pulled to one side at the same time. The two sets of pull rods 2 fixed on one side are driven to protrude from one side of the clamp base 10, and the compression spring 4 provided outside the pull rod 2 will be compressed inside the inner groove 12, pulling the clamp head 3 and the inner side of the clamp base 10. After opening to a certain distance, place the bottom of the mobile phone device between the collet 3 and the collet 10, then loosen the collet 3, the compression spring 4 set outside the pull rod 2 will rebound and pull the pull rod 2 and the collet 3. Clamp the bottom of the mobile phone to facilitate auxiliary fixing of the mobile phone device during the charging process.

Embodiment 3: an inner cavity 21 is provided inside the outer sheath 6, a plurality of groups of anti-skid strips 20 are fixed at equal intervals on both sides of the outer sheath 6, and the bottom end of the outer sheath 6 is provided with a slot;

Specifically, as shown in FIG. 1 and FIG. 4 , in the process of using the wireless mobile power supply, an outer sheath 6 is provided outside the main body of the mobile power supply 1 , and the interior of the inner cavity 21 and the main body of the mobile power supply are arranged inside the outer sheath 6 The outer parts of 1 are attached to each other, and the material of the outer sheath 6 is a soft rubber material. When the main body of the mobile power supply 1 falls to the ground and is hit, the outer sheath 6 provided can protect the outer part of the main body of the mobile power supply 1. For anti-fall protection, at the same time, there are multiple sets of anti-skid strips 20 on both sides of the outer sheath 6, which can play a non-slip effect when holding the main body of the mobile power supply 1. At the same time, the outer sheath 6 and the support plate 19 The cooperation between them is convenient for supporting and fixing the mobile power supply.

Working principle: When the utility model is in use, during the use of the mobile power supply, the collet 3 can be pulled on one side of the clamping base 10 at the bottom of one end of the main body 1 of the mobile power supply, and the collet 3 is pulled to one side while driving a The two sets of side-fixed pull rods 2 protrude from one side of the clamp base 10, and at the same time, the compression spring 4 provided outside the pull rod 2 will be compressed inside the inner groove 12, pulling the clamp head 3 and the inner side of the clamp base 10 to After a certain distance, place the bottom of the mobile phone device between the collet 3 and the collet 10, and then loosen the collet 3, the compression spring 4 set outside the pull rod 2 will rebound and pull the pull rod 2 and the collet 3 to release it. The bottom of the mobile phone is clamped to facilitate the auxiliary fixing of the mobile phone equipment during the charging process. At the same time, during the use of the mobile power supply, the mobile phone with wireless charging function can be placed on the electromagnetic coil 7 at one end of the fixed seat 5. After the mobile phone is in the position, the mobile phone can be charged through the electromagnetic coil 7. During the charging process of the mobile phone being clamped on one end of the mobile power supply main body 1, the support plate 19 can be hinged at the rear end of the mobile power supply main body 1. At the rear end of the seat 16, after the support plate 19 is turned up at the rear end of the mobile power supply main body 1, the mobile power supply main body 1 can be fixed on the desktop by using the support plate 19 turned up at the rear end, which is convenient for the mobile phone to be charged. The support plate 19 can be rotated by turning the support plate 19 inside the reserved slot 15 provided at the rear end of the mobile power supply main body 1, and the support plate 19 can be fixed and supported horizontally after the support plate 19 is turned 90°. On the desktop, it is convenient for the mobile phone to watch the video during the charging process, and the support plate 19 is provided with a card slot 18 which can be latched and locked corresponding to the outside of the card block 17. When the support plate 19 is not in use, the mobile power supply main body 1 At the same time, during the use of the wireless mobile power supply, an outer sheath 6 is provided outside the main body 1 of the mobile power supply, and the inner part of the outer sheath 6 is arranged between the inside of the inner cavity 21 and the outside of the main body 1 of the mobile power supply. They are attached to each other, and the material of the outer sheath 6 is a soft rubber material. When the main body of the mobile power supply 1 falls to the ground and is hit, the outer sheath 6 provided can protect the outside of the main body of the mobile power supply 1 from falling. At the same time, a plurality of sets of anti-slip strips 20 are respectively provided on both sides of the outer sheath 6, which can play an anti-slip effect when holding the main body of the mobile power supply 1 for use. The power supply is used for supporting and fixing.

It will be apparent to those skilled in the art that the present invention is not limited to the details of the above-described exemplary embodiments, and that the present invention can be implemented in other specific forms without departing from the spirit or essential characteristics of the present invention. Therefore, the embodiments are to be considered in all respects as exemplary and not restrictive, and the scope of the present invention is defined by the appended claims rather than the foregoing description, and it is therefore intended that the All changes within the meaning and range of the required equivalents are embraced within the present invention. Any reference signs in the claims shall not be construed as limiting the involved claim.

Claims (6)

1. A two-way fast-charging wireless mobile power supply supporting Qi protocol, comprising a mobile power supply main body (1), characterized in that: a fixed seat (5) is fixed on the top of one end of the mobile power supply main body (1), and the mobile power supply main body (1) is fixed on the top. An outer sheath (6) is arranged on the outside of the main body of the power supply (1), an electromagnetic coil (7) is arranged inside one end of the fixing seat (5), and a circuit board (8) is arranged inside the fixing seat (5). , the interior of the mobile power supply main body (1) is vertically arranged with a plurality of groups of battery cells (9), the bottom of one end of the mobile power supply main body (1) is fixed with a clip seat (10), and the mobile power supply main body (1) One side of the bottom end is provided with two sets of output ends (13), the other side of the bottom end of the mobile power supply main body (1) is provided with an input end (14), and the rear end of the mobile power supply main body (1) is provided with a reserved slot inside (15). 2. A two-way fast-charging wireless mobile power supply supporting Qi protocol according to claim 1, characterized in that: a movable seat (16) is provided at the rear end of the main body of the mobile power supply (1), and the movable seat The rear end of (16) is hinged with a support plate (19), and a card slot (18) is provided through the middle position of one end of the support plate (19). The middle position of the bottom of the rear end of the mobile power supply body (1) A block (17) is fixed at the place. 3. A two-way fast charging wireless mobile power supply supporting Qi protocol according to claim 1, characterized in that: the inner diameter of the reserved slot (15) is larger than the outer diameter of the movable seat (16), and the reserved An inner end of the retaining groove (15) is movably connected with the front end of the movable seat (16). 4. A two-way fast-charging wireless mobile power supply supporting Qi protocol according to claim 1, characterized in that: a chuck (3) is provided on one side of the holder (10), and the chuck ( 3) The top and bottom ends of one side are respectively laterally fixed with pull rods (2), the top and bottom of the clip seat (10) are respectively laterally provided with inner grooves (12), and a A compression spring (4) is fixed laterally on the side, and one side of the pull rod (2) penetrates one side of the clamping seat (10) and the interior of the compression spring (4) and fixes the limiting plate (11). 5. A two-way fast-charging wireless mobile power supply supporting Qi protocol according to claim 1, characterized in that: the inner height of the clamping base (10) and the clamping head (3) is the same as the height of the fixing base (5). same height. 6. A two-way fast charging wireless mobile power supply supporting Qi protocol according to claim 1, characterized in that: the outer sheath (6) is provided with an inner cavity (21), and the outer sheath (6) is provided with an inner cavity (21). A plurality of groups of anti-skid strips (20) are fixed at equal intervals on both sides of the outer sheath (6), and a slot is provided through the bottom end of the outer sheath (6).
