Abstract

The utility model provides a purifying faucet structure, which relates to the field of purifying faucets. The hot water inlet pipe is communicated with the hot water inlet pipe in the body, the cold water inlet pipe is communicated with the cold water inlet pipe in the body, and the water purifier is communicated with the purified water outlet pipe in the body. The operation part includes a first operation part and a second operation part. The first operation part is adapted to the mixing valve core and controls the cold water inlet pipe or the hot water inlet pipe to communicate with the mixed water outlet pipe in the body; the second operation part is connected to the clean water inlet pipe. The water spool is adapted and configured to enable the water in the cold water inlet pipe to enter the water purification spool and be filtered through the water purifier under the operation of the user; by using two spools to control the purified water and tap water, the The internal structure of the existing water purification faucet is complex, the faucet is troublesome to assemble and install, and the problem of taking up space is also a problem. The present application further provides a mixed water outlet device.

Description

A purifying faucet structure and mixing water outlet device

technical field

The utility model relates to the technical field of purifying faucets, in particular to a purifying faucet structure and a mixing water outlet device.

Background technique

With the improvement of living standards, people pay more and more attention to their own health, and the safety of drinking water has also attracted people's attention. Especially in some developed countries, the drinking water standard is getting higher and higher, and the faucet, as a direct water supply product, also needs to be Compliant with drinking water standards. In this case, a clean faucet that can provide clean water is also produced.

Most of the existing water purification faucets have different water channels for water purification and tap water, or are constructed by splicing two or more bodies, which leads to the complex internal structure of the water purification faucet, and the faucet is relatively difficult to assemble and install. Cumbersome and takes up space.

Utility model content

The utility model discloses a purifying faucet structure, which aims to improve the problems that the existing purifying faucet has a complicated internal structure, is troublesome to assemble and install, and occupies space.

The utility model adopts the following scheme:

A water purification faucet structure includes a body, a water purification valve core, a mixing valve core, a cold water inlet pipe, a hot water inlet pipe, a water purifier and an operation part, and the hot water inlet pipe is connected to the hot water inlet in the body. The water pipe is connected, the cold water inlet pipe is communicated with the cold water inlet pipe in the body, and the water purifier is communicated with the clean water outlet pipe in the body; the operation part includes a first operation part and a second operation part. an operation part, the first operation part is adapted to the mixing valve core, and controls the cold water inlet pipe or the hot water inlet pipe to communicate with the mixed water outlet pipe in the body; the second operation part It is adapted to the water purification valve core, and is configured to enable the water in the cold water inlet pipe to enter the water purification valve core under the operation of the user.

As a further improvement, the mixing valve core and the water purification valve core are arranged on opposite sides of the body; the first operating part and the second operating part are arranged on opposite sides outside the body for supplying User action.

As a further improvement, the water purifier is arranged at the rear end of the water purifying valve core, and a water purifying filter element is arranged inside.

As a further improvement, a water purification outlet pipe is included, and the water purification outlet pipe is communicated with the water purification valve core, the water purifier and the water purification outlet pipe.

As a further improvement, a water nozzle is provided on the body, and a terminal water outlet device is provided on the water nozzle for water outlet.

As a further improvement, an extension rod is included, the extension rod is arranged in the water nozzle, one end of the extension rod is connected to the water purification outlet pipe, and the other end is adapted to the body; the extension rod is provided with a through-hole in the middle A through hole is provided between the connecting rod and both sides of the water nozzle, the through hole is used for the passage of purified water, and the hollow structure is used for the passage of mixed water.

A mixed water outlet device includes a terminal water outlet structure and the water purification faucet structure according to any one of the above, wherein the terminal water outlet structure is adapted and connected to the water purification faucet structure.

By adopting the above-mentioned technical scheme, the utility model can obtain the following technical effects:

In the purifying faucet structure of the present application, the body is provided with a first operation part and a second operation part, and the first operation part is adapted to the mixing valve core to control the mixing of the cold water inlet pipe or the hot water inlet pipe and the body. The water outlet pipe is communicated; the second operation part is adapted to the water purification valve core, and is configured to enable the water in the cold water inlet pipe to enter the water purification valve core and be filtered through the water purifier under the operation of the user; by using two valves The core is used to control the purified water and tap water, which improves the complex internal structure of the existing water purification faucet, the faucet is troublesome to assemble and install, and takes up space. Compared with the prior art, the advantages of the present application are obvious.

Description of drawings

In order to illustrate the technical solutions of the embodiments of the present invention more clearly, the accompanying drawings required in the embodiments will be briefly introduced below. It should be understood that the following drawings only show some embodiments of the present invention. Therefore, it should not be regarded as a limitation of the scope. For those of ordinary skill in the art, other related drawings can also be obtained from these drawings without any creative effort.

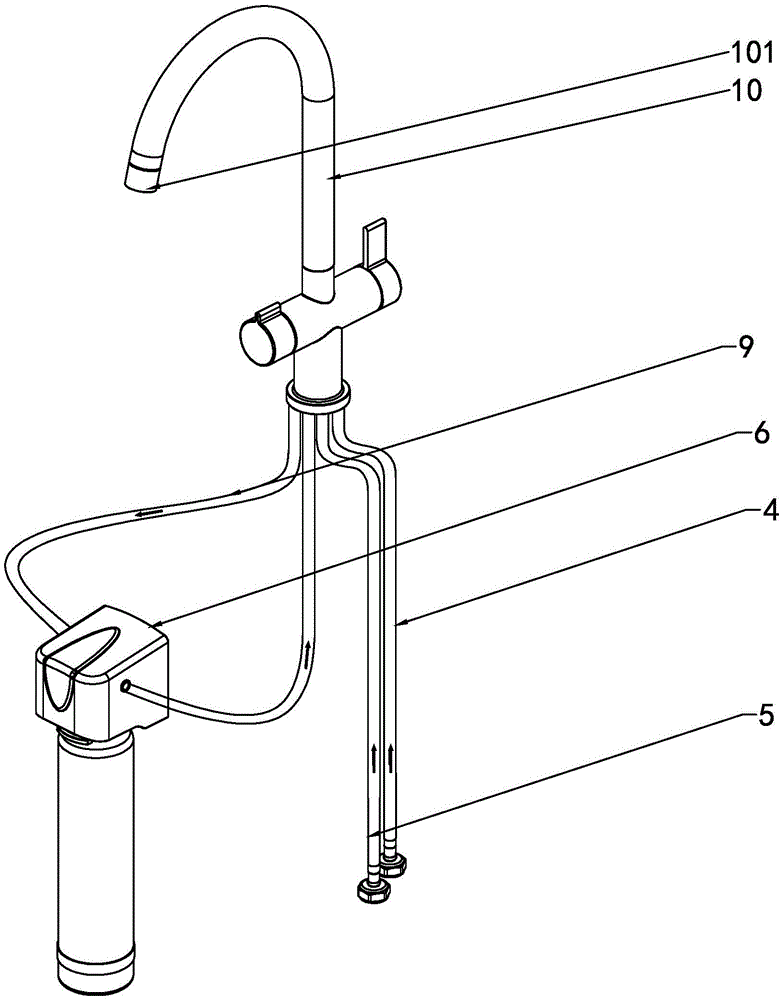

Fig. 1 is the assembly drawing of the present utility model;

Fig. 2 is the exploded view of the partial structure of the present utility model;

Fig. 3 is the sectional view of the partial structure of the present utility model;

Fig. 4 is the enlarged view of A in Fig. 3;

Figure 5 is a sectional view of Figure 3 under one of the cross sections;

FIG. 6 is an enlarged view of B in FIG. 5 .

Detailed ways

In order to make the purposes, technical solutions and advantages of the embodiments of the present invention more clear, the technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described The embodiments of the present invention are a part of the embodiments of the present invention, but not all of the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention. Accordingly, the following detailed description of the embodiments of the invention provided in the accompanying drawings is not intended to limit the scope of the invention as claimed, but is merely representative of selected embodiments of the invention. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

In the description of the present invention, it should be understood that the terms "center", "longitudinal", "lateral", "length", "width", "thickness", "upper", "lower", "front", "Back", "Left", "Right", "Vertical", "Horizontal", "Top", "Bottom", "Inner", "Outer", "Clockwise", "Counterclockwise" etc. Or the positional relationship is based on the orientation or positional relationship shown in the accompanying drawings, which is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the referred device or element must have a specific orientation, be constructed in a specific orientation and operation, so it cannot be construed as a limitation to the present invention.

In addition, the terms "first" and "second" are only used for descriptive purposes, and should not be construed as indicating or implying relative importance or implying the number of indicated technical features. Thus, a feature defined as "first" or "second" may expressly or implicitly include one or more of that feature. In the description of the present invention, "plurality" means two or more, unless otherwise expressly and specifically defined.

In the present utility model, unless otherwise expressly specified and limited, the terms "installation", "connection", "connection", "fixed" and other terms should be understood in a broad sense, for example, it may be a fixed connection or a detachable connection Connection, or integration; it can be a mechanical connection or an electrical connection; it can be a direct connection or an indirect connection through an intermediate medium, and it can be the internal communication between the two elements or the interaction relationship between the two elements. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood according to specific situations.

In the present invention, unless otherwise expressly specified and limited, a first feature "on" or "under" a second feature may include the first and second features in direct contact, or may include the first and second features The features are not in direct contact but through additional features between them. Also, the first feature being "above", "over" and "above" the second feature includes the first feature being directly above and obliquely above the second feature, or simply means that the first feature is level higher than the second feature. The first feature is "below", "below" and "below" the second feature includes the first feature being directly below and diagonally below the second feature, or simply means that the first feature has a lower level than the second feature.

Example

The first embodiment of the present utility model provides a water purification faucet structure, including a main body 1, a water purification valve core 2, a mixing valve core 3, a cold water inlet pipe 4, a hot water inlet pipe 5, a water purifier 6 and an operation part. The water device 6 is communicated with the purified water outlet pipe 11 in the body 1, so that the water in the purified water outlet pipe 11 can be filtered through the water purifier 6 to obtain purified water for the user to drink; The hot water inlet pipe 12 is in communication, and the cold water inlet pipe 4 is in communication with the cold water inlet pipe 13 in the main body 1 .

In this embodiment, the operation part includes a first operation part 7 and a second operation part 8. The first operation part 7 is adapted and connected to the mixing valve core 3. When the water is cold, the mixing valve core 3 will control the cold water inlet pipe 13 and the mixing valve core 3. The mixed water outlet pipe 14 is connected; when the water is hot, the mixing valve core 3 will control the hot water inlet pipe 12 to communicate with the mixed water outlet pipe 14, and both cold water and hot water will be discharged through the mixed water outlet pipe 14, so that the internal structure of the clean faucet is simple, and the Reduced production costs. The second operation part 8 is adapted and connected to the water purification valve core 2, and is configured to enable the water in the cold water inlet pipe 4 to enter the water purification valve core 2 and be filtered through the water purifier 6 under the operation of the user. The two valve cores are controlled separately to obtain clean water and tap water, which improves the existing clean water faucet. Most of the clean water and tap water are separated into different waterways, or constructed by two or more bodies 1 spliced together to complete the waterway. As a result, the internal structure of the water purification faucet is complicated, the faucet is troublesome to assemble and install, and takes up space.

Further, the operation part is a handle switch, and the user can control whether the outflow is clean water, cold water or hot water by operating the handle switch and their own needs. The handle switch can quickly control the selection and opening and closing of the water flow, making the whole process simple and convenient to operate. The operation part may also be a button or a knob, which is not specifically limited in the present embodiment.

In this embodiment, the mixing valve core 3 and the water purification valve core 2 are arranged on opposite sides of the main body 1, and the first operating part 7 and the second operating part 8 are arranged on opposite sides outside the main body 1, which is convenient for users to operate , and make the internal and external structure of the clean faucet well-balanced and easy to install.

Further, the water purifier 6 is arranged at the rear end of the water purification valve core 2, which prevents the water purifier 6 from directly bearing the water pressure of the water inlet pipe, causing damage to the water purification, and affecting the life of the water purifier 6 when used for a long time; In addition, the water purifier 6 is provided with a water purification filter element, which mainly filters water to obtain purified water.

In this embodiment, the water purification outlet pipe 9 is included, and the water purification outlet pipe 9 is connected with the water purification valve core 2, the water purifier 6 and the water purification outlet pipe 11. The water flows from the purified water outlet pipe 11 and the water purification outlet pipe. 9 flows to the water purifier 6 for filtration, and finally flows out from the faucet 10 through the terminal water purification outlet pipe 15 in the body for use by the user.

Further, it includes a water nozzle 10 on the main body 1 , the water nozzle 10 is provided with a terminal water outlet device 101 for water outlet, and a post 102 is also provided inside, and one end of the post 102 is connected to the terminal water purification water outlet pipe 15 in the main body 1 , the other end is adapted to the body 1; the connecting rod 102 is provided with a through hole in the middle, and a hollow structure is provided between the connecting rod 102 and the two sides of the water nozzle 10; the through hole is used for the passage of purified water, and the hollow structure is used for The passing of the mixed water also plays a fixed role; the purified water passes through the terminal water purification outlet pipe 15 and then passes through the middle of the connecting rod 102, and finally reaches the water outlet of the terminal water outlet device 101, and the mixed water passes through the mixed water outlet pipe 14 and is hollowed out from the side of the connecting rod 102. The structure enters the water nozzle 10 and finally reaches the terminal water outlet device 101 to discharge water. In the end, the two water passages both exit the water nozzle 10, and the water nozzle 10 can be rotated 360 degrees, which is convenient to adjust the angle of the water outlet for the user to use.

The second embodiment of the present invention provides a mixed water outlet device, which includes a terminal water outlet structure and a water purification faucet structure according to any one of the above. The terminal water outlet structure is adapted and connected to the water purification faucet structure, and the terminal water outlet structure can realize Pull function.

The specific switching process: when purified water is needed, the user can operate the second operation part 8 to obtain purified water for the user to drink; when cold or hot water is needed, the user can turn the first operation part 7 left and right to obtain cold water or hot water, For users to wash.

The above are only the preferred embodiments of the present utility model, and the protection scope of the present utility model is not limited to the above-mentioned embodiments, and all technical solutions under the idea of the present utility model belong to the protection scope of the present utility model.

Claims (7)

1. A purifying faucet structure, comprising a body, a water purifying valve core, a mixing valve core, a cold water inlet pipe, a hot water inlet pipe, a water purifier and an operation part, characterized in that: the hot water inlet pipe and the The hot water inlet pipe in the body is communicated, the cold water inlet pipe is communicated with the cold water inlet pipe in the body, the water purifier is communicated with the purified water outlet pipe in the body; the operation part includes a first an operation part and a second operation part, the first operation part is adapted to the mixing valve core, and controls the cold water inlet pipe or the hot water inlet pipe to communicate with the mixing outlet pipe in the main body; The second operation part is adapted to the water purification valve core, and is configured to enable the water in the cold water inlet pipe to enter the water purification valve core under the operation of the user. 2. water purification faucet structure according to claim 1, is characterized in that: described mixing valve core and described water purification valve core are arranged on opposite sides in described body; The operation parts are arranged on opposite sides outside the main body for the user to operate. 3. The purifying faucet structure according to claim 1, wherein the water purifier is arranged at the rear end of the water purifying valve core, and is provided with a water purifying filter element inside. 4. water purification faucet structure according to claim 1, is characterized in that: comprise water purification water outlet pipe, and described water purification water outlet pipe is communicated with described water purification valve core, water purifier and water purification water outlet pipeline. 5. The purifying faucet structure according to claim 1, characterized in that: comprising a water nozzle arranged on the body, and a terminal water outlet device is provided on the water nozzle for water outlet. 6. The purifying faucet structure according to claim 5, characterized in that: comprising a connecting rod, the connecting rod is arranged in the faucet, one end of the connecting rod is communicated with the water purification outlet pipe, and the other end is connected with the water outlet pipe. The body is adapted; a through hole is arranged in the middle of the connecting rod, and a hollow structure is arranged between the connecting rod and the two sides of the water nozzle; the through hole is used for the passage of purified water, and the The openwork structure is used for mixing water to pass through. 7 . A mixing water outlet device, characterized in that it comprises a terminal water outlet structure and the purifying faucet structure according to any one of claims 1 to 6 , wherein the terminal water outlet structure is adapted and connected to the purifying faucet structure.
