Abstract
本实用新型提供了一种高周转率外墙脚手架，包括脚手架立管和脚手架横管，脚手架立管和脚手架横管之间通过第一连接件连接固定，还包括固定管和预埋钢管，所述固定管和预埋钢管都是水平方向设置的，所述固定管通过第二连接件与脚手架立管连接固定，所述预埋钢管的直径小于固定管的直径，预埋钢管的一端预埋于墙体内侧，预埋钢管的另一端插入固定管内部，预埋钢管和固定管上分别设置有第一固定孔和第二固定孔，预埋钢管和固定管之间通过将固定螺栓插入第一固定孔和第二固定孔中固定连接。本实用新型通过设置内外插接配合的固定管和预埋钢管，固定方式简单，拆装固定方便。
The utility model provides a high-turnover-rate outer wall scaffolding, which comprises a scaffolding stand pipe and a scaffolding horizontal pipe, the scaffolding standpipe and the scaffolding horizontal pipe are connected and fixed by a first connecting piece, and also includes a fixed pipe and a pre-embedded steel pipe. Both the fixed pipe and the pre-embedded steel pipe are arranged in the horizontal direction, the fixed pipe is connected and fixed with the scaffolding riser through the second connector, the diameter of the pre-embedded steel pipe is smaller than the diameter of the fixed pipe, and one end of the pre-embedded steel pipe is pre-buried On the inner side of the wall, the other end of the embedded steel pipe is inserted into the fixed pipe, the embedded steel pipe and the fixed pipe are respectively provided with a first fixing hole and a second fixing hole, and a fixing bolt is inserted between the embedded steel pipe and the fixed pipe. A fixing hole is fixedly connected with the second fixing hole. The utility model is provided with a fixed pipe and a pre-embedded steel pipe which are inserted and connected inside and outside, the fixing method is simple, and the disassembly, assembly and fixing are convenient.
Description
Technical Field
The utility model belongs to the field of building construction, and particularly relates to an external wall scaffold with high turnover rate.
Background
The scaffold is a working platform which is erected for ensuring that each construction process is smoothly carried out. The scaffold is divided into an outer scaffold and an inner scaffold according to the erected positions; the scaffold can be divided into a wood scaffold, a bamboo scaffold and a steel pipe scaffold according to different materials; the scaffold is divided into a vertical rod type scaffold, a bridge type scaffold, a door type scaffold, a suspension type scaffold, a hanging type scaffold, a lifting type scaffold and a climbing type scaffold according to the structural form. The existing outer wall scaffold is generally connected and fixed with an outer wall through various connecting and fixing devices, but the existing fixing device has the defects of complex structure, fixed trouble in disassembly and assembly, incapability of adjusting fixed position distance, and low turnover rate caused by the fact that different scaffolds and fixing devices need to be replaced aiming at different walls and connecting positions.
SUMMERY OF THE UTILITY MODEL
In order to solve the technical problem, the utility model provides an external wall scaffold with high turnover rate.
The technical scheme of the utility model is as follows:
the utility model provides a high turnover rate outer wall scaffold, violently manages including scaffold frame riser and scaffold, and scaffold frame riser and scaffold frame are violently managed between and are connected fixedly through first connecting piece, still include fixed pipe and pre-buried steel pipe, fixed pipe and pre-buried steel pipe all are that the horizontal direction sets up, fixed pipe passes through the second connecting piece and is connected fixedly with the scaffold frame riser, the diameter of pre-buried steel pipe is less than the diameter of fixed pipe, and the one end of pre-buried steel pipe is pre-buried in the wall body inboard, and the other end of pre-buried steel pipe inserts fixed intraduct, is provided with first fixed orifices and second fixed orifices on pre-buried steel pipe and the fixed pipe respectively, through inserting fixing bolt fixed connection in first fixed orifices and the second fixed orifices between pre-buried steel pipe and the fixed pipe.
The high turnover rate outer wall scaffold is characterized in that the first fixing holes and the second fixing holes are respectively multiple, and the multiple first fixing holes and the multiple second fixing holes are respectively and uniformly distributed at intervals along the length direction on two sides of the embedded steel pipe and the fixed pipe.
The high turnover rate outer wall scaffold, first fixed orifices and second fixed orifices have 2 respectively, 2 rows of first fixed orifices and second fixed orifices are at the both sides of pre-buried steel pipe and fixed pipe respectively and are separated by certain distance evenly distributed along length direction.
The diameter of the embedded steel pipe is larger than that of the fixed pipe, one end of the embedded steel pipe is embedded in the inner side of the wall, and the fixed pipe is inserted into the other end of the embedded steel pipe.
The high turnover rate outer wall scaffold comprises a first sleeve and a second sleeve, wherein the first sleeve is used for being fixed on a scaffold stand pipe, the second sleeve is fixedly connected with the first sleeve and is perpendicular to the first sleeve in the direction and used for fixing a fixing pipe, and the first sleeve and the second sleeve are fixed with the scaffold stand pipe and the fixing pipe through fastening bolts respectively.
The utility model has the following beneficial effects: according to the high turnover rate outer wall scaffold, the fixing mode is simple and the mounting, dismounting and fixing are convenient by arranging the fixing pipe and the embedded steel pipe which are in plug-in fit with each other inside and outside; through setting up two rows of a plurality of fixed orificess, thereby can conveniently adjust fixing bolt's fixed position and adjust the distance between scaffold frame and the wall body, satisfied different construction conditions's needs, improved turnover rate to two rows of a plurality of fixed orificess make and fix more firmly between scaffold frame and the wall body, guaranteed the safety and stability of construction.
Drawings

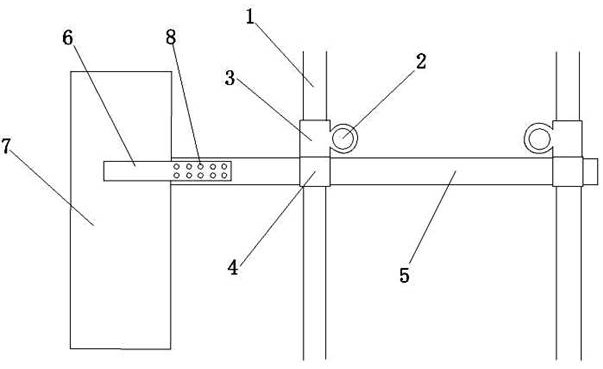

FIG. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is a schematic view of the stationary tube structure of the present invention;
FIG. 3 is a schematic view of the structure of the pre-buried steel pipe of the present invention;
in the figure, 1-scaffold riser; 2, a horizontal pipe of the scaffold; 3-a first connecting member; 4-a second connector; 5, fixing a tube; 6, pre-burying a steel pipe; 7-outer wall body; 8, fixing the bolt; 9-a first fixing hole; 10-second fixing hole.
Detailed Description
The present invention will be described in detail with reference to the accompanying drawings.
As shown in fig. 1 to 3, the high turnover rate external wall scaffold of the present invention includes a scaffold vertical pipe 1 and a scaffold horizontal pipe 2, the scaffold vertical pipe 1 and the scaffold horizontal pipe 2 are connected and fixed by a first connecting member 3, and further includes a fixing pipe 5 and an embedded steel pipe 6, the fixing pipe 5 and the embedded steel pipe 6 are both horizontally disposed, the fixing pipe 5 is connected and fixed with the scaffold vertical pipe 1 by a second connecting member 4, the second connecting member 4 includes a first sleeve fixed on the scaffold vertical pipe 1 and a second sleeve fixed to the first sleeve and perpendicular to the first sleeve, and the second sleeve is fixed to the scaffold vertical pipe 1 and the fixing pipe 5 by fastening bolts. The diameter of pre-buried steel pipe 6 is less than the diameter of fixed pipe 5, and the one end of pre-buried steel pipe 6 is pre-buried in the wall body inboard, and inside the other end of pre-buried steel pipe 6 inserted fixed pipe 5, be provided with first fixed orifices 9 and second fixed orifices 10 on pre-buried steel pipe 6 and the fixed pipe 5 respectively, through inserting fixing bolt 8 fixed connection in first fixed orifices 9 and the second fixed orifices 10 between pre-buried steel pipe 6 and the fixed pipe 5. In another embodiment of the present invention, the diameter of the pre-buried steel pipe 6 is larger than that of the fixed pipe 5, one end of the pre-buried steel pipe 6 is pre-buried inside the wall, and the fixed pipe 5 is inserted into the other end of the pre-buried steel pipe 6. Through setting up inside and outside fixed pipe of grafting complex and pre-buried steel pipe, fixed mode is simple, and the dismouting is fixed convenient.
The first fixing holes 9 and the second fixing holes 10 are respectively multiple, and the multiple first fixing holes 9 and the multiple second fixing holes 10 are respectively and uniformly distributed at intervals in the length direction on two sides of the embedded steel pipe 6 and the fixed pipe 5. The first fixing holes 9 and the second fixing holes 10 are respectively provided with 2 rows, and the 2 rows of the first fixing holes 9 and the second fixing holes 10 are respectively and uniformly distributed at intervals along the length direction at two sides of the embedded steel pipe 6 and the fixed pipe 5. When installing the scaffold, the accessible removes fixed pipe 5, make the coincidence of the first fixed orifices 9 and the second fixed orifices 10 of different positions, thereby insert fixing bolt 8 adjustable scaffold and the distance between the wall body, through setting up two rows of a plurality of fixed orificess, thereby can conveniently adjust fixing bolt's fixed position and adjust the distance between scaffold and the wall body, the needs of different construction conditions have been satisfied, turnover rate has been improved, and two rows of a plurality of fixed orificess, can insert fixing bolt in two rows of a plurality of fixed orificess simultaneously, it is more firm to make between scaffold and the wall body fix, the safety and stability of construction has been guaranteed.
The above description is only for the purpose of illustrating the preferred embodiments of the present invention and is not to be construed as limiting the utility model, and any modifications, equivalents and improvements made within the spirit and principle of the present invention are included in the scope of the present invention.
Claims (5)
1. The utility model provides a high turnover rate outer wall scaffold, violently manages (2) including scaffold riser (1) and scaffold, and scaffold riser (1) and scaffold are violently managed and are connected fixedly through first connecting piece (3) between (2), and its characterized in that still includes fixed pipe (5) and pre-buried steel pipe (6), fixed pipe (5) and pre-buried steel pipe (6) all are that the horizontal direction sets up, fixed pipe (5) are connected fixedly with scaffold riser (1) through second connecting piece (4), the diameter of pre-buried steel pipe (6) is less than the diameter of fixed pipe (5), and the one end of pre-buried steel pipe (6) is pre-buried in the wall body inboardly, and the other end of pre-buried steel pipe (6) inserts fixed pipe (5) inside, is provided with first fixed orifices (9) and second fixed orifices (10) on pre-buried steel pipe (6) and the fixed pipe (5) respectively, inserts first fixed orifices (9) and first fixed through fixing bolt (8) between pre-buried steel pipe (6) and fixed pipe (5) The two fixing holes (10) are fixedly connected.
2. The high-turnover-rate exterior wall scaffold as claimed in claim 1, wherein the first fixing holes (9) and the second fixing holes (10) are respectively multiple, and the multiple first fixing holes (9) and the multiple second fixing holes (10) are respectively and uniformly distributed at intervals along the length direction on two sides of the embedded steel pipe (6) and the fixed pipe (5).
3. The high-turnover-rate outer wall scaffold as claimed in claim 1, wherein the first fixing holes (9) and the second fixing holes (10) are respectively provided with 2 rows, and the 2 rows of the first fixing holes (9) and the second fixing holes (10) are respectively and uniformly distributed at intervals along the length direction on two sides of the embedded steel pipe (6) and the fixing pipe (5).
4. The high-turnover-rate external wall scaffold as claimed in claim 1, wherein the diameter of the embedded steel pipe (6) is larger than that of the fixed pipe (5), one end of the embedded steel pipe (6) is embedded inside the wall, and the fixed pipe (5) is inserted into the other end of the embedded steel pipe (6).
5. A high turnover rate exterior wall scaffold according to claim 1, characterized in that said second connecting member (4) comprises a first sleeve for fixing on the scaffold riser (1) and a second sleeve fixedly connected to the first sleeve and perpendicular to the first sleeve for fixing the fixing tube (5), said first sleeve and second sleeve are respectively fixed with the scaffold riser (1) and the fixing tube (5) by fastening bolts.
