CN216865786U - A kind of structural thermal insulation integrated composite thermal insulation board - Google Patents

Abstract

The utility model relates to the technical field of building materials, in particular to a composite thermal insulation board with integrated structure and thermal insulation, comprising a thermal insulation board, an adhesive layer is arranged at the bottom of the thermal insulation board, and longitudinal stripes and horizontal stripes are respectively installed on the bottom of the adhesive layer. The stripes and stripes are interwoven in a grid pattern. The utility model overcomes the deficiencies of the prior art. By arranging horizontal stripes, longitudinal stripes, connecting plates and installation holes, the connecting plates are connected on both sides of the thermal insulation board, and the surface of the connecting plate is provided with installation holes, so that the installation holes are provided on the surface of the heat preservation board. When the insulation board is installed, it can be connected and installed through the installation holes to avoid cracks on the insulation board during the installation process and affect the performance of the composite insulation board. During installation, horizontal and vertical lines can be used to increase the friction performance of the thermal insulation board, improve the stability of the thermal insulation board, and prevent the thermal insulation board from slipping during installation, which is beneficial to practical use.

Description

A kind of structural thermal insulation integrated composite thermal insulation board

technical field

The utility model relates to the technical field of building materials, in particular to a structural thermal insulation integrated composite thermal insulation board.

Background technique

Thermal insulation and decoration integrated board is also called energy-saving thermal insulation and decoration integrated board. It is composed of adhesive layer, thermal insulation and decoration finished board, fixed parts, sealing materials, etc. There are many construction schemes, which are not only suitable for the external wall insulation and decoration of new buildings, but also suitable for It is suitable for energy-saving and decorative renovation of old buildings, not only for various public buildings, but also for external thermal insulation of residential buildings, not only for buildings in cold northern regions, but also for buildings in hot southern regions.

However, in the actual use process of the existing structural thermal insulation integrated composite thermal insulation board, due to the poor strength of the composite thermal insulation board, it is easy to crack the composite thermal insulation board if drilling operations are required when installing the composite thermal insulation board. However, the performance of the composite thermal insulation board is affected, and the poor surface roughness of the composite thermal insulation board makes the stability during installation poor; at the same time, the existing structural thermal insulation integrated composite thermal insulation board has poor anti-corrosion performance during actual use. When the weather is relatively humid, the composite thermal insulation board is easy to penetrate and absorb some moisture, which affects the service life of the composite thermal insulation board, and the existing structural thermal insulation integrated composite thermal insulation board has poor toughness, which makes the composite thermal insulation board easily damaged.

Utility model content

Aiming at the deficiencies of the prior art, the utility model provides a structural thermal insulation integrated composite thermal insulation board, which overcomes the shortcomings of the existing technology, has a simple structure design, and effectively solves the practical problem of the existing structural thermal insulation integrated composite thermal insulation board. During use, due to the poor strength of the composite insulation board, it is easy to crack the composite insulation board when drilling operations are required when installing the composite insulation board, which affects the performance of the composite insulation board. The poor surface roughness results in poor stability during installation; at the same time, the existing structural thermal insulation integrated composite thermal insulation board has poor anti-corrosion performance during actual use, which makes the composite thermal insulation board easy to penetrate and absorb some parts when the weather is relatively humid. Moisture affects the service life of the composite thermal insulation board, and the existing structural thermal insulation integrated composite thermal insulation board has poor toughness, which makes the composite thermal insulation board extremely vulnerable.

In order to solve the above-mentioned technical problems, the utility model provides the following technical solutions:

A composite thermal insulation board with integrated structure and thermal insulation, comprising a thermal insulation board, an adhesive layer is arranged at the bottom of the thermal insulation board, and longitudinal grains and horizontal grains are respectively installed on the bottom of the adhesive layer;

The longitudinal stripes and the horizontal stripes are interwoven and arranged in a grid shape.

Preferably, the top of the thermal insulation board is provided with a protective layer, the two sides of the thermal insulation board are provided with connecting plates, and the surfaces of the connecting plates are provided with mounting holes, and the mounting holes are threaded holes.

Preferably, an expanded polystyrene board is arranged inside the thermal insulation board, an anti-cracking glue is arranged on the top of the expanded polystyrene plate, and an anchor is installed on the surface of the anti-cracking glue.

Preferably, an elastic buffer layer is arranged on the top of the anti-cracking glue, the surface of the elastic buffer layer is provided with a plurality of ventilation holes arranged at an equal distance, and a waterproof layer is arranged on the top of the elastic buffer layer, so The waterproof layer is connected with the protective layer, and the thickness of the elastic buffer layer is greater than that of the waterproof layer.

Preferably, the bottom of the expanded polystyrene board is provided with polymer bonding mortar, the bottom of the polymer bonding mortar is connected with an alkali-resistant glass fiber mesh, and the bottom of the alkali-resistant glass fiber mesh is provided There are polymer plastering mortars.

Preferably, an anti-corrosion layer is installed on the bottom of the polymer plastering mortar, the anti-corrosion layer is connected with the adhesive layer, and the thickness of the anti-corrosion layer is greater than that of the polymer plastering mortar.

The embodiment of the present utility model provides a composite thermal insulation board with integrated structure and thermal insulation, which has the following beneficial effects: by connecting connecting boards on both sides of the thermal insulation board, the surface of the connecting board is provided with installation holes, so that the thermal insulation board can be installed on the surface of the thermal insulation board. During installation, it can be connected and installed through the installation holes to avoid cracks on the insulation board during the installation process and affect the performance of the composite insulation board. At the same time, an elastic buffer layer is provided inside the insulation board to improve the elastic recovery performance of the insulation board. , to prevent the insulation board from being difficult to recover during the impact process and affect the performance, improve the service life of the insulation board, and a waterproof layer is provided on the surface of the insulation board to prevent moisture from penetrating into the interior of the insulation board when the air is humid and affecting the insulation board. service life.

1. By setting horizontal stripes, longitudinal stripes, connecting plates and installation holes, and connecting the connecting plates on both sides of the insulation board, the surface of the connecting plate is provided with installation holes, so that the installation holes can be passed through the installation of the insulation board. It is connected and installed to avoid cracks on the insulation board during the installation process and affect the performance of the composite insulation board. The bottom of the insulation board is provided with horizontal and vertical lines, so that the insulation board can pass the horizontal and vertical lines during installation. The pattern is to increase the friction performance of the insulation board, improve the stability of the insulation board, and prevent the insulation board from slipping during installation.

2. By setting the elastic buffer layer, ventilation holes, waterproof layer and anti-corrosion layer, and by setting the elastic buffer layer inside the insulation board, the elastic recovery performance of the insulation board can be improved, so as to avoid the influence of the insulation board being difficult to recover during the impact process. The use performance improves the service life of the insulation board, and a waterproof layer is arranged on the surface of the insulation board to prevent moisture from penetrating into the interior of the insulation board when the air is humid and affecting the service life of the insulation board. layer, improve the waterproof and anti-corrosion performance of the insulation board, and improve the service life and performance of the insulation board.

Description of drawings

The accompanying drawings are used to provide a further understanding of the present invention, and constitute a part of the specification, and are used to explain the present invention together with the embodiments of the present invention, and do not constitute a limitation to the present invention. In the attached image:

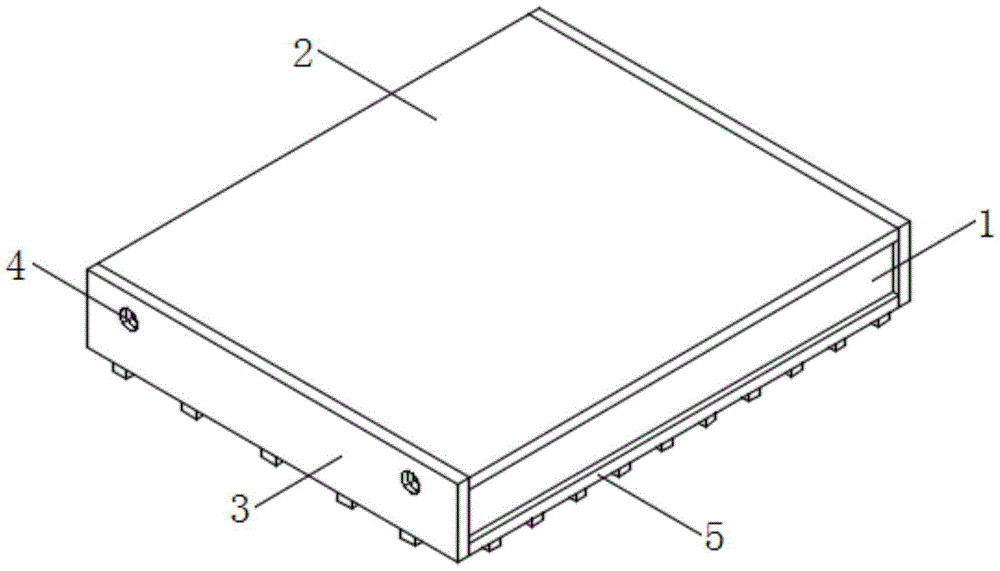

Fig. 1 is the overall structure schematic diagram of the present utility model;

Figure 2 is a schematic diagram of the back structure of the thermal insulation board of the present invention;

Figure 3 is a schematic diagram of the internal structure of the thermal insulation board of the present invention.

In the figure: 1. Insulation board; 2. Protective layer; 3. Connecting plate; 4. Mounting hole; 5. Adhesive layer; 6. Longitudinal grain; 7. Horizontal grain; 8. Polymer bonding mortar; 9. Expansion Polystyrene board; 10, anti-cracking mortar; 11, elastic buffer layer; 12, waterproof layer; 13, alkali-resistant glass fiber mesh; 14, polymer plastering mortar; 15, anti-corrosion layer; 16, anchors; 17 , ventilation holes.

Detailed ways

The preferred embodiments of the present utility model will be described below with reference to the accompanying drawings. It should be understood that the preferred embodiments described herein are only used to illustrate and explain the present utility model, but not to limit the present utility model.

Example: As shown in Figures 1-3, a composite thermal insulation board with integrated structure and thermal insulation includes a thermal insulation board 1, the bottom of the thermal insulation board 1 is provided with an adhesive layer 5, and the bottom of the adhesive layer 5 is respectively installed with longitudinal stripes 6 And the horizontal stripes 7, the longitudinal stripes 6 and the horizontal stripes 7 are interlaced and arranged in a grid shape, so that the insulation board 1 can pass the transverse stripes 7 and the longitudinal stripes 6 during installation to increase the friction performance of the insulation board 1 and improve the stability of the insulation board 1. to prevent the thermal insulation board 1 from slipping off during installation.

Specifically, please refer to Fig. 1-2, the top of the insulation board 1 is provided with a protective layer 2, both sides of the insulation board 1 are provided with connection boards 3, and the surface of the connection board 3 is provided with installation holes 4, and the installation holes 4 are threaded so that the installation holes 4 can be used to connect and install the thermal insulation board 1, so as to avoid cracks on the thermal insulation board 1 during the installation process and affect the performance of the composite thermal insulation board 1.

Specifically, please refer to FIG. 3 , an expanded polystyrene board 9 is arranged inside the thermal insulation board 1 , and the expanded polystyrene board 9 has good thermal insulation performance. The cracked glue 10 improves the tear resistance of the thermal insulation board 1 and the strength of the thermal insulation board 1 . An anchor 16 is installed on the surface of the anti-cracking glue 10 , and the connection strength of the anti-cracking glue 10 is strengthened by the anchor 16 .

Specifically, please refer to FIG. 3, an elastic buffer layer 11 is provided on the top of the anti-cracking glue 10, so as to improve the elastic recovery performance of the thermal insulation board 1, so as to prevent the thermal insulation board 1 from being difficult to recover during the impact process and affecting the performance, improving the performance of the thermal insulation board 1. The service life of the thermal insulation board 1, the surface of the elastic buffer layer 11 is provided with a plurality of ventilation holes 17 arranged at equal distances, the top of the elastic buffer layer 11 is provided with a waterproof layer 12, the waterproof layer 12 is connected with the protective layer 2, and The thickness of the elastic buffer layer 11 is greater than the thickness of the waterproof layer 12 to prevent moisture from penetrating into the interior of the thermal insulation board 1 when the air is humid and affecting the service life of the thermal insulation board 1 .

Specifically, please refer to FIG. 3, the bottom of the expanded polystyrene board 9 is provided with polymer bonding mortar 8, so that the polymer bonding mortar 8 can enhance the connection strength of the thermal insulation board 1, and the bottom of the polymer bonding mortar 8 is connected with a The alkali-resistant glass fiber mesh cloth 13, the bottom of the alkali-resistant glass fiber mesh cloth 13 is provided with a polymer plastering mortar 14, a reinforcing material, to improve the mechanical strength and crack resistance of the protective layer.

Specifically, please refer to FIG. 3 , an anti-corrosion layer 15 is installed on the bottom of the polymer plastering mortar 14 , and the anti-corrosion layer 15 is connected with the adhesive layer 5 . The waterproof and anti-corrosion performance of the thermal insulation board 1 is improved, and the service life and use performance of the thermal insulation board 1 are improved.

Working principle: First, by connecting the connecting plates 3 on both sides of the thermal insulation board 1, the surface of the connecting board 3 is provided with installation holes 4, so that when the thermal insulation board 1 is installed, it can be connected and installed through the installation holes 4 to To avoid cracks on the insulation board 1 during the installation process and affect the performance of the composite insulation board 1, and by setting the horizontal stripes 7 and the longitudinal stripes 6 at the bottom of the insulation board 1, the insulation board 1 can pass the transverse stripes 7 during installation. and longitudinal lines 6 to increase the friction performance of the thermal insulation board 1, improve the stability of the thermal insulation board 1, and prevent the thermal insulation board 1 from slipping off during installation. The elastic recovery performance prevents the thermal insulation board 1 from being difficult to recover during the impact process and affects the performance, improves the service life of the thermal insulation board 1, and is provided with a waterproof layer 12 on the surface of the thermal insulation board 1 to prevent moisture from penetrating into the air when the air is humid. The interior of the thermal insulation board 1 affects the service life of the thermal insulation board 1 , and an anti-corrosion layer 15 is arranged inside the thermal insulation board 1 to improve the waterproof and anti-corrosion performance of the thermal insulation board 1 , and improve the service life and performance of the thermal insulation board 1 .

Claims (6)

1. The utility model provides a structure heat preservation integration composite insulation board, includes heated board (1), its characterized in that: the bottom of the heat insulation plate (1) is provided with an adhesive layer (5), and the bottom of the adhesive layer (5) is respectively provided with longitudinal grains (6) and transverse grains (7);

the longitudinal grains (6) and the transverse grains (7) are interwoven in a grid shape.

2. The structural heat-insulation integrated composite heat-insulation plate according to claim 1, characterized in that: the heat insulation board is characterized in that a protective layer (2) is arranged at the top of the heat insulation board (1), connecting plates (3) are arranged on two sides of the heat insulation board (1), mounting holes (4) are formed in the surfaces of the connecting plates (3), and the mounting holes (4) are threaded holes.

3. The structural heat-insulation integrated composite heat-insulation plate according to claim 2, characterized in that: the insulation board is characterized in that an expansion polystyrene board (9) is arranged inside the insulation board (1), crack-resistant cement (10) is arranged at the top of the expansion polystyrene board (9), and anchoring pieces (16) are arranged on the surface of the crack-resistant cement (10).

4. The structural heat-insulation integrated composite heat-insulation plate according to claim 3, characterized in that: the top of anti crack mortar (10) is provided with elastic buffer layer (11), a plurality of bleeder vents (17) that are the equidistance and distribute the setting are seted up on the surface of elastic buffer layer (11), the top of elastic buffer layer (11) is provided with waterproof layer (12), waterproof layer (12) are connected with inoxidizing coating (2), just the thickness of elastic buffer layer (11) is greater than the thickness of waterproof layer (12).

5. The integrated composite insulation board for structure insulation according to claim 3, characterized in that: the bottom of the expanded polystyrene board (9) is provided with polymer bonding mortar (8), the bottom of the polymer bonding mortar (8) is connected with alkali-resistant glass fiber mesh cloth (13), and the bottom of the alkali-resistant glass fiber mesh cloth (13) is provided with polymer plastering mortar (14).

6. The structural heat-insulation integrated composite heat-insulation plate according to claim 5, characterized in that: the bottom of the polymer plastering mortar (14) is provided with an anticorrosive coating (15), the anticorrosive coating (15) is connected with the bonding layer (5), and the thickness of the anticorrosive coating (15) is larger than that of the polymer plastering mortar (14).
