CN216865626U - Safe and environment-friendly curtain wall mounting structure - Google Patents
Safe and environment-friendly curtain wall mounting structure Download PDFInfo
- Publication number
- CN216865626U CN216865626U CN202220492901.7U CN202220492901U CN216865626U CN 216865626 U CN216865626 U CN 216865626U CN 202220492901 U CN202220492901 U CN 202220492901U CN 216865626 U CN216865626 U CN 216865626U
- Authority
- CN
- China
- Prior art keywords
- curtain wall
- plate
- plates
- wall
- curtain
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Landscapes
- Load-Bearing And Curtain Walls (AREA)
Abstract
一种安全环保的幕墙安装结构，包括墙体和幕墙，所述墙体上线性设置有若干预埋件，所述预埋件包括基板，所述基板与墙体螺栓连接，所述基板的水平中心线上设有隔板，所述隔板两侧对称设置有位板，所述位板上倾斜设置设有卡板，所述卡板与基板之间形成有开槽，所述幕墙上设有与之形状大小相适配的连接件，所述连接件包括安装框，所述安装框与幕墙螺栓连接，所述安装框上对称设置有两块支板，两块所述支板相对的一侧开设有卡槽，所述支板一端设有斜面，所述斜面与卡板的倾斜角度保持一致，所述卡槽与斜面之间形成有开板，所述开板与开槽相配合；本实用新型实现了幕墙的快速安装，利用本结构可直接将安装与对准过程中一次性完成，使用效果好。
A safe and environmentally friendly curtain wall installation structure includes a wall body and a curtain wall, a plurality of embedded parts are linearly arranged on the wall body, the embedded parts include a base plate, the base plate is bolted to the wall, and the level of the base plate is horizontal. There is a partition plate on the center line, the two sides of the partition plate are symmetrically arranged with position plates, the position plates are inclined and provided with a clamping plate, a slot is formed between the clamping plate and the base plate, and the curtain wall is provided with a slot. There is a connecting piece that matches the shape and size of the connecting piece. The connecting piece includes an installation frame. The installation frame is bolted to the curtain wall. Two support plates are symmetrically arranged on the installation frame. One side is provided with a card slot, one end of the support plate is provided with an inclined surface, the inclined surface is consistent with the inclination angle of the card plate, an opening plate is formed between the card groove and the inclined surface, and the opening plate is matched with the slot. The utility model realizes the quick installation of the curtain wall, and the installation and alignment process can be directly completed at one time by using the structure, and the use effect is good.
Description
Technical Field
The utility model relates to the technical field of curtain wall installation, in particular to a safe and environment-friendly curtain wall installation structure.
Background
The curtain wall is the enclosure of the outer wall of the building, does not bear the weight, is hung like a curtain, is also called as a curtain wall and is a light wall with decorative effect commonly used by modern buildings. The outer protective structure or decorative structure of building is formed from panel and supporting structure system, and can have a certain displacement capacity or self-body deformation capacity, and does not bear the action of main body structure.
Very complicated when current curtain installs, need install more bolt, nut, fossil fragments etc. and the installation is wasted time and energy, simultaneously, in the installation of curtain, need go on to it according to the size, aim at and stage waste time, and higher to its in-process deviation rate, whole installation effectiveness is lower, can cause the damage to the curtain panel during the dismantlement, influences the follow-up use of curtain, has influenced the life of curtain panel.
SUMMERY OF THE UTILITY MODEL
The utility model aims to solve the problems in the background technology, and then provides a safe and environment-friendly curtain wall mounting structure.
The technical scheme adopted by the utility model for solving the technical problem is as follows:
a safe and environment-friendly curtain wall mounting structure comprises a wall body and a curtain wall, wherein a plurality of embedded parts are arranged on the wall body, the embedded parts are linearly arranged on the wall body according to the size specification of the curtain wall, each embedded part comprises a base plate, the base plate is connected with the wall body through a bolt, a partition plate for separating two curtain walls is arranged on the horizontal central line of the base plate, position plates for clamping are symmetrically arranged on two sides of each partition plate, the position plates are mutually vertical to the base plates, clamping plates are obliquely arranged on the position plates, a groove is formed between each clamping plate and the base plate, a connecting piece with the shape and the size matched with the shape and the size is arranged on the curtain wall, each connecting piece comprises a mounting frame, the mounting frame is connected with the curtain wall through the bolt, two support plates are symmetrically arranged on the mounting frame, the support plates are mutually vertical to the mounting frame, and a clamping groove is formed in one side, opposite to the two support plates, an inclined plane is arranged at one end of the support plate, the inclined plane keeps consistent with the inclined angle of the clamping plate, an open plate is formed between the clamping groove and the inclined plane, and the open plate is matched with the open groove.
Furthermore, the embedded part is integrally formed and made of an aluminum alloy material.
Furthermore, the depth and the width of the groove are both larger than those of the opening plate.
The scheme is optimized, and the difference between the depth and the width of the slot and the opening plate is not more than 2mm so as to ensure the stability of the connection work.
Furthermore, a rubber strip is filled between the two curtain walls after the installation so as to ensure the sealing performance of the installation of the curtain walls.
Compared with the prior art, the utility model has the beneficial effects that: according to the utility model, the embedded parts and the connecting pieces are respectively arranged on the wall body and the curtain wall, so that the curtain wall is quickly installed, compared with the traditional installation structure, the design does not need to reuse parts such as bolts, nuts, keels and the like, an alignment line does not need to be planned in advance in the installation process, and the installation and alignment process can be directly completed at one time by using the structure; after the connecting piece is inserted into the embedded part, the split plate is positioned in the groove, one end of the clamping plate is positioned in the clamping groove to limit the split plate, and the split plate is simple to manufacture and convenient and fast to use.
Drawings

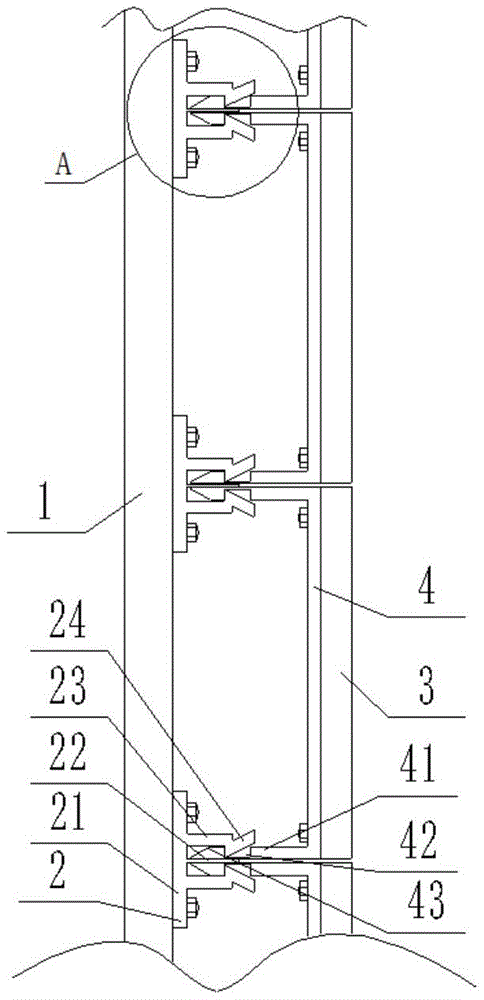

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic view of installation of an embedded part;
FIG. 3 is a schematic view of the installation of the connecting member and the curtain wall;
FIG. 4 is an enlarged view of a portion of FIG. 1;
wherein: the wall body 1, the embedded part 2, the base plate 21, the partition plate 22, the 23-bit plate, the clamping plate 24, the slotted groove 25, the curtain wall 3, the mounting frame 4, the support plate 41, the clamping groove 42, the inclined plane 43 and the open plate 44.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention. The utility model is further illustrated with reference to the accompanying drawings and examples:
as shown in fig. 1 to 4, a safe and environment-friendly curtain wall mounting structure comprises a wall body 1 and a curtain wall 3, wherein a plurality of embedded parts 2 are arranged on the wall body, a plurality of embedded parts are linearly arranged on the wall body according to the size specification of the curtain wall, each embedded part comprises a base plate 21, the base plates are in bolted connection with the wall body, a partition plate 22 for separating two curtain walls is arranged on the horizontal central line of each base plate, position plates 23 for clamping are symmetrically arranged on two sides of each partition plate, the position plates are perpendicular to the base plates, clamping plates 24 are obliquely arranged on the position plates, slots 25 are formed between the clamping plates and the base plates, the embedded parts are integrally formed and made of aluminum alloy materials, connecting pieces matched with the curtain walls in shape and size are arranged on the curtain walls, each connecting piece comprises a mounting frame 4, the mounting frames are in bolted connection with the curtain walls, two support plates 41 are symmetrically arranged on the mounting frames, the support plates are perpendicular to the mounting frame, clamping grooves 42 are formed in the opposite sides of the two support plates, inclined planes are arranged at one ends of the support plates, the inclined planes are consistent with the inclined angles of the clamping plates, an opening plate 44 is formed between each clamping groove and each inclined plane, and the opening plates are matched with the corresponding grooves.
The device has the advantages of ingenious conception and simple structure, in the specific implementation process, firstly, the embedded parts are installed on the wall body by workers according to certain requirements, then the connecting parts are connected with the curtain wall, after two preparation works are finished, the curtain wall provided with the connecting parts is directly inserted into the embedded parts by the workers, and the state in the inserting process is as follows:
1. firstly, the inclined plane is contacted with the partition board and the clamping board;
2. secondly, the opening plate with the inclined plane pushes the clamping plate open and continuously extends into the open groove;
3. when the split plate is positioned in the slot, one end of the clamping plate is positioned in the clamping groove to limit the split plate;
4. the installation of polylith curtain with this reciprocal realization, the installation does not have the condition of installation deviation in the installation, only need with the connecting piece insert realize behind the built-in fitting between the two joint can, convenient and fast, excellent in use effect.
Wherein, the depth and the width of the slot are both larger than the depth and the width of the open plate, and the difference between the two is not more than 2mm so as to ensure the stability of the connection work.
And in order to ensure the sealing property of the installation of the curtain walls, a rubber strip is filled between the two curtain walls after the installation is finished.
The foregoing illustrates and describes the principles, general features, and advantages of the present invention. It will be understood by those skilled in the art that the present invention is not limited to the embodiments described above, and the embodiments and descriptions given above are only illustrative of the principles of the present invention, and various changes and modifications may be made without departing from the spirit and scope of the utility model, which fall within the scope of the claims. The scope of the utility model is defined by the appended claims and equivalents thereof.
Claims (4)
1. A safe and environment-friendly curtain wall mounting structure comprises a wall body and a curtain wall and is characterized in that a plurality of embedded parts are arranged on the wall body, the embedded parts are linearly arranged on the wall body according to the size specification of the curtain wall, each embedded part comprises a base plate, the base plate is connected with the wall body through a bolt, a partition plate is arranged on the horizontal central line of the base plate, position plates are symmetrically arranged on two sides of each partition plate, the position plates are perpendicular to the base plates, clamping plates are obliquely arranged on the position plates, slots are formed between the clamping plates and the base plates, connecting pieces matched with the shape and the size of the curtain wall are arranged on the curtain wall, each connecting piece comprises a mounting frame, the mounting frame is connected with the curtain wall through bolts, two support plates are symmetrically arranged on the mounting frame, the support plates are perpendicular to the mounting frame, clamping slots are formed in one sides, opposite to the two support plates, and one end of each support plate is provided with an inclined plane, the inclined plane keeps the same with the inclination of cardboard, be formed with between draw-in groove and the inclined plane and open the board, open the board and cooperate with the fluting.
2. The curtain wall mounting structure of claim 1, wherein the embedded part is integrally formed and made of aluminum alloy.
3. A curtain wall mounting arrangement as claimed in claim 1, wherein the depth and width of the slot are greater than the depth and width of the split plate.
4. The curtain wall mounting structure of claim 1, wherein a rubber strip is filled between the two curtain walls.
