CN216862196U

CN216862196U - But reuse multifunctional glasses packing carton

Info

Publication number: CN216862196U
Application number: CN202123445186.6U
Authority: CN
Inventors: 张军红
Original assignee: Zhenjiang Bangwei Optical Glasses Co ltd
Current assignee: Zhenjiang Bangwei Optical Glasses Co ltd
Priority date: 2021-12-30
Filing date: 2021-12-30
Publication date: 2022-07-01
Anticipated expiration: 2031-12-30

Abstract

The utility model discloses a reusable multifunctional spectacles packaging box, which comprises an inner box body and an outer box body. An opening is arranged at the upper end of the inner box body, a support plate is arranged on the side wall of the inner box body, and one end of the support plate is connected to the side wall. connection, the other end of the support plate is provided with a baffle plate perpendicular to the support plate, the support plate can be turned around its connection with the inner box side wall and the outer box body is sleeved on the inner box body, on the outer box body At least one insertion port for inserting the inner box into the outer box or extracting the outer box is provided, and a pre-stamp is provided on an end face corresponding to the opening of the outer box and the inner box or an end face opposite to the opening of the inner box. The first slot structure made. This case can reduce the use of inflatable bags and filling paper, thereby saving resources and reducing pollution; at the same time, the glasses packaging box can be used as a tissue box, which improves the utilization rate of the glasses packaging box and avoids the user receiving the goods. Just throw it away.

Description

But reuse multifunctional glasses packing carton

Technical Field

The utility model relates to the technical field of packaging, in particular to a reusable multifunctional glasses packaging box.

Background

Along with the development of E-commerce, people adopt the evaluation rate of E-commerce shopping to be higher and higher, therefore most of commodities are delivered by logistics at present, the boxes for logistics glasses box packaging in the current market are made of a large number of packaging materials, the packaging materials are packaged layer by layer, the packaging materials are very wasted, when a customer takes the goods, firstly, the outermost packaging box of the logistics is opened, then, the outer packaging box of the glasses box is opened, and finally, the glasses box and glasses are arranged in the glasses box.

The customer takes the packing carton, and the spectacle case that is equipped with glasses the most inside is taken out to most, abandons commodity circulation packing carton glasses outer packing box as rubbish, has caused very big pollution to the environment, is the waste of resource simultaneously.

SUMMERY OF THE UTILITY MODEL

The present invention has been made to overcome the above problems, and an object of the present invention is to provide a reusable multifunctional glasses packing case.

In order to achieve the purpose, the method adopted by the utility model is as follows: the reusable multifunctional glasses packing box comprises an inner box body and an outer box body, wherein the inner box body is of a cuboid structure, an opening is formed in the upper end of the inner box body, a supporting plate is arranged on the side wall of the inner box body, one end of the supporting plate is connected with the side wall, a baffle perpendicular to the supporting plate is arranged at the other end of the supporting plate, and the supporting plate can turn around the connection position of the supporting plate and the side wall of the inner box body; the outer box be the structure of a cuboid, outer box cover is established interior box body on outer box body on be provided with at least one and be used for inserting outer box body with interior box body or take the inserted hole of outer box body out outer box body and corresponding terminal surface of outer box body and interior box body opening on or with interior box body opening relative terminal surface on be provided with the first notch structure of pre-compaction printing.

According to the technical scheme, the glasses packaging box adopts the structure of the inner box body and the structure of the outer box body to replace the original corrugated case structure, the glasses box can be placed in the inner box body and screwed into the inner box body through the supporting plate, and is tightly abutted against the glasses box through the baffle plate connected with the supporting plate, so that the glasses box is fastened in the inner box body, the use of an inflation bag and filling paper can be reduced, resources are saved, and pollution is reduced; in addition, be provided with the first notch structure of pre-compaction printing on the terminal surface that outer box body and interior box body opening correspond, after the user takes out the spectacle case, can open the first notch of pre-compaction printing, place the paper handkerchief in the box body including, the paper handkerchief stretches out from first notch, and then makes this spectacle packaging box use as the paper handkerchief box, has improved the utilization ratio of this spectacle packaging box, avoids the user to receive after the goods, directly throws away this packing carton.

Optionally, a slot is formed in the side wall of the inner box body, and the support plate is connected with the lower end of the slot.

Through the technical scheme, the side wall of the inner box body is provided with the slot, the supporting plate is formed through the slot in such a way, and the supporting plate and the slot are integrated, so that the step of independently processing the supporting plate in the follow-up process is omitted, the supporting plate is directly formed by the slot, the material is saved, and the cost is also reduced.

Optionally, a third notch pre-pressed is arranged at a position corresponding to the notch on the side wall of the inner box body of the outer box body.

Through above-mentioned technical scheme, through setting up the third notch, after the user takes out the spectacle case, can open the third notch of pre-compaction printing, can stretch out outer box with the backup pad in the third notch outside, utilize backup pad, baffle to use as cell phone stand, further improved the utilization ratio of this glasses packing carton, avoid the user to receive after the goods, directly throw away this packing carton.

Optionally, a pre-pressed crease line is arranged on one side of the support plate close to the baffle.

Through above-mentioned technical scheme, set up the crease line in the backup pad, can carry out the crease according to the size of the spectacle case in the box body in to the position distance between adjustment baffle and the spectacle case has guaranteed that backup pad and baffle can support the spectacle case tightly.

Optionally, a pulling buckle is further arranged on the baffle, and the pulling buckle is arranged on one side of the support plate close to the outer box body.

Through above-mentioned technical scheme, draw the knot through the setting, can be convenient for pull out the backup pad from the third notch.

Optionally, at least one prepressed second notch is further disposed on one end surface of the outer box corresponding to the opening of the inner box or on the end surface of the outer box opposite to the opening of the inner box.

Through above-mentioned technical scheme, set up the second notch and can be used for accomodating some little articles, further improved this glasses packing carton's utilization ratio.

Optionally, the first notch printed in advance is arranged in the center of the end face of the outer box body.

Optionally, a printed pattern layer is further disposed on the outer box.

Through above-mentioned technical scheme, still be provided with the printing pattern layer on outer box body, not only play pleasing to the eye effect, also can play the effect of propaganda simultaneously.

Has the advantages that:

1. the glasses packing box adopts the structure of the inner box body and the outer box body to replace the original corrugated case structure, the glasses box can be placed in the inner box body and screwed into the inner box body through the supporting plate, and the glasses box is tightly propped against the glasses box through the baffle connected with the supporting plate, so that the glasses box is fastened in the inner box body, the use of an inflation bag and filling paper can be reduced, the resource is saved, and the pollution is reduced; in addition, be provided with the first notch structure of pre-compaction printing on the terminal surface that outer box body and interior box body opening correspond, after the user takes out the spectacle case, can open the first notch of pre-compaction printing, place the paper handkerchief in the box body including, the paper handkerchief stretches out from first notch, and then makes this spectacle packaging box use as the paper handkerchief box, has improved the utilization ratio of this spectacle packaging box, avoids the user to receive after the goods, directly throws away this packing carton.

2. The side wall of the inner box body is provided with the open groove, so that the supporting plate is formed through the open groove and is integrated with the open groove, the subsequent step of independently processing the supporting plate is omitted, the open groove is directly utilized to form the supporting plate, the material is saved, and the cost is reduced.

3. The position that box body and interior box body lateral wall fluting correspond outside is provided with the third notch of pre-compaction printing, after the user takes out the spectacle case, can open the third notch of pre-compaction printing, can stretch out outer box body with the backup pad in the third notch outside, utilizes backup pad, baffle to use as cell phone stand, has further improved the utilization ratio of this spectacle packaging box.

Drawings

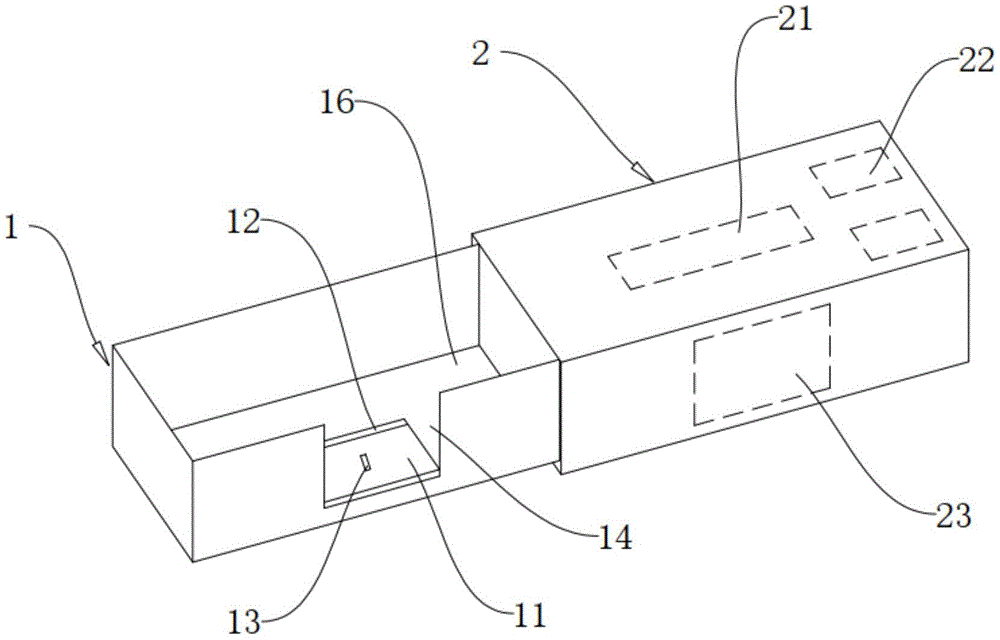

FIG. 1 is a perspective view of the present invention;

FIG. 2 is a schematic structural diagram of the inner case of the present invention;

FIG. 3 is a schematic structural view of the spectacle case as a packing case of the present invention;

FIG. 4 is a schematic view of another mode of the packing case for packing glasses case according to the present invention;

FIG. 5 is a schematic view of the packaging box of the present invention for multi-functional utilization;

fig. 6 is a schematic structural diagram of embodiment 2 of the present invention.

Reference numerals:

1. an inner box body; 2. an outer case body; 3. a spectacle case; 4. a paper towel; 5. a mobile phone; 11. a support plate; 12. a baffle plate; 13. pulling the button; 14. slotting; 15. a crease line; 21. a first notch; 22. a second notch; 23. a third notch; 24. an insertion opening.

Detailed Description

The present invention will be further illustrated with reference to the accompanying drawings and specific examples, which are carried out on the premise of the technical solution of the present invention, and it should be understood that these examples are only for illustrating the present invention and are not intended to limit the scope of the present invention.

Example 1:

as shown in fig. 1 to 5, the present embodiment discloses a reusable multifunctional glasses packing box, which comprises an inner case 1 and an outer case 2, wherein the outer case 2 and the inner case 1 are made of cardboard. Interior box body 1 be the structure of a cuboid, the upper end of interior box body 1 is provided with the opening, forms one and accomodates chamber 11.

A slot 14 is arranged on one side wall of the inner box body 1, a supporting plate 11 is connected on the slot 14, the slot and the supporting plate 11 are formed by cutting two slots from top to bottom on the side wall of the inner box body 1, and an indentation is arranged at the connecting part of the supporting plate 11 and the bottom of the slot 14, so that the supporting plate 11 can rotate around the indentation. A baffle 12 perpendicular to the supporting plate 11 is provided at the upper end of the supporting plate 11, and the baffle 12 is attached to the supporting plate 11 by gluing or nailing.

Referring to fig. 3, the containing cavity 11 of the inner case body 1 is used for containing a packed object, namely the glasses case 3, the glasses case 3 is placed into the containing cavity 11 of the inner case body 1, the glasses case 3 is vertically placed at the moment, the width of the glasses case is smaller, at the moment, the glasses case 3 is overturned into the containing cavity 11 through the supporting plate 11 and is tightly supported by the baffle 12, and therefore the glasses case 3 is clamped, and the glasses case 3 is prevented from shaking in the transportation process.

Be provided with the crease line 15 of pre-compaction printing in one side that backup pad 11 is close to baffle 12, can carry out the crease according to the size of the 3 width of spectacle case in the interior box body 1 to the position distance between adjustment baffle 12 and the spectacle case 3 has guaranteed that backup pad 11 and baffle 12 can support spectacle case 3 tightly. Referring to fig. 4, since the glasses case 3 is horizontally placed and has a large width, the support plate 11 is folded by the fold line, and after the folding, the baffle 12 is in direct contact with the bottom surface of the inner case 1, and the support plate 11 is in direct contact with the glasses case 3.

The outer box 2 is a cuboid structure, the outer box 2 is sleeved on the inner box 1, the outer box 2 is provided with at least one insertion opening 24 for inserting the inner box 1 into the outer box 2 or extracting the outer box 2, in the embodiment, one side wall of the outer box 2 is open, the rest is closed, the opening is the insertion opening 24, and the inner box 1 is inserted into the outer box 2 from the insertion opening 24.

The end face of the outer box body 2 close to one side of the opening of the inner box body 1 is provided with a first notch 21 structure printed in a prepressing mode, the end face is further provided with two second notches 22 printed in a prepressing mode, and the position of the outer box body 2 corresponding to the side wall groove 14 of the inner box body 1 is provided with a third notch 23 printed in a prepressing mode. The first notch 21, the second notch 22 and the third notch 23 can be used to snap off the upper cardboard to form a through slot connected to the inside of the outer box 2. Patterns are printed on the outer surface of the outer box body 2, and advertisements and the like can be printed on the patterns according to requirements.

The multi-functional glasses packing carton of reuse of this embodiment is when packing spectacle case 3, first-selected puts into spectacle case 3 and accomodates chamber 11 of interior box body 1, overturns in accomodating chamber 11 through backup pad 11, supports spectacle case 3 through baffle 12 tightly to with 3 chucking of spectacle case. Then insert interior box 1 in outer box 1, at this moment, the cardboard on first notch 21, second notch 22 and the third notch 23 on outer box 1 does not detain, then overlaps a layer of plastic film on outer box 2, protects outer box 2, prevents that outer box 2 is stained in the in-process of transportation.

After the customer receives the package, the plastic film is removed, the inner case body 1 is taken out, and the glasses case 3 is taken out. Thereafter, the first notch 21, the second notch 22 and the third notch 23 can be forcibly snapped off the upper cardboard to form a through slot connected to the inside of the outer box 2. A pack of tissues 4 can be placed in the inner box 1 and the sheets are withdrawn from the first slot 21. Stationery such as a pen can be put into the second notch 22 for storage. Simultaneously, the customer can also follow third notch 23, draws buckle 13 through the pulling, pulls out backup pad 11 from third notch 23, and the customer can place cell-phone 5 on baffle 12 this moment, and baffle 12 supports is passed through to the one end of cell-phone 5, and the other end passes through outer box 2 and supports, has just so formed a cell phone stand, and very big use scene of this packing carton that has richened has improved the utilization ratio of this glasses packing carton.

Example 2:

referring to fig. 6, the present embodiment is the same as the rest of the embodiment 1, except that in the present embodiment, a first notch 21 structure is provided on the end surface of the outer box 2 away from the opening side of the inner box 1, two second notches 22 are also provided on the end surface, a third notch 23 is provided on the outer box 2 corresponding to the side wall slot 14 of the inner box 1, and a pattern can be printed on the end surface opposite to the end surface.

Such a mode is after the customer receives the packing carton, and the up end of outer box 2 does not have first notch 21 and third notch 22 when opening, and the up end of outer box 2 has a monoblock printed pattern, has improved the aesthetic property, when the customer needs to use the paper extraction & function and the storing function of this packing carton, can take out interior box 1 from outer box 2, then insert outer box 2 after turning interior box 1, can.

The technical means disclosed by the scheme of the utility model are not limited to the technical means disclosed by the technical means, and the technical scheme also comprises the technical scheme formed by any combination of the technical characteristics. While the foregoing is directed to embodiments of the present invention, it will be appreciated by those skilled in the art that various changes may be made in the embodiments without departing from the principles of the utility model, and that such changes and modifications are intended to be included within the scope of the utility model.

Claims

1. A packaging box for reusable multifunctional glasses, characterized in that: it comprises an inner box body (1) and an outer box body (2), the inner box body (1) is a cuboid structure, and the inner box body (1) is a rectangular parallelepiped. The upper end of (1) is provided with an opening, and the side wall of the inner box body (1) is provided with a support plate (11), one end of the support plate (11) is connected with the side wall, and the other end of the support plate (11) is provided with There is a baffle plate (12) perpendicular to the support plate (11), and the support plate (11) can be turned over around the connection between the support plate (11) and the side wall of the inner box body (1); the outer box body (2) It is a cuboid structure, the outer box body (2) is sleeved on the inner box body (1), and the outer box body (2) is provided with at least one for the inner box body (1) The insertion port (24) for inserting the outer box body (2) or extracting the outer box body (2) is on one end face of the outer box body (2) corresponding to the opening of the inner box body (1) or with the inner box body (1) An end face opposite to the opening is provided with a pre-printed first notch (21) structure.

2. A reusable multifunctional glasses packaging box according to claim 1, characterized in that: a slot (14) is provided on the side wall of the inner box body (1), and the support plate is provided with a slot (14). (11) is connected with the lower end of the slot (14).

3. A reusable multifunctional glasses packaging box according to claim 2, characterized in that: the outer box body (2) and the inner box body (1) have a side wall corresponding to a slot (14) The position is provided with a pre-printed third notch (23).

4. A reusable multifunctional glasses packaging box according to claim 1, characterized in that: a pre-pressed printed foldable is provided on the side of the support plate (11) close to the baffle plate (12). Trace line (15).

5 . The reusable multifunctional glasses packaging box according to claim 4 , wherein a pull button ( 13 ) is further provided on the baffle plate ( 12 ), and the pull button ( 13 ). 6 . ) is arranged on the side of the support plate (11) close to the outer box body (2).

6. A reusable multifunctional glasses packaging box according to claim 1, characterized in that: on an end face corresponding to the opening of the outer box body (2) and the inner box body (1) or with the inner box body (1) At least one pre-printed second notch (22) is further provided on one end face opposite to the opening of the box body (1).

7 . The reusable multifunctional glasses packaging box according to claim 1 , wherein the pre-pressed first notch ( 21 ) is arranged at the center of the end face of the outer box body ( 2 ). 8 . .

8 . The reusable multifunctional glasses packaging box according to claim 1 , wherein a printed pattern layer is further provided on the outer box body ( 2 ). 9 .
