Abstract

The utility model relates to the technical field of telephone pole transportation, in particular to a telephone pole transportation device, which is convenient for workers to adjust the height of one end of the telephone pole at the top of the workbench, so that the telephone pole is in a horizontal state and improves the performance of the telephone pole. The stability during transportation improves the practicability; the top left part of the workbench is provided with a support piece, the top end of the workbench is provided with a first moving groove, and the top right part of the workbench is installed with a first support plate through the first pillar, The bottom end of the first support plate and the top end of the worktable are longitudinally provided with two sets of sliding bars, the two sets of slide bars are slidably connected with a moving plate, the top of the moving plate is provided with a strut, and the top of the strut passes through the first support plate The bottom end of the moving block is installed on the top end of the first moving groove through a sliding mechanism, and the left end of the moving block is provided with a cylinder.

Description

A utility pole transport device

technical field

The utility model relates to the technical field of electric pole transportation, in particular to a telephone pole transportation device.

Background technique

As we all know, telephone poles, as the name suggests, are poles for electric wires. They appeared in various rural areas, fields, roads and streets. They were one of the important infrastructures in early China. In the early days, all kinds of telephone poles started from wooden poles, even including voltage. High-voltage line poles that are not too high-grade.

After searching, the utility model patent with the Chinese Patent Publication No. CN214138552U discloses a utility model patent for a utility pole, which includes a frame and a wheel, the frame includes two mutually parallel extension rods, and between the two extension rods A number of bearing plates for receiving utility poles are connected, and a positioning assembly for fixing the utility poles is arranged above the two extending rods. A mounting frame is threadedly connected with a plurality of screw rods for abutting against the electric pole, and the end of the screw rod is provided with a driving member for driving the screw rod to rotate. The present application has the effect of improving the stability of the utility pole during transportation.

However, the above-mentioned prior art scheme cannot adjust the height of the utility pole on the device. Since the dimensions of the two ends of the utility pole are different, the above-mentioned prior art scheme is in the process of transporting the utility pole. The force is uneven, and it is easy to translate during transportation, causing the poles to fall off, affecting the transportation of the poles, and has certain limitations. Therefore, a transportation device for the poles is required.

Utility model content

(1) Technical problems solved

Aiming at the deficiencies of the prior art, the utility model provides a method that is convenient for workers to adjust the height of one end of an electric pole at the top of the workbench, so that the electric pole is in a horizontal state, which improves the stability of the electric pole during transportation, and improves the Practical utility pole transporter.

(2) Technical solutions

In order to achieve the above purpose, the utility model provides the following technical solutions: a utility model for transporting electric poles, comprising a workbench, a support member is provided on the top left of the workbench, a first moving groove is provided on the top of the workbench, and the workbench is provided with a support. A first support plate is installed on the right part of the top end of the first support plate through the first pillar. The bottom end of the first support plate and the top end of the workbench are longitudinally provided with two sets of sliding rods. A support rod is provided, the top end of the support rod passes through the bottom end of the first support plate, the top end of the support rod is provided with a second support plate, the second support plate is located on the upper side of the first support plate, and the bottom end of the moving plate is provided with a The first connecting piece, the bottom end of the first connecting piece is rotatably installed with a pull rod, the left end of the pull rod is rotatably installed with a moving block, the bottom end of the moving block is installed on the top of the first moving groove through a sliding mechanism, and the left end of the moving block is provided with a cylinder .

Preferably, the sliding mechanism includes a second pillar, the second pillar is mounted on the bottom end of the moving block, the bottom end of the second pillar is provided with a sliding block, and the inside of the worktable is provided with a sliding groove and is slidably connected with the sliding block.

Further, a plurality of groups of anti-skid blocks are arranged on the surface of the second support plate.

Still further, four groups of third pillars are arranged around the bottom end of the workbench, and wheels are arranged at the bottom end of each group of third pillars.

On the basis of the foregoing solution, the left end of the workbench is provided with a hook.

Further, a gear handle is provided on the hook.

Still further, the right end of the workbench is provided with a handle.

(3) Beneficial effects

Compared with the prior art, the utility model provides an electric pole transportation device, which has the following beneficial effects.

The utility pole transportation device supports the utility pole through the cooperation of the workbench, the support piece, the first moving groove, the first supporting plate and the first supporting column, and passes the sliding rod, the moving plate, the supporting rod and the second supporting plate. , The cooperation of the first connector, the tie rod and the moving block can adjust the height of one end of the pole, and provide power support for the moving block through the cylinder, which is convenient for workers to adjust the height of one end of the pole at the top of the workbench. The utility pole is kept in a horizontal state, the stability of the utility pole is improved during transportation, and the practicability is improved.

Description of drawings

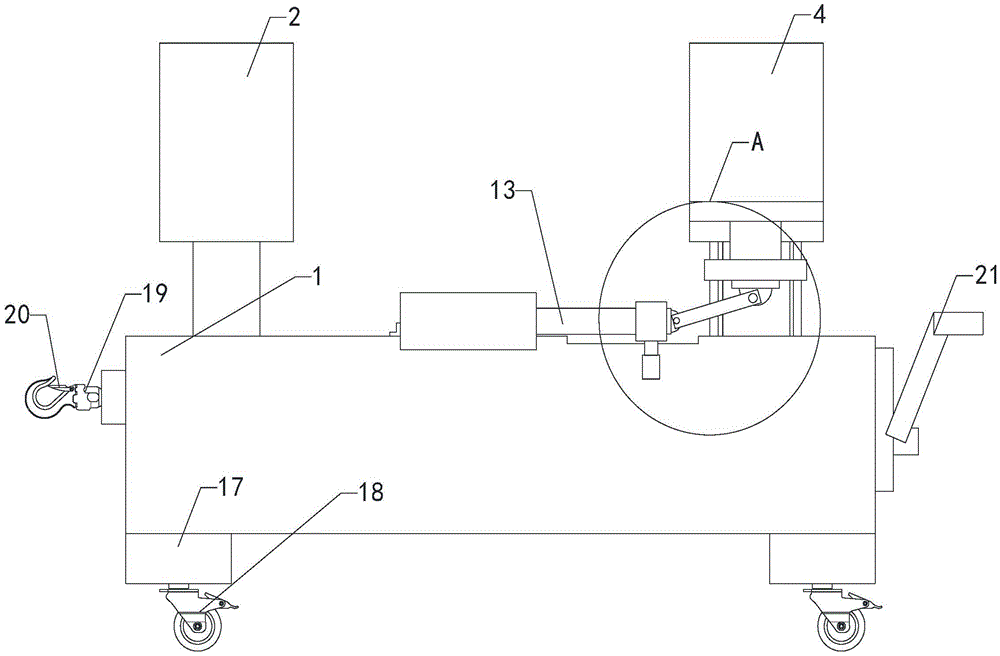

Fig. 1 is the cross-sectional structure schematic diagram of the utility model;

Fig. 2 is the sectional structure schematic diagram of the left side view of the utility model part;

Figure 3 is a schematic diagram of the connection structure of the workbench, the second pillar and the slider in the utility model;

FIG. 4 is an enlarged schematic structural diagram of part A in FIG. 1 of the present invention.

Markings in the drawings: 1. Workbench; 2. Supporting member; 3. First moving groove; 4. First supporting plate; 5. First support; 6. Slide bar; 9, the second support plate; 10, the first connector; 11, the pull rod; 12, the moving block; 13, the cylinder; 14, the second pillar; 15, the slider; , wheel; 19, hook; 20, gear handle; 21, handle.

Detailed ways

Example

Please refer to FIGS. 1-4 , a utility pole transportation device includes a workbench 1 , a support member 2 is provided on the top left of the workbench 1 , a first moving slot 3 is provided on the top of the workbench 1 , and a top end of the workbench 1 is provided with a first moving groove 3 . The right part is installed with a first support plate 4 through the first support 5, the bottom end of the first support plate 4 and the top end of the workbench 1 are longitudinally provided with two sets of sliding rods 6, and the two sets of sliding rods 6 are slidably connected with a moving plate 7. The top end of the moving plate 7 is provided with a support rod 8, the top end of the support rod 8 passes through the bottom end of the first support plate 4, the top end of the support rod 8 is provided with a second support plate 9, and the second support plate 9 is located in the first support plate 9. On the upper side of the plate 4, the bottom end of the moving plate 7 is provided with a first connecting piece 10, the bottom end of the first connecting piece 10 is rotatably installed with a pull rod 11, the left end of the pull rod 11 is rotatably installed with a moving block 12, and the bottom of the moving block 12 is rotatably installed. The end is installed on the top of the first moving groove 3 through a sliding mechanism, and the left end of the moving block 12 is provided with a cylinder 13. With the cooperation of the first pillar 5, the utility pole is supported. The height of one end of the utility pole is adjusted, and the power support operation is provided to the moving block 12 through the cylinder 13, which is convenient for workers to adjust the height of one end of the utility pole at the top of the workbench 1, so that the utility pole is in a horizontal state, and the utility model is improved. The stability during transportation improves the practicability. The sliding mechanism includes a second pillar 14. The second pillar 14 is installed at the bottom end of the moving block 12. The bottom end of the second pillar 14 is provided with a slider 15. A chute is provided and is slidably connected with the slider 15. The cooperation of the second support 14 and the slider 15 improves the stability of the moving block 12 when it moves at the top of the first moving slot 3. The surface of the second support plate 9 is provided with There are multiple groups of anti-skid blocks 16 . By installing the anti-skid blocks 16 , the stability of the electric pole at the top end of the second support plate 9 is improved.

It should also be noted that four groups of third pillars 17 are arranged around the bottom end of the workbench 1, and wheels 18 are provided at the bottom ends of each group of third pillars 17. The cooperation between the third pillars 17 and the wheels 18 is convenient for workers. The moving operation of the device improves the convenience of the worker when moving the device. The left end of the workbench 1 is provided with a hook 19. By installing the hook 19, it is convenient for the worker to move the device and improve the convenience of the worker when moving the device. 19 is provided with a handle 20. By installing the handle 20, the device can be prevented from decoupling when moving, and the stability of the device when moving is improved. The right end of the workbench 1 is provided with a handle 21. Mobile work, improving the convenience of workers when moving equipment.

To sum up, when the utility pole transport device is in use, the utility pole is placed on the top of the workbench 1 through the support 2 and the first support plate 4, the air cylinder 13 is activated, the power is output through the right end of the air cylinder 13, and the moving block 12 While driving the pull rod 11 to move, it drives the first connecting piece 10 to carry out the lifting operation, and the first connecting piece 10 drives the moving plate 7, the support rod 8 and the second supporting plate 9 to carry out the lifting and lowering operation. The height of the utility pole is adjusted so that the utility pole is in a horizontal state, the device is moved through the handle 21 , the hook 19 is used to connect the device to the trailer, and the device can be translated.

Claims (7)

1. A utility pole transportation device, comprising a workbench (1), characterized in that: a support (2) is provided on the top left of the workbench (1), and a first The moving groove (3), the top right part of the workbench (1) is installed with a first support plate (4) through the first support (5), the bottom end of the first support plate (4) and the top end of the workbench (1) Two sets of sliding rods (6) are longitudinally arranged, a moving plate (7) is slidably connected to the two sets of sliding rods (6), a support rod (8) is arranged on the top of the moving board (7), and the top of the support rod (8) is provided with a support rod (8). Passing through the bottom end of the first support plate (4), the top end of the support rod (8) is provided with a second support plate (9), the second support plate (9) is located on the upper side of the first support plate (4) and moves The bottom end of the plate (7) is provided with a first connecting piece (10), the bottom end of the first connecting piece (10) is rotatably installed with a pull rod (11), and the left end of the pull rod (11) is rotatably installed with a moving block (12), The bottom end of the moving block (12) is mounted on the top end of the first moving groove (3) through a sliding mechanism, and a cylinder (13) is arranged on the left end of the moving block (12). 2. A utility pole transportation device according to claim 1, characterized in that: the sliding mechanism comprises a second pillar (14), the second pillar (14) is installed on the bottom end of the moving block (12), and the first pillar (14) A sliding block (15) is provided at the bottom end of the two pillars (14), and a sliding groove is provided inside the worktable (1) and is slidably connected with the sliding block (15). 3. A utility pole transportation device according to claim 2, characterized in that: a plurality of groups of anti-skid blocks (16) are provided on the surface of the second support plate (9). 4. A utility pole transportation device according to claim 3, characterized in that: four groups of third pillars (17) are arranged around the bottom end of the workbench (1), and each group of third pillars (17) Wheels (18) are arranged at the bottom ends of the . 5. A utility pole transportation device according to claim 4, characterized in that a hook (19) is provided at the left end of the workbench (1). 6. A utility pole transportation device according to claim 5, characterized in that: a handle (20) is provided on the hook (19). 7. A utility pole transportation device according to claim 6, characterized in that: a handle (21) is provided at the right end of the workbench (1).
