CN216857932U - A fixing device for automobile foam mold processing equipment - Google Patents

Abstract

The utility model belongs to the technical field of foaming mold processing, in particular to a fixing device for automobile foaming mold processing equipment. Aiming at the problem of poor stability of the mold when punching holes, the following scheme is proposed, which includes processing The top side wall of the processing table is fixed with a support frame, the inner wall of one side of the processing table is rotatably connected with a two-way screw, the outer surface of the two-way screw is threadedly connected with two symmetrically arranged threaded sleeves, and the top side wall of the threaded sleeve is fixed with a In the connecting plate, two symmetrically arranged collection grooves are opened on one side of the inner wall of the processing table; in this utility model, the connecting plate can be moved through the rotation of the bidirectional screw, and the collecting box will be in an open state, and the process of mold processing The waste chips generated in the machine are collected, which is convenient for the staff to organize them. Through the setting of the lifting frame, it is pushed upwards, which is convenient for the staff to take it and improves its processing efficiency during processing.

Description

A fixing device for automobile foam mold processing equipment

technical field

The utility model relates to the technical field of foaming mold processing, in particular to a fixing device for automobile foaming mold processing equipment.

Background technique

Molds, various molds and tools used in industrial production to obtain the desired products by injection molding, blow molding, extrusion, die casting or forging, smelting, stamping and other methods. In a nutshell, a mold is a tool used to make a shaped item, this tool is made up of various parts, and different molds are made up of different parts.

Most of the existing foaming molds are clamped by manipulators. The manipulators can only clamp certain points of the foaming mold for positioning and clamping. Since the foaming mold needs to drill holes on both sides of the surrounding, the foaming mold is The machining process often moves, which affects the quality of the product. If the hole accuracy is prone to deviation, the processed foam mold does not meet the production standards.

Therefore, there is a need for a fixing device for automobile foaming mold processing equipment to solve the problem of poor stability of the mold during punching.

Utility model content

The utility model provides a fixing device for automobile foaming mold processing equipment, which solves the problem of poor stability of the mold during punching.

In order to achieve the above purpose, the utility model adopts the following technical solutions: a fixing device for automobile foaming mold processing equipment, including a processing table, the top side wall of the processing table is fixed with a support frame, and one side of the processing table is fixed with a support frame. The inner wall is rotatably connected with a bidirectional screw, the outer surface of the bidirectional screw is screwed with two symmetrically arranged threaded sleeves, the top side wall of the threaded sleeve is fixed with a connecting plate, and one inner wall of the processing table is provided with two threaded sleeves. two symmetrically arranged collection grooves, one side inner wall of the processing table is rotatably connected with two symmetrically arranged rotating rods, one side of the processing table inner wall is fixed with two symmetrically arranged guide plates, the support A cylinder is fixed on one side wall of the frame, a stamping plate is connected to the output end of the cylinder, a support plate is fixed on one inner wall of the processing table, and a rotating gear a is fastened and sleeved on the outer surface of the two-way screw. A rotating motor fixed to one end of the bidirectional screw is installed on one side outer wall of the processing table, and a moving component is provided on one side wall of the processing table.

Preferably, the moving assembly includes a fixing sleeve connected to the top side wall of the processing table, a sliding rod is slidably connected to one inner wall of the fixing sleeve, and a fixing plate is fixed to one side wall of the sliding rod, so A rotating gear b is fixed on the outer surface of the rotating rod, a toothed plate a meshing with the rotating gear b is installed inside the processing table, and the bottom end side wall of the sliding rod is connected to the toothed plate a. The top end side wall is fixed, the two toothed plates a are arranged symmetrically, the side wall of the toothed plate a close to the two-way screw is fixed with the side wall of the connecting plate, and one side wall of the processing table is fixed. The side inner wall is slidably connected with two collection boxes arranged symmetrically, and the collection boxes are located below the guide plate.

Preferably, a lifting frame is slidably connected to one inner wall of the processing table, a toothed plate b is installed on the inner wall of the processing table, and the top side wall of the toothed plate b is in mesh with the rotating gear b. One side wall of the lifting frame is fixed.

Preferably, the bottom end side wall of the lifting frame is in contact with the top end side wall of the support plate, and the toothed plate is slidably connected to one side inner wall of the processing table.

Preferably, the fixing plate is slidably connected to the top side wall of the processing table, and the guide plate is inclined to the top side wall of the collection box.

Preferably, the two toothed plates a are arranged in a staggered manner, and the toothed plates a are slidably connected to an inner wall of one side of the processing table.

Compared with the prior art, the beneficial effects of the present utility model are:

1. In the present utility model, through the rotation of the bidirectional screw, the connecting plate can be moved, the collection box will be in an open state, and the waste generated during the mold processing will be collected, which is convenient for the staff to sort it out. The setting of the frame, when the processing is completed, it is pushed up, which is convenient for the staff to take it, and the processing efficiency during processing is improved.

2. In the present utility model, through the meshing effect of the rotating gear b and the toothed plate a, the purpose of moving the sliding rod is achieved, and the moving operation of the fixed plate is realized, and the two fixed plates will clamp and fix the workpiece. Improve its stability during processing, and achieve the purpose of moving the lifting frame through the meshing action of the rotating gear a and the toothed plate b.

Description of drawings

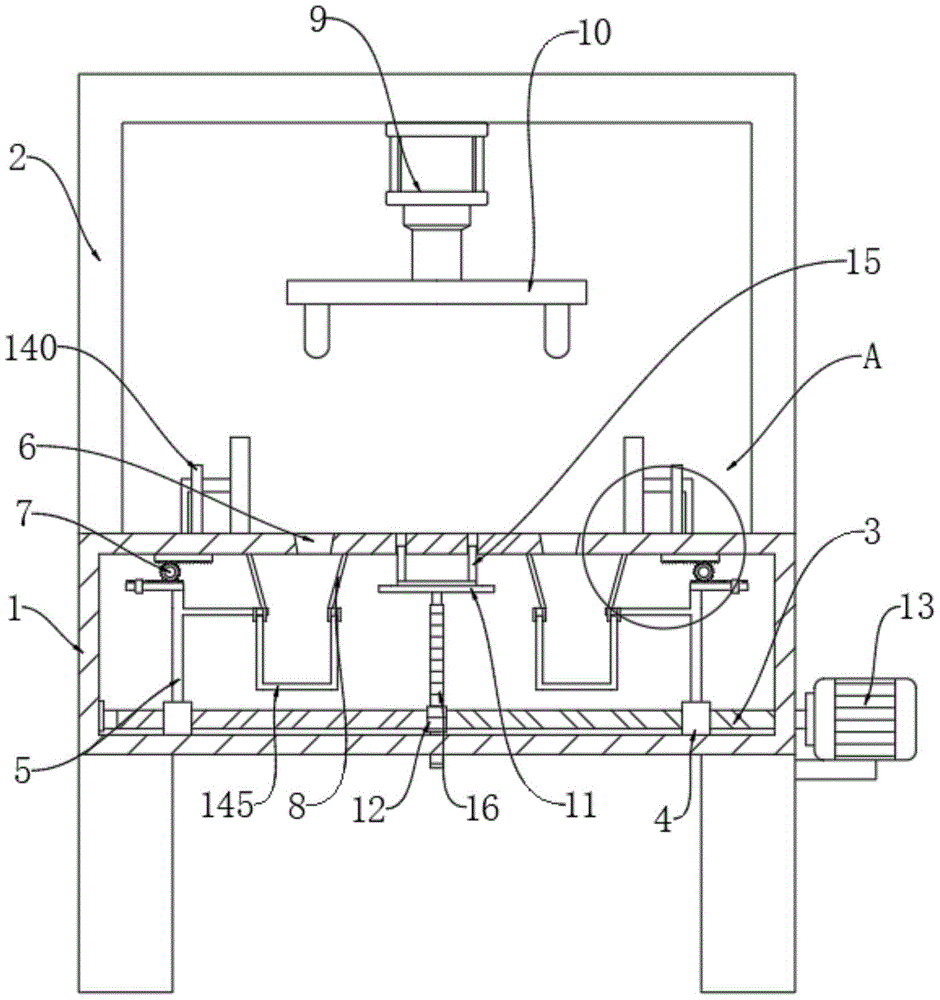

Fig. 1 is the main sectional structure schematic diagram of the fixing device of a kind of automobile foaming mould processing equipment proposed by the utility model;

Fig. 2 is an enlarged view of area A in Fig. 1;

FIG. 3 is a schematic front view of the structure of a fixing device of an automobile foaming mold processing equipment proposed by the utility model.

In the figure: 1. Processing table; 2. Support frame; 3. Two-way screw; 4. Threaded sleeve; 5. Connecting plate; 6. Collection groove; 7. Rotating rod; 8. Guide plate; plate; 11, supporting plate; 12, rotating gear a; 13, rotating motor; 14, moving assembly; 140, fixing sleeve; 141, sliding rod; 142, fixing plate; 143, rotating gear b; 144, toothed plate a ; 145, the collection box; 15, the lifting frame; 16, the toothed plate b.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example.

1-3, a fixing device for automobile foaming mold processing equipment includes a processing table 1, a support frame 2 is fixed on the top side wall of the processing table 1, and a bidirectional screw 3 is rotatably connected to one side inner wall of the processing table 1, The outer surface of the two-way screw 3 is threadedly connected with two symmetrically arranged threaded sleeves 4, the top side wall of the threaded sleeve 4 is fixed with a connecting plate 5, and two symmetrically arranged collection grooves 6 are opened on the inner wall of one side of the processing table 1. One side inner wall of the processing table 1 is rotatably connected with two symmetrically arranged rotating rods 7, one side inner wall of the processing table 1 is fixed with two symmetrically arranged guide plates 8, and one side wall of the support frame 2 is fixed with two symmetrically arranged guide plates 8. The cylinder 9, the output end of the cylinder 9 is connected with a stamping plate 10, the inner wall of one side of the processing table 1 is fixed with a support plate 11, the outer surface of the two-way screw 3 is fastened and sleeved with a rotating gear a12, and the outer wall of one side of the processing table 1 is installed There is a rotating motor 13 fixed to one end of the two-way screw 3, and a moving assembly 14 is provided on one side wall of the processing table 1. Specifically, through the rotation of the two-way screw 3, the connecting plate 5 can be moved. The setting realizes the processing operation of the workpiece, and the processing efficiency during processing is improved by the setting of the moving component 14 .

The moving assembly 14 includes a fixed sleeve 140 which is connected to the top side wall of the processing table 1 . One side inner wall of the fixed sleeve 140 is slidably connected with a sliding rod 141 , and one side wall of the sliding rod 141 is fixed with a fixed plate 142 . A rotating gear b143 is fixed on the surface, a toothed plate a144 meshing with the rotating gear b143 is installed inside the processing table 1, the bottom side wall of the sliding rod 141 is fixed with the top side wall of the toothed plate a144, and the two toothed plates are The a144 is symmetrically arranged, the side wall of the toothed plate a144 close to the two-way screw 3 is fixed with the side wall of the connecting plate 5, and the inner wall of one side of the processing table 1 is slidably connected with two symmetrically arranged collection boxes 145. The box 145 is located below the guide plate 8. Specifically, through the meshing action of the rotating gear b143 and the toothed plate a144, the purpose of moving the sliding rod 141 is achieved, and the moving operation of the fixed plate 142 is realized. The workpiece is clamped and fixed to improve its stability during processing.

One side inner wall of the processing table 1 is slidably connected with a lifting frame 15 , the inner wall of the processing table 1 is mounted with a toothed plate b16 engaged with the rotating gear b143 , and the top side wall of the toothed plate b16 is connected to one side wall of the lifting frame 15 Fixed, the bottom side wall of the lifting frame 15 is in contact with the top side wall of the support plate 11, the toothed plate is slidably connected to the inner wall of one side of the processing table 1, the fixed plate 142 is slidably connected to the top side wall of the processing table 1, and the guide plate 8 and the top side wall of the collection box 145 are inclined and arranged, and the two toothed plates a144 are arranged in a staggered manner. The toothed plate a144 is slidably connected to the inner wall of one side of the processing table 1. Specifically, by rotating the gear a12 and the toothed plate b16 The meshing effect of the lifting frame can achieve the purpose of moving the lifting frame 15.

Working principle: When the foaming mold needs to be processed, place it on the top side wall of the processing table 1, start the power supply to drive the rotating motor 13 to drive the two-way screw 3 to rotate, and the two-way screw 3 will drive two when rotating. The threaded sleeve 4 moves to move the two connecting plates 5, and the collection box 145 will be in an open state to collect the waste generated in the process of mold processing, which is convenient for the staff to sort it out. When moving, it will drive the toothed plate a144 to move. Through the meshing action of the toothed plate a144 and the rotating gear b143, the sliding rod 141 can drive the fixed plate 142 to move, and the two fixed plates 142 will clamp and fix the workpiece. To improve its stability during processing, under the meshing action of the rotating gear a12 and the toothed plate b16, the lifting frame 15 will move, and through the setting of the lifting frame 15, when the processing is completed, it will be pushed upwards , it is convenient for the staff to take it and improve its processing efficiency during processing.

The rotating motor 13 can be purchased from the market, and the rotating motor 13 is equipped with a power supply, which is a mature technology in the art and has been fully disclosed, so it will not be repeated in the specification.

The above are only the preferred specific embodiments of the present invention, but the protection scope of the present invention is not limited thereto. The technical solution and its utility model concept are equivalently replaced or changed, and should be covered within the protection scope of the present utility model.

Claims (6)

1. The fixing device of the automobile foaming mold processing equipment comprises a processing table (1), wherein a support frame (2) is fixed on the top side wall of the processing table (1), and is characterized in that a bidirectional screw (3) is connected to one side inner wall of the processing table (1) in a rotating manner, two thread sleeves (4) which are symmetrically arranged are connected to the outer surface of the bidirectional screw (3) in a threaded manner, a connecting plate (5) is fixed on the top side wall of each thread sleeve (4), two symmetrically arranged collecting tanks (6) are arranged on one side inner wall of the processing table (1), two symmetrically arranged rotating rods (7) are connected to one side inner wall of the processing table (1) in a rotating manner, two symmetrically arranged guide plates (8) are fixed on one side inner wall of the processing table (1), and an air cylinder (9) is fixed on one side wall of the support frame (2), the output of cylinder (9) is connected with punching press board (10), one side inner wall of processing platform (1) is fixed with backup pad (11), the outer surface fastening of two-way screw rod (3) has cup jointed running gear a (12), one side outer wall of processing platform (1) install with the fixed rotation motor (13) of one end of two-way screw rod (3), one side lateral wall of processing platform (1) is provided with removal subassembly (14).

2. The fixing device of the automobile foaming mold processing equipment as claimed in claim 1, wherein the moving assembly (14) comprises a fixing sleeve (140) connected with the top side wall of the processing table (1), a sliding rod (141) is slidably connected with one side inner wall of the fixing sleeve (140), a fixing plate (142) is fixed on one side wall of the sliding rod (141), a rotating gear b (143) is fixed on the outer surface of the rotating rod (7), a toothed plate a (144) meshed with the rotating gear b (143) is installed inside the processing table (1), the bottom side wall of the sliding rod (141) is fixed with the top side wall of the toothed plate a (144), two toothed plates a (144) are symmetrically arranged, and the side wall close to the toothed plate a (144) of the bidirectional screw (3) is fixed with one side wall of the connecting plate (5), the inner wall of one side of the processing table (1) is connected with two symmetrically-arranged collecting boxes (145) in a sliding manner, and the collecting boxes (145) are positioned below the guide plate (8).

3. The fixing device of the automobile foaming mold processing device of claim 2, wherein a lifting frame (15) is slidably connected to the inner wall of one side of the processing table (1), a toothed plate b (16) meshed with the rotating gear b (143) is installed on the inner wall of the processing table (1), and the top side wall of the toothed plate b (16) is fixed to the side wall of one side of the lifting frame (15).

4. The fixing device of the processing equipment of the automobile foaming mold as claimed in claim 3, wherein the bottom side wall of the lifting frame (15) is in contact with the top side wall of the supporting plate (11), and the toothed plate is in sliding connection with one side inner wall of the processing platform (1).

5. The fixing device of the processing equipment of the automobile foaming mold as claimed in claim 2, wherein the fixing plate (142) is connected with the top side wall of the processing table (1) in a sliding manner, and the guide plate (8) is arranged in an inclined manner with the top side wall of the collecting box (145).

6. The fixing device of the processing equipment of the automobile foaming mold as claimed in claim 2, wherein two castellated plates a (144) are arranged in a staggered manner, and the castellated plates a (144) are connected with one side of the inner wall of the processing table (1) in a sliding manner.
