本实用新型公开一种中药油膏简易涂擦器，包括：固定杆、油膏盒、滑动板、插杆，油膏盒设置在固定杆上，油膏盒内部设置有放置油膏的第一空腔，滑动板的一端贯穿油膏盒的底部，并伸入第一空腔的内部，油膏固定设置在滑动板的该端，插杆的一端贯穿一第一插孔，并伸入对应的一第二插孔内，滑动板的一端的两侧与油膏盒的内壁相抵，第一空腔背离固定杆的一端的内壁设置有凸沿，滑动板的一端与凸沿相抵。本实用新型通过推动滑动板将油膏盒内部的油膏推出，每次油膏推出的厚度可控，从而可以在纱布上均匀涂抹上油膏，同时，油膏盒内的油膏可以全部推出，从而充分利用油膏，避免了油膏浪费，节约一定的材料成本。
The utility model discloses a simple applicator for traditional Chinese medicine ointment, comprising: a fixing rod, an ointment box, a sliding plate and a plug-in rod. The ointment box is arranged on the fixing rod; Cavity, one end of the sliding plate penetrates the bottom of the ointment box and extends into the interior of the first cavity, the ointment is fixedly arranged on this end of the sliding plate, and one end of the insertion rod penetrates a first jack and extends into the corresponding In a second socket of the first cavity, two sides of one end of the sliding plate abut the inner wall of the ointment box, the inner wall of the end of the first cavity facing away from the fixing rod is provided with a convex edge, and one end of the sliding plate is in contact with the convex edge. The utility model pushes out the ointment inside the ointment box by pushing the sliding plate, and the thickness of each ointment pushing out is controllable, so that the ointment can be evenly spread on the gauze, and at the same time, the ointment in the ointment box can be pushed out completely , so as to make full use of the ointment, avoid the waste of the ointment, and save a certain material cost.
Description
Technical Field
The utility model relates to the technical field of ointment smearing, in particular to a simple traditional Chinese medicine ointment smearing device.
Background
When traditional Chinese medicine ointment is smeared on gauze, different people have different dynamics, and the consistency of smearing the ointment is difficult to achieve.
Disclosure of Invention
Aiming at the problems, the simple traditional Chinese medicine ointment smearing device which can fully utilize ointment is provided.
The specific technical scheme is as follows:
a simple applicator for Chinese medicinal ointment comprises:
fixing the rod;
the ointment box is arranged on the fixed rod and is detachably and fixedly connected with the fixed rod, and a first cavity for placing ointment is formed in the ointment box;
one end of the sliding plate penetrates through the bottom of the ointment box and extends into the first cavity, the sliding plate is connected with the bottom of the ointment box in a sliding mode, the ointment is fixedly arranged at the end of the sliding plate, a plurality of first jacks are formed in the side wall, opposite to the fixed rod, of the other end of the sliding plate, and second jacks are correspondingly formed in the side wall of the fixed rod;
one end of the inserted rod penetrates through the first jack and extends into the corresponding second jack;
two sides of one end of the sliding plate are abutted against the inner wall of the grease box;
the inner wall of one end of the first cavity, which is far away from the fixed rod, is provided with a convex edge, and one end of the sliding plate is abutted to the convex edge.
Above-mentioned simple and easy ware of scribbling of traditional chinese medicine oleamen, wherein, the sliding plate includes: the ointment box comprises a first connecting rod and a first fixing plate, wherein one end of the first connecting rod is connected with one side of the first fixing plate, a plurality of first inserting holes are formed in the other end of the first connecting rod, the ointment is arranged on the other side of the first fixing plate, and one end of the first connecting rod penetrates through the bottom of the first cavity and is in sliding connection with the ointment box.
The simple traditional Chinese medicine ointment smearing device is characterized in that a first boss is arranged on one side of the first fixing plate, a third insertion hole is formed in the center of the first boss, and one end of the first connecting rod extends into the third insertion hole to be rotatably connected with the ointment box.
Above-mentioned simple and easy ware of scribbling of traditional chinese medicine oleamen, wherein, the sliding plate still includes: and the handle is integrally connected with the other end of the first connecting rod.
The simple traditional Chinese medicine ointment applicator is characterized in that a magnet is arranged at the bottom of the ointment box, a patch is fixedly arranged on the fixing rod, and the ointment box is matched with the fixing rod in a magnetic attraction manner
The simple traditional Chinese medicine ointment applicator is characterized in that the bottom of the ointment box is provided with a connecting adhesive, and the ointment box is bonded on the fixing rod.
The simple traditional Chinese medicine ointment smearing device is characterized in that the first jacks are arranged at equal intervals in the length direction of the second connecting rod.
The simple traditional Chinese medicine ointment applicator is characterized in that the distance between every two adjacent first jacks is 1 cm.
The simple traditional Chinese medicine ointment applicator is characterized in that the second insertion hole is a blind hole.
Compared with the prior art, the technical scheme has the positive effects that:
the utility model pushes out the ointment in the ointment box by pushing the sliding plate, and the thickness of the pushed-out ointment is controllable each time, so that the ointment can be uniformly smeared on the gauze, and simultaneously, the ointment in the ointment box can be completely pushed out, thereby fully utilizing the ointment, avoiding the ointment waste and saving certain material cost.
Drawings
FIG. 1 is a perspective view of a simple applicator for a Chinese medicinal ointment in accordance with the present invention;

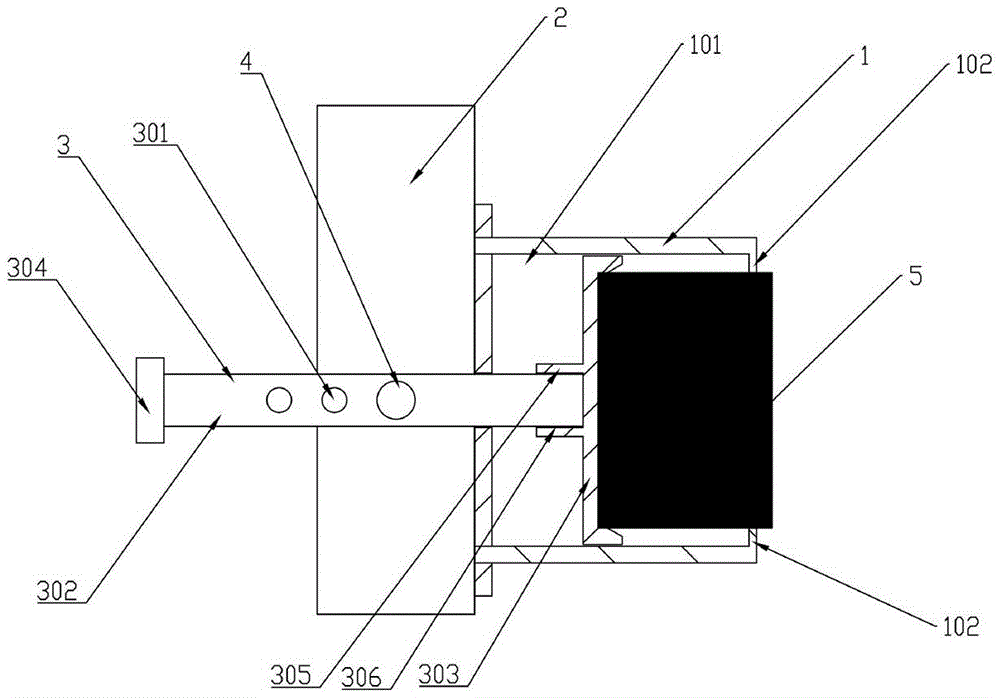

fig. 2 is a front view of the simple traditional Chinese medicine ointment applicator.
In the drawings: 1. an ointment box; 101. a first cavity; 102. a limiting step; 2. fixing the rod; 201. a second jack; 3. a sliding plate; 301. a first jack; 302. a first connecting rod; 303. a first fixing plate; 304. a handle; 305. a first boss; 306. a third jack; 4. inserting a rod; 5. ointment.
Detailed Description
The utility model is further described with reference to the following drawings and specific examples, which are not intended to be limiting.
Fig. 1 is a perspective view of a simple applicator for traditional Chinese medicine ointment according to the present invention, fig. 2 is a front view of the simple applicator for traditional Chinese medicine ointment according to the present invention, as shown in fig. 1 and 2, showing a preferred embodiment of the simple applicator for traditional Chinese medicine ointment, comprising:
the fixing rod 2 plays a role in fixing the ointment box, and when the ointment box 1 is not used, the ointment box 1 can be placed on the fixing rod 2, so that the ointment 5 in the ointment box 1 is prevented from being polluted;
the ointment box comprises an ointment box 1, wherein the ointment box 1 is arranged on a fixed rod 2, the ointment box 1 is detachably and fixedly connected with the fixed rod 2, a first cavity 101 for placing the ointment 1 is formed in the ointment box 1, and the first cavity 101 is provided with an opening;
one end of the sliding plate 3 penetrates through the bottom of the first cavity 101 and extends into the first cavity 101, the sliding plate 3 is connected with the ointment box 1 in a sliding mode, the ointment 5 is fixedly arranged at the end of the sliding plate 3, a plurality of first jacks 301 are formed in the side wall, opposite to the fixed rod 2, of the other end of the sliding plate 3, and second jacks 201 are correspondingly formed in the side wall of the fixed rod 2;
one end of the inserted link 4 penetrates through a first jack 301 and extends into a corresponding second jack 201;
two sides of one end of the sliding plate 3 are abutted against the inner wall of the grease box 1;
the inner wall of the first cavity 101 at the end facing away from the fixing rod 2 is provided with a convex edge 102, and one end of the sliding plate 3 abuts against the convex edge 102.
Further, as a preferred embodiment, the sliding plate 3 includes: the first cavity 101 is provided with a first connecting rod 302 and a first fixing plate 303, one end of the first connecting rod 302 is connected with one side of the first fixing plate 303, the other end of the first connecting rod 302 is provided with a plurality of first insertion holes 301, the other side of the first fixing plate 303 is provided with factice 5, and one end of the first connecting rod 302 penetrates through the bottom of the first cavity 101 and is connected with the factice box 1 in a sliding mode.
Further, as a preferred embodiment, a first boss 305 is disposed on one side of the first fixing plate 303, a third insertion hole 306 is disposed at the center of the first boss 305, and one end of the first connecting rod 302 extends into the third insertion hole 306 to be rotatably connected with the grease box 1.
Further, as a preferred embodiment, the sliding plate 3 further includes: and a handle 304, wherein the handle 304 is integrally connected with the other end of the first connecting rod 302.
The above are merely preferred embodiments of the present invention, and the embodiments and the protection scope of the present invention are not limited thereby.
The present invention also has the following embodiments in addition to the above:
in a further embodiment of the present invention, please refer to fig. 1, and further, as a preferred embodiment, a magnet is disposed at the bottom of the ointment box 1, a patch is fixedly disposed on the fixing rod 2, and the ointment box 1 and the fixing rod 2 are magnetically engaged.
Further, as a preferred embodiment, the bottom of the grease box 1 is provided with a connecting glue, and the grease box 1 is adhered to the fixing rod 2.
Further, as a preferred embodiment, a plurality of first insertion holes 301 are disposed at equal intervals along the length direction of the first connecting rod 302.
Further, as a preferred embodiment, the distance between every two adjacent first insertion holes 301 is 1 cm.
Further, as a preferred embodiment, the second insertion hole 201 is a blind hole.
While the utility model has been described with reference to a preferred embodiment, it will be understood by those skilled in the art that various changes in form and detail may be made therein without departing from the spirit and scope of the utility model.
