Abstract

A multifunctional auxiliary rehabilitation frame for nursing in a clinical ward, comprising a base, one end of the base is connected with a curved support plate, the other end is connected with a seat, the upper part of the curved support plate is provided with a wire take-up device, and the A wire take-up roller is installed in the wire device, the wire take-up roller is surrounded by a pull rope, and the lower end of the pull rope is connected with a pull ring; the upper part of the curved support plate is also provided with a storage box, and the storage box is arranged in the storage box. A moving plate is installed through a return spring, and the moving plate is connected to the wire take-up roller through an elastic rope; the side of the curved support plate is also provided with a wrist exercise device, and the base is also provided with a leg exercise device, The lower part of the base is provided with a lifting device, and the lower part of the lifting device is equipped with a universal wheel. The utility model can provide different rehabilitation functions for patients on one device while being easy to move.

Description

Clinical ward nursing is with multi-functional supplementary recovered frame

Technical Field

The utility model relates to the technical field of nursing rehabilitation equipment, in particular to a multifunctional auxiliary rehabilitation frame for nursing in a clinical ward.

Background

Modern personnel often surf the internet, play games, watch videos, brush microblogs and shine wechat for a long time, the lower head family has wonderful and rich mobile life on a mobile phone, but the health state seriously descends, so the fitness is needed, the fitness has a plurality of benefits for people, wherein the functions of a respiratory system and a cardiovascular system can be improved, the disease prevention and treatment, the fitness and the long running are also facilitated, the blood circulation is accelerated, the mood is smooth and the spirit is pleasant, the general fitness is long-distance running, jogging and various gymnastics, not only ordinary people need to build the body, but also patients with nerve injuries of craniocerebral trauma patients caused by mechanical external force need to carry out limb rehabilitation treatment in the nerve recovery process after the stable condition of the disease, otherwise, the muscle disuse atrophy and the joint contracture stiffness of the patients are caused, and the patients are mostly accompanied by symptoms of insensitivity or hemiplegia and the like, proper rehabilitation training can reduce sequelae caused by diseases and keep the normal functions of limbs.

However, the existing rehabilitation frame has a single function, one rehabilitation frame can only perform rehabilitation exercise on one limb of a patient, when the patient needs to perform rehabilitation exercise on multiple limbs, the patient needs to frequently transfer to different rehabilitation frame positions, the existing rehabilitation frame is large in size, multiple rehabilitation frames need to occupy a large amount of space when being arranged, the existing rehabilitation frame is made of pure iron or alloy iron, the quality of the rehabilitation frame is large, when medical workers need to transfer the positions of the rehabilitation frame, the rehabilitation frame needs to be lifted together by multiple people for transfer, and the transport workers can be threatened in the transfer process, so that the existing rehabilitation frame for clinical care has shortcomings.

SUMMERY OF THE UTILITY MODEL

The utility model aims to provide a multifunctional rehabilitation frame which is convenient to move and can provide different rehabilitation functions for patients on one device.

In order to achieve the purpose, the utility model adopts the following technical scheme:

a multifunctional auxiliary rehabilitation frame for nursing in a clinical ward comprises a base, wherein one end of the base is connected with a curved supporting plate, the other end of the base is connected with a seat, a wire take-up device is arranged at the upper part of the curved supporting plate, a wire take-up roller is installed in the wire take-up device, one end of a pull rope is connected to the wire take-up roller in a surrounding mode, and the other end of the pull rope is connected with a pull ring; the upper part of the curved supporting plate is also provided with a storage box, a movable plate is arranged in the storage box through a return spring, and the movable plate is connected with the wire take-up roller through an elastic rope; the bent supporting plate side part is further provided with a wrist exercising device, and the base is further provided with a leg exercising device.

Further, the pull rope has two, and the pull ring has two.

Furthermore, two through grooves are formed in the upper portion of the curved supporting plate, pulleys are mounted in the through grooves, and the lower end of the pull rope penetrates through the pulleys through the through grooves.

Furthermore, a moving groove b matched with the moving plate is arranged on the inner wall of the storage box.

Further, the wrist exercising device comprises two rotary tables, a rotary shaft b is connected between the rotary tables and the curved support plate, and grab handles are further arranged on the rotary tables.

Further, the leg exercising device comprises a supporting seat, wherein the upper portion of the supporting seat is connected with a concave clamping seat, rollers are arranged on the concave clamping seat, and the rollers are connected with two pedal curved bars.

Further, still open shifting chute a on the base, the roll is provided with in the shifting chute and removes the wheel, it is connected with the holding frame to remove wheel both ends, the holding frame with supporting seat connection, still open the spout on the shifting chute a inside wall, slidable mounting has the slider in the spout, the slider is connected the holding frame.

Further, a placing groove is formed in the lower portion of the base, a lifting device is arranged in the placing groove, a fixing plate is connected to the bottom of the lifting device, and universal wheels are connected to the bottom of the fixing plate.

Furthermore, the corner of the lower part of the base is provided with a supporting leg, and the wrist exercising device is provided with a handle on the side wall of the curved supporting plate.

The utility model has the beneficial effects that:

1. according to the utility model, the arms and the waist of the patient can be exercised through the matching action among the pull rope, the take-up device and the storage box, the legs and the feet of the patient can be exercised through the leg forging device, and the wrists and the arms of the patient can be exercised through the wrist exercising device.

2. According to the medical rehabilitation frame transfer device, when medical workers need to transfer the rehabilitation frame, the lifting device can be started to control the fixing plate to move downwards, the universal wheels can replace the supporting legs to support the rehabilitation frame when the fixing plate moves downwards, the medical workers can push the rehabilitation frame to move through the handles, the medical workers can transfer the rehabilitation frame more conveniently, and meanwhile the medical workers can be prevented from threatening the rehabilitation frame when the rehabilitation frame is transferred.

Drawings

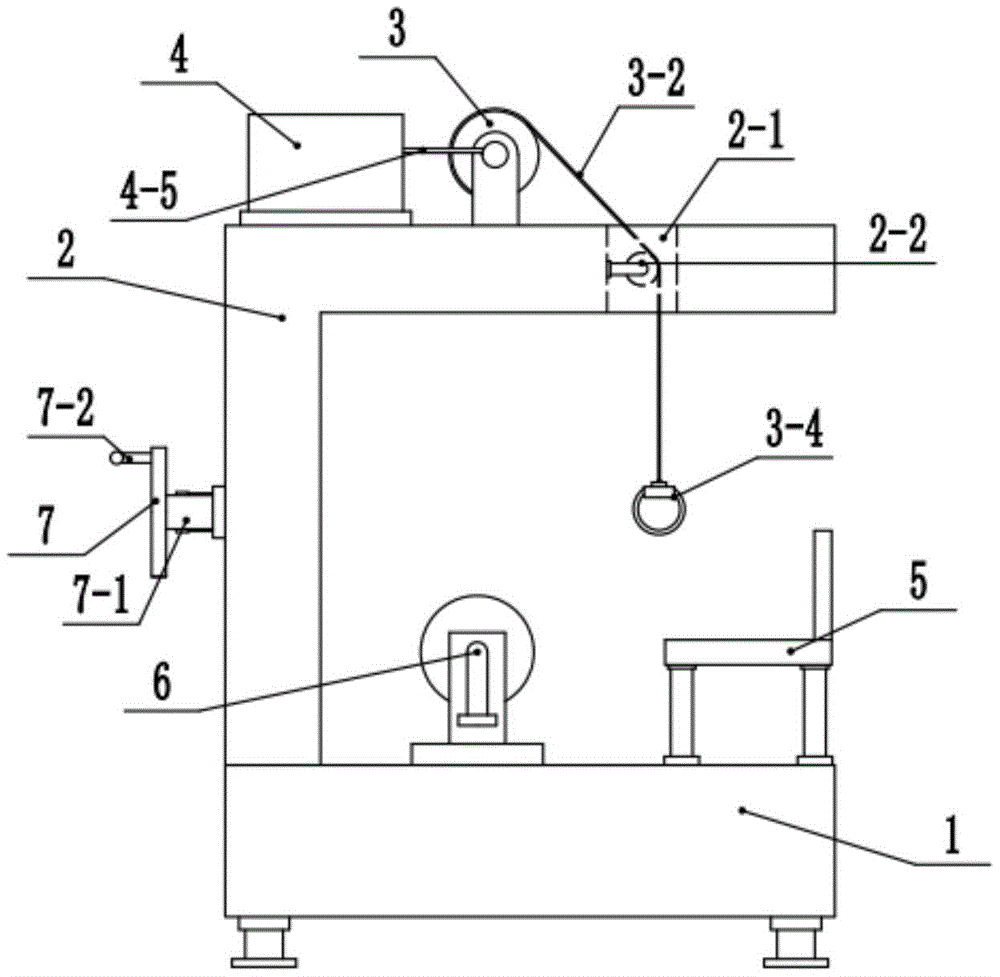

Fig. 1 is an external structural schematic diagram of a multifunctional auxiliary rehabilitation frame for nursing in a clinical ward in the front view direction.

Fig. 2 is a schematic view of a partial cross-sectional structure of a curved support plate in a top view direction of a multifunctional auxiliary rehabilitation frame for nursing in a clinical ward.

Fig. 3 is an external structure schematic diagram of a side view direction of a multifunctional auxiliary rehabilitation frame for nursing in a clinical ward.

Fig. 4 is a schematic sectional structure view of the side view direction of the base in the multifunctional auxiliary rehabilitation frame for nursing in a clinical ward.

In the figure: 1. a base; 1-1, a moving groove a; 1-2, placing a groove; 1-3, a lifting device; 1-4, fixing plates; 1-5, universal wheels; 1-6, supporting legs; 2. a curved support plate; 2-1, a through groove; 2-2, a pulley; 3. a take-up device; 3-1, taking up a wire roller; 3-2, pulling a rope; 3-3, a support frame; 3-4, a pull ring; 3-5, a rotating shaft a; 4. a storage box; 4-1, a box body; 4-2, moving the plate; 4-3, a return spring; 4-4, a moving groove b; 4-5, elastic ropes; 5. a seat; 6. a leg exercise device; 6-1, a supporting seat; 6-2, a concave clamping seat; 6-3, rollers; 6-4, pedaling a crank lever; 6-5, a clamping frame; 6-6, moving wheels; 6-7, a sliding block; 7. a wrist exercise device; 7-1, a rotating shaft b; 7-2, a grab handle; 7-3, a turntable; 8. a handle.

Detailed Description

In order to make the technical solutions of the present invention better understood, the following description of the technical solutions of the present invention with reference to the accompanying drawings of the present invention is made clearly and completely, and other similar embodiments obtained by a person of ordinary skill in the art without any creative effort based on the embodiments in the present application shall fall within the protection scope of the present application. In addition, directional terms such as "upper", "lower", "left", "right", and the like in the following embodiments are directions with reference to the drawings only, and thus, the directional terms are used for the purpose of illustrating the present invention and not for the purpose of limiting the present invention.

Referring to fig. 1-4, a multifunctional auxiliary rehabilitation frame for nursing in clinical wards comprises a base 1, a curved support plate 2 fixedly connected to the left end of the outer wall of the top end of the base 1, and a seat 5 fixedly connected to the right end of the outer wall of the top end of the base 1. The winding device 3 is arranged in the center of the outer wall of the top end of the curved support plate 2 and comprises a winding roller 3-1, two ends of the winding roller 3-1 are fixedly connected with a rotating shaft a3-5, the rotating shaft a3-5 is connected with a support frame 3-3, the bottom end of the support frame 3-3 is fixedly connected with the outer wall of the top end of the curved support plate 2, and a pull rope 3-2 is arranged on the winding roller 3-1 in a surrounding connection mode. The right side end of the outer wall of the top end of the curved supporting plate 2 is provided with a through groove 2-1, a pulley 2-2 is fixedly connected in the through groove 2-1 through a rotating seat, a pull rope 3-2 is matched with the pulley 2-2 for use, the other end of the pull rope 3-2 bypasses the pulley 2-2 and is fixed with a pull ring 3-4, two pull ropes 3-2 are respectively wound on the wire take-up roller 3-1, and two pull rings 3-4 are respectively connected with the pull ropes 3-2. The storage box 4 is fixed at the right end of the wire take-up roller 3-1, the storage box 4 comprises a box body 4-1, a moving plate 4-2 is arranged in the box body 4-1, a moving groove b4-4 is formed in the joint of the inner walls of the front end and the rear end of the box body 4-1 and the moving plate 4-2, the moving plate 4-2 and the moving groove b4-4 are matched for use so as to limit the moving plate 4-2 to move in the moving groove b4-4 and prevent deviation, a reset spring 4-3 is connected between the outer wall of the left side end of the moving plate 4-2 and the box body, an elastic rope 4-5 is fixedly connected to the outer wall of the right side end of the moving plate 4-2, and the other end of the elastic rope 4-5 is connected with a rotating shaft a3-5 in a surrounding mode. A patient can pull the pull rope 3-2 downwards through the pull ring 3-4, the pull rope 3-2 can drive the wire take-up roller 3-1 to rotate when being stretched, the wire take-up roller 3-1 can enable the rotating shaft a3-5 to take up the elastic rope 4-5 when rotating, the movable plate 4-2 can be pulled to move rightwards when the elastic rope 4-5 takes up the wire, and at the moment, the reset spring 4-3 can deform along with the movement of the movable plate 4-2; when the patient loosens the pull ring 3-4, the return spring 4-3 enables the moving plate 4-2 to move leftwards to return, the elastic rope 4-5 can pull the rotating shaft a3-5 and the wire take-up roller 3-1 to rotate in the opposite direction, the wire take-up roller 3-1 can take up the pull rope 3-2, and the waist and the arms of the patient can be rehabilitated and exercised through repeated actions.

The wrist exercising device 7 is fixedly connected to the outer wall of the left side of the curved supporting plate 2, the wrist exercising device 7 comprises two rotary tables 7-3, a rotary shaft b7-1 is connected between the rotary tables 7-3 and the curved supporting plate 2, the rotary shaft b7-1 can rotate, one side, far away from the curved supporting plate 2, of each rotary table 7-3 is fixedly connected with a grab handle 7-2, a patient can hold the grab handles 7-2 with two hands and then rotate towards the directions of the two sides, and the wrist and the arm of the patient can be exercised in the mode. The centers of two trays 7-3 of the wrist exercising device 7 are provided with handles 8, and the handles 8 are fixedly connected with the curved supporting plate 2 in a welding mode.

The leg exercising device 6 is arranged on the upper portion of the base 1, the leg exercising device 6 comprises a supporting seat 6-1, a limiting bolt is arranged between the supporting seat 6-1 and the base 1, and the supporting seat 6-1 can move left and right on the base 1 by screwing or loosening the limiting bolt. The supporting seat 6-1 is connected with a concave clamping seat 6-2, the center of the concave clamping seat 6-2 is provided with a roller 6-3, the outer wall of the concave clamping seat 6-2 is connected with two pedal curved rods 6-4, the inner end parts of the pedal curved rods 6-4 penetrate through the concave clamping seat 6-2 to be connected with the roller 6-3, a patient can sit on the seat 5, feet are placed on the pedal curved rods 6-4 at the same time, and leg exercise is carried out by alternately treading the pedal curved rods 6-4 by two feet.

The lower part of the supporting seat 6-1 is fixedly connected with a clamping frame 6-5, and the inner side wall of the clamping frame 6-5 is rotatably provided with a movable wheel 6-6 through a rotating rod. The base 1 is provided with a moving groove a1-1 for placing the moving wheel 6-6, and the moving wheel 6-6 can move left and right in the moving groove a 1-1. The two inner side walls of the moving groove a1-1 are also provided with sliding grooves, sliding blocks 6-7 are slidably mounted in the sliding grooves, the sliding blocks 6-7 are fixedly connected with the clamping frame 6-5, and the sliding grooves and the sliding blocks 6-7 are matched to limit the moving wheel 6-6 not to deviate in the moving groove a1-1, so that the clamping is prevented. Because every patient's height diverse, consequently, medical personnel can measure patient's height before patient takes exercise the shank, then adjust the distance between device 6 and seat 5 is taken exercise to the shank, and the regulation mode is: firstly, the limiting bolt fixed on the supporting seat 6-1 is unscrewed, so that the supporting seat 6-1 and the base 1 move, then the supporting seat 6-1 is pushed, the supporting seat 6-1 can move in the moving groove a1-1 through the moving wheel 6-6, when the supporting seat 6-1 moves to a proper position, the limiting bolt is screwed again, and a patient can take exercises when sitting on the seat 5.

The base 1 bottom is equipped with standing groove 1-2, and standing groove 1-2 top inner wall fixedly connected with elevating gear 1-3, elevating gear includes but not limited to hydraulic pressure elevating gear, pneumatic elevating gear and electronic elevating gear, and the technical staff in the art can select prior art means to realize the lift function according to actual need. The bottom of the lifting device 1-3 is connected with a fixed plate 1-4, and the bottom of the fixed plate 1-4 is connected with a universal wheel 1-5. The corner at the bottom of the base 1 is also connected with supporting legs 1-6. When medical personnel need shift the recovered frame, can start elevating gear 1-3 control fixed plate 1-4 and move down, fixed plate 1-4 can make universal wheel 1-5 replace landing leg 1-6 to support the recovered frame when moving down, and at this moment medical personnel accessible handle 8 promotes the recovered frame and moves for medical personnel are more convenient when shifting the recovered frame.

The working principle of the utility model is as follows:

firstly, medical personnel can move the rehabilitation frame to a proper position through the handle 8 and the universal wheels 1-5, then the lifting device 1-3 is controlled to enable the fixing plate 1-4 to contract upwards, and the supporting legs 1-6 can replace the universal wheels 1-5 to support the rehabilitation frame. When a patient needs to exercise the waist and the arms of the patient, the patient can pull the pull rope 3-2 downwards through the pull ring 3-4, the pull rope 3-2 can drive the wire take-up roller 3-1 to rotate when being stretched, the wire take-up roller 3-1 can enable the rotating shaft a3-5 to take up the elastic rope 4-5 when rotating, the movable plate 4-2 can be pulled to move rightwards when the elastic rope 4-5 takes up the wire, the reset spring 4-3 can deform along with the movement of the movable plate 4-2 at the moment, when the patient takes back the force for pulling the pull rope 3-2, the movable plate 4-2 can be reset through the reset spring 4-3, the rotating shaft a3-5 and the wire take-up roller 3-1 can be pulled to rotate in the opposite direction by the elastic rope 4-5, so that the wire take-up roller 3-1 can take up the pull rope 3-2, the waist and the arms of the patient can be rehabilitated and exercised through repeated actions.

When patient need take exercise the shank, but because every patient's height is different, consequently, medical personnel can measure patient's height before patient takes exercise the shank, then adjust the distance between device 6 and seat 5 is taken exercise to the shank, and the regulation mode is: firstly, unscrewing a limiting bolt fixed on a supporting seat 6-1 to enable the supporting seat 6-1 and a base 1 to move, then pushing the supporting seat 6-1, enabling the supporting seat 6-1 to move in a moving groove a1-1 through a moving wheel 6-6, screwing the limiting bolt again when the supporting seat 6-1 moves to a proper position, enabling a patient to sit on a seat 5, simultaneously placing feet on a pedal crank rod 6-4, and enabling legs and feet of the patient to be exercised through alternate forward rotation of the two feet; when the patient needs to exercise his wrist, the patient can hold the grip 7-2 with both hands and then rotate in the directions of both sides, in this way, the wrist and arm of the patient can be exercised.

When medical personnel need shift the recovered frame, can start elevating gear 1-3 control fixed plate 1-4 and move down, fixed plate 1-4 can make universal wheel 1-5 replace landing leg 1-6 to carry out landing leg 1-6 to the recovered frame when moving down, and medical personnel accessible handle 8 at this moment promotes the recovered frame and moves for medical personnel are more convenient when shifting the recovered frame.

Although the preferred embodiments of the present patent have been described in detail, the present patent is not limited to the above embodiments, and various changes can be made without departing from the spirit of the present patent within the knowledge of those skilled in the art.

Claims (9)

1. A multifunctional auxiliary rehabilitation frame for nursing in a clinical ward, comprising a base, characterized in that: one end of the base is connected with a curved support plate, the other end is connected with a seat, and the upper part of the curved support plate is provided with a receiving plate. A wire device, a wire take-up roller is installed in the wire take-up device, one end of the pull rope is connected around the wire take-up roller, and the other end of the pull rope is connected with a pull ring; the upper part of the curved support plate is also provided There is a storage box, and a moving plate is installed in the storage box through a reset spring, and the moving plate is connected to the wire take-up roller through an elastic rope; the side of the curved support plate is also provided with a wrist exercise device, so The base is also provided with a leg exercise device. 2. The multifunctional auxiliary rehabilitation frame for nursing in a clinical ward according to claim 1, characterized in that: the upper part of the curved support plate is provided with two through grooves, and pulleys are installed in the through grooves. The lower end of the pulling rope passes through the pulley through the through slot. 3 . The multifunctional auxiliary rehabilitation frame for nursing in a clinical ward according to claim 1 or 2 , wherein there are two pull ropes and two pull rings. 4 . 4 . The multifunctional auxiliary rehabilitation stand for nursing in a clinical ward according to claim 1 , wherein a moving groove b adapted to the moving plate is arranged on the inner wall of the storage box. 5 . 5 . The multifunctional auxiliary rehabilitation frame for nursing in a clinical ward according to claim 1 , wherein the wrist exercise device comprises two turntables, and a shaft b is connected between the turntables and the curved support plate. 6 . , the turntable is also provided with a handle. 6 . The multifunctional auxiliary rehabilitation frame for nursing in a clinical ward according to claim 1 , wherein the leg exercise device comprises a support seat, the upper part of the support seat is connected with a concave clamping seat, and the concave A roller is arranged on the clamping seat, and the roller is connected with two pedal bending rods. 7 . The multifunctional auxiliary rehabilitation frame for nursing in clinical ward according to claim 6 , wherein a moving groove a is further opened on the base, and a moving wheel is rolled in the moving groove, and the moving The two ends of the wheel are connected with a clamping frame, and the clamping frame is connected with the support base. There is also a sliding groove on the inner side wall of the moving groove a. A sliding block is slidably installed in the sliding groove, and the sliding block is slidably installed. Connect the holder. 8 . The multifunctional auxiliary rehabilitation stand for nursing in a clinical ward according to claim 1 , wherein a placing slot is arranged at the lower part of the base, a lifting device is arranged in the placing slot, and the bottom of the lifting device is connected to the bottom of the lifting device. 9 . There is a fixed plate, and the bottom of the fixed plate is connected with a universal wheel. 9 . The multifunctional auxiliary rehabilitation frame for nursing in a clinical ward according to claim 1 , wherein the corners of the lower part of the base are provided with outriggers, and the curved supports are provided at the wrist exercise device. 10 . A handle is provided on the side wall of the board.
