CN216852656U - A split electrical cabinet that is easy to disassemble and assemble - Google Patents

Abstract

The utility model discloses a split-type electrical cabinet which is easy to disassemble and assemble. Symmetrically connected with two side plates, the side walls of the top plate are respectively provided with two connecting plates symmetrically on the left and right, the connecting plates are arranged in an L shape, and four bolts are movably connected on the side walls of the connecting plates. The top plate and the side wall of the side plate are provided with screw holes matching the bolts, the bolts are movably connected with the screw holes, a protective door is arranged between the two top plates, and the top surface of the protective door is set close to the right side There is an installation mechanism, which can be folded and disassembled according to the needs through the mutual cooperation between the top plate, side plate, protective door and installation mechanism. On the one hand, it saves a lot of space during transportation, and on the other hand, it increases its stability. resistance to damage caused by bumps.

Description

A split-type electrical cabinet that is easy to disassemble and assemble

technical field

The utility model relates to the technical field of electrical cabinets, in particular to a split-type electrical cabinet which is convenient for disassembly and assembly.

Background technique

The electrical cabinet is the most widely used circuit control and testing equipment at present. It has excellent performance, stable use and high degree of safety. Electrical cabinets will be installed in some construction sites and temporary construction sites to energize and control some electrical equipment in the construction site. Most traditional electrical cabinets on the market still have the following problems:

1. Due to the complex terrain of the construction site, the current electrical cabinet needs to be placed on a flat ground for use, and cannot be adjusted according to the terrain changes, resulting in a low range of use;

2. Most of the traditional electrical cabinets cannot be folded in use, especially during transportation, on the one hand, they occupy a large space, and on the other hand, the electrical cabinets are easily damaged by bumps and shaking, causing inconvenience to installation.

In view of the above problems, innovative design is carried out on the basis of the original electrical cabinet.

Utility model content

The purpose of the present utility model is to provide a split-type electrical cabinet that is easy to disassemble and assemble, so as to solve the problem that most of the traditional electrical cabinets proposed in the above background technology cannot be folded during use, especially during transportation. The ground space is large, and on the other hand, the electrical cabinet is easily damaged by bumps and shaking, causing inconvenience to the installation.

In order to achieve the above purpose, the utility model provides the following technical solutions: a disassembled electrical cabinet that is easy to disassemble and assemble, comprising a fixing plate, the fixing plate is arranged in a U shape, and the front side wall of the fixing plate is movably connected up and down symmetrically with two parts. There are two top plates, two side plates are movably connected to the left and right sides of the fixed plate, and two connecting plates are respectively arranged symmetrically on the left and right side walls of the top plate. There are four bolts connected, the top plate and the side wall of the side plate are provided with screw holes matching the bolts, the bolts are movably connected with the screw holes, a protective door is arranged between the two top plates, and the protective door is provided between the two top plates. The top surface of the door is provided with an installation mechanism near the right side, the bottom surface of the top plate on the lower side is provided with support mechanisms near the four corners, the side walls of the top plate are respectively provided with circular holes, and circular holes are movably connected in the circular holes on the lower side. A rod, the top of the round rod is fixedly connected with the protective door.

Preferably, the installation mechanism includes a vertical groove, a bottom surface of the vertical groove is fixedly connected with a spring, a top end of the spring is fixedly connected with a vertical rod, the vertical rod is movably connected with the vertical groove, and the top of the vertical rod is circularly connected to the upper side. The holes are movably connected, the bottom end of the vertical rod is fixedly connected with a steel rope, the bottom surface of the vertical groove is provided with a through hole, and the other end of the steel rope penetrates through the through hole and is fixedly connected with a pull ring.

Preferably, the support mechanism includes threaded holes, the threaded holes are located on the bottom surface of the lower top plate, threaded rods are movably connected in the threaded holes, and support plates are fixedly connected to the bottom ends of the threaded rods. Nuts are fixedly connected to the side walls near the bottom end.

Preferably, a cable tie is fixedly connected to the side wall of the side panel near the front side, a buckle is fixedly connected to the other end of the cable tie on the right side, a snap ring is fixedly connected to the other end of the cable tie on the left side, and the The clasp and the clasp are matched with each other.

Preferably, a movable wheel is fixedly connected to the corner of the side wall of the through hole, and the steel wire is movably connected to the movable wheel.

Preferably, two limit blocks are fixedly connected to the side wall of the vertical rod near the bottom end, two limit slots are formed on the side wall of the vertical slot, and the limit blocks are movably connected to the limit slots.

Preferably, the bottom surfaces of the support plates are all fixedly connected with anti-skid pads.

Compared with the prior art, the beneficial effect of the utility model is that the split electrical cabinet which is easy to disassemble and assemble,

1. By providing the mutual cooperation between the top plate, side plate, protective door and installation mechanism, it can be folded and disassembled according to the needs. On the one hand, it saves a lot of space during transportation, and on the other hand, it increases its stability. Prevent damage from bumps;

2. By providing the mutual cooperation between the top plate and the supporting mechanism, the height of the four threaded rods can be adjusted according to the terrain change, so that the electrical cabinet is in a horizontal and stable state, avoiding the tilting of the electrical cabinet due to the terrain change, which can effectively improve its performance. Effect.

Description of drawings

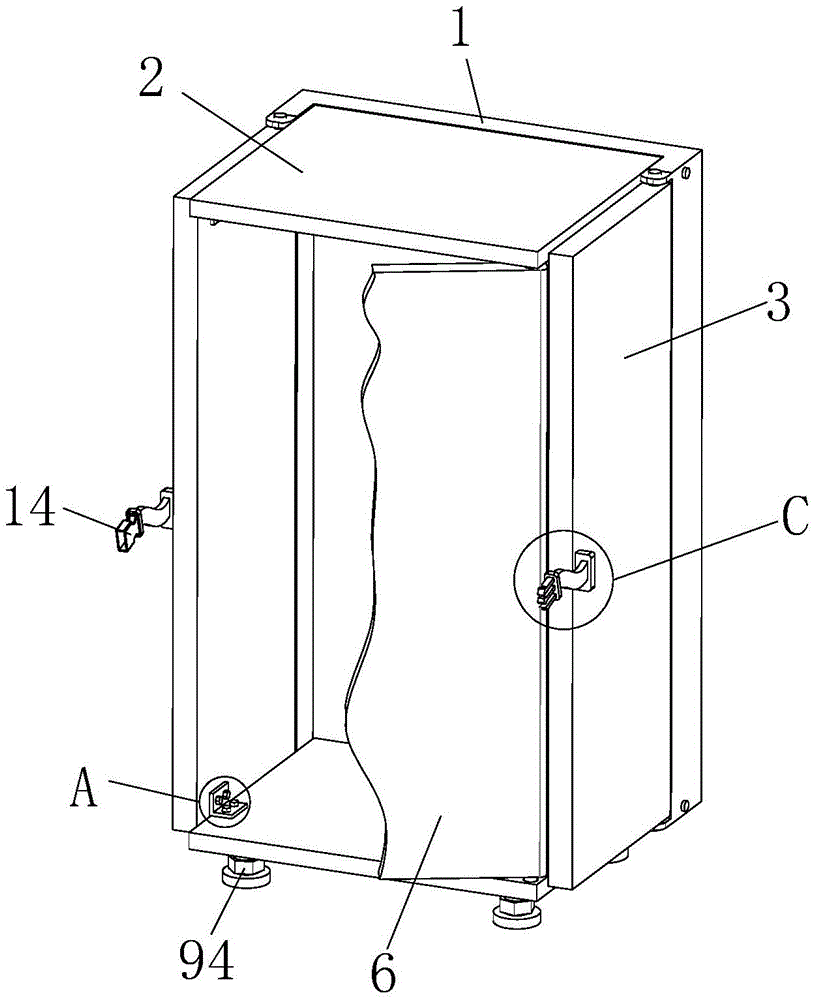

1 is a schematic diagram of the three-dimensional structure of the present utility model;

Fig. 2 is the structural perspective view of the installation mechanism of the utility model;

Fig. 3 is the structural perspective view of the adjusting mechanism of the present invention;

Fig. 4 is the enlarged view of A place in Fig. 1;

Fig. 5 is the enlarged view of B place in Fig. 2;

FIG. 6 is an enlarged view of C in FIG. 1 .

In the figure: 1, fixed plate; 2, top plate; 3, side plate; 4, connecting plate; 5, bolt; 6, protective door; 7, installation mechanism; 71, vertical groove; 72, spring; 73, vertical rod; 74, steel rope; 75, through hole; 8, pull ring; 9, support mechanism; 91, threaded hole; 92, threaded rod; 93, support plate; 94, nut; 95, anti-skid pad; 10, round hole; 11 , round rod; 12, cable ties; 13, buckle; 14, snap ring; 15, movable wheel.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to Fig. 1, Fig. 2, Fig. 3, Fig. 4, Fig. 5 and Fig. 6, the present utility model provides a technical solution: a disassembled electrical cabinet that is easy to disassemble and assemble, comprising a fixing plate 1, and the fixing plate 1 is in the form of a U-shaped arrangement, the front side wall of the fixed plate 1 is symmetrically connected with two top plates 2 up and down, the fixed plate 1 is symmetrically connected with two side plates 3 left and right, and the side walls of the top plate 2 are respectively provided with two connecting plates 4 symmetrically from left to right. The plate 4 is arranged in an L shape, and four bolts 5 are movably connected on the side walls of the connecting plate 4. The top plate 2 and the side walls of the side plates 3 are provided with screw holes that match the bolts 5, and the bolts 5 are movably connected with the screw holes. , a protective door 6 is provided between the two top plates 2, a mounting mechanism 7 is provided on the top surface of the protective door 6 near the right side, a supporting mechanism 9 is provided on the bottom surface of the lower side top plate 2 near the four corners, and the side walls of the top plate 2 are respectively provided with There is a round hole 10, a round rod 11 is movably connected in the lower round hole 10, the top of the round rod 11 is fixedly connected with the protective door 6, the side wall of the side plate 3 is fixedly connected with a tie 12 near the front side, and the right tie The other end of the 12 is fixedly connected with a buckle 13 , and the other end of the left cable tie 12 is fixedly connected with a snap ring 14 , and the snap 13 and the snap ring 14 are arranged to match each other.

Please refer to FIG. 2 and FIG. 5 , in order to conveniently install the protective door 6 , an installation mechanism 7 is provided on the top surface of the protective door 6 near the right side. The installation mechanism 7 includes a vertical slot 71 , and a spring 72 is fixedly connected to the bottom surface of the vertical slot 71 The top of the spring 72 is fixedly connected with a vertical rod 73, the vertical rod 73 is movably connected with the vertical slot 71, the side wall of the vertical rod 73 is fixedly connected with two limit blocks near the bottom end, and two limit blocks are opened on the side wall of the vertical slot 71. The position slot, the limit block is movably connected with the limit slot, the top end of the vertical rod 73 is movably connected with the upper round hole 10, the bottom end of the vertical rod 73 is fixedly connected with a steel rope 74, and the bottom surface of the vertical groove 71 is provided with a through hole 75, the steel rope The other end of 74 runs through the through hole 75 and is fixedly connected with the pull ring 8. The movable wheel 15 is fixedly connected at the corner of the side wall of the through hole 75. The steel rope 74 is movably connected with the movable wheel 15. The mutual cooperation between the door 6 and the installation mechanism 7, etc., can be folded and disassembled according to the needs. On the one hand, it saves a lot of space during transportation, and on the other hand, it increases its stability and prevents damage caused by bumps.

Please refer to FIG. 1 and FIG. 3. In order to enable the electrical cabinet to use different complex terrains, the bottom surface of the lower top plate 2 is provided with supporting mechanisms 9 near the four corners. The threaded holes 91 are all movably connected with threaded rods 92, the bottom ends of the threaded rods 92 are fixedly connected with support plates 93, the bottom surfaces of the support plates 93 are fixedly connected with anti-skid pads 95, and the side walls of the threaded rods 92 near the bottom end are fixedly connected with The nut 94 is provided with the mutual cooperation between the top plate 2 and the supporting mechanism 9, etc., the height of the four threaded rods 92 can be adjusted according to the change of the terrain, so that the electrical cabinet is in a horizontal and stable state, and the electrical cabinet is prevented from being tilted by the change of the terrain. Effectively improve its use effect.

Working principle: When using this technical solution, first assemble the electrical cabinet, first loosen the buckle 13 and the snap ring 14, then open the side panels 3 on both sides to the outside, and then open the top panel 2 to the outside, so that the top panel 2 A cavity is formed with the side plate 3, and then the connecting plate 4 is installed in a suitable position and fixed with bolts 5, and the top plate 2 and the side plate 3 are reinforced and supported to prevent skewing. When the connecting plate 4 is fixed, Then install the protective door 6, first pull the pull ring 8 to drive the vertical rod 73 to the vertical slot 71 through the steel wire 74, then insert the round rod 11 into the lower circular hole 10, and then align the vertical rod 73 with the upper circular hole. Hole 10, loosen the pull ring 8, drive the vertical rod 73 into the upper round hole 10 by the force of the spring 72, complete the convenient installation operation of the protective door 6, then adjust the support mechanism 9 according to the actual site, and drive the thread by rotating the nut 94. The rod 92 rotates, and the threaded rod 92 drives the top plate 2 to move through the threaded hole 91. The threaded rod 92 at the four corners can be adjusted according to the terrain. When the adjustment is completed, the electrical cabinet is in a horizontal and stable state. Repeating the above steps can effectively improve its convenience in use. .

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (7)

1. The utility model provides a split formula regulator cubicle convenient to dismouting, includes fixed plate (1), its characterized in that: the fixing plate (1) is arranged in a U shape, the front side wall of the fixing plate (1) is movably connected with two top plates (2) in an up-down symmetrical mode, the fixing plate (1) is movably connected with two side plates (3) in a left-right symmetrical mode, the side walls of the top plates (2) are respectively provided with two connecting plates (4) in a left-right symmetrical mode, the connecting plates (4) are arranged in an L shape, the side walls of the connecting plates (4) are respectively movably connected with four bolts (5), the side walls of the top plates (2) and the side plates (3) are respectively provided with a screw hole matched with the bolts (5), the bolts (5) are movably connected with the screw holes, a protective door (6) is arranged between the two top plates (2), the top surface of the protective door (6) is provided with an installation mechanism (7) close to the right side, the bottom surface of the top plate (2) is provided with a supporting mechanism (9) close to the four corners, the side wall of the top plate (2) is respectively provided with a round hole (10), the round hole (10) at the lower side is movably connected with a round rod (11), and the top end of the round rod (11) is fixedly connected with the protective door (6).

2. The conveniently-disassembled split electrical cabinet according to claim 1, wherein: installation mechanism (7) is including erecting groove (71), erect groove (71) bottom surface fixedly connected with spring (72), spring (72) top fixedly connected with montant (73), montant (73) and perpendicular groove (71) swing joint, montant (73) top and upside round hole (10) swing joint, montant (73) bottom fixedly connected with steel cable (74), erect groove (71) bottom surface and seted up through-hole (75), steel cable (74) other end runs through-hole (75) and fixedly connected with pull ring (8).

3. The split electrical cabinet convenient to disassemble and assemble according to claim 1, wherein: supporting mechanism (9) are including screw hole (91), screw hole (91) are located downside roof (2) bottom surface, equal swing joint has threaded rod (92) in screw hole (91), equal fixedly connected with backup pad (93) in threaded rod (92) bottom, equal fixedly connected with nut (94) of bottom department is close to threaded rod (92) lateral wall.

4. The split electrical cabinet convenient to disassemble and assemble according to claim 3, wherein: curb plate (3) lateral wall is close to equal fixedly connected with ribbon (12) of front side department, right side ribbon (12) other end fixedly connected with buckle (13), left side ribbon (12) other end fixedly connected with snap ring (14), buckle (13) and snap ring (14) match the setting each other.

5. The conveniently disassembled and assembled electrical cabinet according to claim 2, wherein: the corner of the side wall of the through hole (75) is fixedly connected with a movable wheel (15), and the steel rope (74) is movably connected with the movable wheel (15).

6. The split electrical cabinet convenient to disassemble and assemble according to claim 2, wherein: two limiting blocks are fixedly connected to the side wall of the vertical rod (73) close to the bottom end, two limiting grooves are formed in the side wall of the vertical groove (71), and the limiting blocks are movably connected with the limiting grooves.

7. The split electrical cabinet convenient to disassemble and assemble according to claim 3, wherein: the bottom surfaces of the supporting plates (93) are fixedly connected with anti-skid pads (95).
