Abstract

The utility model discloses a magnolia street lamp, which comprises a lamp pole, a leaf frame is fixed at the top of the lamp pole, an inner block is fixed at one end of the leaf frame, and a bottom block is sleeved on the outside of the inner block. A lamp holder is fixed on the top of the bottom block, fixing grooves are opened on both sides of the inner block, side cylinders are inlaid on both sides of the bottom block, and a fixing block is arranged inside the side cylinder. One end of the block is placed inside the fixing groove; the utility model sets the bottom block on the inner block through the designed bottom block, the inner block and the fixing block, and then uses the fixing block to be stuck in the fixing groove to realize the connection, so that the utility model can be assembled No need to screw, avoid damage to the lamp wire, and at the same time greatly improve the assembly efficiency, through the designed pull rod and outer plate, it is convenient to pull the fixed block when disassembling, so that it can be separated from the fixed groove.

Description

A magnolia street lamp

technical field

The utility model belongs to the technical field of street lamps, in particular to a magnolia street lamp.

Background technique

Magnolia street light, as a traditional landscape light, has been very common in the city and has become a feature that cannot be ignored in the urban night scene. A circle of LED projection light sources is arranged at the lower part of the ring light frame to improve the brightness of the road at night.

When the existing Magnolia street lamp is used, the lamp holder needs to be fixed on the leaf frame of the street lamp with a hollow screw and screw rod, and then the lampshade is installed. The lamp wire is damaged, and at the same time, the assembly efficiency of the lamp holder is low. For this reason, we propose a magnolia street lamp.

Utility model content

The purpose of the present invention is to provide a magnolia street lamp to solve the problems raised in the above background technology.

In order to achieve the above purpose, the present invention provides the following technical solutions: a magnolia street lamp, comprising a lamp pole, a leaf frame is fixed at the top of the lamp pole, an inner block is fixed at one end of the leaf frame, and the outer part of the inner block is The bottom block is sleeved, the top of the bottom block is fixed with a lamp holder, the two sides of the inner block are provided with fixing grooves, the two sides of the bottom block are inlaid with side cylinders, and the interior of the side cylinder is A fixing block is provided, one end of the fixing block is placed inside the fixing groove, the other end of the fixing block is fixed with a pull rod, and one end of the pull rod is connected to the outer plate through the side cylinder.

Preferably, a bar-shaped groove is formed on the top surface of the inner block, and a roller is installed inside the bar-shaped groove.

Preferably, the cross section of the inner block is a rectangular structure, and the end of the inner block is provided with a central through hole.

Preferably, a compression spring is sleeved on the outer wall of the pull rod, and the compression spring is located inside the side barrel.

Preferably, a light bulb is installed on the top of the lamp holder, and a lampshade is sleeved on the outside of the light bulb.

Preferably, the side part of the light pole is provided with a spotlight group, and the bottom end of the light pole is fixed with a base.

Compared with the prior art, the beneficial effects of the present utility model are:

(1) Through the designed bottom block, inner block and fixing block, set the bottom block on the inner block, and then use the fixing block to be stuck in the fixing groove to realize the connection, so that the utility model does not need to be screwed and avoids damage to the lamp wire , At the same time, the assembly efficiency is greatly improved. Through the designed pull rod and outer plate, it is convenient to pull the fixed block during disassembly to make it detached from the fixed groove. Through the designed roller, the roller is installed on the top of the inner block. At the inclined surface, it squeezes and slides between it and the inclined surface at the bottom of the fixed block to generate a force, and then push one end of the fixed block to slide into the side cylinder, which can quickly avoid assembly and further improve the assembly efficiency.

(2) Through the designed extrusion spring, elastic force is applied to the fixed block to ensure that one end of the fixed block is stuck in the fixed groove more firmly. The designed central through hole facilitates the wiring of the lamp wire.

Description of drawings

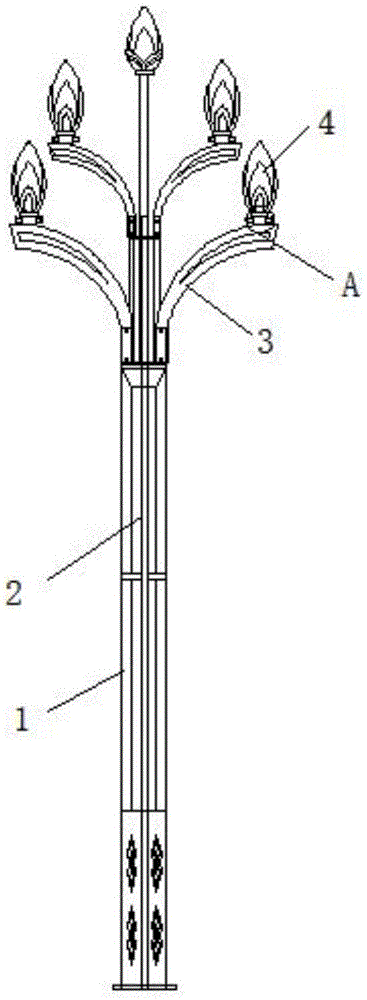

Fig. 1 is the front view of the utility model;

Fig. 2 is the enlarged view of the A place in Fig. 1 of the utility model;

3 is a partial assembly sectional view of a bottom block, an inner block and a fixed block of the present invention;

Fig. 4 is the structural top view of the inner block of the present invention;

In the picture: 1. Light pole; 2. Spotlight group; 3. Leaf frame; 4. Lampshade; 5. Pull rod; 6. Bottom block; 7. Lamp holder; 8. Side tube; 9. Outer plate; 10. Inner Block; 11. Squeeze spring; 12. Fixing groove; 13. Roller; 14. Fixing block.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Example

1 to 4, the present invention provides a technical solution: a magnolia street lamp, comprising a lamp pole 1, a leaf frame 3 is fixed on the top of the lamp pole 1, an inner block 10 is fixed at one end of the leaf frame 3, The outside of the block 10 is sheathed with a bottom block 6, the top of the bottom block 6 is fixed with a lamp holder 7, both sides of the inner block 10 are provided with fixing grooves 12, and both sides of the bottom block 6 are inlaid with side cylinders 8. The designed side cylinder 8 realizes the sliding installation of the fixing block 14 on the side of the bottom block 6. The interior of the side cylinder 8 is provided with a fixing block 14, and one end of the fixing block 14 is placed inside the fixing groove 12. Through the designed bottom block 6 , the inner block 10 and the fixing block 14, the bottom block 6 is set on the inner block 10, and then the fixing block 14 is used to be stuck in the fixing groove 12 to realize the connection, so that the assembly of the present utility model does not need to be screwed, avoids causing damage to the lamp wire, and at the same time The assembly efficiency is greatly improved. The other end of the fixing block 14 is fixed with the pull rod 5, and one end of the pull rod 5 is connected with the outer plate 9 through the side cylinder 8. The designed pull rod 5 and the outer plate 9 are convenient for disassembly. The block 14 is pulled to separate it from the fixing groove 12. The top surface of the inner block 10 is provided with a strip-shaped groove, and the interior of the strip-shaped groove is provided with a roller 13. Through the designed roller 13, the roller 13 is installed on the At the top inclined surface of the inner block 10, there is a squeeze sliding between it and the inclined surface of the bottom of the fixing block 14, so as to generate a force, and then push one end of the fixing block 14 to slide into the side cylinder 8, so as to quickly avoid assembly and further To improve the assembly efficiency, the cross section of the inner block 10 is a rectangular structure, and the end of the inner block 10 is provided with a central through hole, which facilitates the wiring of the lamp wire through the designed central through hole. , through the designed compression spring 11 , the elastic force is applied to the fixed block 14 to ensure that one end of the fixed block 14 is stuck in the fixed groove 12 more firmly, and the compression spring 11 is located inside the side cylinder 8 .

In this embodiment, preferably, a light bulb is installed at the top of the lamp holder 7 , a lampshade 4 is sleeved on the outside of the light bulb, a spotlight group 2 is installed on the side of the light pole 1 , and a base is fixed at the bottom end of the light pole 1 .

The working principle and use process of the present utility model: when the lamp holder 7 is assembled in the present utility model, the bottom block 6 at the bottom of the lamp holder 7 is sheathed on the inner block 10 on the blade frame 3. During the sheathing process, The roller 13 at the top of the inner block 10 and the inclined surface at the bottom of the fixed block 14 produce a squeeze and slide, which generates a force, and then pushes one end of the fixed block 14 to slide into the side cylinder 8, so as to quickly avoid assembly and further improve the assembly process. When the bottom block 6 is completely sheathed on the inner block 10, the compression spring 11 in the compressed state releases the elastic force, and pushes one end of the fixing block 14 to slide into the fixing groove 12 of the side wall of the inner block 10, so as to realize the bottom-to-bottom alignment. The assembly of the block 6 and the inner block 10 is fixed. The utility model uses the inner block 10 and the bottom block 6 to fit together without repeated screwing, thereby avoiding damage to the lamp wire and improving the assembly efficiency of the lamp socket 7 .

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (6)

1. A magnolia street lamp, comprising a lamp pole (1), a leaf frame (3) is fixed at the top of the lamp pole (1), and characterized in that: one end of the leaf frame (3) is fixed with an inner block (10 ), a bottom block (6) is sleeved on the outside of the inner block (10), a lamp holder (7) is fixed on the top of the bottom block (6), and both sides of the inner block (10) are provided with There is a fixing groove (12), side cylinders (8) are inlaid on both sides of the bottom block (6), a fixing block (14) is arranged inside the side cylinder (8), and the fixing block (14) One end of the fixing block (14) is placed inside the fixing groove (12), the other end of the fixing block (14) is fixed with a pull rod (5), and one end of the pull rod (5) is connected to the outer plate (9) through the side cylinder (8). . 2 . The Magnolia street light according to claim 1 , wherein a strip groove is formed on the top surface of the inner block ( 10 ), and a roller ( 13 ) is installed inside the strip groove. 3 . 3. A magnolia street lamp according to claim 2, characterized in that the cross section of the inner block (10) is a rectangular structure, and a central through hole is opened at the end of the inner block (10). 4. A magnolia street lamp according to claim 1, characterized in that: the outer wall of the pull rod (5) is sleeved with a compression spring (11), and the compression spring (11) is located on the side of the side cylinder (8). internal. 5. A magnolia street lamp according to claim 1, characterized in that: a light bulb is installed at the top of the lamp holder (7), and a lampshade (4) is sleeved on the outside of the light bulb. 6. A magnolia street light according to claim 1, characterized in that: the side part of the light pole (1) is provided with a spotlight group (2), and the bottom end of the light pole (1) is fixed with a spotlight group (2). base.
