Abstract
本实用新型涉及一种纺织机械工作台清理装置，解决现有技术中静电作用沾附在台面上的碎屑不好清理导致清理效率低下的问题；其解决的技术方案是:包括支架，支架包括弧形板，挡板，弧形板沿左右方向水平放置，挡板设置为四个，分别位于弧形板的前后左右四个方向，弧形板的中间有分割板，分割板将弧形板分割成前后两个腔室，位于前侧的为加湿腔室，加湿腔室内有加湿喷雾，后侧的腔室为收集腔室，收集腔室的左端有吸尘器，支架上有转轴，转轴上套装有一个与转轴同轴的套筒，套筒可绕其自身轴线转动，套筒与转轴之间有间隔，套筒的外侧安装有可沿套筒径向移动的支撑板，支撑板的外侧套装有一圈清理布；本实用新型构思新颖，结构巧妙，实用性强。
The utility model relates to a cleaning device for a textile machinery workbench, which solves the problem in the prior art that the debris adhered to the table surface due to electrostatic action is not easy to be cleaned, resulting in low cleaning efficiency; Arc-shaped plate, baffle, arc-shaped plate is placed horizontally along the left and right direction, and the baffles are set to four, which are located in the four directions of the front, rear, left, and right of the arc-shaped plate. It is divided into two chambers, front and rear. The humidification chamber is located on the front side. There is a humidification spray in the humidification chamber. The rear chamber is a collection chamber. The left end of the collection chamber has a vacuum cleaner. There is a sleeve coaxial with the rotating shaft, the sleeve can rotate around its own axis, there is a gap between the sleeve and the rotating shaft, the outer side of the sleeve is installed with a support plate that can move along the radial direction of the sleeve, and the outer side of the support plate is sleeved There is a circle of cleaning cloth; the utility model has novel conception, ingenious structure and strong practicability.
Description
Technical Field
The utility model relates to a textile machinery field, especially a textile machinery workstation cleaning device.
Background
Because the textile machinery processes different threads, the textile machinery is used for a long time, dust and lint are easily accumulated on the table top of the textile machinery, and the processing of the subsequent threads is influenced when the dust and the lint are not cleaned; the existing cleaning mode is that the table top is cleaned by manually using a brush, but in the cleaning process, due to the action of static electricity, the table top is attached to the table top and cannot be cleaned well, and chips are attached to the brush and cannot be cleaned well, so that time and labor are wasted, and the cleaning efficiency is influenced.
Disclosure of Invention
To the situation, for solving the problem that exists among the prior art, the utility model aims at providing a textile machinery workstation cleaning device, solve among the prior art electrostatic action and be stained with the problem that the piece that attaches on the mesa is not cleared up well and is leaded to clearing up inefficiency.
The technical scheme for solving the problem is as follows: comprises a bracket, the bracket comprises an arc plate and baffles, the arc plate is horizontally arranged along the left and right directions, the baffles are four and are respectively positioned in the front, the back, the left and the right directions of the arc plate, a partition plate which is positioned in the middle of the arc plate and is positioned in the left and the right directions is arranged, the partition plate divides the arc plate into a front cavity and a back cavity, a humidifying cavity is positioned at the front side, humidifying mist is arranged in the humidifying cavity, a collecting cavity is positioned at the back side, a dust collector is arranged at the left end of the collecting cavity, a rotating shaft which is coaxial with the arc plate is arranged on the bracket, a sleeve which is coaxial with the rotating shaft is sleeved on the rotating shaft, the sleeve can rotate around the axis of the sleeve, a gap is arranged between the sleeve and the rotating shaft, and a supporting plate which can move along the radial direction of the sleeve is arranged on the outer side of the sleeve, the outside cover of backup pad be equipped with round clearance cloth, the sleeve rotate and to drive clearance cloth and rotate jointly, clearance cloth rotates the humidification cavity and can be humidified, the part that clearance cloth rotated the collection cavity can be scraped by the baffle, rubbish is by the dust catcher suction.
Preferably, the left side and the right side of the rotating shaft are respectively provided with a roller, the rollers are connected with the rotating shaft through bearings, and the left end and the right end of the sleeve are fixed on the rollers corresponding to the left side and the right side.
Preferably, the backup pad set up to the arc, backup pad and sleeve between install the bracing piece, bracing piece and sleeve between sliding connection, the bracing piece on the cover be equipped with the spring, the one end of spring is fixed on the sleeve, the other end of spring is fixed in the backup pad, the pivot on install protruding piece, protruding piece respectively set up one about along pivot axis direction, protruding piece include the semicircle block component that two diameters are different, pass through the inclined plane transition between two semicircle blocks, wherein the diameter that is located the semicircle block of top is greater than the diameter that is located the semicircle block of below, the inner of bracing piece run through the sleeve lateral wall and contact with protruding piece.
Preferably, the lateral wall of arc on set up the liquid passage along arc axis direction, liquid passage be located the arc of humidification cavity one side, liquid passage on along arc axis direction about the equipartition have a plurality ofly and the communicating liquid outlet of humidification cavity, install the shower nozzle on every liquid outlet, liquid passage on install the hose, the water tank is installed to the other end of hose.
Preferably, one side of the baffle is provided with an air outlet communicated with the collection chamber, the baffle at the other side is provided with an air inlet, and the dust collector is arranged at the air outlet; the dust collector is started to clean the garbage in the collection chamber.
Preferably, the handle is installed at the upper end of the arc-shaped plate.
The device has the following advantages:
1, by arranging the roller, the supporting plate and the roller, the roller can be driven to rotate when the roller rotates on the table top, so that different parts of the cleaning cloth are in contact with the table top, and the scraps on the table top are cleaned; the operation is simple, and the use is convenient;
2, through setting up the humidification cavity and collecting the cavity, can in time carry out humidification to the clearance cloth, not only help being stained with the piece clearance that attaches on the clearance cloth to can realize at the in-process of clearance mesa, clearance cloth is in under the moist state all the time, can prevent because static, can't clear away the clastic situation of weaving on the mesa, make the effect of clearance better.
Drawings

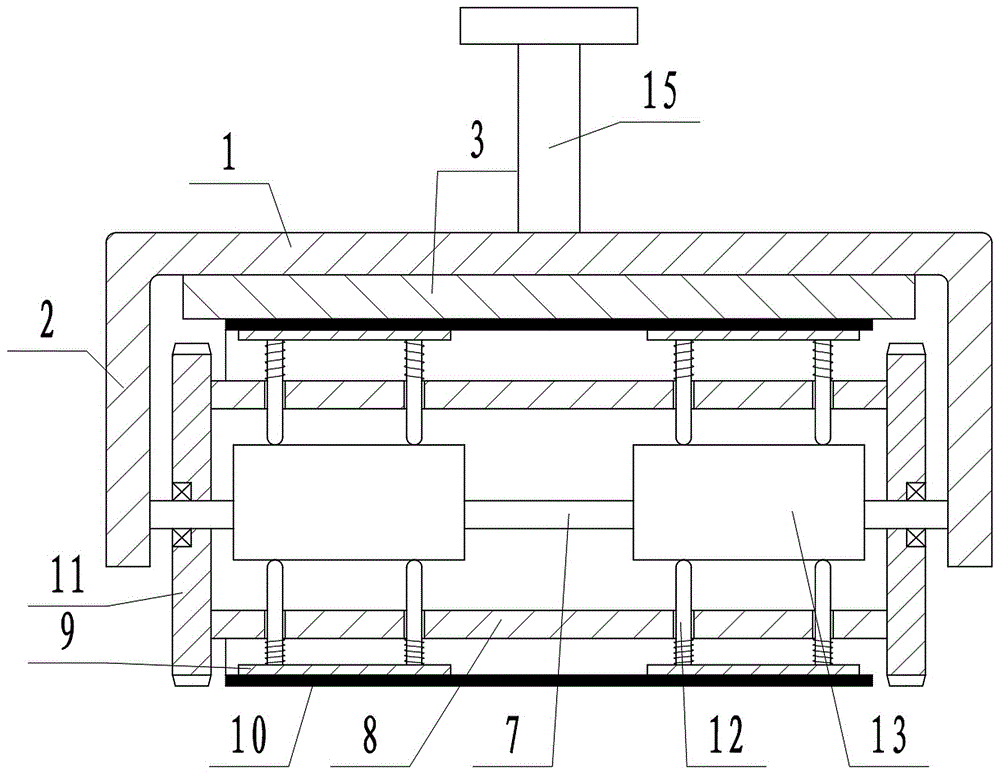

Fig. 1 is a front sectional view of the present invention in use.
Fig. 2 is a left side sectional view of the utility model in use.
Fig. 3 is a partially enlarged view of a portion a in fig. 2 according to the present invention.
Detailed Description
The following detailed description of the embodiments of the present invention will be made with reference to the accompanying drawings.
As shown in figures 1 to 3, the utility model comprises a support, the support comprises an arc plate 1 and a baffle plate 2, the arc plate 1 is horizontally arranged along the left and right direction, the baffle plate 2 is four and is respectively arranged in the front, the back, the left and the right directions of the arc plate 1, a partition plate 3 arranged along the left and the right directions is arranged in the middle of the arc plate 1, the partition plate 3 divides the arc plate 1 into a front cavity and a back cavity, the front cavity is a humidifying cavity 4, a spray head 5 is arranged in the humidifying cavity 4, the rear cavity is a collecting cavity 6, the left end of the collecting cavity 6 is provided with a dust collector, the support is provided with a rotating shaft 7 coaxial with the arc plate 1, the rotating shaft 7 is sleeved with a sleeve 8 coaxial with the rotating shaft 7, the sleeve 8 can rotate around the axis of the sleeve 8, and the rotating shaft 7 are spaced, the outside of sleeve 8 install the backup pad 9 that can follow sleeve 8 radial movement, the outside cover of backup pad 9 be equipped with round clearance cloth 10, sleeve 8 rotate and to drive clearance cloth 10 and rotate jointly, clearance cloth 10 rotates and to humidification chamber 4 can be humidified, clearance cloth 10 rotates the part that collects chamber 6 and can be scraped by baffle 2 clearly, rubbish is by the dust catcher suction.
In order to realize that the sleeve 8 can rotate around the axis of the sleeve, the left side and the right side of the rotating shaft 7 are respectively provided with a roller 11, the rollers 11 are connected with the rotating shaft 7 through bearings, the left end and the right end of the sleeve 8 are fixed on the rollers 11 corresponding to the left side and the right side, when the support moves back and forth, the lower end of each roller 11 is in contact with the table top and generates friction with the table top, the rollers 11 are rotated by the friction force, and the rollers 11 are rotated to drive the sleeve 8 to rotate together.
In order to realize that the supporting plate 9 can move along the sleeve 8 in the radial direction, the supporting plate 9 is arc-shaped, a supporting rod 12 is arranged between the supporting plate 9 and the sleeve 8, the supporting rod 12 is in sliding connection with the sleeve 8, a spring is sleeved on the supporting rod 12, one end of the spring is fixed on the sleeve 8, the other end of the spring is fixed on the supporting plate 9, a convex block 13 is arranged on the rotating shaft 7, the convex blocks 13 are respectively arranged on the left and the right in the axial direction of the rotating shaft 7, the convex blocks 13 comprise two semicircular blocks with different diameters, the two semicircular blocks are in transition through an inclined plane, the diameter of the semicircular block positioned above is larger than that of the semicircular block positioned below, and the inner end of the supporting rod 12 penetrates through the side wall of the sleeve 8 and is in contact with the convex blocks 13; when the sleeve 8 drives the supporting plate 9 to rotate together, the supporting plate 9 can move along the sleeve 8 in the radial direction under the action of the protruding block 13 because the protruding block 13 is fixed on the rotating shaft 7.
The lateral wall of arc 1 on set up the liquid passage along 1 axis direction of arc, liquid passage be located the arc 1 of humidification cavity 4 one side, liquid passage on along 1 axis direction of arc about the equipartition have a plurality ofly with the communicating liquid outlet of humidification cavity 4, install shower nozzle 5 on every liquid outlet, liquid passage on install the hose, the water tank is installed to the other end of hose.
An air outlet 14 communicated with the collecting chamber 6 is formed in one side of the baffle 2, an air inlet is formed in the baffle 2 on the other side, and the dust collector is installed at the air outlet 14; the vacuum cleaner is turned on to clean the waste in the collection chamber 6.
The upper end of the arc-shaped plate 1 is provided with a handle 15.
When the device is used, the device is placed on a table top to be cleaned along the lower end of the device, the lower end of the roller 11 is in contact with the table top, the small semicircular block is positioned below the roller, and the diameter of the roller 11 is matched with that of the small semicircular block below the roller, so that when the roller 11 is in contact with the table top, the supporting plate 9 below the roller drives the cleaning cloth 10 to be in contact with the table top;
then, the device is pushed, the roller 11 rolls on the table top to walk, the roller 11 can drive the sleeve 8 to rotate together when rotating, the sleeve 8 drives the supporting plate 9 to rotate together, the supporting plate 9 rotates to drive the cleaning cloth 10 to rotate simultaneously, the cleaning cloth 10 rotates to enable different positions of the cleaning cloth 10 to be in contact with the table top, and therefore textile scraps on the table top are adsorbed on the cleaning cloth 10;
in the rotating process of the sleeve 8, under the action of the convex block 13, the supporting plate 9 which rotates to the upper part is driven to move upwards, and the cleaning cloth 10 of the part is driven to deform, the cleaning cloth 10 which rotates to the humidifying area is sprayed with liquid to humidify the cleaning cloth 10, and the humidifying purpose is to prevent textile scraps from being adhered to the cleaning cloth 10 due to the action of static electricity to influence the subsequent cleaning; the cleaning cloth 10 rotated into the collection chamber 6 is blocked in the collection chamber 6 by the baffle 2 at one side of the collection chamber 6 and is removed by the vacuum cleaner.
The device has the following advantages:
1, by arranging the roller, the supporting plate 9 and the roller 11, when the roller 11 rotates on the table top, the roller is driven to rotate, so that different parts of the cleaning cloth 10 are in contact with the table top, and scraps on the table top are cleaned; the operation is simple, and the use is convenient;
2, through setting up humidification chamber 4 and collecting chamber 6, can in time carry out humidification to clearance cloth 10, not only help being stained with the piece clearance that attaches on the clearance cloth 10 to can realize at the in-process of clearance mesa, clearance cloth 10 is in under the moist state all the time, can prevent because static, can't clear away the clastic situation of weaving on the mesa, makes the effect of clearance better.
Claims (6)
1. The cleaning device for the workbench of the textile machinery is characterized by comprising a support, wherein the support comprises an arc-shaped plate (1) and a baffle (2), the arc-shaped plate (1) is horizontally arranged along the left-right direction, the baffle (2) is four, the four baffles are respectively positioned in the front, the rear, the left and the right directions of the arc-shaped plate (1), a partition plate (3) which is arranged along the left-right direction is arranged in the middle of the arc-shaped plate (1), the partition plate (3) partitions the arc-shaped plate (1) into a front cavity and a rear cavity, a humidifying cavity (4) is positioned on the front side, humidifying sprays are arranged in the humidifying cavity (4), a collecting cavity (6) is positioned on the rear side, a dust collector is arranged at the left end of the collecting cavity (6), a rotating shaft (7) which is coaxial with the arc-shaped plate (1) is arranged on the support, a sleeve (8) which is coaxial with the rotating shaft (7) is sleeved on the rotating shaft (7), sleeve (8) can rotate around its self axis, sleeve (8) with pivot (7) between have the interval, the outside of sleeve (8) install backup pad (9) that can follow sleeve (8) radial movement, the outside cover of backup pad (9) be equipped with round clearance cloth (10), sleeve (8) rotate and to drive clearance cloth (10) and rotate jointly, clearance cloth (10) rotate humidification chamber (4) and can be humidified, the part that clearance cloth (10) rotated to collection chamber (6) can be scraped by baffle (2), rubbish is by the dust catcher suction.
2. The textile machinery workbench cleaning device according to claim 1, characterized in that, the left and right sides of the rotating shaft (7) are respectively provided with a roller (11), the rollers (11) are connected with the rotating shaft (7) through bearings, and the left and right ends of the sleeve (8) are fixed on the rollers (11) corresponding to the left and right sides.
3. The textile machine workbench cleaning apparatus of claim 1, the supporting plate (9) is arc-shaped, a supporting rod (12) is arranged between the supporting plate (9) and the sleeve (8), the supporting rod (12) is connected with the sleeve (8) in a sliding way, the supporting rod (12) is sleeved with a spring, one end of the spring is fixed on the sleeve (8), the other end of the spring is fixed on the supporting plate (9), the rotating shaft (7) is provided with a convex block (13), the convex blocks (13) are respectively arranged on the left and the right along the axial direction of the rotating shaft (7), the convex block (13) comprises two semicircular blocks with different diameters, the two semicircular blocks are transited through an inclined plane, wherein the diameter of the semicircular block positioned above is larger than that of the semicircular block positioned below, and the inner end of the support rod (12) penetrates through the side wall of the sleeve (8) and is contacted with the convex block (13).
4. The cleaning device for the textile machinery workbench according to claim 1, wherein a liquid passage along the axis direction of the arc plate (1) is arranged on the side wall of the arc plate (1), the liquid passage is arranged on the arc plate (1) on one side of the humidification chamber (4), a plurality of liquid outlets communicated with the humidification chamber (4) are uniformly distributed on the liquid passage along the axis direction of the arc plate (1) in a left-right manner, a spray head (5) is arranged on each liquid outlet, a hose is arranged on the liquid passage, and a water tank is arranged at the other end of the hose.
5. The textile machinery workbench cleaning device of claim 1, wherein one side of the baffle (2) is provided with an air outlet (14) communicated with the collection chamber (6), the other side of the baffle (2) is provided with an air inlet, and the dust collector is arranged at the air outlet (14); the dust collector is started to clean the garbage in the collection chamber (6).
6. A textile machine table cleaning device according to claim 1, characterized in that the upper end of the arc-shaped plate (1) is provided with a handle (15).
