Abstract
本实用新型公开了一种呼吸护理肺功能康复训练器，包括气瓶，所述气瓶的左端外壁固定安装有固定板，所述固定板上设置有移动机构，所述移动机构包括伺服电机，所述伺服电机的动力输出端通过联轴器传动连接有转轴，所述转轴的表面固定安装有间歇齿轮，所述间歇齿轮啮合连接有移动杆，所述移动杆的右端固定连接有活塞，所述活塞活动安装在气瓶的内部，通过设置的移动机构，能够使得活塞在气瓶内部做水平往复移动，从而在活塞向右移动时，对硅胶嘴套处进行送气，便于患者吸气，在活塞向左移动时，能够将外界气体吸入气瓶内部，便于患者下一次的吸气，继而便于对肺部力量不足的患者进行吸气工作，进而便于整体的康复工作。
The utility model discloses a respiratory care pulmonary function rehabilitation training device, comprising a gas cylinder, a fixing plate is fixedly installed on the outer wall of the left end of the gas cylinder, a moving mechanism is arranged on the fixing plate, and the moving mechanism comprises a servo motor, The power output end of the servo motor is connected with a rotating shaft through a coupling, the surface of the rotating shaft is fixedly mounted with an intermittent gear, the intermittent gear is engaged with a moving rod, and the right end of the moving rod is fixedly connected with a piston, so The piston is movably installed inside the gas cylinder, and the moving mechanism provided can make the piston move horizontally in the gas cylinder, so that when the piston moves to the right, air is supplied to the silicone mouth cover, which is convenient for the patient to inhale. When the piston moves to the left, the outside air can be inhaled into the cylinder, which is convenient for the next inhalation of the patient, which in turn facilitates the inspiratory work for patients with insufficient lung strength, thereby facilitating the overall rehabilitation work.
Description
Technical Field
The utility model belongs to the technical field of pulmonary function rehabilitation training, concretely relates to breathe nursing pulmonary function rehabilitation training ware.
Background
The lung is a large organ for body respiration, and if a lung disease occurs, the lung function is deteriorated, so that various uncomfortable symptoms appear, a patient suffering from the lung disease needs to perform inspiration rehabilitation training, and rehabilitation refers to a comprehensive application medical method, so that the lost function of the patient is recovered and rebuilt as soon as possible.
The most mechanisms that do not have the assisted respiration of current rehabilitation training ware, when using to the patient that lung strength is not enough, the patient is difficult to inhale gas, the going on of rehabilitation training of being not convenient for, and the face guard of current rehabilitation training ware generally does not be equipped with the gas outlet, the gas of exhalation can be in follow-up breathing when the patient uses for the bacterium that the inside probably produced of gas of patient exhalation inhales the patient once more internal, harm patient healthy, the practicality is poor, we propose a respiratory nursing lung function rehabilitation training ware for this reason.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a breathe nursing lung function rehabilitation training ware to solve the problem that proposes in the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a breathe nursing lung function rehabilitation training ware, includes the gas cylinder, the left end outer wall fixed mounting of gas cylinder has the fixed plate, be provided with moving mechanism on the fixed plate, moving mechanism includes servo motor, servo motor's power take off end is connected with the pivot through the shaft coupling transmission, the fixed surface of pivot installs intermittent type gear, the meshing of intermittent type gear is connected with the carriage release lever, the right-hand member fixedly connected with piston of carriage release lever, piston movable mounting is in the inside of gas cylinder, the right-hand member of gas cylinder passes through breather pipe fixedly connected with silica gel nozzle sleeve.
Preferably, the upper end of the right side of the gas cylinder is provided with a gas inlet, and a filter screen is fixedly arranged in the gas inlet.
Preferably, the right side of the silica gel mouthpiece sleeve is provided with an expiration outlet, and the expiration outlet is arranged at the upper end of the vent pipe.
Preferably, check valves are arranged inside the upper ends of the air inlet, the exhalation outlet and the ventilation pipe.
Preferably, the fixed plate is symmetrically provided with two front and back, and the servo motors are fixedly arranged on the front end surface of the fixed plate at the back end through motor bases.
Preferably, the front end the inside fixed mounting of fixed plate has the bearing, the pivot passes through the bearing and the front end the inside of fixed plate is rotated and is connected.
Preferably, a moving groove is formed in the moving rod, racks are fixedly mounted on the surfaces of the upper end and the lower end of the moving groove, and the intermittent gear is arranged in the moving groove and meshed with the two racks.
Compared with the prior art, the beneficial effects of the utility model are that:
(1) this breathe nursing lung function rehabilitation training ware, moving mechanism through setting up can be so that the piston is horizontal reciprocating motion in the gas cylinder inside, thereby when the piston moves right, send gas to silica gel mouth cover department, the patient of being convenient for breathes in, when the piston moves left, can inhale the gas cylinder with external gas inside, the patient of being convenient for next time breathes in, then be convenient for breathe in the work to the patient that lung's strength is not enough, and then be convenient for holistic recovered work.
(2) This breathe nursing lung function rehabilitation training ware through expiration export and the check valve that silica gel mouth cover department set up for patient's expired gas can be arranged to the external world, can not flow back to the gas cylinder inside, makes patient's inspiratory gas purer, has improved patient's healthy.
Drawings

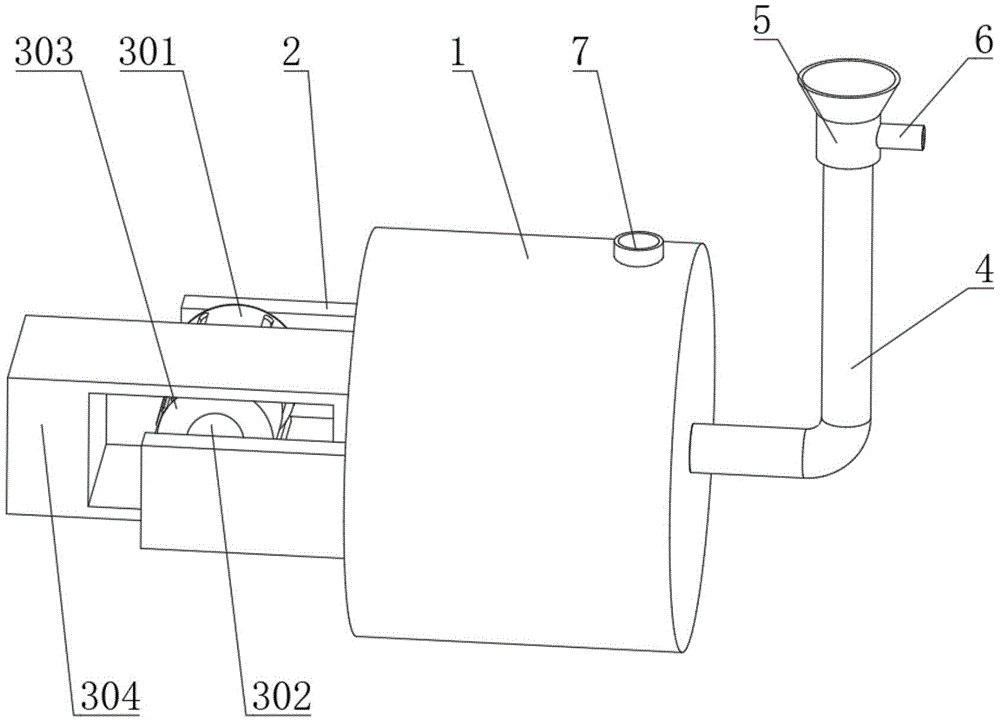

Fig. 1 is a schematic perspective view of the present invention;
fig. 2 is a front sectional view of the present invention;
fig. 3 is an enlarged view of the structure of fig. 2 at a;
fig. 4 is a left side sectional view of the present invention.
In the figure: 1. a gas cylinder; 2. a fixing plate; 3. a moving mechanism; 301. a servo motor; 302. a rotating shaft; 303. an intermittent gear; 304. a travel bar; 305. a piston; 4. a breather pipe; 5. a silica gel tip sleeve; 6. an exhalation outlet; 7. an air inlet; 8. a filter screen; 9. a one-way valve.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative efforts all belong to the protection scope of the present invention.
Please refer to fig. 1-4, the utility model provides a breathe nursing lung function rehabilitation training device, including gas cylinder 1, the left end outer wall fixed mounting of gas cylinder 1 has fixed plate 2, be provided with moving mechanism 3 on the fixed plate 2, moving mechanism 3 includes servo motor 301, servo motor 301's power take off end is connected with pivot 302 through the shaft coupling transmission, the fixed surface of pivot 302 installs intermittent gear 303, the meshing of intermittent gear 303 is connected with carriage release lever 304, the right-hand member fixedly connected with piston 305 of carriage release lever 304, piston 305 movable mounting is in the inside of gas cylinder 1, the right-hand member of gas cylinder 1 passes through 4 fixedly connected with silica gel mouth covers 5 of breather pipe.
In this embodiment, preferably, air inlet 7 has been seted up to the right side upper end of gas cylinder 1, and the inside fixed mounting of air inlet 7 has filter screen 8, and inside the external gas of being convenient for got into gas cylinder 1 through air inlet 7, filter screen 8's setting can block impurity such as dust in the air to air-purifying makes the inspiratory gas of patient purer, has improved patient's healthy.
In this embodiment, preferred, expiration export 6 has been seted up on the right side of silica gel mouth cover 5, and expiration export 6 sets up in the upper end of breather pipe 4, and the setting of expiration export 6 can make the gas of patient's exhalation arrange to the external world through 6 departments of expiration export, avoids inside the gas reflux of patient's exhalation to gas cylinder 1, influences subsequent respiratory quality.
In this embodiment, it is preferred, the air inlet 7, the inside check valve 9 that all installs in the upper end of exhaling export 6 and breather pipe 4, the setting of the inside check valve 9 of air inlet 7, make outside gas can get into inside the gas cylinder 1 through air inlet 7, avoided simultaneously that the inside gas of gas cylinder 1 is arranged to the external world from air inlet 7, the setting of the upper end check valve 9 of exhaling export 6 and breather pipe 4, make the gas of patient's exhalation can not flow back to inside the gas cylinder 1 through breather pipe 4, thereby the subsequent respiratory quality of patient has been improved.
In this embodiment, preferably, the fixed plate 2 is symmetrically provided with two in front and back, and the servo motor 301 is fixedly installed on the front end surface of the rear end fixed plate 2 through the motor base, and the servo motor 301 can be stably installed on the fixed plate 2 due to the arrangement of the structure, so that subsequent use is facilitated.
In this embodiment, preferably, the inside fixed mounting of front end fixed plate 2 has the bearing, and pivot 302 passes through the bearing to be connected with the inside rotation of front end fixed plate 2, and the setting of bearing can play spacing fixed effect to pivot 302, and because the characteristic of bearing self for pivot 302 rotates more smoothly, avoids pivot 302 to take place to block and influences the use of this training ware.
In this embodiment, preferably, the moving slot has been seted up to the inside of carriage release lever 304, and the equal fixed mounting in upper and lower both ends surface of moving slot has the rack, and intermittent type gear 303 sets up in the inside of moving slot and with two rack toothing, the setting of moving slot provides the free space for intermittent type gear 303, then when intermittent type gear 303 drives carriage release lever 304 horizontal migration, carriage release lever 304 can not collide intermittent type gear 303.
The utility model discloses a theory of operation and use flow: when the device is used, firstly, the silica gel mouthpiece sleeve 5 is sleeved on the mouth of a patient, then the servo motor 301 is started, the servo motor 301 drives the rotating shaft 302 to rotate, the rotating shaft 302 drives the intermittent gear 303 to rotate, when the intermittent gear 303 is meshed with the rack at the upper end, the moving rod 304 and the piston 305 can be driven to slowly move rightwards, so that the piston 305 extrudes gas in the gas cylinder 1 rightwards, the gas conveniently enters the silica gel mouthpiece sleeve 5 through the vent pipe 4, the gas in the silica gel mouthpiece sleeve 5 is increased, then the patient can conveniently inhale the gas, when the intermittent gear 303 is meshed with the rack at the lower end, the moving rod 304 and the piston 305 can be driven to slowly move leftwards, so that the external gas can be inhaled into the gas cylinder 1 through the gas inlet 7, the subsequent use is convenient, when the patient exhales, the exhaled gas can be exhausted to the outside through the exhalation outlet 6, and the exhaled gas is prevented from flowing back to the inside of the gas cylinder 1, affecting the subsequent quality of inspiration.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (7)
1. The utility model provides a breathe nursing lung function rehabilitation training device, includes gas cylinder (1), its characterized in that: the left end outer wall fixed mounting of gas cylinder (1) has fixed plate (2), be provided with moving mechanism (3) on fixed plate (2), moving mechanism (3) include servo motor (301), the power take off end of servo motor (301) is connected with pivot (302) through the shaft coupling transmission, the fixed surface of pivot (302) installs intermittent gear (303), intermittent gear (303) meshing is connected with carriage release lever (304), the right-hand member fixedly connected with piston (305) of carriage release lever (304), piston (305) movable mounting is in the inside of gas cylinder (1), the right-hand member of gas cylinder (1) passes through breather pipe (4) fixedly connected with silica gel nozzle cover (5).
2. The respiratory care lung function rehabilitation training device according to claim 1, wherein: an air inlet (7) is formed in the upper end of the right side of the air bottle (1), and a filter screen (8) is fixedly mounted inside the air inlet (7).
3. The respiratory care lung function rehabilitation training device according to claim 2, wherein: the right side of the silica gel mouthpiece (5) is provided with an expiration outlet (6), and the expiration outlet (6) is arranged at the upper end of the vent pipe (4).
4. The respiratory care lung function rehabilitation training device according to claim 3, wherein: and one-way valves (9) are arranged inside the upper ends of the air inlet (7), the expiration outlet (6) and the vent pipe (4).
5. The respiratory care lung function rehabilitation training device according to claim 1, wherein: the front and back of the fixing plate (2) are symmetrically provided with two servo motors (301), and the servo motors are fixedly installed at the back end through motor bases on the surface of the front end of the fixing plate (2).
6. The respiratory care lung function rehabilitation training device according to claim 5, wherein: the front end the inside fixed mounting of fixed plate (2) has the bearing, pivot (302) pass through bearing and front end the inside of fixed plate (2) is rotated and is connected.
7. The respiratory care lung function rehabilitation training device according to claim 1, wherein: the inner part of the moving rod (304) is provided with a moving groove, the surfaces of the upper end and the lower end of the moving groove are fixedly provided with racks, and the intermittent gear (303) is arranged in the moving groove and meshed with the two racks.
