CN216810482U - A building curtain wall with fire-retardant and flame-retardant function - Google Patents

Abstract

The utility model discloses a building curtain wall with fire-proof and flame-retardant function, which comprises a frame, a regulator and a locator. A connecting block is installed on the inner wall of the support frame, two sets of limiters are installed on the inner wall of the frame, and a positioner is installed on the inner wall of the frame, and the positioner is located on one side of the limiter. The utility model adjusts the angle of the curtain wall by installing the adjuster and the connecting block. When a fire occurs, the flame retardant plate can well prevent the spread of the flame. The movement of the frame drives the movement of the connecting block, and the movement of the connecting block drives the movement of the frame to achieve the purpose of moving the curtain wall. The purpose of adjusting the angle of the curtain wall.

Description

A building curtain wall with fire-retardant and flame-retardant function

technical field

The utility model relates to the technical field of building curtain walls, in particular to a building curtain wall with fire-retardant and flame-retardant functions.

Background technique

The curtain wall is the outer wall of the building, and it is a lightweight wall with decorative effect commonly used in modern buildings. The curtain wall has increasingly become an important element of the urban environment. It has a certain deformation ability, and the curtain wall does not bear the main structure of the building. The advantages of the curtain wall are to facilitate lighting, control noise, and reduce thermal energy consumption.

The defects of the existing building curtain wall are:

Patent document CN104234284A discloses a copper plate curtain wall, the protection rights "include: copper plate, first keel, waterproof plate, second keel; said first keel and second keel are fixed with the main body of the building, said second The keel is located between the first keel and the main body of the building; the waterproof plate is located between the first keel and the second keel, and is spliced with each other and fixed on the second keel. The gap between the plates is sealed by sealant; the copper plate is a hollow structure, and the edge is provided with a folded edge, and the plates are spliced with each other and are located on the outside of the first keel; an L-shaped corner code is arranged on the folded edge , the L-shaped angle code is fixed on the first keel; the adjacent copper plates are connected by bolts, and the bolts pass through a pair of the folded edges and a pair of the L-shaped angle codes and are connected to each other. Tighten it so that the folded edge and the L-shaped corner are fixed to each other". However, after the device is installed, it cannot adjust its own angle, which is very inconvenient to use.

Utility model content

The purpose of the present utility model is to provide a building curtain wall with fire-retardant and flame-retardant function, so as to solve the problem of self-angle adjustment proposed in the above-mentioned background art.

In order to achieve the above purpose, the present utility model provides the following technical solutions: a building curtain wall with fire-retardant and flame-retardant function, comprising a frame, a regulator and a locator, two sets of locating plates are installed on the back of the frame, and the An adjuster is installed on the inner wall, a plurality of groups of hydraulic rods are installed on the inner wall of the adjuster, a No. 1 support block is installed on the inner wall of the adjuster, and the No. 1 support block is located on one side of the hydraulic rod, and the No. 1 support block is A rotating shaft is installed through the inner wall, a No. telescopic rod is installed on the outer wall of the rotating shaft, a support frame is installed on the top of the hydraulic rod, a connecting block is installed on the inner wall of the support frame, and one side of the connecting block extends to the outer wall of the frame , two sets of limiters are installed on the inner wall of the frame, and a locator is installed on the inner wall of the frame, and the locator is located on one side of the limiter.

Preferably, a flame retardant board is installed on the inner wall of the frame, and the flame retardant board is located on one side of the stopper.

Preferably, a plurality of sets of positioning blocks are installed on the back of the positioning plate.

Preferably, a support shaft is installed through the inner wall of the connecting block, a swivel is installed on the outer wall of the connecting block, and the top end of the No. 1 telescopic rod extends to the outer wall of the swivel ring.

Preferably, a limit plate is installed through the inner wall of the limiter.

Preferably, a drive block is installed on the top of the limit plate, and limit bolts are installed through the inner wall of the drive block.

Preferably, the No. 2 support block is installed on the inner wall of the positioner, the No. 2 telescopic rod is installed on both outer walls of the No. 2 support block, the top of the No. 2 telescopic rod is installed with a guide rod, and one end of the guide rod is installed with a driver The outer wall of the drive plate is provided with a positioning groove, and the inner wall of the frame is provided with a positioning groove, and the positioning groove is located on one side of the positioner.

Compared with the prior art, the beneficial effects of the present utility model are:

1. The utility model adjusts the angle of the curtain wall by installing the adjuster and the connecting block. When adjusting the angle of the curtain wall, the top of the hydraulic rod extends to push the support frame to move, the support frame moves to drive the connecting block to move, and the connecting block moves to drive the frame to move. , to achieve the purpose of moving the position of the curtain wall, after moving the curtain wall to a predetermined position, the top of the No. 1 telescopic rod extends and pushes the connecting block to move, and the moving of the connecting block drives the frame to move to achieve the purpose of adjusting the angle of the curtain wall;

2. The utility model quickly replaces the curtain wall panel by installing the locator and the limiter. After placing the replaced curtain wall panel in the limit slot, the top of the No. 2 telescopic rod moves to drive the guide rod to move, and the guide rod moves. The movement pushes the drive plate to move, the drive plate moves to push the limit slot to move, and the limit slot moves to move the curtain wall panel. The position of the limit plate can be limited by the limit bolt, so as to achieve the purpose of quickly replacing and fixing the curtain wall panel.

Description of drawings

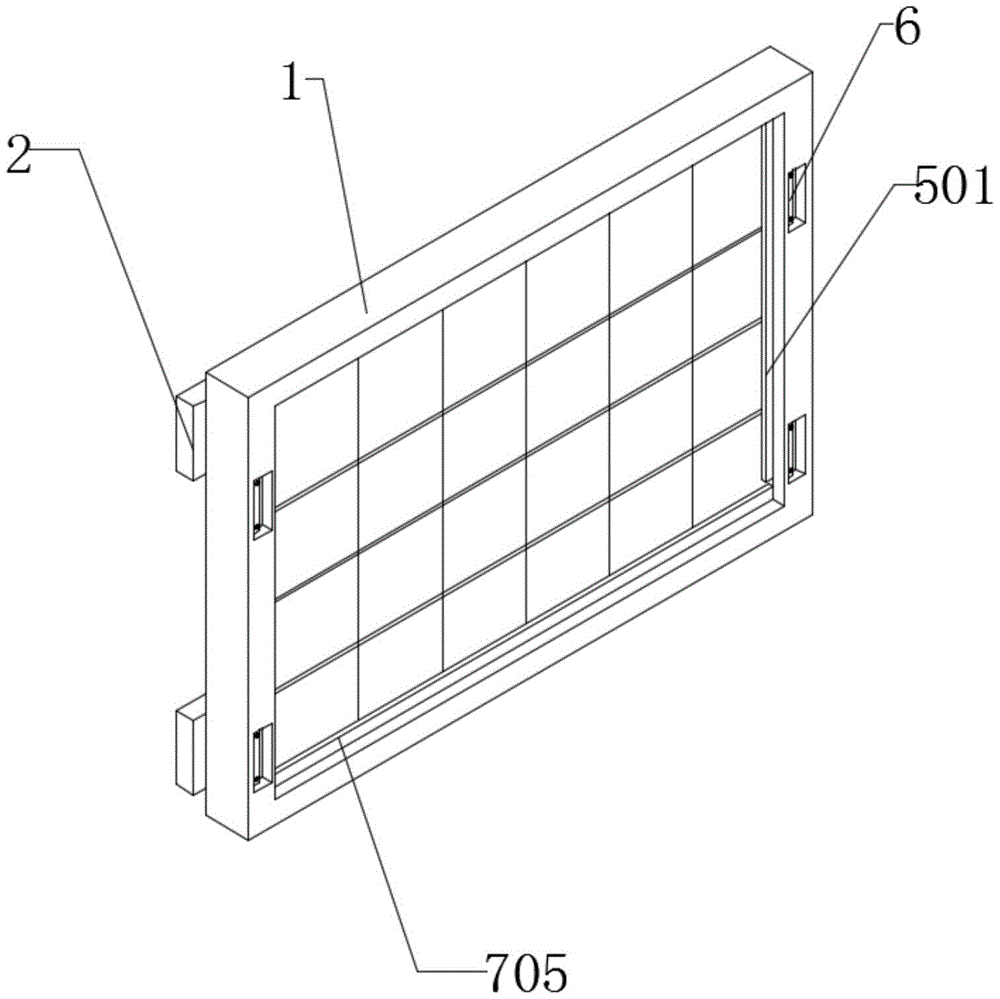

Fig. 1 is the overall structure schematic diagram of the present utility model;

Fig. 2 is the back structure schematic diagram of the utility model;

Figure 3 is a schematic diagram of the structure of the regulator part of the present invention;

Figure 4 is a schematic diagram of the structure of the connecting block part of the present invention;

FIG. 5 is a schematic diagram of the partial structure of the locator of the present invention.

In the figure: 1. Frame; 101. Flame-retardant plate; 2. Positioning plate; 201. Positioning block; 3. Regulator; 301, Hydraulic rod; 302, No. 1 support block; ;305, support frame; 4, connection block; 401, support shaft; 402, swivel; 5, limiter; 501, limit plate; 6, drive block; 601, limit bolt; 7, locator; 701 , No. 2 support block; 702, No. 2 telescopic rod; 703, guide rod; 704, drive plate; 705, limit slot; 706, positioning slot.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

In the description of the present invention, it should be noted that the terms "upper", "lower", "inner", "outer", "front end", "rear end", "two ends", "one end", "the other end" The orientation or positional relationship indicated by "" etc. is based on the orientation or positional relationship shown in the accompanying drawings, and is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the indicated device or element must have a specific orientation, so as to The specific orientation configuration and operation is therefore not to be construed as a limitation of the present invention. Furthermore, the terms "first" and "second" are used for descriptive purposes only and should not be construed to indicate or imply relative importance.

In the description of the present utility model, it should be noted that, unless otherwise expressly specified and limited, the terms "installed", "provided with", "connected", etc., should be understood in a broad sense, for example, "connected" may be a fixed The connection can also be a detachable connection, or an integral connection; it can be a mechanical connection or an electrical connection; it can be a direct connection, or an indirect connection through an intermediate medium, and it can be internal communication between two components. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood in specific situations.

Embodiment 1: Please refer to Figure 1 and Figure 2, a building curtain wall with fire and flame retardant function, including a frame 1, a regulator 3 and a positioner 7, two sets of positioning plates 2 are installed on the back of the frame 1, and the frame 1 is The positioning plate 2 provides installation space, the inner wall of the positioning plate 2 is installed with the adjuster 3, the positioning plate 2 provides the installation space for the adjuster 3, the inner wall of the frame 1 is installed with two sets of limiters 5, and the frame 1 provides the limiter 5 Installation space, a positioner 7 is installed on the inner wall of the frame 1, and the positioner 7 is located on one side of the limiter 5, the frame 1 provides an installation space for the positioner 7, and a flame retardant board 101 is installed on the inner wall of the frame 1, and the flame retardant The plate 101 is located on one side of the limiter 5. When a fire occurs, the flame retardant plate 101 can well prevent the spread of the flame. There are multiple sets of positioning blocks 201 installed on the back of the positioning plate 2. The positioning plate 2 can quickly pass through the positioning blocks 201. To install the curtain wall, a support shaft 401 is installed through the inner wall of the connection block 4, a swivel 402 is installed on the outer wall of the connection block 4, and the top of the No. 1 telescopic rod 304 extends to the outer wall of the swivel 402, and the support shaft 401 is convenient for connecting the block 4 moves the position, the connecting block 4 provides the installation space for the swivel 402, the top of the No. 1 telescopic rod 304 moves to push the connecting block 4 to move, and the connecting block 4 moves to drive the frame 1 to move to achieve the purpose of adjusting the angle of the curtain wall. A limit plate 501 is installed through the inner wall, a driving block 6 is installed on the top of the limit plate 501, and a limit bolt 601 is installed through the inner wall of the drive block 6, and the driving block 6 is pushed to move to drive the limit plate 501 to move. After the limit plate 501 moves The position of the curtain wall panel is limited, and the position of the limit plate 501 can be limited by the limit bolt 601 .

Example 2: Please refer to FIG. 3 and FIG. 4. There are multiple sets of hydraulic rods 301 installed on the inner wall of the regulator 3. A No. 1 support block 302 is installed on the inner wall of the regulator 3, and the No. 1 support block 302 is located on one side of the hydraulic rod 301. A rotating shaft 303 is installed through the inner wall of the No. 1 support block 302, a No. 1 telescopic rod 304 is installed on the outer wall of the rotating shaft 303, a support frame 305 is installed on the top of the hydraulic rod 301, and a connecting block 4 is installed on the inner wall of the support frame 305, and the connecting block 4 When the angle of the curtain wall is adjusted, the top end of the hydraulic rod 301 extends to push the support frame 305 to move, the support frame 305 moves to drive the connecting block 4 to move, and the movement of the connecting block 4 drives the frame 1 to move to achieve the moving curtain wall. For the purpose of position, after moving the curtain wall to a predetermined position, the top of the No. 1 telescopic rod 304 extends and pushes the connecting block 4 to move, and the moving of the connecting block 4 drives the frame 1 to move, so as to adjust the angle of the curtain wall.

Embodiment 3: Please refer to FIG. 5. No. 2 support block 701 is installed on the inner wall of the positioner 7. No. 2 telescopic rods 702 are installed on both outer walls of the No. 2 support block 701, and a guide rod is installed at the top of the No. 2 telescopic rod 702. 703, a drive plate 704 is installed on one end of the guide rod 703, a limit groove 705 is installed on the outer wall of the drive plate 704, and a positioning groove 706 is installed on the inner wall of the frame 1, and the positioning groove 706 is located on one side of the positioner 7, the curtain wall to be replaced After the panel is placed inside the limit slot 705, the top of the second telescopic rod 702 moves to drive the guide rod 703 to move, the guide rod 703 moves to push the drive plate 704 to move, the drive plate 704 moves to push the limit slot 705 to move, and the limit slot 705 moves. The movement causes the curtain wall panel to move, and the top of the curtain wall panel moves to the interior of the positioning groove 706 and has a limiting effect on the curtain wall panel, and pushes the driving block 6 to move to drive the limit plate 501 to move, and the limit plate 501 moves to limit the curtain wall panel. , the position of the limit plate 501 can be limited by the limit bolt 601, so as to achieve the purpose of quickly replacing and fixing the curtain wall panel.

Working principle, when first adjusting the angle of the curtain wall, the top of the hydraulic rod 301 extends to push the support frame 305 to move, the support frame 305 moves to drive the connecting block 4 to move, and the movement of the connecting block 4 drives the frame 1 to move, so as to achieve the purpose of moving the position of the curtain wall and move the curtain wall. After moving to the predetermined position, the top of the No. 1 telescopic rod 304 extends and pushes the connection block 4 to move, and the movement of the connection block 4 drives the frame 1 to move, so as to achieve the purpose of adjusting the angle of the curtain wall, and place the replaced curtain wall panel inside the limit slot 705. Then, the top of the second telescopic rod 702 moves to drive the guide rod 703 to move, the guide rod 703 moves to push the drive plate 704 to move, the drive plate 704 moves to push the limit slot 705 to move, and the limit slot 705 moves to move the curtain wall panel. After the top moves to the interior of the positioning groove 706, it has a limiting effect on the curtain wall panel, and the driving block 6 is pushed to move to drive the limit plate 501 to move. After the limit plate 501 moves, the curtain wall panel is limited. The position of the position plate 501 is limited to achieve the purpose of quickly replacing the fixed curtain wall panel.

It will be apparent to those skilled in the art that the present invention is not limited to the details of the above-described exemplary embodiments, and that the present invention can be implemented in other specific forms without departing from the spirit or essential characteristics of the present invention. Therefore, the embodiments are to be considered in all respects as exemplary and not restrictive, and the scope of the present invention is defined by the appended claims rather than the foregoing description, and it is therefore intended that the All changes within the meaning and range of the required equivalents are embraced within the present invention. Any reference signs in the claims shall not be construed as limiting the involved claim.

Claims (7)

1. The utility model provides a building curtain wall with fire prevention fire-retardant function, includes frame (1), regulator (3) and locator (7), its characterized in that: the back of the frame (1) is provided with two groups of positioning plates (2), the inner wall of each positioning plate (2) is provided with an adjuster (3), the inner wall of each adjuster (3) is provided with a plurality of groups of hydraulic rods (301), the inner wall of each adjuster (3) is provided with a supporting block (302), the supporting block (302) is positioned on one side of each hydraulic rod (301), the inner wall of each supporting block (302) is provided with a rotating shaft (303) in a penetrating manner, the outer wall of each rotating shaft (303) is provided with a telescopic rod (304), the top of each hydraulic rod (301) is provided with a supporting frame (305), the inner wall of each supporting frame (305) is provided with a connecting block (4), one side of each connecting block (4) extends to the outer wall of the frame (1), the inner wall of the frame (1) is provided with two groups of limiters (5), and the inner wall of the frame (1) is provided with a positioner (7), and the positioner (7) is positioned at one side of the limiter (5).

2. The building curtain wall with the fireproof and flame-retardant functions as claimed in claim 1, wherein: the inner wall of the frame (1) is provided with a flame-retardant plate (101), and the flame-retardant plate (101) is positioned on one side of the limiter (5).

3. The building curtain wall with the fireproof and flame-retardant functions as claimed in claim 1, wherein: and a plurality of groups of positioning blocks (201) are arranged on the back surface of the positioning plate (2).

4. The building curtain wall with the fireproof and flame-retardant functions as claimed in claim 1, wherein: the inner wall of connecting block (4) runs through and installs back shaft (401), and swivel (402) are installed to the outer wall of connecting block (4), and the top of telescopic link (304) extends to the outer wall of swivel (402).

5. The building curtain wall with the fireproof and flame-retardant functions as claimed in claim 1, wherein: and a limiting plate (501) is arranged on the inner wall of the limiter (5) in a penetrating way.

6. The building curtain wall with the fireproof and flame-retardant functions as claimed in claim 5, wherein: the top of limiting plate (501) is installed with drive block (6), and the inner wall of drive block (6) runs through and installs limiting bolt (601).

7. The building curtain wall with the fireproof and flame-retardant functions as claimed in claim 1, wherein: no. two supporting blocks (701) are installed to the inner wall of locator (7), No. two telescopic link (702) are all installed to the both sides outer wall of No. two supporting blocks (701), guide arm (703) are installed on the top of No. two telescopic link (702), drive plate (704) are installed to the one end of guide arm (703), spacing groove (705) are installed to the outer wall of drive plate (704), constant head tank (706) are installed to the inner wall of frame (1), and constant head tank (706) are located one side of locator (7).
