CN216796620U - Trouser leg waterproof structure - Google Patents

Abstract

The utility model relates to the technical field of clothing, in particular to a waterproof structure for trouser legs, which comprises a trouser body and a waterproof cloth arranged at the bottom end of the trouser body, the waterproof cloth is arranged around the bottom end of the trouser body, and the A connecting piece is arranged between the trousers body and the waterproof cloth. The utility model has the effect of waterproofing.

Description

A waterproof structure for trouser legs

technical field

The utility model relates to the technical field of clothing, in particular to a waterproof structure for trouser legs.

Background technique

With the improvement of living standards, people's requirements for clothing are getting higher and higher. Pants generally refer to clothing that people wear below the waist. Generally, they are sewn from a waistband, a crotch and two trouser legs. Different from the audience, there are various classifications. Pants have various designs and functions, and there are various ways to wear them. The trousers are the bottom of the trousers. make up.

At present, in rainy days, the rainwater is easy to splash on the trousers, resulting in the formation of stains on the trousers, which affects the appearance, so it needs to be improved.

Utility model content

The utility model provides a waterproof structure for trouser legs aiming at solving the technical problems of the prior art.

The waterproof structure for trouser legs provided by the utility model adopts the following technical scheme:

A trouser leg waterproof structure comprises a trouser body and a waterproof cloth arranged at the bottom end of the trouser body, the waterproof cloth is arranged around the bottom end of the trouser body, and a connecting piece is arranged between the trouser body and the waterproof cloth .

Preferably, the length of the waterproof cloth on the front of the trousers is 2-3 cm, and the length of the waterproof cloth on the back of the trousers is 40-50 cm.

Preferably, the thickness of the waterproof cloth is 0.5-0.8 mm.

Preferably, the connecting member includes a spinning thread connected between the trousers body and the waterproof cloth.

Preferably, a breathable mesh is provided at the connection between the back of the trousers body and the waterproof cloth, and the breathable mesh is located at the top of the waterproof cloth.

Preferably, the waterproof cloth is provided with a cover cloth, the three side edges of the cover cloth are fixedly connected to the trousers body, and the cover cloth is located on the outer surface of the trousers body.

To sum up, the present utility model includes at least one of the following beneficial technical effects:

The operator sews the tarpaulin on the trousers body by spinning thread. In rainy days, when rainwater splashes on the tarpaulin, the tarpaulin can block the rainwater and prevent the rainwater from forming stains on the trousers body, thereby improving the trousers body. usability and aesthetics.

Description of drawings

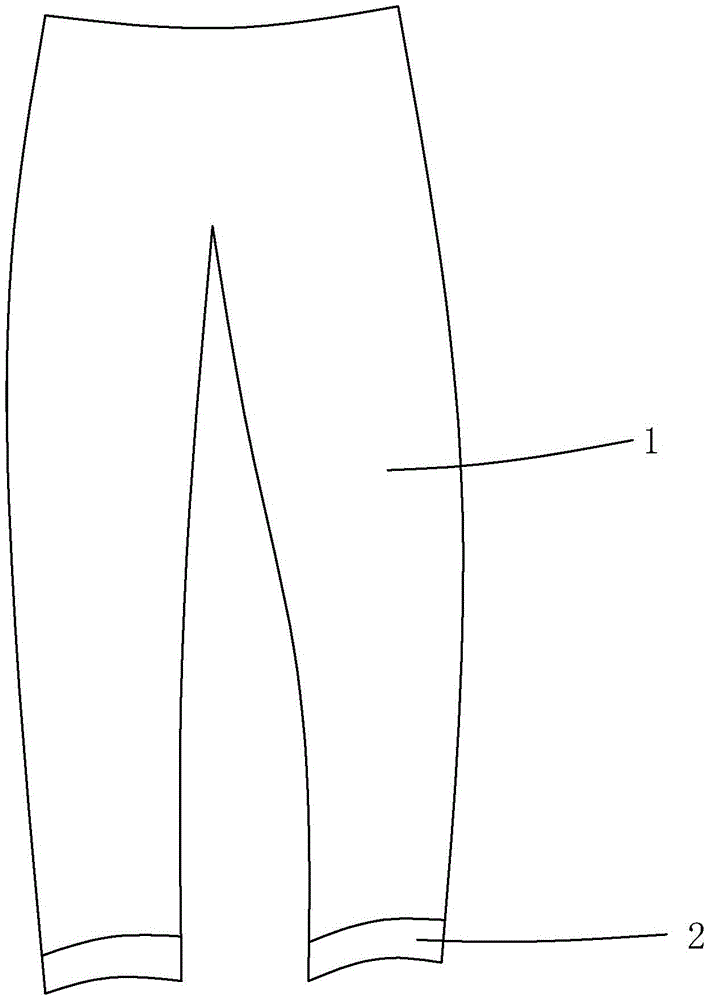

Figure 1 is a schematic diagram of the overall structure of the present invention.

Figure 2 is a rear view of the utility model.

FIG. 3 is a rear view of the utility model after removing the cover cloth.

In the picture: 1. Pants body; 11. Breathable net; 12. Cover cloth; 2. Waterproof cloth.

Detailed ways

The present utility model will be described in further detail below in conjunction with accompanying drawings 1-3.

The embodiment of the present utility model discloses a waterproof structure for trousers, as shown in Figures 1-2, comprising a trousers body 1, a waterproof cloth 2 arranged at the bottom end of the trousers body 1, the waterproof cloth 2 is arranged around the bottom end of the trousers body 1, and the trousers body A connecting piece is provided between the 1 and the waterproof cloth 2 . Specifically, the connecting piece includes a spinning thread connected between the trousers body 1 and the waterproof cloth 2 . The operator can place the waterproof cloth 2 on the corresponding position of the trousers body 1, and then use the machine to sew the waterproof cloth 2 on the trousers body 1, so that the waterproof cloth 2 is firmly fixed on the trousers body 1, and the whole trousers The body 1 is only partially provided with the waterproof cloth 2, thereby reducing the cost.

1 and 2 , the length of the waterproof cloth 2 on the front of the trousers body 1 is 2-3 cm, and the length of the waterproof cloth 2 on the back of the trousers body 1 is 40-50 cm. In this embodiment, the length of the waterproof cloth 2 on the front of the trousers body 1 is 3 cm, the length of the waterproof cloth 2 on the back of the trousers body 1 is 45 cm, and the front of the trousers body 1 is the side surface of the trousers body 1 facing the toes of people. Therefore, when people walk, rainwater is more likely to splash on the heel, so that the longer waterproof setting on the back of the trousers body 1 can effectively block water and reduce the cost. The thickness of the waterproof cloth 2 is 0.5-0.8 mm. In this embodiment, the thickness of the waterproof cloth 2 is preferably 0.6 mm. The waterproof cloth 2 of this thickness has good air permeability and is more comfortable for people to wear.

2 and 3 , the connection between the back of the trousers 1 and the waterproof cloth 2 is provided with a breathable mesh 11, the breathable mesh 11 is located at the top of the waterproof cloth 2, and the breathable mesh 11 can improve the breathability of the trousers 1. In addition, the waterproof cloth 2 is provided with a cover cloth 12, the three sides of the cover cloth 12 are fixedly connected to the trousers body 1, the cover cloth 12 is located on the outer surface of the trousers body 1, and the cover cloth 12 can cover the breathable mesh. 11. The aesthetics of the trouser body 1 is improved, and the effect on the ventilation effect of the ventilation net 11 is small.

The implementation principle of the waterproof structure of the trousers according to the embodiment of the present utility model is as follows: the operator sews the waterproof cloth 2 on the trousers body 1 through spinning threads. The rainwater can be blocked and the rainwater can be prevented from forming stains on the trousers body 1 , thereby improving the usability and aesthetics of the trousers body 1 .

The above are only preferred embodiments of the present invention, and are not intended to limit the present invention in any form. Although the present invention is disclosed as a preferred embodiment, it is not intended to limit the present Professional and technical personnel, within the scope of the technical solution of the present invention, make some changes or modifications to equivalent examples of equivalent changes by using the technical content disclosed above, provided that they do not depart from the content of the technical solution of the present invention, according to the present invention. The utility model technology refers to any simple modification, equivalent change and modification made to the above embodiments, which all belong to the scope of the technical solution of the present utility model.

Claims (6)

1. A waterproof structure for trouser legs, characterized in that it comprises a trouser body (1), a waterproof cloth (2) arranged at the bottom end of the trouser body (1), and the waterproof cloth (2) surrounds the trouser body (1). ) is arranged at the bottom end of the trousers body (1) and a connecting piece is arranged between the trousers body (1) and the waterproof cloth (2). 2. A waterproof structure for trouser legs according to claim 1, characterized in that: the length of the waterproof cloth (2) on the front of the trouser body (1) is 2-3 cm, and the waterproof cloth on the back of the trouser body (1) is 2-3 cm long. (2) The length is 40-50cm. 3 . The waterproof structure for trouser legs according to claim 1 , wherein the waterproof cloth ( 2 ) has a thickness of 0.5-0.8 mm. 4 . 4. A waterproof structure for trouser legs according to claim 1, characterized in that: the connecting piece comprises a spinning thread connected between the trouser body (1) and the waterproof cloth (2). 5. A waterproof structure for trouser legs according to claim 1, characterized in that: a breathable net (11) is provided at the joint between the back of the trousers body (1) and the waterproof cloth (2), and the The breathable net (11) is located at the top of the waterproof cloth (2). 6. A waterproof structure for trouser legs according to claim 1, characterized in that: the waterproof cloth (2) is provided with a cover cloth (12), and the three side edges of the cover cloth (12) are fixedly connected to the In the trousers body (1), the cover cloth (12) is located on the outer surface of the trousers body (1).
