Abstract

The utility model discloses a new type of measuring equipment based on sea-crossing measurement, comprising a base, a groove plate is installed on the top of the base, a moving part is installed on the top of the groove plate, a fixed plate is installed on the top of the moving part, and the fixed plate is installed on the top of the base. The plate is fixedly connected with a threaded column, the outer thread of the threaded column is sleeved with an inner threaded pipe fitting, the top of the threaded column is provided with a channel, and two clamping pieces are slidably arranged in the channel, and the clamping pieces include sliding The sliding block is slidably arranged in the channel, the sliding block is wedge-shaped, the clamping block is fixedly connected to the end of the sliding block, the clamping block is semi-cylindrical, and the two A target plate is clamped between the clamping blocks, which solves the problem that the surface of the existing target plate is easily worn or even damaged after long-term use and needs to be replaced, and it is inconvenient to disassemble and assemble it by bolting. .

Description

A new type of measurement equipment based on cross-ocean measurement

technical field

The utility model belongs to the technical field of engineering measurement technology, in particular to a new type of measurement equipment based on cross-sea measurement.

Background technique

The target refers to the frame set on the triangular point or the precise wire point for observation. It is made of wood, steel or other materials, in the shape of a triangular or quadrangular pyramid, with a height of several meters to tens of meters. The center of the sighting part of the target is located on the vertical line of the triangle point or the wire point for sighting and observation elsewhere. High targets are generally equipped with instrument observatories to observe other targets.

At present, most of the existing target plates for target targets are fixed on the top by bolts, and the surface of the target plate is easily worn or even damaged after long-term use, and it needs to be replaced. , there are certain defects.

Utility model content

In view of the problems existing in the prior art, the utility model provides a new type of measuring equipment based on cross-sea measurement, which has the advantages of quickly disassembling and fixing the target plate, and can fix target plates of different thicknesses to a certain extent, It solves the problem that the surface of the existing target plate is easily worn or even damaged after long-term use, and needs to be replaced, and it is not convenient to disassemble and assemble it by means of bolt fixing.

The utility model is realized in this way, based on a new type of measuring equipment for cross-sea measurement, comprising a base, a groove plate is installed on the top of the base, a moving part is installed on the top of the groove plate, and a fixed plate is installed on the top of the moving part, The fixing plate is fixedly connected with a threaded column, the outer thread of the threaded column is sleeved with an inner threaded pipe fitting, a channel is opened at the top of the threaded column, and two clamping pieces are slidably arranged in the channel. The component includes a sliding block and a clamping block, the sliding block is slidably arranged in the channel, the sliding block is wedge-shaped, the clamping block is fixedly connected to the end of the sliding block, and the clamping block is semi-cylindrical, A target plate is clamped between the two clamping blocks.

As a preferred option of the present invention, the threaded post is provided with a first limiting groove that communicates with the groove, the side of the sliding block is fixedly connected with a first limiting block, and the first limiting block Slidingly arranged in the first limit groove, the top of the threaded post is provided with a second limit groove that communicates with the channel, the bottom of the clamping block is fixedly connected with a second limit block, the first Two limit blocks are slidably arranged in the second limit groove.

As the preferred embodiment of the present invention, the internally threaded pipe includes a nut pipe and an extrusion pipe, the nut pipe is threadedly connected to the threaded post, the extrusion pipe is fixedly connected to the top of the nut pipe, and the extrusion pipe is connected to the top of the nut pipe. The inner top of the pressure tube is arc-shaped.

As a preferred embodiment of the present invention, light-emitting areas are arranged on both sides of the target plate, and fluorescent layers are arranged in the light-emitting areas.

As a preferred embodiment of the present invention, the moving piece includes a threaded rod, a moving block and a rotating handle, the threaded rod is rotatably arranged in the groove plate and one end extends to the outside, and the moving block is threadedly connected to the threaded rod The fixed plate is fixedly connected to the top of the moving block, and the rotating handle is fixedly connected to one end of the threaded rod.

As the preferred embodiment of the present invention, a limit plate is installed on the top of the groove plate, a sleeve block is fixedly connected to the side wall of the moving block, the sleeve block is slidably sleeved on the surface of the limit plate, and the top of the limit plate is Set with tick marks.

Compared with the prior art, the beneficial effects of the present utility model are as follows:

1. The utility model solves the problem of the length of the existing target plate by setting the base, the groove plate, the moving piece, the fixed plate, the threaded column, the channel, the inner threaded pipe fitting, the clamping piece, the sliding block, the clamping block and the target plate. After time use, its surface is easy to be worn or even damaged and needs to be replaced, and it is not convenient to disassemble and assemble it by means of bolts.

2. The utility model restricts the axial movement of the sliding block and the clamping block along the threaded column by setting the first limiting block and the first limiting groove, and prevents the sliding block from slipping axially from the groove. The limit block and the second limit groove limit the radial movement of the sliding block and the clamping block along the threaded column, and prevent the sliding block from radially slipping out of the groove.

3. In the present invention, the nut tube and the extrusion tube are arranged, the nut tube is threadedly connected with the threaded column, and the nut tube is rotated to drive the extrusion tube to move axially using the principle of threaded transmission. The outer arc surface of the sliding block is pushed to move along the channel, and the two sliding blocks move close to each other, thereby driving the two clamping blocks to approach each other to clamp the target plate. When disassembling, the nut tube can be reversely rotated, which is fast and convenient.

4. The utility model can effectively improve the recognition degree of the target plate and improve the convenience in the actual use process by setting the light-emitting area.

5. The utility model can drive the fixed plate to move by arranging the threaded rod, the moving block and the rotating handle, and then drive the target plate indirectly fixed on the upper part to move, adjust the position of the target plate and improve the accuracy.

6. The utility model is used to limit the rotation of the moving block by setting the limit plate and the sleeve block, so as to prevent the moving block from rotating itself during the thread transmission process, and at the same time, setting a scale line is beneficial to improve the adjustment accuracy.

Description of drawings

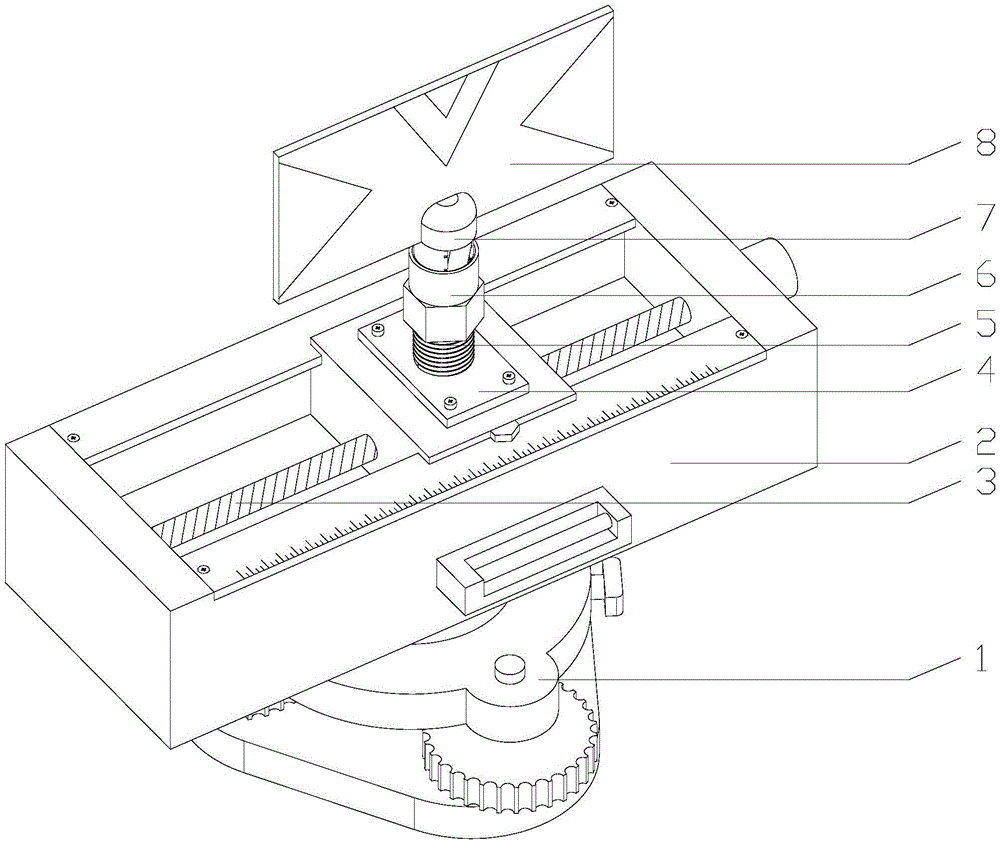

1 is a schematic structural diagram of a new type of measurement equipment based on cross-sea measurement provided by an embodiment of the present invention;

2 is a schematic structural diagram of a moving part provided by an embodiment of the present invention;

3 is a schematic structural diagram of a moving block provided by an embodiment of the present invention;

4 is a schematic structural diagram of a threaded post provided by an embodiment of the present invention;

5 is a schematic structural diagram of a clamping member provided by an embodiment of the present invention;

6 is a schematic structural diagram of an internally threaded pipe fitting provided by an embodiment of the present invention;

7 is a schematic structural diagram of a target plate provided by an embodiment of the present invention.

In the figure: 1, base; 2, groove plate; 210, limit plate; 3, moving part; 310, threaded rod; 320, moving block; 321, sleeve block; 330, rotating handle; 4, fixing plate; 5, Threaded column; 510, channel; 520, first limit groove; 530, second limit groove; 6, internal thread pipe fitting; 610, nut pipe; 620, extruded pipe; 7, clamping piece; 710, sliding 711, the first limit block; 720, the clamping block; 721, the second limit block; 8, the target plate; 9, the light-emitting area.

Detailed ways

In order to further understand the inventive content, features and effects of the present utility model, the following embodiments are exemplified and described in detail with the accompanying drawings as follows.

The structure of the present utility model will be described in detail below in conjunction with the accompanying drawings.

As shown in FIGS. 1 to 7 , the new type of measuring equipment based on cross-sea measurement provided by the embodiment of the present invention includes a base 1, a groove plate 2 is installed on the top of the base 1, and a movable member 3 is installed on the top of the groove plate 2, which moves the A fixing plate 4 is installed on the top of the piece 3, the fixing plate 4 is fixedly connected with a threaded column 5, the outer thread of the threaded column 5 is sleeved with an inner threaded pipe fitting 6, and the top of the threaded column 5 is provided with a channel 510. A clamping piece 7 is provided. The clamping piece 7 includes a sliding block 710 and a clamping block 720. The sliding block 710 is slidably arranged in the channel 510, and the sliding block 710 is wedge-shaped. The clamping block 720 is fixedly connected to the end of the sliding block 710. The block 720 is semi-cylindrical, and the target plate 8 is clamped between the two clamping blocks 720 .

Referring to FIGS. 4 and 5 , the threaded column 5 is provided with a first limiting groove 520 that communicates with the channel 510 , a first limiting block 711 is fixedly connected to the side of the sliding block 710 , and the first limiting block 711 is slidably arranged In the first limiting groove 520, the top of the threaded post 5 is provided with a second limiting groove 530 that communicates with the channel 510, the bottom of the clamping block 720 is fixedly connected with a second limiting block 721, and the second limiting block 721 slides is disposed in the second limiting groove 530 .

The above solution is adopted: by setting the first limit block 711 and the first limit groove 520 , the axial movement of the sliding block 710 and the clamping block 720 along the threaded column 5 is restricted, and the sliding block 710 is prevented from being pivoted from the groove 510 In the direction of slippage, by setting the second limit block 721 and the second limit groove 530, the radial movement of the sliding block 710 and the clamping block 720 along the threaded column 5 is restricted, and the radial sliding of the sliding block 710 from the groove 510 is avoided. .

Referring to FIGS. 4 and 6 , the internally threaded pipe 6 includes a nut tube 610 and an extruded tube 620 , the nut tube 610 is threadedly connected to the threaded post 5 , the extruded tube 620 is fixedly connected to the top of the nut tube 610 , and the inner top of the extruded tube 620 is Curved.

The above scheme is adopted: by arranging the nut tube 610 and the extrusion tube 620, the nut tube 610 is threadedly connected with the threaded column 5, and rotating the nut tube 610 uses the principle of thread transmission to drive the extrusion tube 620 to move axially, and the extrusion tube 620 moves axially upward. During the process, the outer arc surface of the sliding block 710 is squeezed, thereby pushing the sliding block 710 to move along the channel 510, and the two sliding blocks 710 move close to each other, thereby driving the two clamping blocks 720 to approach each other to clamp the target plate 8, and disassemble The nut tube 610 can be reversely rotated, which is quick and convenient.

Referring to FIG. 7 , light-emitting regions 9 are provided on both sides of the target plate 8 , and a fluorescent layer is provided in the light-emitting regions 9 .

By adopting the above solution: by arranging the light-emitting area 9, the recognition degree of the target plate 8 can be effectively improved in the actual use process, and the convenience can be improved.

1 and 2, the moving part 3 includes a threaded rod 310, a moving block 320 and a rotating handle 330. The threaded rod 310 is rotatably arranged in the groove plate 2 and one end extends to the outside, and the moving block 320 is threadedly connected to the surface of the threaded rod 310, The fixed plate 4 is fixedly connected to the top of the moving block 320 , and the rotating handle 330 is fixedly connected to one end of the threaded rod 310 .

The above solution is adopted: by arranging the threaded rod 310, the moving block 320 and the rotating handle 330, the fixed plate 4 can be driven to move, and then the target plate 8 indirectly fixed on the upper part of the target plate 8 can be moved to adjust the position of the target plate 8 to improve the accuracy .

Referring to FIGS. 2 and 3 , a limit plate 210 is installed on the top of the groove plate 2 , a sleeve block 321 is fixedly connected to the side wall of the moving block 320 , the sleeve block 321 is slidably sleeved on the surface of the limit plate 210 , and the top of the limit plate 210 is provided with a scale Wire.

The above scheme is adopted: by setting the limit plate 210 and the sleeve block 321, it is used to limit the rotation of the moving block 320 to prevent the moving block 320 from rotating itself during the thread transmission process.

The working principle of the present utility model:

When in use, first rotate the nut tube 610, the nut tube 610 moves down along the threaded column 5, and the nut tube 610 drives the extrusion tube 620 to move downward along the threaded column 5, and the target plate 8 is inserted into the two Between the clamping blocks 720, the nut tube 610 is rotated in the opposite direction. The nut tube 610 drives the extrusion tube 620 to move up the axis of the extrusion tube 620 along the threaded column 5, and the extrusion tube 620 moves upward to squeeze the outer arc of the sliding block 710. On the other hand, with the upward movement of the extrusion tube 620, the two sliding blocks 710 move closer to each other along the channel 510, and the two sliding blocks 710 drive the clamping blocks 720 to approach each other to clamp and fix the target plate 8. This method is effective. It is convenient to disassemble and assemble the target plate 8, and it is convenient to replace the worn or even damaged target plate 8, so as to ensure the use effect. The threaded rod 310 drives the moving block 320 to move through the principle of threaded transmission, and the moving block 320 moves linearly and axially along the threaded rod 310 under the restriction of the sleeve block 321 and the limit plate 210, which can drive the fixed plate 4 to move, and then drives its upper part The indirectly fixed target plate 8 is moved to adjust the position of the target plate 8 to improve the accuracy.

To sum up: this new type of measuring equipment based on cross-sea measurement, by setting the base 1, the groove plate 2, the moving part 3, the fixed plate 4, the threaded column 5, the groove 510, the inner threaded pipe fitting 6, the clamping piece 7 , the sliding block 710, the clamping block 720 and the target plate 8, solve the problem that the surface of the existing target plate 8 is easily worn or even damaged after long-term use and needs to be replaced, and it is not convenient to disassemble and assemble it by bolting. The problem.

It should be noted that, in this document, relational terms such as first and second are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply any relationship between these entities or operations. any such actual relationship or sequence exists. Moreover, the terms "comprising", "comprising" or any other variation thereof are intended to encompass a non-exclusive inclusion such that a process, method, article or device comprising a list of elements includes not only those elements, but also includes not explicitly listed or other elements inherent to such a process, method, article or apparatus.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (6)

1. A new type of measuring equipment based on cross-sea measurement, including a base (1), characterized in that: a groove plate (2) is installed on the top of the base (1), and a moving part (2) is installed on the top of the groove plate (2). 3), a fixing plate (4) is installed on the top of the moving part (3), the fixing plate (4) is fixedly connected with a threaded column (5), and the outer thread of the threaded column (5) is sleeved with an inner threaded pipe fitting (6), a channel (510) is provided at the top of the threaded column (5), two clamping pieces (7) are slidably arranged in the channel (510), and the clamping pieces (7) include sliding A block (710) and a clamping block (720), the sliding block (710) is slidably arranged in the channel (510), the sliding block (710) is wedge-shaped, and the clamping block (720) is fixedly connected At the end of the sliding block (710), the clamping block (720) is in a semi-cylindrical shape, and a target plate (8) is clamped between the two clamping blocks (720). 2. The new type of measuring equipment based on cross-sea measurement according to claim 1, characterized in that: the threaded post (5) is provided with a first limit groove ( 520), a first limit block (711) is fixedly connected to the side of the sliding block (710), and the first limit block (711) is slidably arranged in the first limit groove (520), so The top of the threaded post (5) is provided with a second limiting groove (530) that communicates with the channel (510), and a second limiting block (721) is fixedly connected to the bottom of the clamping block (720). The second limiting block (721) is slidably arranged in the second limiting groove (530). 3. The novel measuring device based on sea-crossing measurement according to claim 1, characterized in that: the internally threaded pipe fitting (6) comprises a nut pipe (610) and an extruded pipe (620), and the nut pipe ( 610) is threadedly connected to the threaded post (5), the extrusion pipe (620) is fixedly connected to the top of the nut pipe (610), and the inner top of the extrusion pipe (620) is arc-shaped. 4. The novel measuring device based on sea-crossing measurement according to claim 1, characterized in that: both sides of the target plate (8) are provided with light-emitting areas (9), and the light-emitting areas (9) are provided with light-emitting areas (9). There is a fluorescent layer. 5. The new measuring device based on cross-ocean measurement according to claim 1, characterized in that: the moving member (3) comprises a threaded rod (310), a moving block (320) and a rotating handle (330), so The threaded rod (310) is rotatably arranged in the groove plate (2) and one end extends to the outside, the moving block (320) is threadedly connected to the surface of the threaded rod (310), and the fixing plate (4) is fixed is connected to the top of the moving block (320), and the rotating handle (330) is fixedly connected to one end of the threaded rod (310). 6. The novel measuring device based on cross-ocean measurement according to claim 5, characterized in that: a limit plate (210) is installed on the top of the groove plate (2), and a side wall of the moving block (320) is fixedly connected There is a sleeve block (321), the sleeve block (321) is slidably sleeved on the surface of the limit plate (210), and a scale line is provided on the top of the limit plate (210).
