CN216787505U - Renewable building sound insulation board

Info

Publication number: CN216787505U
Application number: CN202220189030.1U
Authority: CN
Inventors: 邹绍国; 吴毅; 李坤阳; 张光辉; 尹峰
Original assignee: Dazhou Guohong Building Energy Saving Engineering Co ltd
Current assignee: Dazhou Guohong Building Energy Saving Engineering Co ltd
Priority date: 2022-01-24
Filing date: 2022-01-24
Publication date: 2022-06-21
Anticipated expiration: 2032-01-24

Abstract

The utility model belongs to the technical field of sound insulation boards, in particular to a renewable building sound insulation board. Aiming at the problem that the sound insulation effect of the commonly used building sound insulation boards is poor, which leads to the inability to meet the needs of people's living and use, the following solutions are proposed, which include: The sound insulation board body, the sound insulation board body includes a waterproof layer, a sound insulation layer, an adhesive layer, a thermal insulation and moisture-proof aluminum foil layer, an anti-corrosion layer, a reinforcement layer, a shock absorption layer, a reinforced sound insulation layer and a refractory layer, and the top of the waterproof layer is It is fixedly connected to the bottom of the sound insulation layer, the top of the sound insulation layer is fixedly connected to the adhesive layer, and the top of the adhesive layer is fixedly installed at the bottom of the heat-insulating and moisture-proof aluminum foil layer. The close side is fixedly connected. The structure of the utility model is reasonable in design, the sound insulation effect of the sound insulation board body can be greatly improved by the arrangement of the sound insulation layer and the reinforced sound insulation layer, the use performance is improved, the use requirements of people are met, and the reliability is high.

Description

Renewable building sound insulation board

Technical Field

The utility model relates to the technical field of sound insulation boards, in particular to a renewable building sound insulation board.

Background

Sound is a wave-like energy that requires a medium to propagate. When sound propagates in the same medium, the higher the density of the medium, the faster the propagation speed. Another type of propagation of sound is across a medium. I.e. from one medium, through the critical interface of two media into the other, where the transmission of acoustic energy is essentially the transmission of the amplitude of the vibration. The greater the difference in density between the two media when propagating across the media, the greater the loss of acoustic energy. In practical application, air is a space which is moved by human beings in a normal state, and therefore, a material which has a larger density difference with the air is generally a material with a high density, namely the material can be regarded as a sound insulation material. The higher the density, the better the sound insulation effect. Panels made of such materials are called acoustical panels.

The common building sound insulation board has poor sound insulation effect, so that the common building sound insulation board cannot meet the living use requirements of people, and therefore the renewable building sound insulation board is provided for solving the problems.

SUMMERY OF THE UTILITY MODEL

The utility model aims to solve the defect that the commonly used building sound insulation board cannot meet the living use requirements of people due to poor sound insulation effect, and provides a renewable building sound insulation board.

In order to achieve the purpose, the utility model adopts the following technical scheme:

the utility model provides a renewable building acoustic celotex board, includes the acoustic celotex board body, the acoustic celotex board body includes waterproof layer, puigging, adhesive linkage, thermal-insulated dampproofing aluminium foil layer, anti-corrosion coating, enhancement layer, buffer layer, enhancement puigging and flame retardant coating, the top fixed connection of waterproof layer is in the bottom of puigging, the top fixed connection of puigging is on the adhesive linkage, the top fixed mounting of adhesive linkage is in the bottom on thermal-insulated dampproofing aluminium foil layer, one side fixed connection that thermal-insulated dampproofing aluminium foil layer and anti-corrosion coating are close to each other, the top fixed mounting of anti-corrosion coating is in the bottom of enhancement layer, the top fixed connection of enhancement layer is in the bottom of buffer layer, the top fixed connection of buffer layer is in the bottom of strengthening the puigging, strengthen one side fixed connection that puigging and flame retardant coating are close to each other.

Preferably, the soundproof layer comprises an acoustic soundproof felt layer, a soundproof damping felt layer and a soundproof fiber layer, the acoustic soundproof felt layer is fixedly connected to the top of the soundproof damping felt layer, and the bottom of the soundproof damping felt layer is fixedly connected to the soundproof fiber layer.

Preferably, strengthen the puigging and include cotton layer of glass, rock and mineral cotton layer and sound absorbing layer, cotton layer fixed connection of glass is on the cotton layer of rock and mineral, cotton layer fixed connection of rock and mineral is on the sound absorbing layer.

Preferably, the interior material of the waterproof layer is polyethylene, and the thickness of the waterproof layer is 2.55 mm.

Preferably, the inner material of the bonding layer is oily environment-friendly glue, and the thickness of the bonding layer is set to be 1.33 mm.

Preferably, the inner material of the fire-resistant layer is set to be a ceramic fiber board, and the thickness of the fire-resistant layer is set to be 3.12 mm.

Preferably, the inner material of the shock-absorbing layer is provided as elastic fiber, and the thickness of the shock-absorbing layer is provided as 3.12 mm.

Preferably, the inner material of the reinforcing layer is a steel mesh, and the thickness of the reinforcing layer is 4.52 mm.

According to the renewable building sound insulation board, the sound insulation layer can play a role in increasing the sound insulation effect of the sound insulation board body, the problems that the sound insulation effect of the sound insulation board body is poor and the rest quality of people is seriously affected are solved, the sound insulation effect of the sound insulation board body is effectively increased, the rest quality of people is guaranteed, and noise can be effectively absorbed through the arrangement of the arranged reinforced sound insulation layer;

according to the renewable building sound insulation board, the waterproof layer can achieve waterproof, damp-proof and anti-seepage effects on the sound insulation board body, and the adhesive layer can improve the connection stability between the sound insulation layer and the heat-insulating and damp-proof aluminum foil layer;

the sound insulation board has reasonable structural design, can greatly improve the sound insulation effect of the sound insulation board body through the arrangement of the sound insulation layer and the reinforced sound insulation layer, improves the service performance, meets the use requirements of people, and has high reliability.

Drawings

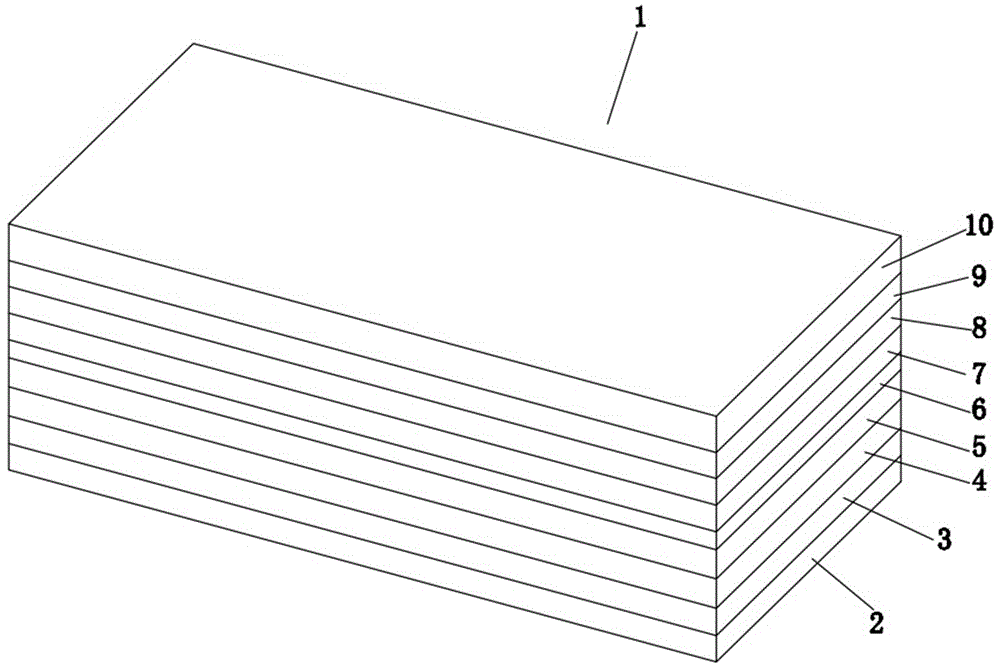

Fig. 1 is a schematic perspective view of a renewable building acoustic panel according to the present invention;

FIG. 2 is a schematic view of the internal structure of the sound barrier of FIG. 1;

fig. 3 is a schematic view of the internal structure of the reinforced acoustical layer of fig. 1.

In the figure: 1. a baffle body; 2. a waterproof layer; 3. a sound insulating layer; 4. an adhesive layer; 5. a heat-insulating moisture-proof aluminum foil layer; 6. an anti-corrosion layer; 7. a reinforcing layer; 8. a shock-absorbing layer; 9. reinforcing a sound insulation layer; 10. a refractory layer; 11. an acoustic deadening felt layer; 12. a sound-insulating damping felt layer; 13. a sound-insulating fiber layer; 14. a glass wool layer; 15. a rock-mineral wool layer; 16. and a sound absorbing layer.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments.

Example one

Referring to fig. 1-3, a renewable building acoustic baffle comprises an acoustic baffle body 1, the acoustic baffle body 1 comprises a waterproof layer 2, an acoustic baffle layer 3, an adhesive layer 4, a heat-insulating moisture-proof aluminum foil layer 5, anti-corrosion coating 6, the enhancement layer 7, buffer layer 8, strengthen puigging 9 and flame retardant coating 10, the top fixed connection of waterproof layer 2 is in the bottom of puigging 3, the top fixed connection of puigging 3 is on adhesive linkage 4, the top fixed mounting of adhesive linkage 4 is in the bottom of thermal-insulated dampproofing aluminium foil layer 5, one side fixed connection that thermal-insulated dampproofing aluminium foil layer 5 and anti-corrosion coating 6 are close to each other, the top fixed mounting of anti-corrosion coating 6 is in the bottom of enhancement layer 7, the top fixed connection of enhancement layer 7 is in the bottom of buffer layer 8, the top fixed connection of buffer layer 8 is in the bottom of strengthening puigging 9, strengthen one side fixed connection that puigging 9 and flame retardant coating 10 are close to each other.

In this embodiment, puigging 3 includes acoustics sound insulation carpet veneer 11, sound insulation damping carpet veneer 12 and soundproof fiber layer 13, acoustics sound insulation carpet veneer 11 fixed connection is at the top of sound insulation damping carpet veneer 12, the bottom fixed connection of sound insulation damping carpet 12 is on soundproof fiber layer 13, play the effect that increases 1 syllable-dividing effect of acoustic celotex board body, it is relatively poor to have solved 1 syllable-dividing effect of acoustic celotex board body, seriously influence the problem of people's rest quality, the effectual syllable-dividing effect that increases acoustic celotex board body 1, people's rest quality has been guaranteed.

In this embodiment, strengthen puigging 9 including cotton layer 14 of glass, the cotton layer 15 of rock ore deposit and sound absorbing layer 16, the cotton layer 14 fixed connection of glass is on the cotton layer 15 of rock ore deposit, and the cotton layer 15 fixed connection of rock ore deposit is on sound absorbing layer 16, and the setting of strengthening puigging 9 can the active absorption noise to possess good sound insulation performance, guaranteed people's rest quality.

In this embodiment, the interior material of waterproof layer 2 sets up to polyethylene, and the thickness of waterproof layer 2 sets up to 2.55mm, can play waterproof, dampproofing, antiseep effect for acoustic celotex board body 1 through the waterproof layer 2 that sets up.

In this embodiment, the inside material of adhesive linkage 4 sets up to oily environmental protection glue, and the thickness of adhesive linkage 4 sets up to 1.33mm, and the setting up of adhesive linkage 4 can improve the puigging 3 and the thermal-insulated dampproofing aluminium foil layer 5 between the stability of being connected.

In this embodiment, the inner material of the flame retardant coating 10 is set to be a ceramic fiber board, the thickness of the flame retardant coating 10 is set to be 3.12mm, and the setting of the flame retardant coating 10 can improve the fire resistance of the acoustical board body 1.

In this embodiment, when using, the puigging 3 through setting up can play the effect that increases 1 syllable-dividing effect of puigging body, it is relatively poor to have solved 1 syllable-dividing effect of puigging body, seriously influence the problem of people's rest quality, the effectual syllable-dividing effect that increases the puigging body 1, people's rest quality has been guaranteed, setting up through the enhancement puigging 9 that sets up can the active noise absorption, and possess good sound insulation performance, people's rest quality has been guaranteed, puigging 3 and the sound insulation effect of the improvement that the setting up of strengthening puigging 9 can be great, improve performance, waterproof layer 2 through setting up can play for puigging body 1 waterproof, dampproofing, the antiseep effect.

Example two

On the basis of embodiment one, the inside material of buffer layer 8 sets up to elastic fiber, and the thickness of buffer layer 8 sets up to 3.12mm, and the shock attenuation performance of acoustic celotex board body 1 can be promoted in the setting of buffer layer 8.

In this embodiment, the inside material of enhancement layer 7 sets up to the reinforcing bar net piece, and the thickness of enhancement layer 7 sets up to 4.52mm, and the setting of enhancement layer 7 can promote acoustic celotex board body 1 life.

In this embodiment, when using, the shock-absorbing performance of acoustic celotex board body 1 can be promoted in setting up of buffer layer 8, and the setting of enhancement layer 7 can promote acoustic celotex board body 1 life for acoustic celotex board body 1's performance greatly increased.

Claims

1. A renewable building sound insulation board, comprising a sound insulation board body (1), characterized in that the sound insulation board body (1) comprises a waterproof layer (2), a sound insulation layer (3), an adhesive layer (4), The thermal insulation and moisture-proof aluminum foil layer (5), the anti-corrosion layer (6), the reinforcement layer (7), the shock absorption layer (8), the reinforced sound insulation layer (9) and the refractory layer (10), the waterproof layer (2) has The top is fixedly connected to the bottom of the sound insulation layer (3), the top of the sound insulation layer (3) is fixedly connected to the adhesive layer (4), and the top of the adhesive layer (4) is fixedly installed on the heat-insulating and moisture-proof aluminum foil layer At the bottom of (5), the heat-insulating and moisture-proof aluminum foil layer (5) is fixedly connected to the side of the anti-corrosion layer (6) that is close to each other, and the top of the anti-corrosion layer (6) is fixedly installed on the reinforcement layer (7). Bottom, the top of the reinforcement layer (7) is fixedly connected to the bottom of the shock absorption layer (8), the top of the shock absorption layer (8) is fixedly connected to the bottom of the reinforced sound insulation layer (9), the reinforced sound insulation layer (9) It is fixedly connected to the side of the refractory layer (10) that is close to each other.

2 . The renewable building sound insulation board according to claim 1 , wherein the sound insulation layer ( 3 ) comprises an acoustic sound insulation felt layer ( 11 ), a sound insulation damping felt layer ( 12 ) and a sound insulation fiber layer ( 13 ). 3 . ), the acoustic sound insulation felt layer (11) is fixedly connected to the top of the sound insulation damping felt layer (12), and the bottom of the sound insulation damping felt layer (12) is fixedly connected to the sound insulation fiber layer (13).

3 . The renewable building sound insulation board according to claim 1 , wherein the reinforced sound insulation layer ( 9 ) comprises a glass wool layer ( 14 ), a rock mineral wool layer ( 15 ) and a sound absorption layer ( 16 ). 4 . , the glass wool layer (14) is fixedly connected to the rock-mineral wool layer (15), and the rock-mineral wool layer (15) is fixedly connected to the sound-absorbing layer (16).

4 . The renewable building sound insulation board according to claim 1 , wherein the inner material of the waterproof layer ( 2 ) is set to be polyethylene, and the thickness of the waterproof layer ( 2 ) is set to 2.55 mm. 5 .

5 . The renewable building sound insulation board according to claim 1 , wherein the internal material of the adhesive layer ( 4 ) is set to be oil-based environmentally friendly glue, and the thickness of the adhesive layer ( 4 ) is set to 1.33 mm. 6 . .

6 . The renewable building sound insulation board according to claim 1 , wherein the internal material of the refractory layer ( 10 ) is set to be a ceramic fiber board, and the thickness of the refractory layer ( 10 ) is set to 3.12 mm. 7 .

7 . The renewable building sound insulation board according to claim 1 , wherein the internal material of the shock absorbing layer ( 8 ) is set to elastic fiber, and the thickness of the shock absorbing layer ( 8 ) is set to 3.12 mm. 8 .

8 . The renewable building sound insulation board according to claim 1 , wherein the inner material of the reinforcing layer ( 7 ) is set as steel mesh, and the thickness of the reinforcing layer ( 7 ) is set to 4.52 mm. 9 .
