Abstract
The utility model discloses an automatic winding knitted fabric device which comprises a box body, wherein hydraulic cylinders are fixedly connected to two sides of the bottom of an inner cavity of the box body, a control box is arranged at the bottom of the inner cavity of the box body, the top of the output end of each hydraulic cylinder is fixedly connected with the control box, a first motor is fixedly connected to the rear side of the inner cavity of the control box, an adjusting rod is fixedly connected to the front side of the output end of the first motor, push rods are fixedly connected to the top and the bottom of the front side of the adjusting rod, and a first filter plate is fixedly connected between two sides of the inner cavity of a dust removal box. According to the utility model, the problems that the existing automatic winding knitted fabric device cannot clean the surface of the knitted fabric are solved by arranging the first motor, the adjusting rod, the push plate, the first filter plate, the mesh plate, the bristles, the first fan, the limiting plate, the spring and the hose.
Description
Technical Field
The utility model relates to the technical field of textile machinery, in particular to an automatic rolling knitted fabric device.
Background
Textile machinery is the general name of various mechanical equipment that becomes required fabrics to natural fibre or chemical fiber processing, generalized textile machinery is still including the chemical machinery of production chemical fiber, textile machinery is textile industry's means of production and material basis, its technical level, quality and manufacturing cost, the development of direct relation to textile industry, need use the knitted fabric device of automatic rolling at present in the production process of looped fabric, roll up the looped fabric, the looped fabric device of current automatic rolling exists the problem that can't clear up the looped fabric surface, a large amount of battings can be adhered to on the looped fabric surface that just goes out the loom, cloth local tension when the looped fabric rolling can be influenced to the batting of bold, lead to the skew to appear in the rolling woven fabric, influence the normal clear of rolling work, be unfavorable for people's use.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide an automatic rolling knitted fabric device, which has the advantage of cleaning the surface of knitted fabric and solves the problem that the existing automatic rolling knitted fabric device cannot clean the surface of knitted fabric.
In order to achieve the purpose, the utility model provides the following technical scheme: an automatic winding knitted fabric device comprises a box body, wherein hydraulic cylinders are fixedly connected to two sides of the bottom of an inner cavity of the box body, a control box is arranged at the bottom of the inner cavity of the box body, the top of the output end of the hydraulic cylinders is fixedly connected with the control box, a first motor is fixedly connected to the rear side of the inner cavity of the control box, an adjusting rod is fixedly connected to the front side of the output end of the first motor, push rods are fixedly connected to the top and the bottom of the front side of the adjusting rod, push plates are arranged on two sides of the push rods, a dust removal box is fixedly connected to one side opposite to the two push plates, a first filter plate is fixedly connected between two sides of the inner cavity of the dust removal box, the top of the dust removal box is communicated with a conveying pipe, the top of the conveying pipe penetrates through the control box and is communicated with a collection shell, a net is fixedly connected between two sides of the inner cavity of the collection shell, and bristles are fixedly connected to the top of the collection shell, the utility model discloses a dust removal case, including two dust removal casees, the equal intercommunication of one side opposite has first fan, the equal fixedly connected with limiting plate in one side opposite of two first fans, the equal fixedly connected with spring in both sides of control box inner chamber, and the equal intercommunication of one side opposite of two first fans has the hose, the one end that first fan was kept away from to the hose runs through to the outside of control box, the left side fixedly connected with protective housing of box, the bottom fixedly connected with second motor of protective housing inner chamber, the right side of second motor output runs through to inner chamber and the fixedly connected with control housing of box, the right side fixedly connected with cylinder of box inner chamber, the left side swing joint of cylinder output has spacing shell.
Preferably, top fixedly connected with dust collection box between the box inner chamber both sides, the rear side of dust collection box inner chamber is opened and is equipped with the dust absorption hole, right side fixedly connected with second filter plate between dust collection box inner chamber top and the bottom, the right side fixedly connected with second fan of dust collection box inner chamber bottom, the air outlet on second fan right side runs through to the outside of box.
Preferably, the conveying opening is formed in the top of the box body, the bottom of the dust removal box is fixedly connected with a sliding block, and sliding grooves matched with the sliding block for use are formed in two sides of the bottom of the inner cavity of the control box.
Preferably, the top of control box is seted up with the activity opening that the conveyer pipe cooperation was used, one side that two springs are relative all with limiting plate fixed connection.
Preferably, the inner cavity of the control shell is provided with a winding shaft, the right side of the winding shaft extends to the inner cavity of the limiting shell, and the bottom of the box body is fixedly connected with a base.
Preferably, an operation opening is formed in the front surface of the box body, and a control panel is arranged on the left side of the bottom of the front surface of the box body.
Compared with the prior art, the utility model has the following beneficial effects:
1. according to the utility model, the problems that the existing automatic winding knitted fabric device cannot clean the surface of the knitted fabric are solved by arranging the first motor, the adjusting rod, the push plate, the first filter plate, the mesh plate, the bristles, the first fan, the limiting plate, the spring and the hose.
2. According to the utility model, the adjusting rod and the push rod are arranged, the adjusting rod and the push rod can be matched with the first motor to control the use positions of the push plate and the dust removal box, the hydraulic cylinder is arranged to adjust the use height of the control box, the first filter plate is arranged to filter flying cotton fibers and dust in air, the bristles are arranged to sweep off the flying cotton fibers on the surface of the knitted fabric, the protective shell is arranged to protect the second motor, the air cylinder and the limiting shell are arranged to clamp and fix the winding shaft, and the second fan and the dust suction hole are arranged to suck the flying cotton fibers and the dust on the surface of the knitted fabric into the dust suction box.
Drawings

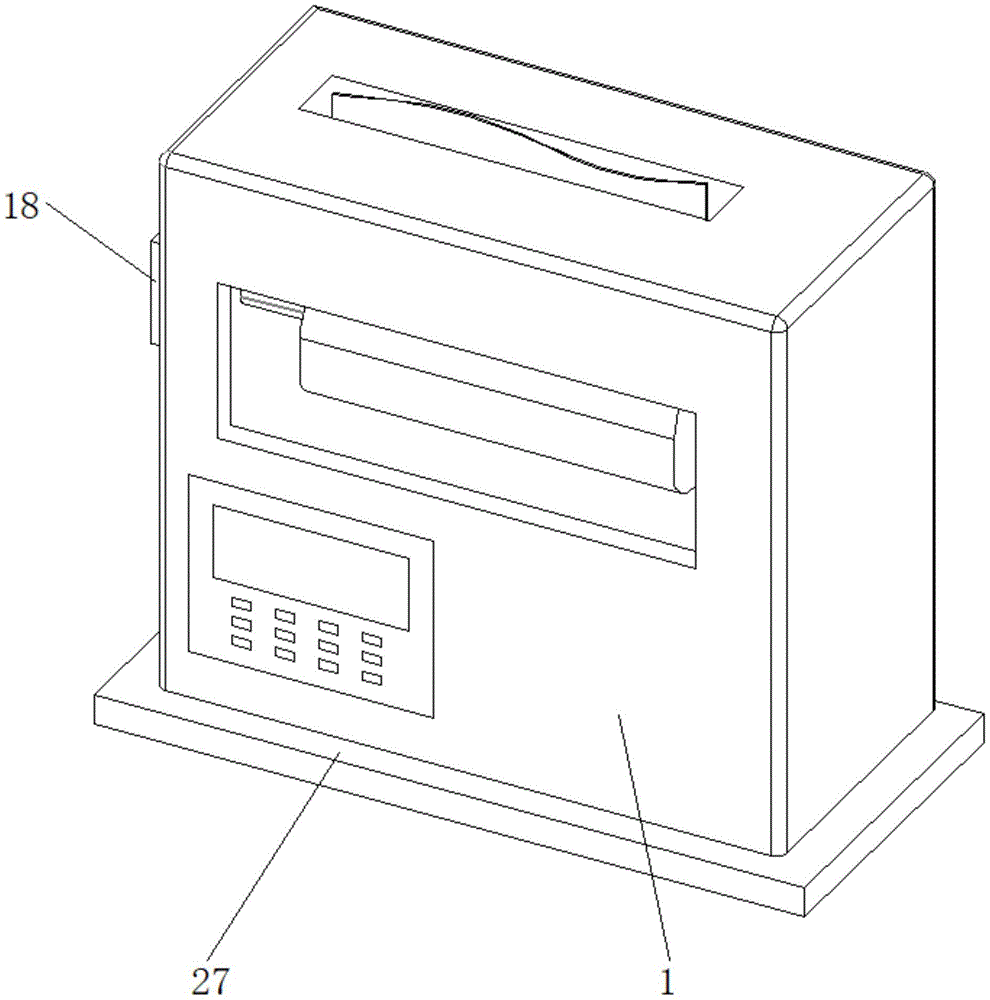

FIG. 1 is a perspective view of the structure of the present invention;
FIG. 2 is a schematic structural view of the present invention;
fig. 3 is a side cross-sectional view of the control box of the present invention.
In the figure: 1. a box body; 2. a hydraulic cylinder; 3. a control box; 4. a first motor; 5. adjusting a rod; 6. a push rod; 7. pushing the plate; 8. a dust removal box; 9. a first filter plate; 10. a delivery pipe; 11. collecting the shells; 12. a mesh plate; 13. brushing; 14. a first fan; 15. a limiting plate; 16. a spring; 17. a hose; 18. a protective shell; 19. a second motor; 20. a control housing; 21. a cylinder; 22. a limiting shell; 23. a dust collection box; 24. a dust collection hole; 25. a second filter plate; 26. a second fan; 27. a base.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-3, an automatic winding knitted fabric device comprises a box body 1, wherein both sides of the bottom of an inner cavity of the box body 1 are fixedly connected with hydraulic cylinders 2, the bottom of the inner cavity of the box body 1 is provided with a control box 3, the top of the output end of the hydraulic cylinder 2 is fixedly connected with the control box 3, the rear side of the inner cavity of the control box 3 is fixedly connected with a first motor 4, the front side of the output end of the first motor 4 is fixedly connected with an adjusting rod 5, the top and the bottom of the front side of the adjusting rod 5 are fixedly connected with push rods 6, both sides of the push rods 6 are provided with push plates 7, one side of the two push plates 7 opposite to each other is fixedly connected with a dust removal box 8, a first filter plate 9 is fixedly connected between both sides of the inner cavity of the dust removal box 8, the top of the dust removal box 8 is communicated with a conveying pipe 10, the top of the conveying pipe 10 is communicated with the control box 3 and a collecting shell 11, and a mesh plate 12 is fixedly connected between both sides of the inner cavity of the collecting shell 11, the top of the collecting shell 11 is fixedly connected with bristles 13, one sides of the two dust removing boxes 8 which are opposite are communicated with first fans 14, one sides of the two first fans 14 which are opposite are fixedly connected with limit plates 15, two sides of an inner cavity of the control box 3 are fixedly connected with springs 16, one sides of the two first fans 14 which are opposite are communicated with hoses 17, one ends of the hoses 17 which are far away from the first fans 14 penetrate through the outer side of the control box 3, the left side of the box body 1 is fixedly connected with a protective shell 18, the bottom of the inner cavity of the protective shell 18 is fixedly connected with a second motor 19, the right side of the output end of the second motor 19 penetrates through the inner cavity of the box body 1 and is fixedly connected with a control shell 20, the right side of the inner cavity of the box body 1 is fixedly connected with an air cylinder 21, the left side of the output end of the air cylinder 21 is movably connected with a limit shell 22, the top between the two sides of the inner cavity of the box body 1 is fixedly connected with a dust collecting box 23, and the rear side of the inner cavity of the dust collecting box 23 is provided with a dust collecting hole 24, a second filter plate 25 is fixedly connected on the right side between the top and the bottom of an inner cavity of the dust collection box 23, a second fan 26 is fixedly connected on the right side of the bottom of the inner cavity of the dust collection box 23, an air outlet on the right side of the second fan 26 penetrates to the outer side of the box body 1, a conveying port is formed in the top of the box body 1, a sliding block is fixedly connected to the bottom of the dust collection box 8, sliding chutes matched with the sliding block for use are formed in two sides of the bottom of the inner cavity of the control box 3, a movable opening matched with the conveying pipe 10 for use is formed in the top of the control box 3, one side opposite to the two springs 16 is fixedly connected with a limiting plate 15, a winding shaft is arranged in the inner cavity of the control shell 20, the right side of the winding shaft extends to the inner cavity of the limiting shell 22, a base 27 is fixedly connected to the bottom of the box body 1, an operation opening is formed in the front surface of the box body 1, a control panel is arranged on the left side of the front surface bottom of the box body 1, and an adjusting rod 5 and a push rod 6 are arranged, the device can be matched with a first motor 4 to control the using positions of a push plate 7 and a dust removal box 8, can adjust the using height of a control box 3 by arranging a hydraulic cylinder 2, can filter flying cotton and dust in air by arranging a first filter plate 9, can sweep the flying cotton on the surface of knitted fabric by arranging bristles 13, can protect a second motor 19 by arranging a protective shell 18, can clamp and fix a winding shaft by arranging an air cylinder 21 and a limiting shell 22, can suck the flying cotton and the dust on the surface of the knitted fabric into a dust suction box 23 by arranging a second fan 26 and a dust suction hole 24, and solves the problem that the existing knitted fabric device capable of automatically winding cannot clean the surface of the knitted fabric by arranging the first motor 4, an adjusting rod 5, a push rod 6, the push plate 7, the first filter plate 9, a mesh plate 12, the bristles 13, the first fan 14, the limiting plate 15, a spring 16 and a hose 17, this automatic looped fabric device of rolling possesses the advantage that can clear up the looped fabric surface, is worth promoting.
When the device is used, the second motor 19 is started, the second motor 19 is matched with the control shell 20 to drive the winding shaft to rotate, the winding shaft rotates to wind the knitted fabric, the hydraulic cylinder 2 is started, the control box 3 is adjusted to a required use height by the hydraulic cylinder 2, the first motor 4 is started at the same time, the first motor 4 is matched with the adjusting rod 5 to drive the push rod 6 to rotate, the push rod 6 rotates to push the push plate 7 to move, the push plate 7 moves to drive the dust removal box 8 and the conveying pipe 10 to move, the conveying pipe 10 moves to drive the collection shell 11 and the bristles 13 to move, the bristles 13 move to clean the surface of the knitted fabric, the dust removal box 8 is matched with the limiting plate 15 to extrude the spring 16, the first fan 14 is started, the collection shell 11 sends the swept flying cotton wool into the dust removal box 8 through the conveying pipe 10, the first filter plate 9 filters the flying cotton wool and dust, the second fan 26 is started, the flying cotton wool on the surface of the knitted fabric enters the inner cavity of the dust absorption box 23 through the dust absorption hole 24, prevent that the flying cotton fibre on looped fabric surface from influencing the normal clear of rolling work.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides an automatic knitted fabric device of rolling, includes box (1), its characterized in that: the automatic dust removal device is characterized in that hydraulic cylinders (2) are fixedly connected to two sides of the bottom of an inner cavity of the box body (1), a control box (3) is arranged at the bottom of the inner cavity of the box body (1), the top of the output end of the hydraulic cylinders (2) is fixedly connected with the control box (3), a first motor (4) is fixedly connected to the rear side of the inner cavity of the control box (3), an adjusting rod (5) is fixedly connected to the front side of the output end of the first motor (4), push rods (6) are fixedly connected to the top and the bottom of the front side of the adjusting rod (5), push plates (7) are arranged on two sides of each push rod (6), dust removal boxes (8) are fixedly connected to one opposite sides of the two push plates (7), first filter plates (9) are fixedly connected between two sides of the inner cavity of each dust removal box (8), conveying pipes (10) are communicated with the top of the dust removal boxes (8), and collecting shells (11) are communicated with the top of the control box (3), the cleaning device is characterized in that a mesh plate (12) is fixedly connected between two sides of an inner cavity of the collecting shell (11), bristles (13) are fixedly connected to the top of the collecting shell (11), first fans (14) are communicated with two opposite sides of the dust removing boxes (8), limiting plates (15) are fixedly connected to two opposite sides of the first fans (14), springs (16) are fixedly connected to two sides of the inner cavity of the control box (3), hoses (17) are communicated with two opposite sides of the first fans (14), one end, far away from the first fans (14), of each hose (17) penetrates through the outer side of the control box (3), a protective shell (18) is fixedly connected to the left side of the box (1), a second motor (19) is fixedly connected to the bottom of the inner cavity of the protective shell (18), and a control shell (20) is fixedly connected to the inner cavity of the box (1) on the right side of an output end of the second motor (19), the right side fixedly connected with cylinder (21) of box (1) inner chamber, the left side swing joint of cylinder (21) output has spacing shell (22).
2. An automatic looped fabric device of rolling of claim 1, characterized in that: top fixedly connected with dust collection box (23) between box (1) inner chamber both sides, dust collection hole (24) have been opened to the rear side of dust collection box (23) inner chamber, right side fixedly connected with second filter plate (25) between dust collection box (23) inner chamber top and the bottom, right side fixedly connected with second fan (26) of dust collection box (23) inner chamber bottom, the air outlet on second fan (26) right side runs through to the outside of box (1).
3. An automatic looped fabric device of rolling of claim 1, characterized in that: the conveying opening is formed in the top of the box body (1), the bottom of the dust removing box (8) is fixedly connected with a sliding block, and sliding grooves matched with the sliding block for use are formed in the two sides of the bottom of the inner cavity of the control box (3).
4. An automatic looped fabric device of rolling of claim 1, characterized in that: the top of control box (3) is seted up with conveyer pipe (10) cooperation use movable opening, one side that two springs (16) are relative all with limiting plate (15) fixed connection.
5. An automatic looped fabric device of rolling of claim 1, characterized in that: the inner chamber of control shell (20) is provided with the rolling axle, and the right side of rolling axle extends to the inner chamber of spacing shell (22), the bottom fixedly connected with base (27) of box (1).
6. An automatic looped fabric device of rolling of claim 1, characterized in that: an operation opening is formed in the front surface of the box body (1), and a control panel is arranged on the left side of the bottom of the front surface of the box body (1).
