CN216782951U

CN216782951U - Durable knitting dyeing cloth

Info

Publication number: CN216782951U
Application number: CN202122778560.8U
Authority: CN
Inventors: 彭石金
Original assignee: Shaoxing Mabao Textile Co ltd
Current assignee: Shaoxing Mabao Textile Co ltd
Priority date: 2021-11-13
Filing date: 2021-11-13
Publication date: 2022-06-21
Anticipated expiration: 2031-11-13

Abstract

The utility model discloses durable knitted dyed cloth, which relates to the technical field of textile fabrics and comprises a base layer and a surface layer, wherein a plurality of breathable coils are connected between the base layer and the surface layer, each breathable coil comprises two breathable cavities, each breathable coil comprises an inner core and a covering wire spirally wound on the outer side of the inner core, each covering wire is formed by twisting a plurality of nylon fibers, each inner core is formed by spirally twisting a base line I and a base line II, and each base line I and the base line II are formed by twisting a plurality of polyether ester elastic fibers. The utility model has the beneficial effects that: the air-permeable fabric has good heat preservation and hygroscopicity, can exchange air through the air-permeable cavity when being made into clothes and worn close to the skin, effectively ensures the air permeability, and can automatically recover the original shape after the air-permeable coil deforms due to the stress of the knitted fabric, thereby keeping the air permeability effect, ensuring that the clothes made of the knitted fabric are cool when being worn and have higher wearing comfort.

Description

Durable knitting dyeing cloth

Technical Field

The utility model relates to the technical field of textile fabrics, in particular to durable knitted dyed cloth.

Background

With the progress of science and technology and the development of society, the textile industry in China is rapidly developed, and with the rapid development of fabrics, more and more fabrics of different types are produced.

The knitted fabric is a fabric formed by bending yarns into loops by using a knitting needle and mutually stringing and sleeving the loops, and is divided into a warp knitted fabric and a weft knitted fabric, which is widely applied to a plurality of fabrics. The knitted fabric is soft in texture and has high extensibility and elasticity, so that the knitted fabric is often made into underwear, tights, sportswear and the like, and is popular and loved by consumers.

At present, when the existing knitted fabric is made into clothes and worn by being attached to the skin, the existing knitted fabric is often not breathable enough, so that the existing knitted fabric is stuffy and hot when worn and is relatively poor in wearing comfort.

SUMMERY OF THE UTILITY MODEL

The present invention is directed to a durable knitted fabric having good air permeability and high wearing comfort.

The durable knitted dyed fabric comprises a base layer and a surface layer, wherein a plurality of breathable coils are connected between the base layer and the surface layer, each breathable coil comprises two breathable cavities, each breathable coil comprises an inner core and a covering wire spirally wound on the outer side of the inner core, each covering wire is formed by twisting a plurality of nylon fibers, each inner core is formed by spirally twisting a first base line and a second base line, and the first base line and the second base line are formed by twisting a plurality of polyether ester elastic fibers.

By adopting the technical scheme, as the plurality of breathable coils are connected between the base layer and the surface layer and comprise two breathable cavities, wherein each breathable coil comprises the inner core and the cladding line spirally wound on the outer side of the inner core, the cladding line is formed by twisting the plurality of nylon fibers, the nylon fibers have high wear resistance, so that the surface of each breathable coil is wear-resistant and not easy to break, the inner core is formed by spirally twisting the first base line and the second base line, the first base line and the second base line are formed by twisting the plurality of polyether ester elastic fibers, the polyether ester elastic fibers have excellent elasticity, so that the breathable coils have good resilience, the original shape can be quickly recovered after elastic deformation, and through the arrangement of the breathable coils, when the knitted fabric is made into clothes and is worn by being attached to the skin, ventilation can be realized through the breathable cavities, the breathability is effectively ensured, and after the deformation of the breathable coils is caused by stress, the original shape can be automatically recovered, so that the ventilation effect can be kept, and the clothes made of knitted fabrics are cool when being worn and have high wearing comfort.

As a further arrangement of the utility model, grooves are formed on the surfaces of the base layer opposite to the surface layer through hot pressing, and two ends of the breathable coil are bonded in the grooves.

Through adopting above-mentioned technical scheme, because all be formed with the recess through the hot pressing in the one side that basic unit and top layer are relative, and ventilative coil both ends all bond inside the recess, then spacing through the recess to ventilative coil both ends for ventilative coil bonds more firmly between basic unit and top layer, is difficult for droing, thereby has effectively guaranteed the steadiness of knitted fabric structure.

As a further arrangement of the present invention, an air-permeable gap is formed between adjacent air-permeable coils.

Through adopting above-mentioned technical scheme, owing to be formed with air-permeable gap between adjacent ventilative coil, then through air-permeable gap's setting, when the looped fabric was made the clothing and is worn, can carry out free circulation exchange through air-permeable gap to effectively promote the gas permeability, make by the clothing of looped fabric making when wearing more nice and cool comfortable.

As a further arrangement of the utility model, the base layer and the surface layer are both provided with a plurality of ventilation through holes, and the ventilation through holes are communicated with the ventilation gaps.

Through adopting above-mentioned technical scheme, owing to all seted up a plurality of ventilative through-holes on basic unit and top layer, and ventilative through-hole all communicates with air permeable gap each other, then through air permeable hole's setting for outside air can get into air permeable gap through ventilative through-hole, and the inside air in air permeable gap also can be discharged through air permeable hole, makes the inside and outside air of looped fabric circulate more smoothly, has further promoted the gas permeability.

As a further arrangement of the utility model, the base layer is formed by weaving a first yarn and a second yarn in a warp-weft mode, the first yarn is formed by twisting a plurality of polyester fibers, and the second yarn is formed by twisting a plurality of viscose fibers.

Through adopting above-mentioned technical scheme, because the basic unit is woven by first yarn and second yarn longitude and latitude and is formed, and first yarn is twisted by a plurality of polyester fiber and forms, and polyester fiber has high strength, high tenacity and good shape preserving nature to guaranteed the intensity and the toughness of looped fabric, makeed the difficult fold of looped fabric, the second yarn is twisted by a plurality of viscose fiber and forms, and viscose fiber has fabulous hygroscopicity, thereby makes the looped fabric have better moisture absorption effect.

As a further arrangement of the utility model, the surface layer is formed by warp and weft knitting of a third yarn and a fourth yarn, the third yarn is formed by twisting a plurality of spandex fibers, and the fourth yarn is formed by twisting a plurality of cellulose acetate fibers.

Through adopting above-mentioned technical scheme, because the top layer is woven by third yarn and fourth yarn longitude and latitude and is formed, and the third yarn is formed by a plurality of spandex fibre twists, and the spandex fibre has the high elasticity to make the looped fabric have better elasticity and ductility, the fourth yarn is formed by a plurality of vinegar cyan fibre twists, and vinegar cyan fibre has excellent anti pilling performance and excellent warmth retention property, thereby makes the looped fabric be difficult for pilling and the warmth retention is better.

Compared with the prior art, the utility model has the beneficial effects that:

the air-permeable fabric has good heat preservation and hygroscopicity, the plurality of air-permeable coils are connected between the base layer and the surface layer, the air-permeable coils comprise two air-permeable cavities, air exchange can be carried out through the air-permeable cavities when the knitted fabric is made into clothes and worn close to the skin through the arrangement of the air-permeable coils, the air permeability is effectively ensured, and the original shape can be automatically recovered after the air-permeable coils deform due to the stress of the knitted fabric, so that the air-permeable effect can be kept, the clothes made of the knitted fabric are cool when being worn, and the wearing comfort is high.

Drawings

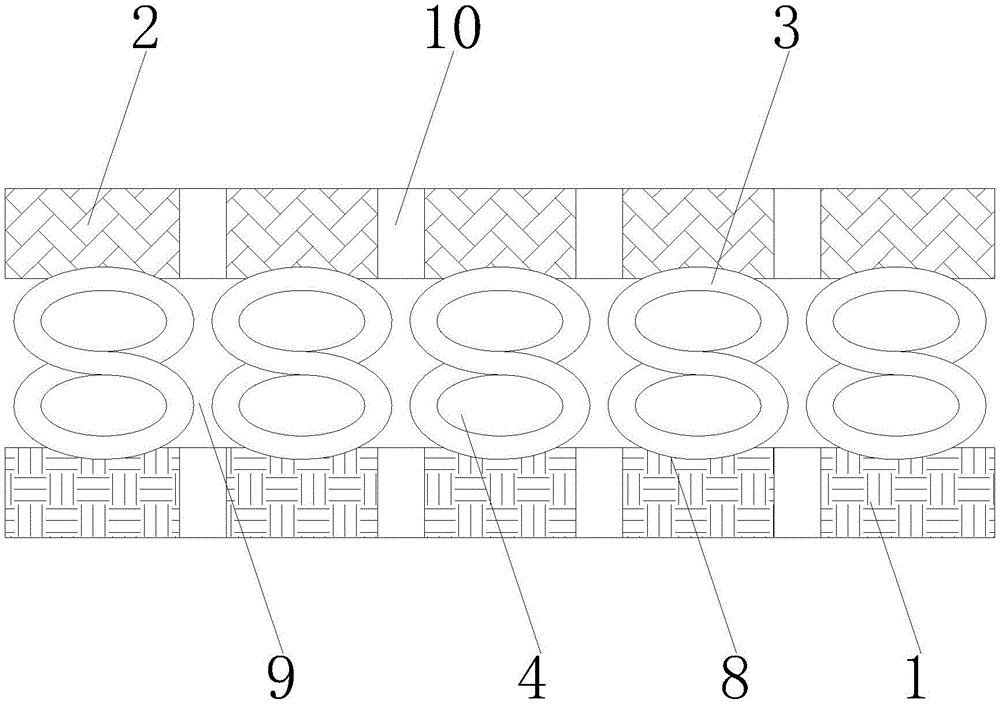

FIG. 1 is a schematic structural view of the present invention;

FIG. 2 is a schematic view of the structure of the air permeable coil of the present invention;

FIG. 3 is a schematic view of the woven structure of the base layer of the present invention;

fig. 4 is a schematic view of the weave structure of the skin layer of the present invention.

Reference numerals: 1. a base layer; 2. a surface layer; 3. a gas permeable coil; 4. a breathable cavity; 5. coating the wire; 6. a first baseline; 7. a second baseline; 8. a groove; 9. a ventilation gap; 10. a ventilation through hole; 11. a first yarn; 12. a second yarn; 13. a third yarn; 14. and a fourth yarn.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

Referring to fig. 1-4, a durable knitted dyed fabric comprises a base layer 1 and a surface layer 2, wherein the base layer 1 is formed by weaving a first yarn 11 and a second yarn 12 in a warp-weft manner, the first yarn 11 is formed by twisting a plurality of polyester fibers, the second yarn 12 is formed by twisting a plurality of viscose fibers, the surface layer 2 is formed by weaving a third yarn 13 and a fourth yarn 14 in a warp-weft manner, the third yarn 13 is formed by twisting a plurality of spandex fibers, the fourth yarn 14 is formed by twisting a plurality of cellulose acetate fibers, a plurality of air-permeable coils 3 are connected between the base layer 1 and the surface layer 2, each air-permeable coil 3 comprises two air-permeable cavities 4, each air-permeable coil 3 comprises an inner core and a cladding wire 5 spirally wound outside the inner core, each cladding wire 5 is formed by twisting a plurality of polyamide fibers, the inner core is formed by spirally twisting a base wire one 6 and a base wire two 7, and each base wire one 6 and each base wire two 7 are formed by twisting a plurality of polyether ester elastic fibers, all be formed with recess 8 through the hot pressing in the one side that basic unit 1 is relative with

top layer

2, and 3 both ends of ventilative coil all bond inside recess 8, are formed with air permeable gap 9 between adjacent ventilative coil 3, and all seted up a plurality of ventilative through-holes 10 on basic unit 1 and top layer 2, ventilative through-hole 10 all communicates each other with air permeable gap 9.

Because a plurality of breathable coils 3 are connected between the base layer 1 and the surface layer 2, and the breathable coils 3 comprise two breathable cavities 4, wherein each breathable coil 3 comprises an inner core and a covering line 5 spirally wound outside the inner core, the covering line 5 is formed by twisting a plurality of nylon fibers, and the nylon fibers have high wear resistance, so that the breathable coils 3 are wear-resistant and not easy to break, the inner core is formed by spirally twisting a first base line 6 and a second base line 7, the first base line 6 and the second base line 7 are formed by twisting a plurality of polyether ester elastic fibers, and the polyether ester elastic fibers have excellent elasticity, so that the breathable coils 3 have better resilience, the original shape can be quickly recovered after elastic deformation, and ventilation can be realized through the breathable cavities 4 when knitted fabrics are made into clothes and worn by adhering to the skin through the arrangement of the breathable coils 3, and the breathability is effectively ensured, and after the knitted fabric is stressed to lead the air-permeable coil 3 to deform, the original shape can be automatically recovered, so that the air-permeable effect can be kept, and the clothes made of the knitted fabric are cool when being worn and have high wearing comfort.

Because all be formed with recess 8 through the hot pressing in the one side that basic unit 1 is relative with top layer 2, and ventilative coil 3 both ends all bond inside recess 8, then spacing to ventilative coil 3 both ends through recess 8 for ventilative coil 3 bonds more firmly between basic unit 1 and top layer 2, is difficult for droing, thereby has effectively guaranteed the steadiness of knitted fabric structure.

Because be formed with air permeable gap 9 between adjacent ventilative coil 3, then through air permeable gap 9's setting, when the looped fabric was made the clothing and is worn, can carry out free circulation exchange through air permeable gap 9, thereby the gas permeability has effectively been promoted, it is more nice and cool comfortable when making the clothing of being made by the looped fabric to wear, and because a plurality of ventilation through-hole 10 have all been seted up on basic unit 1 and top layer 2, and ventilation through-hole 10 all communicates with air permeable gap 9 each other, then through ventilation through-hole 10's setting, make the outside air can get into air permeable gap 9 through ventilation through-hole 10, and the inside air of air permeable gap 9 also can be discharged through ventilation through-hole 10, make inside and outside air of looped fabric can circulate more smoothly, the gas permeability has further been promoted.

Because basic unit 1 is woven by

first yarn

11 and 12 longitude and latitude of second yarn and is formed, and first yarn 11 is formed by a plurality of polyester fiber twists, and polyester fiber has high strength, high tenacity and good shape preserving nature to guaranteed the intensity and the toughness of looped fabric, made the difficult fold of looped fabric, second yarn 12 is formed by a plurality of viscose fiber twists, and viscose fiber has fabulous hygroscopicity, thereby makes the looped fabric have better moisture absorption effect.

Because top layer 2 is woven by third yarn 13 and fourth yarn 14 longitude and latitude and is formed, and third yarn 13 is formed by a plurality of spandex fibre twists, and the spandex fibre has the high elasticity to make the looped fabric have better elasticity and ductility, fourth yarn 14 is formed by a plurality of vinegar cyan fibre twists, and vinegar cyan fibre has excellent anti pilling performance and excellent warmth retention property, thereby makes the looped fabric difficult to pill and warmth retention property is better.

It will be evident to those skilled in the art that the utility model is not limited to the details of the foregoing illustrative embodiments, and that the present invention may be embodied in other specific forms without departing from the spirit or essential attributes thereof. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the utility model being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.

Furthermore, it should be understood that although the present description refers to embodiments, not every embodiment may contain only a single embodiment, and such description is for clarity only, and those skilled in the art should integrate the description, and the embodiments may be combined as appropriate to form other embodiments understood by those skilled in the art.

Claims

1. A durable knitted dyed fabric is characterized in that: the base layer (1) and the surface layer (2) are included, a plurality of breathable coils (3) are connected between the base layer (1) and the surface layer (2), each breathable coil (3) comprises two breathable cavities (4), each breathable coil (3) comprises an inner core and a coating line (5) which is spirally wound on the outer side of the inner core, each coating line (5) is formed by twisting a plurality of nylon fibers, each inner core is formed by spirally twisting a first base line (6) and a second base line (7), and each of the first base line (6) and the second base line (7) is formed by twisting a plurality of polyether ester elastic fibers.

2. A durable knitted fabric according to claim 1, wherein: all form recess (8) through the hot pressing on the one side that basic unit (1) and top layer (2) are relative, ventilative coil (3) both ends all bond inside recess (8).

3. A durable knitted fabric according to claim 1, wherein: an air permeable gap (9) is formed between the adjacent air permeable coils (3).

4. A durable knitted fabric according to claim 3, wherein: a plurality of ventilation through holes (10) are formed in the base layer (1) and the surface layer (2), and the ventilation through holes (10) are communicated with the ventilation gaps (9).

5. A durable knitted fabric according to claim 1, wherein: basic unit (1) is woven by first yarn (11) and second yarn (12) longitude and latitude and is formed, first yarn (11) are twisted by a plurality of polyester fiber and are formed, second yarn (12) are twisted by a plurality of viscose fiber and are formed.

6. A durable knitted fabric according to claim 1, wherein: surface layer (2) are woven by third yarn (13) and fourth yarn (14) longitude and latitude and are formed, third yarn (13) are twisted by a plurality of spandex fibre and are formed, fourth yarn (14) are twisted by a plurality of vinegar blue or green fibre and are formed.
