Abstract

The utility model relates to a special chair for medical abortion, which comprises a chair frame and a seat plate. The utility model is characterized in that: a space for placing a container is reserved on the part of the chair frame under the seat plate, and the seat plate is provided with a hollowed-out opening, and the hollowed-out opening is provided on the seat plate. The position of the mouth corresponds to the opening of the container placed under the seat plate; armrests are provided on both sides of the seat plate on the seat frame, the height of the armrests can be adjusted up and down, and the front ends of the two armrests are installed with a table plate, the Both ends of the bottom surface of the table board are provided with buckles, which are clamped on the armrests and can be movably disassembled; the lower ends of each leg of the chair frame are sleeved with telescopic adjustable sleeve legs, and the legs are connected to the telescopic The adjustable casing legs are connected by fixing pins, the legs are provided with fixing holes for the fixing pins to pass through, and the telescopic adjustable casing legs are provided with a plurality of adjustment holes for the fixing pins to pass through. The utility model can make the medical abortion patient keep the seated position and lean on the table board when the fetus is discharged, thereby greatly improving the comfort of the patient when the fetus is discharged.

Description

Special chair for drug abortion

technical field

The utility model relates to a medical auxiliary device, in particular to a special chair for medical abortion, which belongs to the technical field of medical device design.

Background technique

For patients who have undergone medical abortion, the embryonic villus tissue must be collected, and then tested and identified to see whether the embryos are completely discharged. At present, patients generally use the toilet or spittoon to collect the fetus. When using, squatting or sitting on the toilet or spittoon, it is difficult to maintain the stable position. Moreover, the patient after medical abortion is already weak, and the above position is used to discharge the fetus. It is uncomfortable and laborious, making it unbearable for the patient.

SUMMARY OF THE INVENTION

The purpose of the utility model is to overcome the deficiencies existing in the prior art, and to provide a special chair for medical abortion, which has an ingenious structure and a reasonable design, which can allow the medical abortion patient to keep a seated position during the abortion, and greatly improve the comfort of the patient during the abortion. Spend.

According to the technical solution provided by the present utility model: a special chair for medical abortion, comprising a chair frame and a seat plate, characterized in that: a space for placing a container is reserved on the part of the chair frame under the seat plate, and the seat plate A hollowed-out opening is provided, and the position of the hollowed-out opening corresponds to the opening of the container placed under the seat plate; armrests are provided on both sides of the seat plate on the seat frame, and the height of the armrests can be adjusted up and down, and the front ends of the two armrests are provided with armrests. A table board is installed, and two ends of the bottom surface of the table board are provided with buckles, and the buckles are clipped on the armrests and can be movably removed; the lower ends of each leg of the chair frame are sleeved with telescopic adjustment sleeves The pipe legs are connected with the telescopic adjustable casing legs by fixing pins, the legs are provided with fixing holes for the fixing pins to pass through, and the telescopic adjustable casing legs are provided with several fixing holes for fixing Adjustment hole through which the pin goes through.

As a further improvement of the present invention, a front anti-skid crossbar integrally connected with the two telescopic adjustable sleeve legs on the front side of the chair frame is provided, and the two telescopic adjustable sleeves on the rear side of the chair frame A rear anti-skid cross bar integrally connected with the legs is arranged between the legs.

As a further improvement of the present invention, the seat frame is a folding seat frame, which includes a rectangular seat frame, two front legs and two rear legs, and the two front legs are arranged at the front of the rectangular seat frame. The left and right sides of the two front legs are respectively provided with small brackets on the inside of the middle of the two front legs. The small brackets are hinged with connecting pieces, and the other ends of the two connecting pieces are connected to the left and right sides of the front part of the rectangular seat plate frame through the pins respectively. Side hinged; two rear legs are arranged on the left and right sides of the rear of the rectangular seat plate frame, the upper ends of the two rear legs are hinged with the upper inner sides of the two front legs, and the middle parts of the two rear legs pass through The pin shaft is hinged with the left and right sides of the rear of the rectangular seat plate frame; the front and rear sides of the bottom surface of the seat plate are provided with card slots, which are clamped on the front and rear frames of the rectangular seat plate frame and can be movably removed.

As a further improvement of the present invention, the bottom of the seat plate is provided with a conical cylinder, the upper end of the conical cylinder is integrally connected to the bottom surface of the seat plate, and the size of the upper end opening of the conical cylinder is larger than the size of the hollow opening.

As a further improvement of the present utility model, one of the handrails is provided with a pull-out water pipe inside, and the rear end of the pull-out water pipe extends from the rear end of the handrail and is equipped with a joint, and the joint is used to connect the water source, so The front end of the pull-out water pipe protrudes from the front end of the handrail and a flushing head is installed.

As a further improvement of the present invention, two left-right symmetrical chute rods are installed on the bottom of the seat plate, and the chute rods are movably connected with the seat plate and can be moved and adjusted left and right.

As a further improvement of the present invention, the front and rear sides of the bottom of the seat plate are respectively provided with L-shaped channels, the front and rear ends of the chute rods are slidably installed in the L-shaped channels, and the outer sides of the chute rods are connected with For the adjusting screw, an adjusting frame is installed on both sides of the seat plate, a freely rotatable nut is installed at the lower end of the adjusting frame, and the adjusting screw is screwed into the nut.

As a further improvement of the present invention, a plug-in cylinder is welded on both sides of the upper part of the front leg respectively, the plug-in cylinder is provided with a fastening screw, the rear end of the armrest is provided with a bent plug-in rod, the bending The folding and inserting rod is inserted into the inserting cylinder and is fastened and fixed by tightening screws.

As a further improvement of the present invention, the chair frame is also provided with a backrest, the backrest is arranged between the two front legs, and the two ends of the backrest are respectively sleeved on the upper ends of the two front legs.

As a further improvement of the present invention, the upper end of the front leg is provided with a backward L-shaped bent portion, and the two ends of the backrest are respectively sleeved on the L-shaped bent portion; the middle of the backrest is provided with a lifting hole.

Compared with the prior art, the utility model has the following advantages:

1), the utility model is ingenious in structure and reasonable in design. By setting a hollow port on the seat plate, and placing a container under the seat plate corresponding to the hollow port, the patient can sit on the seat plate to perform tire rowing, and the two arms can be placed on the armrests on both sides. , the overall feeling is more comfortable; patients can also adjust the height of the seat plate and armrest according to the height of the container or their own conditions to improve comfort.

2), one of the handrails of the present utility model is provided with a pull-type water pipe, and the pull-type water pipe is connected with a flushing head. After the patient has finished discharging the tire, the flushing head can be used for simple flushing, so as to avoid the embryonic villus tissue remaining in the cone. into the barrel without falling into the container.

3), the utility model is further equipped with two symmetrical chute rods at the bottom of the seat plate, and the chute rods are movably connected with the seat plate and can be moved left and right to adjust, so that the container for holding the embryonic fluff tissue can be placed in the Above the chute rod, for a container with a lower height, placing it on the chute rod can ensure that the opening of the container and the conical cylinder maintain a suitable distance. And because the chute rod can be moved left and right, it can be applied to containers of various specifications.

Description of drawings

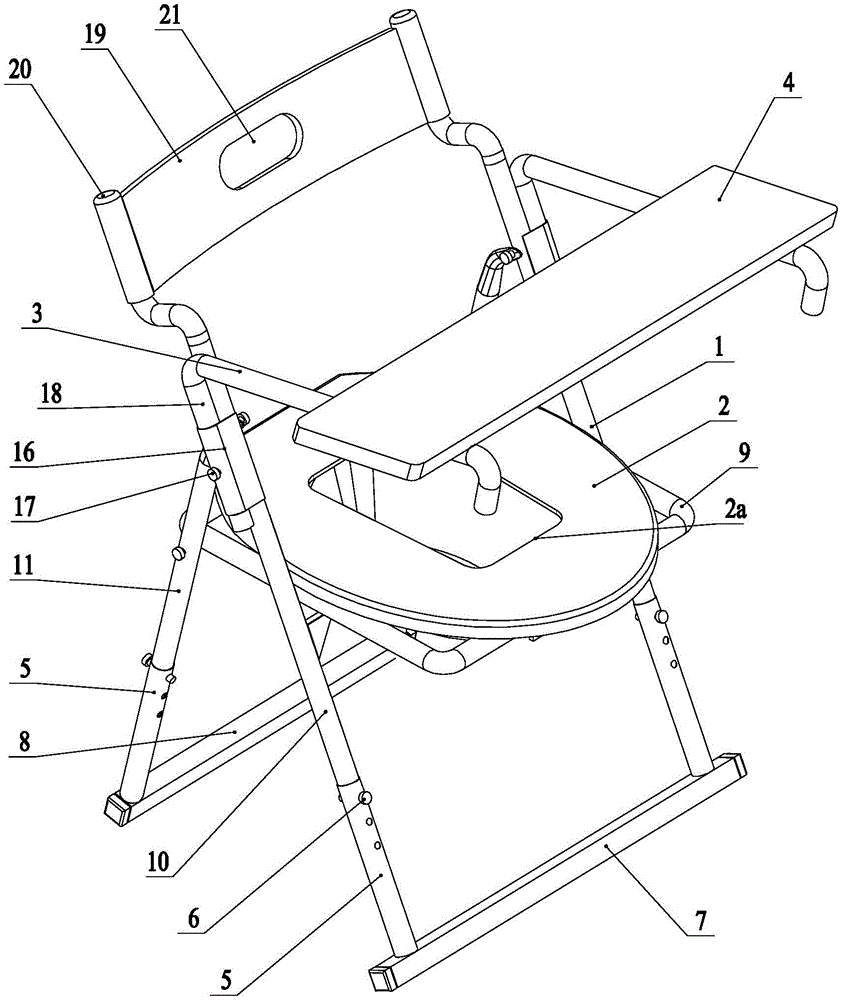

FIG. 1 is a schematic three-dimensional structure diagram of Embodiment 1 of the present invention.

FIG. 2 is a front view of the structure of Embodiment 1 of the present utility model after the table board is removed.

FIG. 3 is a side view of the structure of Embodiment 1 of the present invention after the table board is removed.

FIG. 4 is a front view of the structure of the table board in Embodiment 1 of the present utility model.

FIG. 5 is a schematic three-dimensional structure diagram of Embodiment 2 of the present utility model when no table board is installed.

6 is a schematic structural diagram of a seat plate in Embodiment 3 of the present invention.

Description of reference numerals: 1-chair frame, 2-seat plate, 2a-hollow opening, 3-armrest, 4-table board, 4a-buckle, 5-telescopic adjustable sleeve legs, 6-fixing pin, 7- Front anti-skid crossbar, 8-rear anti-skid crossbar, 9-rectangular seat frame, 10-front outrigger, 11-rear outrigger, 12-small bracket, 13-connecting piece, 14-card slot, 15-cone Cylinder, 16- Insertion Cylinder, 17- Fastening Screw, 18- Bending Insertion Rod, 19- Backrest, 20- L-shaped Bending Part, 21- Lifting Hole, 22- Pulling Water Pipe, 23- Joint, 24 -Rinse head, 25-chute rod, 26-L-shaped channel, 27-adjustment screw, 28-adjustment frame, 29-nut.

Detailed ways

The utility model will be further described below in conjunction with the specific drawings and embodiments.

Example 1

As shown in FIG. 1 to FIG. 4 , Embodiment 1 discloses a special chair for medical abortion, including a chair frame 1 and a seat plate 2 , and a part of the chair frame 1 located under the seat plate 2 is reserved for placing containers. The seat plate 2 is provided with a hollow opening 2a, and the position of the hollow opening 2a corresponds to the opening of the container placed under the seat plate 2; the seat plate 2 on the seat frame 1 is provided with armrests 3 on both sides, The height of the armrests 3 can be adjusted up and down, the front ends of the two armrests 3 are installed with a table board 4, and the two ends of the bottom surface of the table board 4 are provided with buckles 4.1, and the buckles 4.1 are clipped on the armrests 3 and can be Active disassembly; the lower end of each leg of the chair frame 1 is sleeved with a telescopic adjustable sleeve leg 5, and the outrigger and the telescopic adjustable sleeve leg 5 are connected by a fixing pin 6. A fixing hole for the fixing pin 6 to pass through is provided, and a plurality of adjustment holes for the fixing pin 6 to pass through are provided on the telescopic adjustment sleeve leg 5 .

For specific use, first place the container [such as a bedpan or spittoon] for receiving the embryonic villus tissue in the space under the seat plate 2, and adjust the position of the container so that the opening of the container corresponds to the position of the hollow opening 2a, and the patient sits The tires are arranged on the seat plate 2, the arms can be placed on the armrests 3 on both sides, and the overall feeling is more comfortable; and because the lower end of each leg of the seat frame 1 is sleeved with telescopic adjustable sleeve legs 5, The patient can also adjust the relative position between the telescopic adjustable cannula leg 5 and the outrigger according to the height of the container or their own conditions [pull out the fixing pin 6, pull the telescopic adjustable cannula leg 5, adjust it to a suitable position and then reinsert it. Fixing pin 6], so as to adjust the height of the seat plate 2. The patient can also adjust the height of the armrest 3 according to his own needs to improve the comfort; when the patient feels pain, he can also lie on the table board 4, which is safer, and the table board 4 can be moved back and forth along the handrail 3 to adjust, allowing The patient chooses a suitable lying position according to their own conditions; when the table 4 is not in use, one end can be removed and hung on the armrest 3 or completely removed.

As shown in FIGS. 1 to 3 , in Embodiment 1, a front anti-skid cross bar 7 integrally connected with the two telescopic adjustable sleeve legs 5 on the front side of the chair frame 1 is provided. 1. A rear anti-skid cross bar 8 integrally connected with the two telescopic and adjustable casing legs 5 on the rear side is provided. With this arrangement, the seat frame 1 can be placed on the ground more stably, and the safety of use can be improved.

As shown in FIGS. 1 to 3 , in Embodiment 1, the seat frame 1 is a foldable seat frame 1 , which includes a rectangular seat frame 9 , two front legs 10 and two rear legs 11 . The front legs 10 are arranged on the left and right sides of the front part of the rectangular seat plate frame 9, and the inner sides of the middle parts of the two front legs 10 are respectively provided with small brackets 12. The other end of the sheet 13 is hinged with the left and right sides of the front part of the rectangular seat plate frame 9 through pins respectively; the two rear legs 11 are arranged on the left and right sides of the rear part of the rectangular seat plate frame 9. The upper end is hinged with the upper inner sides of the two front legs 10, and the middle parts of the two rear legs 11 are hinged with the left and right sides of the rear of the rectangular seat plate frame 9 through pins respectively; the front and rear sides of the bottom surface of the seat plate 2 A card slot 14 is provided on the side, and the card slot 14 is clipped on the front and rear frames of the rectangular seat plate frame 9 and can be movably removed. In this way, the chair frame 1 can be folded up when not in use, which is convenient for placement and does not occupy space.

As shown in FIG. 2 and FIG. 3 , in Embodiment 1, the bottom of the seat plate 2 is provided with a conical cylinder 15 , the upper end of the conical cylinder 15 is integrally connected to the bottom surface of the seat plate 2 , and the conical cylinder 15 is The size of the opening at the upper end is larger than the size of the hollow opening 2a. With this arrangement, the opening of the container can be covered on the lower end of the conical cylinder 15 during use, so that the embryonic villi tissue discharged by the patient completely falls into the container.

As shown in FIG. 1 and FIG. 3 , in this embodiment 1, the upper sides of the front legs 10 are respectively welded with plug-in cylinders 16 , and the plug-in cylinders 16 are provided with fastening screws 17 , and the armrest 3 The rear end is provided with a bending insertion rod 18 , and the bending insertion rod 18 is inserted into the insertion cylinder 16 and is locked and fixed by a tightening screw 17 . With this arrangement, the armrest 3 can not only be adjusted up and down, but also can be disassembled when not in use or when stored.

As shown in FIGS. 1 to 3 , in Embodiment 1, the seat frame 1 is further provided with a backrest 19 , the backrest 19 is arranged between the two front legs 10 , and the two ends of the backrest 19 are respectively sleeved on the two front legs 10 . The upper ends of the front legs 10. With this arrangement, the patient can be supported by the backrest 19 while sitting on the chair, which is more comfortable to use.

As shown in FIGS. 1 to 3 , in the first embodiment, the upper end of the front leg 10 is provided with a backward L-shaped bent portion 20 , and the two ends of the backrest 19 are respectively sleeved on the L-shaped bent portion 20 . upper; the middle of the backrest 19 is provided with a lifting hole 21 . With this arrangement, when the patient leans on the backrest 19, the patient can have a larger range of reclining, which further improves the comfort of use. The lifting hole 21 on the backrest 19 is convenient for carrying and storing this special chair.

Example 2

As shown in FIG. 5 , Embodiment 2 discloses a method that differs from Embodiment 1 in that: one of the handrails 3 is provided with a pull-out water pipe 22 inside, and the rear end of the pull-out water pipe 22 extends from the back of the handrail 3 . The rear end protrudes and is installed with a joint 23, the joint 23 is used to connect the water source, and the front end of the pull-out water pipe 22 extends from the front end of the handrail 3 and is installed with a flushing head 24. With this arrangement, after the patient completes the discharge, the front end of the pull-out water pipe 22 can be pulled out, and the flushing head 24 can be used for simple flushing, so as to avoid embryonic villi remaining in the conical cylinder 15 and not falling into the container.

Example 3

As shown in FIG. 6 , Embodiment 3 discloses a method that differs from Embodiment 1 in that: the bottom of the seat plate 2 is installed with two left-right symmetrical chute rods 25 , and the chute rods 25 are connected to the seat plate. 2 Active connection and can move left and right to adjust. In this way, the container for receiving the embryonic villi can be placed on the chute rod 25, and for a container with a lower height, placing the chute rod 25 can ensure that the opening of the container and the conical cylinder 15 are between the Keep an appropriate distance. Moreover, since the chute rod 25 can be moved and adjusted left and right, it can be applied to containers of various specifications.

As shown in FIG. 6 , in the third embodiment, the front and rear sides of the bottom of the seat plate 2 are respectively provided with L-shaped grooves 26 , and the front and rear ends of the sliding groove rods 25 are slidably installed in the L-shaped grooves 26 . An adjustment screw 27 is connected to the outer side of the chute rod 25 , an adjustment frame 28 is installed on both sides of the seat plate 2 , a freely rotatable nut 29 is installed at the lower end of the adjustment frame 28 , and the adjustment screw 27 is threadedly installed on the nut 29 Inside. In this way, by rotating the nut 29, the adjusting screw 27 can be driven to move left and right along the L-shaped channel 26 with the chute rod 25.

The above descriptions are only preferred embodiments of the present invention, and the above-mentioned specific embodiments are not intended to limit the present invention. Within the scope of the technical idea of the present invention, various deformations and modifications may occur, and all modifications, modifications or equivalent replacements made by those of ordinary skill in the art according to the above descriptions belong to the scope of protection of the present invention.

Claims (10)

1. a special chair for medical abortion, comprising a chair frame (1) and a seat plate (2), characterized in that: a space for placing a container is left on the seat frame (1) at the position below the seat plate (2), The seat plate (2) is provided with a hollow opening (2a), and the position of the hollow opening (2a) corresponds to the opening of the container placed under the seat plate (2); the seat plate (2a) on the seat frame (1) 2) Handrails (3) are provided on both sides, the height of the handrails (3) can be adjusted up and down, the front ends of the two handrails (3) are installed with table plates (4), and the two bottom surfaces of the table plates (4) are The end is provided with a buckle (4.1), the buckle (4.1) is clipped on the armrest (3) and can be movably removed; the lower end of each leg of the chair frame (1) is sleeved with a telescopic adjustment sleeve Tube legs (5), the legs are connected with the telescopic adjustable casing legs (5) by fixing pins (6), the legs are provided with fixing holes for the fixing pins (6) to pass through, the A plurality of adjustment holes for the fixing pins (6) to pass through are arranged on the telescopic adjustment sleeve legs (5). 2. The special chair for medical abortion as claimed in claim 1, characterized in that: between the two telescopic and adjustable casing legs (5) on the front side of the chair frame (1), there is a front integrated connection with the two. The anti-skid cross bar (7) is provided with a rear anti-skid cross bar (8) integrally connected with the two telescopic and adjustable casing legs (5) on the rear side of the chair frame (1). 3. The special chair for medical abortion according to claim 1, characterized in that: the chair frame (1) is a folding chair frame (1), which comprises a rectangular seat plate frame (9), two front legs ( 10) and two rear outriggers (11), the two front outriggers (10) are arranged on the left and right sides of the front part of the rectangular seat plate frame (9), and the inner sides of the middle of the two front outriggers (10) are respectively provided with A small bracket (12), a connecting piece (13) is hinged on the small bracket (12), and the other ends of the two connecting pieces (13) are respectively connected to the left and right side edges of the front part of the rectangular seat plate frame (9) through a pin shaft hinged; two rear legs (11) are arranged on the left and right sides of the rear of the rectangular seat plate frame (9), the upper ends of the two rear legs (11) and the upper inner sides of the two front legs (10) Hinged, the middle parts of the two rear legs (11) are hinged with the left and right sides of the rear of the rectangular seat plate frame (9) through pins respectively; 14), the card slot (14) is clamped on the front and rear frames of the rectangular seat plate frame (9) and can be movably removed. 4. The special chair for medical abortion according to claim 1, characterized in that: the bottom of the seat plate (2) is provided with a conical cylinder (15), and the upper end of the conical cylinder (15) is integrally connected to the seat plate (15). 2) on the bottom surface, and the size of the upper end opening of the conical cylinder (15) is larger than the size of the hollow opening (2a). 5. The special chair for medical abortion according to claim 1, characterized in that: a pull-out water pipe (22) is provided inside one of the armrests (3), and the rear end of the pull-out water pipe (22) extends from the armrest The rear end of (3) protrudes and is installed with a joint (23), the joint (23) is used to connect the water source, and the front end of the pull-out water pipe (22) protrudes from the front end of the handrail (3) and is installed with Rinse head (24). 6. The special chair for medical abortion according to claim 1, characterized in that: the bottom of the seat plate (2) is provided with two left-right symmetrical chute rods (25), the chute rods (25) and the The seat plate (2) is movably connected and can be moved left and right to adjust. 7 . The special chair for medical abortion according to claim 6 , wherein the front and rear sides of the bottom of the seat plate ( 2 ) are respectively provided with L-shaped channels ( 26 ). Both ends are slidably installed in the L-shaped channel (26), the outer side of the sliding channel rod (25) is connected with an adjusting screw (27), and two sides of the seat plate (2) are installed with an adjusting frame (28) to adjust A freely rotatable nut (29) is installed at the lower end of the frame (28), and the adjusting screw rod (27) is screwed into the nut (29). 8. The special chair for medical abortion according to claim 3, characterized in that: plug-in barrels (16) are respectively welded on both sides of the upper part of the front legs (10), and the plug-in barrels (16) are provided with The tightening screw (17), the rear end of the handrail (3) is provided with a bending insertion rod (18), and the bending insertion rod (18) is inserted into the insertion cylinder (16) and is passed through the tightening screw (18). 17) Lock and fix. 9. The special chair for medical abortion according to claim 3, characterized in that: the chair frame (1) is further provided with a backrest (19), and the backrest (19) is provided on the two front legs (10) In between, the two ends of the backrest (19) are respectively sleeved on the upper ends of the two front legs (10). 10. The special chair for medical abortion according to claim 9, wherein the upper end of the front leg (10) is provided with a backward L-shaped bending portion (20), and the two ends of the backrest (19) are respectively It is sleeved on the L-shaped bending part (20); the middle part of the backrest (19) is provided with a lifting hole (21).
